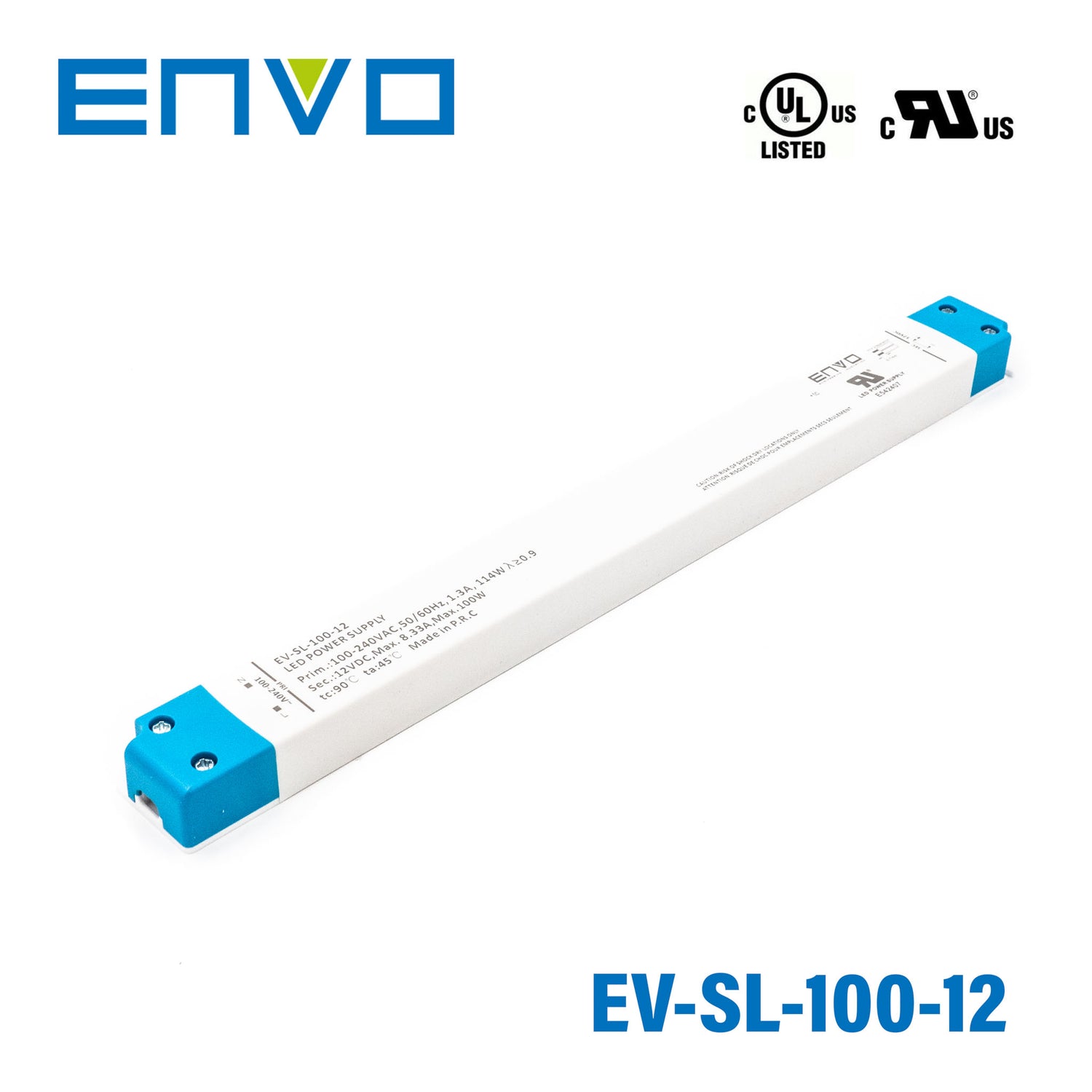

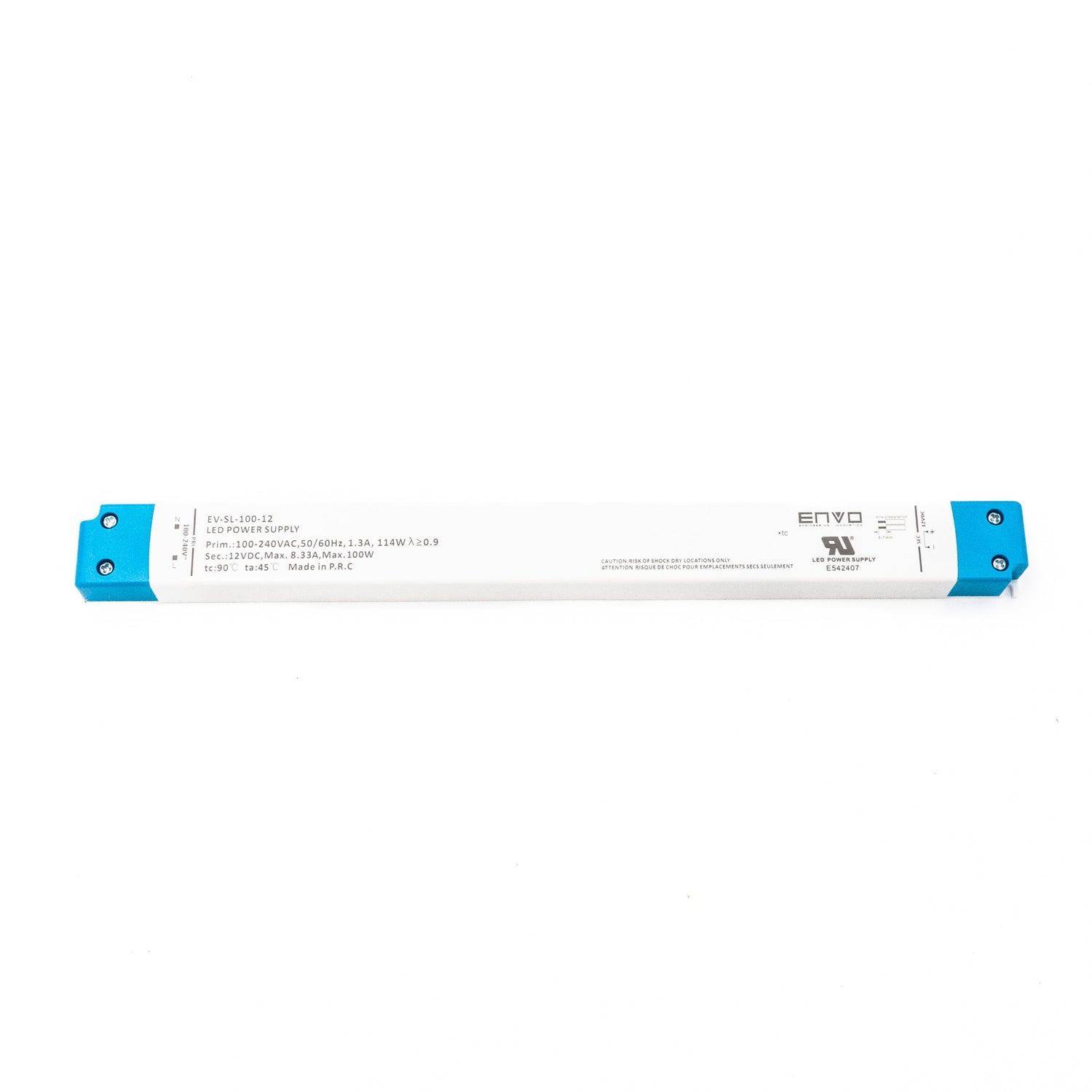

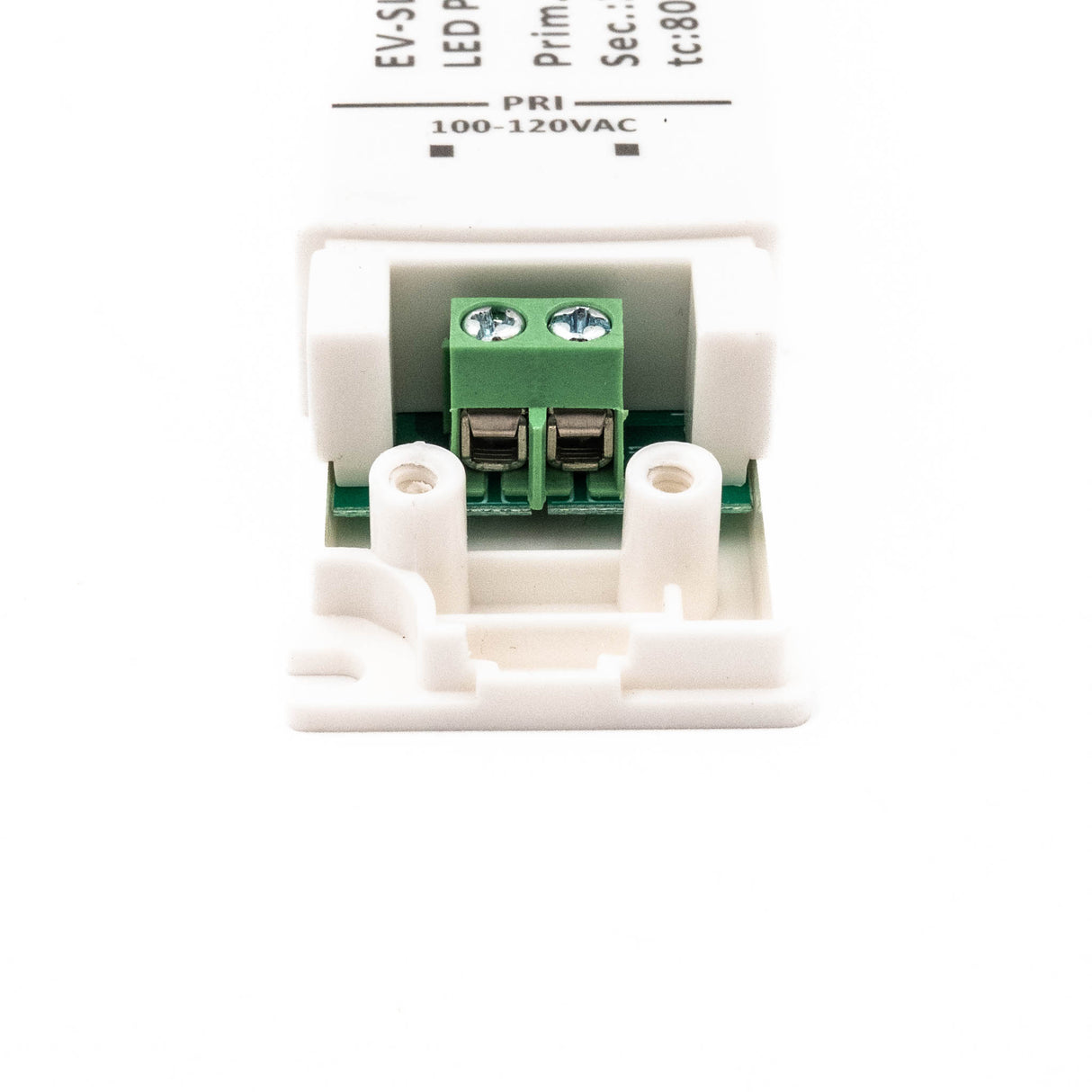

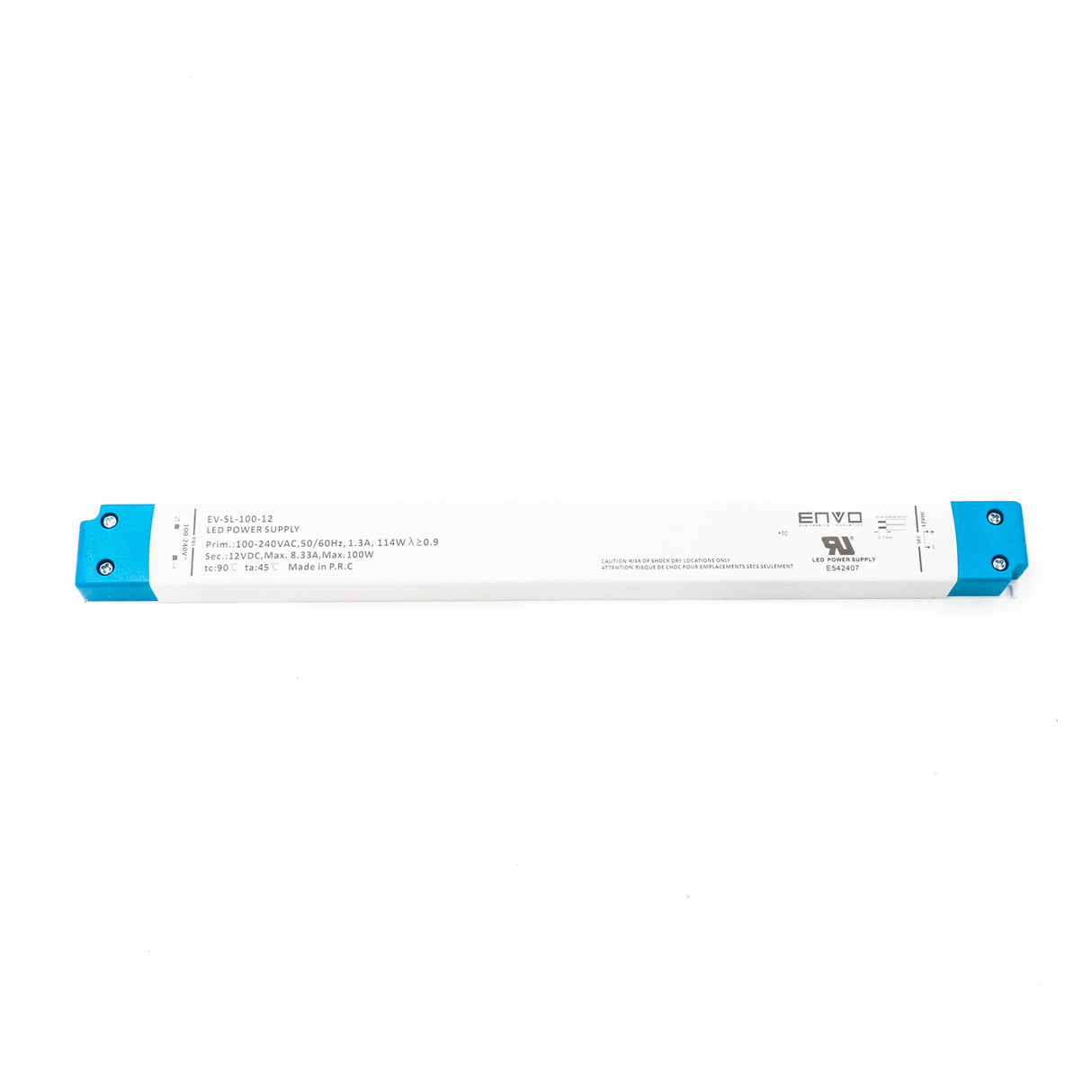

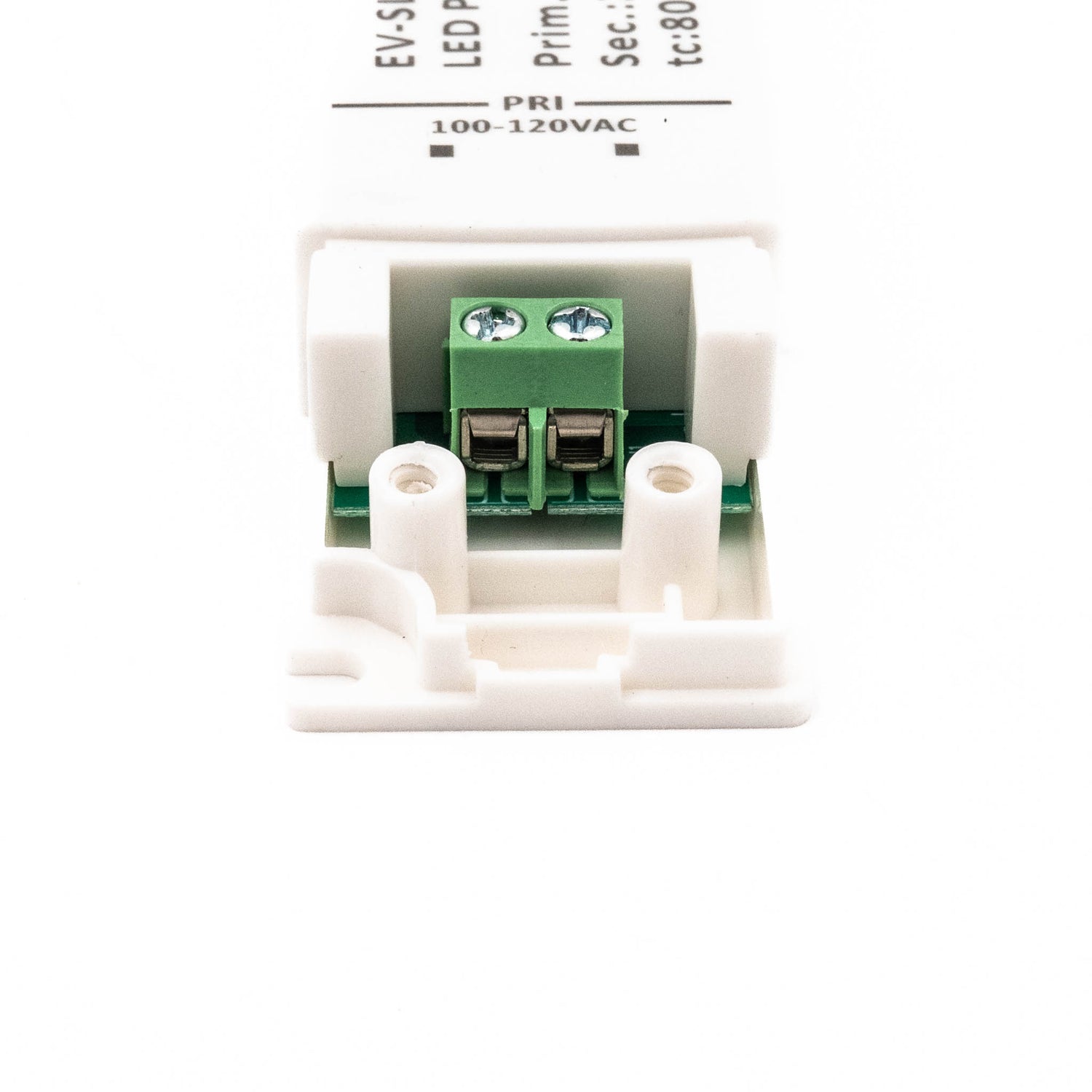

ENVO EV-SL-100-12 Linear LED Power Supply 100W 12V 8.33A
10% off 10+ units
Mix & match any ENVO LED drivers. US orders, applied automatically at checkout.
Notify me when it's back in stock
Your order will be processed within 24 hours
ENVO EV-SL-100-12 Linear LED Power Supply 100W 12V 8.33A
Overview
High cost performance, designed with open circuit, short circuit overload, and overtemperature protection. Meets Class II requirements. Warranty is 5 years.
Specifications
Input
- Input voltage
- 100-240Vac
- Input frequency
- 50Hz/60Hz
- Input current
- <1.3A
- Input power
- <114W
- Efficiency
- ≥ 89%
- StandbyAverage
- <0.5W
- Inrush currentPeak
- <75A
- PF
- ≥ 0.9
Output
- Startup time230Vac50Hz
- 0.5s
- Output voltage and precision13V
- 12V ±5%
- Output current range
- 0-8.33A
- Output voltage waveVp-p
- <500mV
- Output overload
- Yes
Environment
- Relative humidity
- 45%-85%
- IP grade
- IP20
Others
- Lifetime
- 30,000hr
- Safety
- IEC61347-1 IEC61347-2-13 Combine with light IEC60598
Certifications & ratings
- Marked features
- Class II
- Certification marks
- CE, UKCA, cRUus
Technical drawings
Downloads
Datasheet1
FAQ
What is the ENVO EV-SL-100-12 used for?
It is a 100W constant voltage LED driver designed for indoor lighting applications, such as LED strips and panels, requiring a 12V DC supply.
What is the input voltage range?
The unit accepts a universal input voltage of 100-240Vac at 50/60Hz, making it suitable for global use without a selector switch.
What are the output specifications?
It provides a constant 12V DC output with a current range of 0-8.33A. The output voltage precision is ±5%.
What protections does the driver have?
It includes open circuit, short circuit, overload, overvoltage, and overtemperature protection. Overload and short circuit faults feature auto-recovery.
What is the IP rating and operating temperature?
The unit has an IP20 rating, meaning it is for indoor use only. The operating temperature range is -20°C to 45°C.
Which certifications does it hold?
The driver is CE, UKCA, and cRUus certified. It meets Class II insulation requirements and complies with IEC61347-1 and IEC61347-2-13 safety standards.
What is the warranty period?
The product comes with a 5-year warranty.
