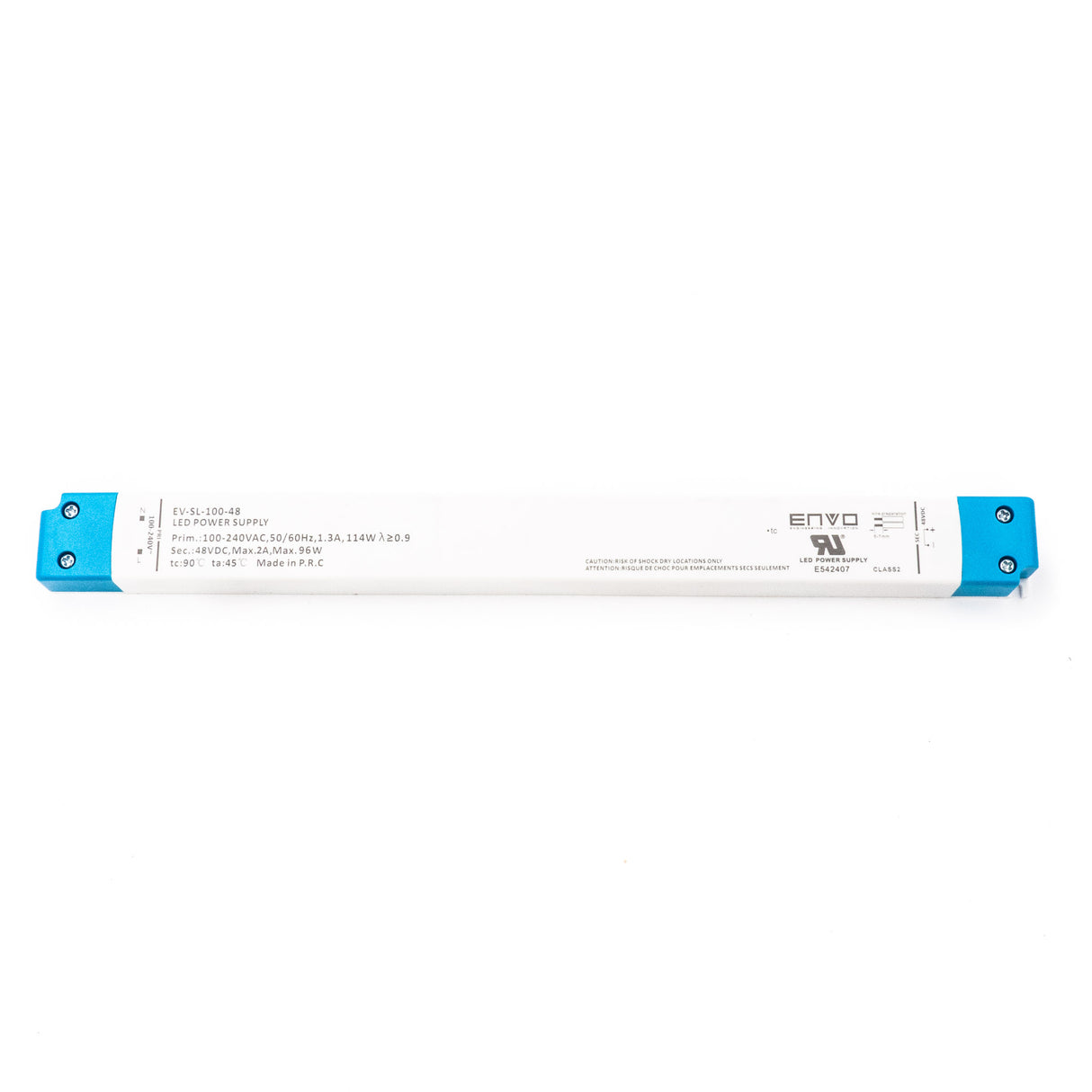

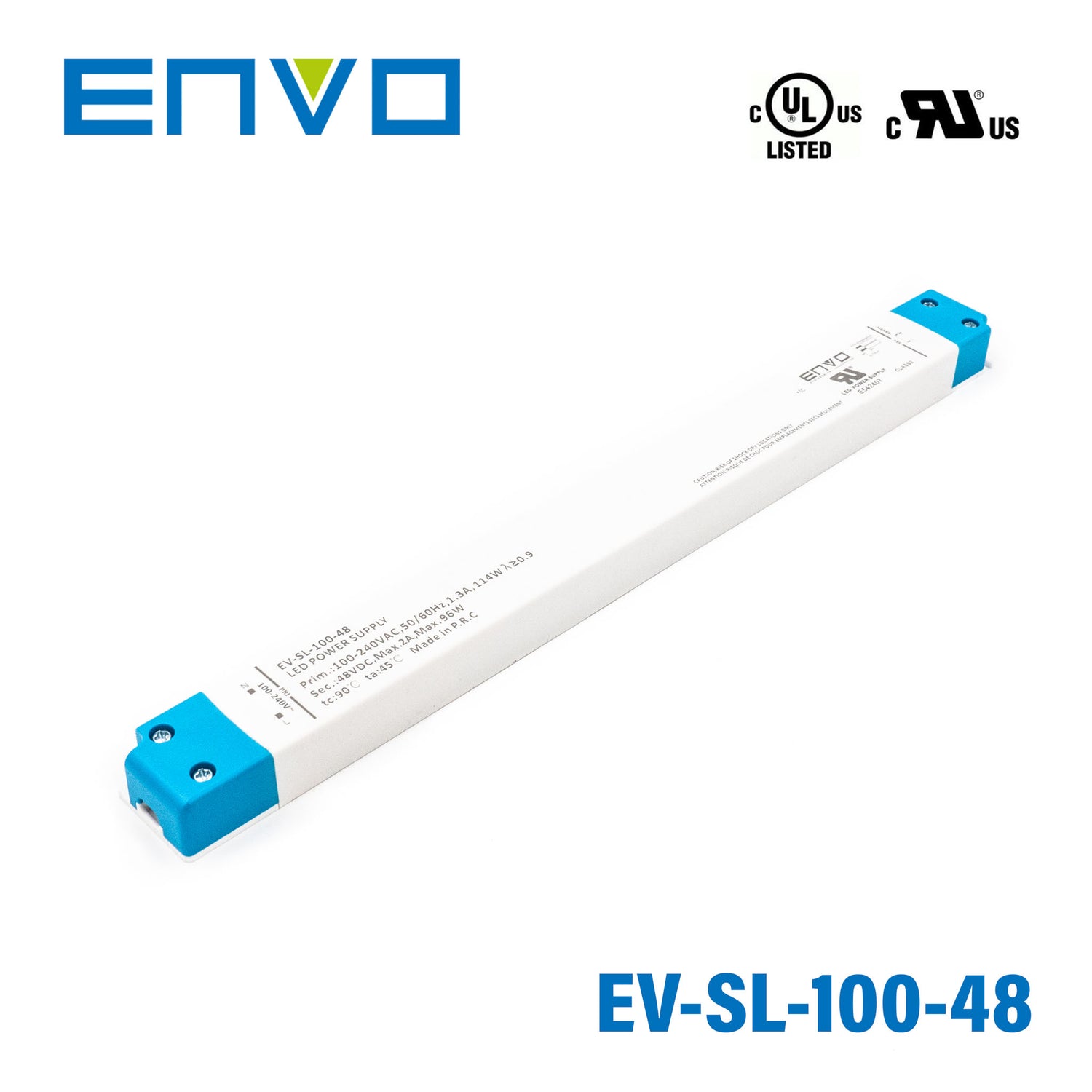

ENVO EV-SL-100-48 Linear LED Power Supply 100W 48V 2.08A
10% off 10+ units
Mix & match any ENVO LED drivers. US orders, applied automatically at checkout.
Notify me when it's back in stock
Your order will be processed within 24 hours
ENVO EV-SL-100-48 Linear LED Power Supply 100W 48V 2.08A
Overview
High cost performance, SELV. Features open circuit, short circuit overload, and overtemperature protection. Meets Class II requirements Warranty is 5 years.
Specifications
Input
- Input voltage
- 100-240Vac
- Input frequency
- 50Hz/60Hz
- Input current
- <1.3A
- Input power
- <114W
- Efficiency
- ≥ 89%
- StandbyAverage
- <0.5W
- Inrush currentPeak
- <75A
- PF
- ≥ 0.9
Output
- Startup time230Vac50Hz
- 0.5S
- Output voltage and precision50V
- 48V± 5%
- Output current range
- 0-2.08A
- Output voltage waveVp-p
- <500mV
- Output overload
- Yes
Environment
- Relative humidity
- 45%-85%
- IP grade
- IP20
Others
- Lifetime
- 30,000hr
- EMI
- IEC55015, FCC PART 15B
- Safety
- IEC61347-1 IEC61347-2-13 Combine with light IEC60598
Certifications & ratings
- Marked features
- SELV, Class II
- Certification marks
- CE, UKCA, cRUus
Technical drawings
Downloads
Datasheet1
FAQ
What is the EV-SL-100-48 used for?
It is a 100W linear type LED driver providing a constant 48V output, suitable for indoor LED lighting applications.
What is the input voltage range?
The unit accepts a universal input voltage of 100-240Vac at 50/60Hz.
What are the output specifications?
It delivers 48V with a current range of 0-2.08A. The output voltage precision is ±5%.
What protections are included?
It features open circuit, short circuit, overload, over temperature, and over voltage protection. Overload, short circuit, and over heat faults auto-recover.

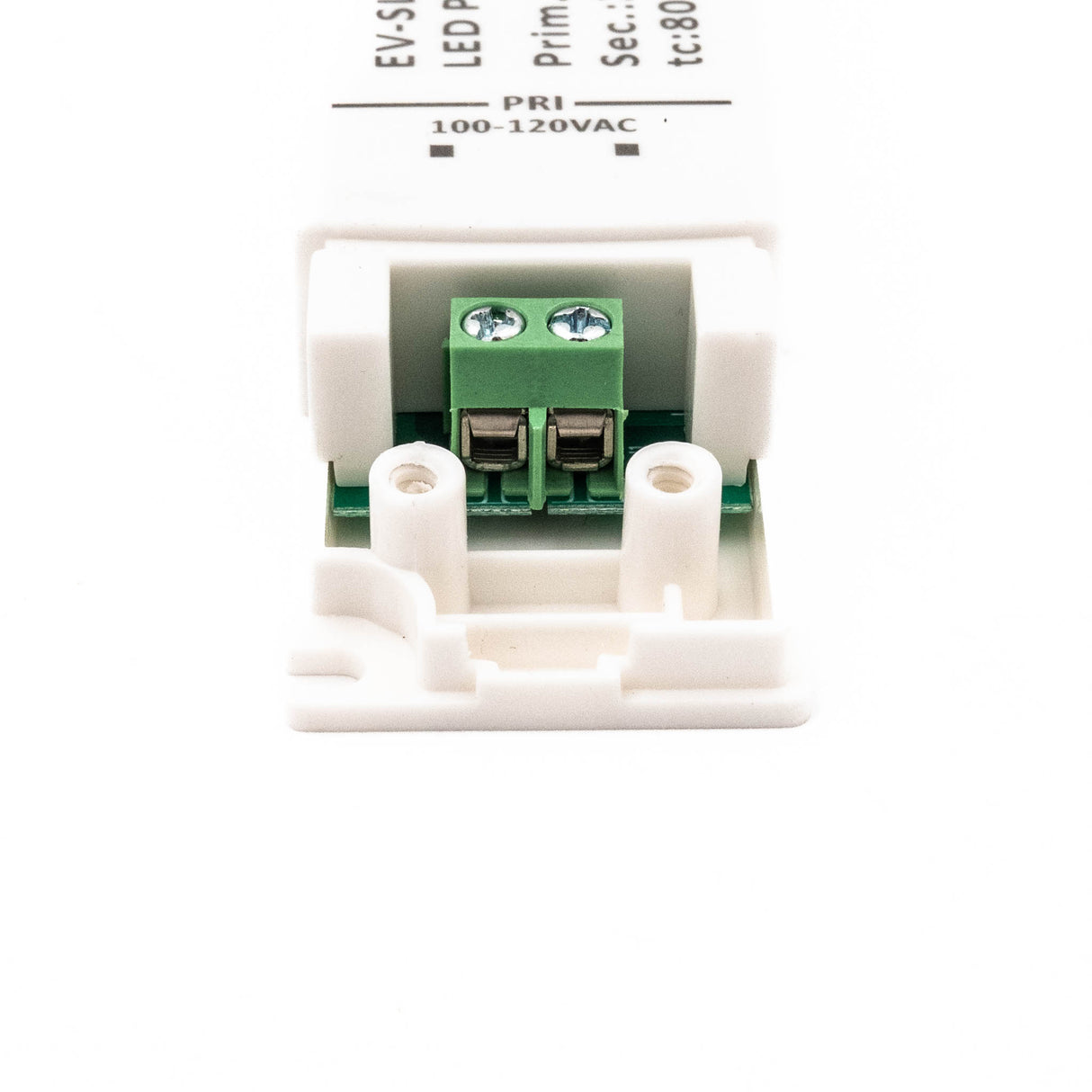

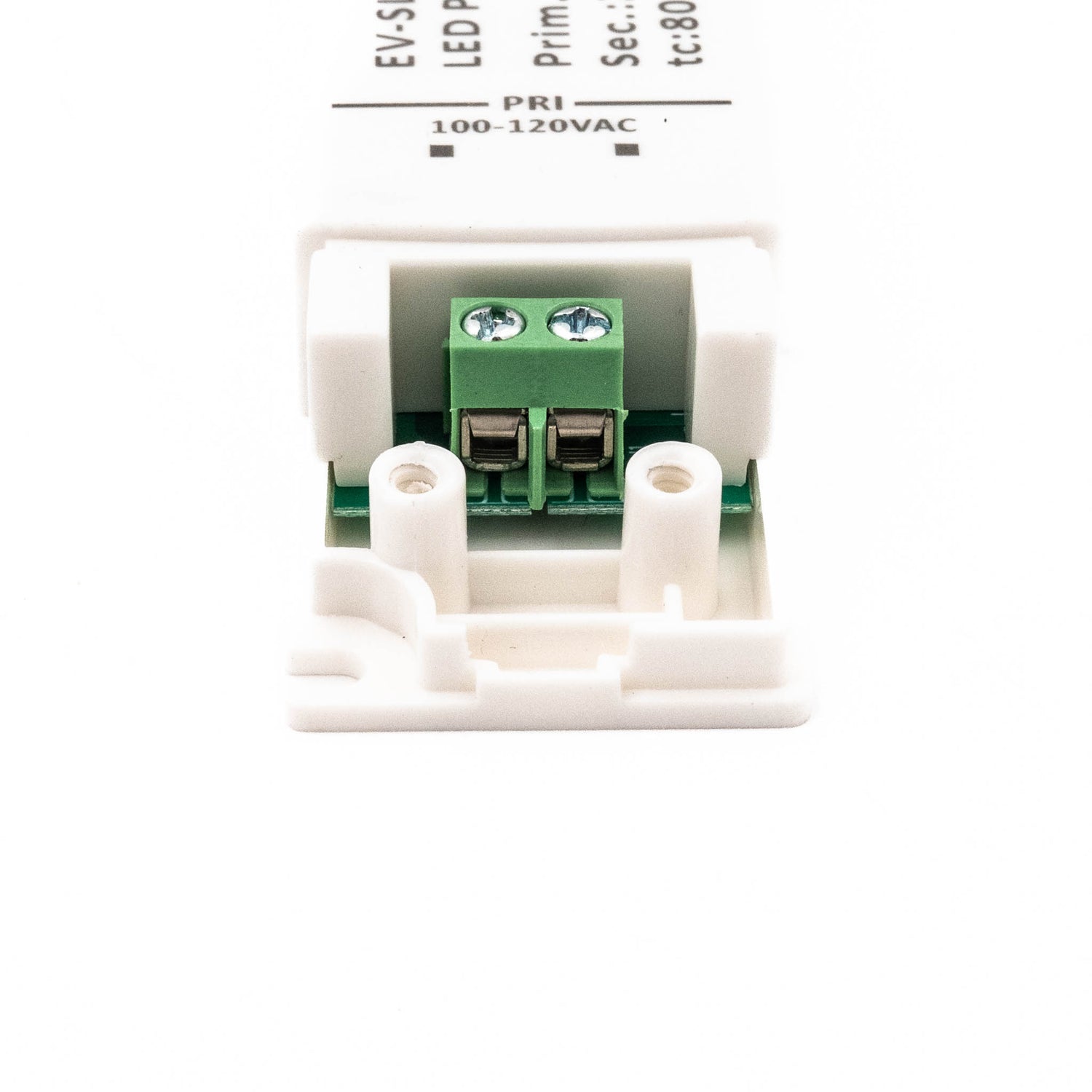

How is it mounted and connected?
It has an IP20 plastic case for independent mounting. Connections are made via terminal blocks for both input and output.
What is the operating temperature range?
The unit operates in ambient temperatures from -20°C to 45°C with relative humidity between 45% and 85%.
What is the warranty period?
The product comes with a 5-year warranty.
