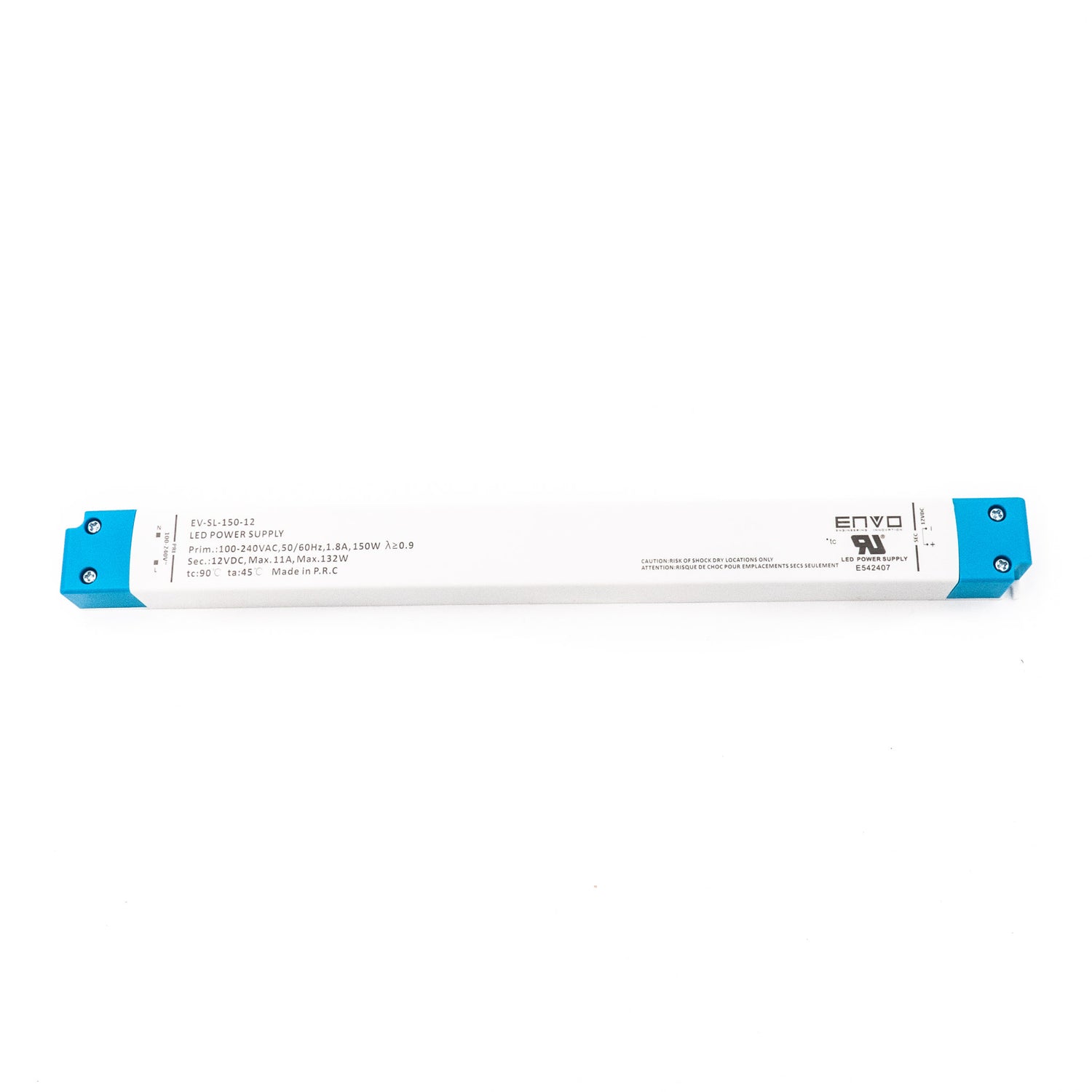

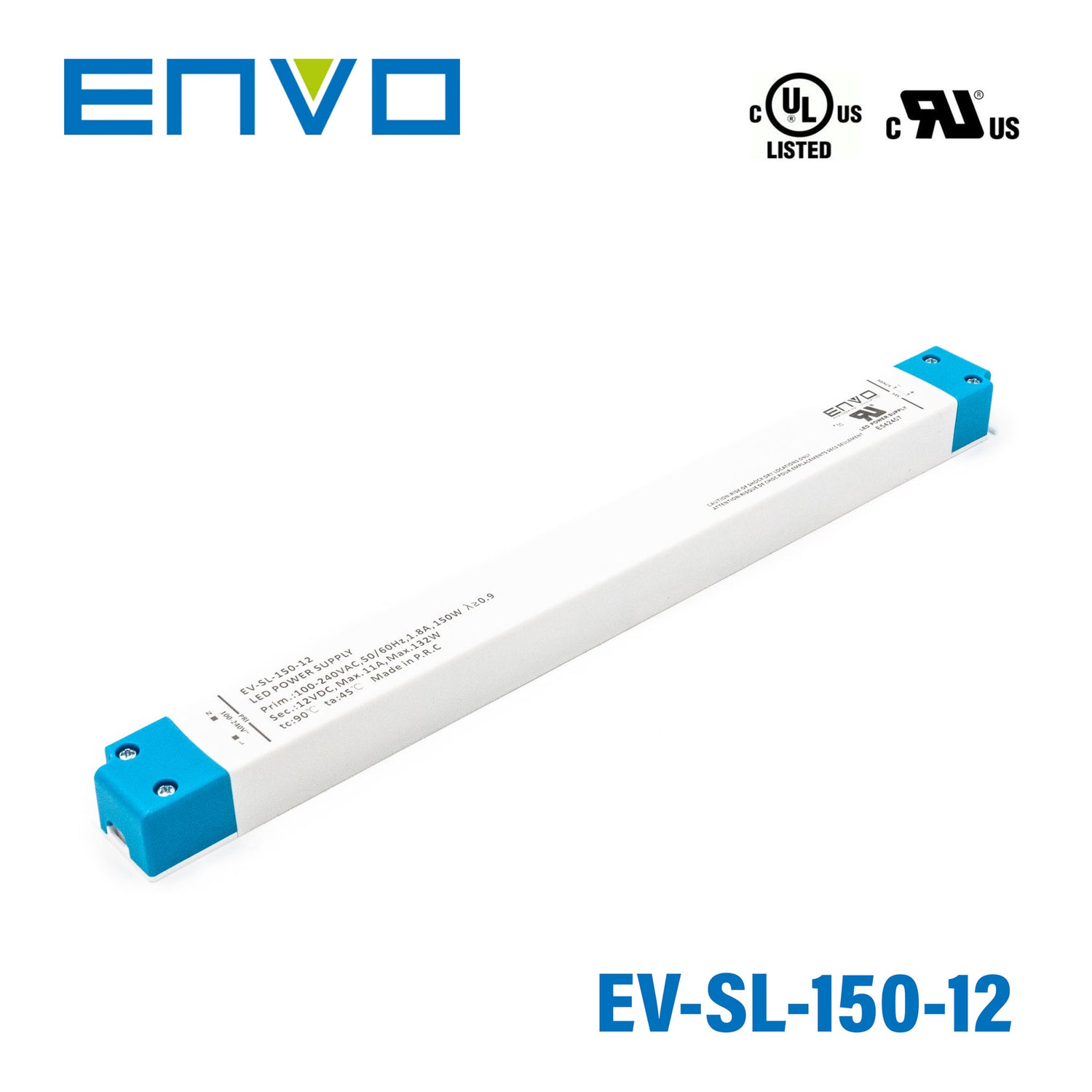

ENVO EV-SL-150-12 Linear LED Power Supply 150W 12V 11A
10% off 10+ units
Mix & match any ENVO LED drivers. US orders, applied automatically at checkout.
Notify me when it's back in stock
Your order will be processed within 24 hours
ENVO EV-SL-150-12 Linear LED Power Supply 150W 12V 11A
Overview
High cost performance, SELV. Features open circuit, short circuit overload, and overtemperature protection. Compliance with ERP directive. Warranty is 5 years.
Specifications
Input
- Input voltage
- 100-240Vac
- Input frequency
- 50/60Hz
- Input current
- <1.8A
- Input power
- <150W
- EfficiencyTyp.
- ≥ 92%
- StandbyAverage
- <0.21W
- Inrush currentPeak
- <75A
- PF
- ≥ 0.9
Output
- Startup time
- 0.5S
- Output voltage and precision
- 12V± 5%
- Output current range
- 0-11A
- Output voltage waveVp-p
- 300mV
- Output overload
- Yes
Environment
- Relative humidity
- 45%-85%
- IP grade
- IP20
Others
- Lifetime
- 30,000hr
- EMI
- EN55015,FCC part 15 class B
- Safety
- IEC61347-1 IEC61347-2-13
- Case material and size
- Plastic case
Certifications & ratings
- Marked features
- SELV
- Certification marks
- CE, UKCA, cRUus
Technical drawings
Downloads
Datasheet1
FAQ
What is the EV-SL-150-12 used for?
It is a 150W constant voltage LED driver designed for indoor linear lighting applications, providing a stable 12V output.
What are the input and output ratings?
It accepts a universal 100-240Vac input and delivers 12V DC at up to 11A. The efficiency is typically 92% or higher.
Does it have built-in protections?
Yes, it features open circuit, short circuit, overload, overvoltage, and overtemperature protection. Overload and short circuit faults auto-recover.
How is it mounted and connected?

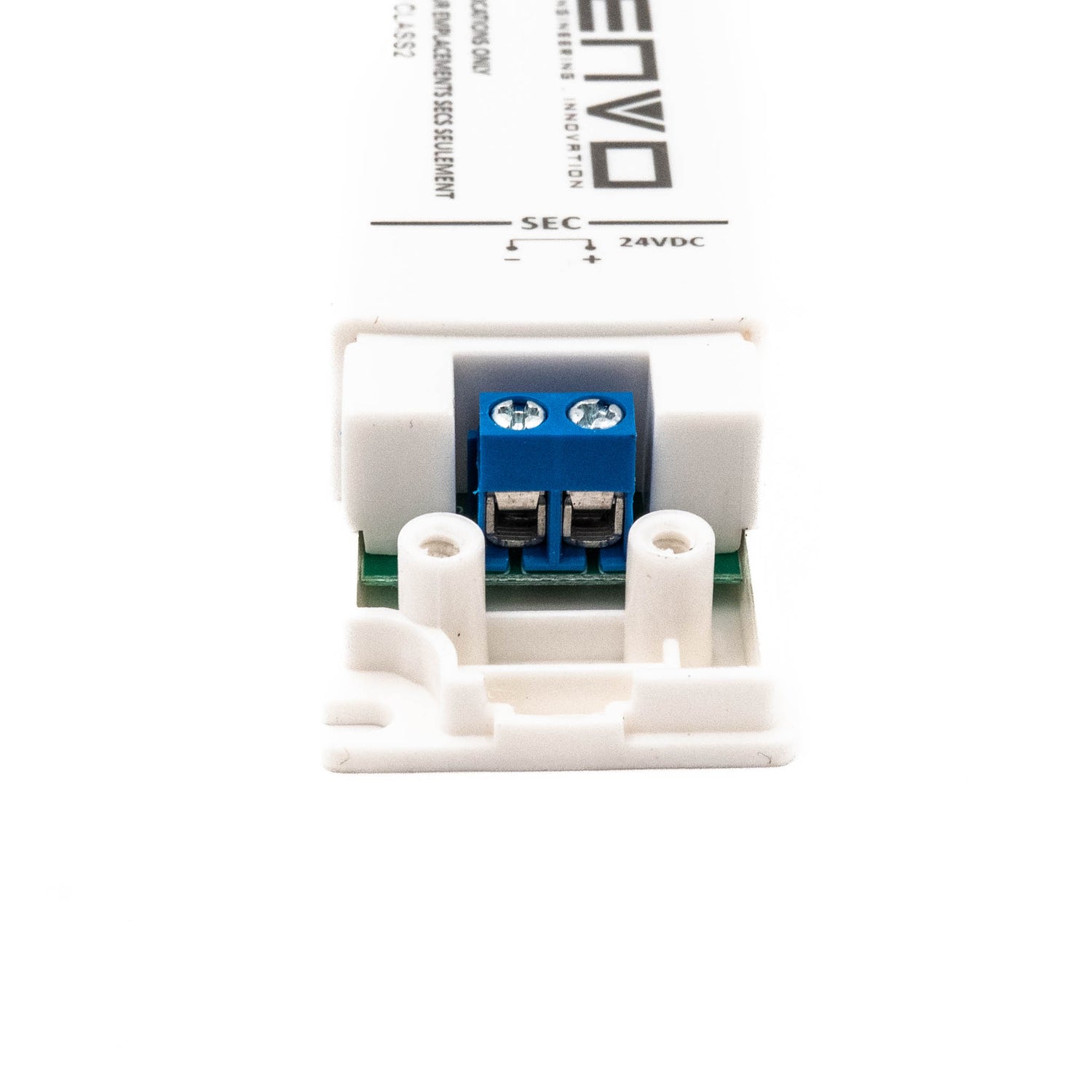

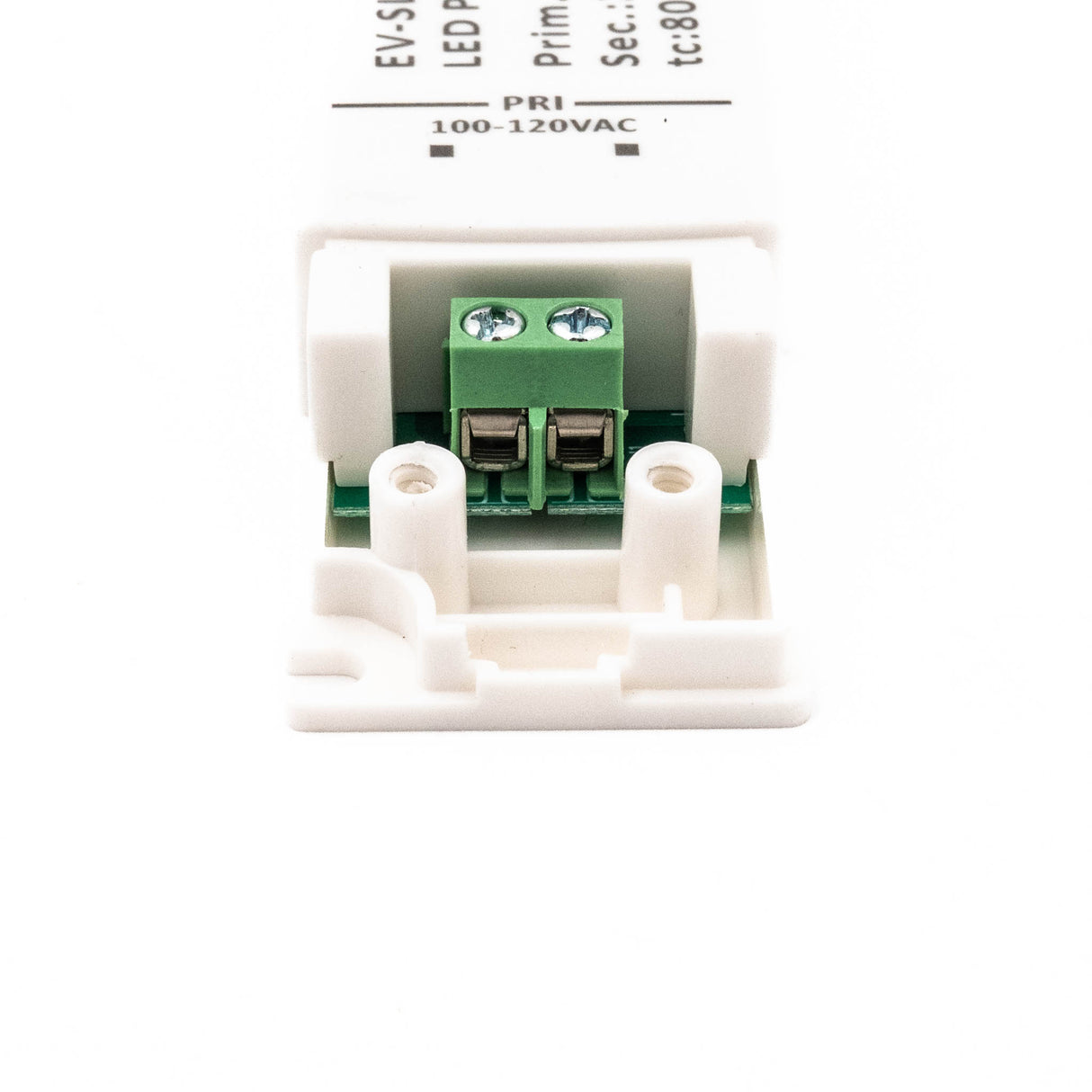

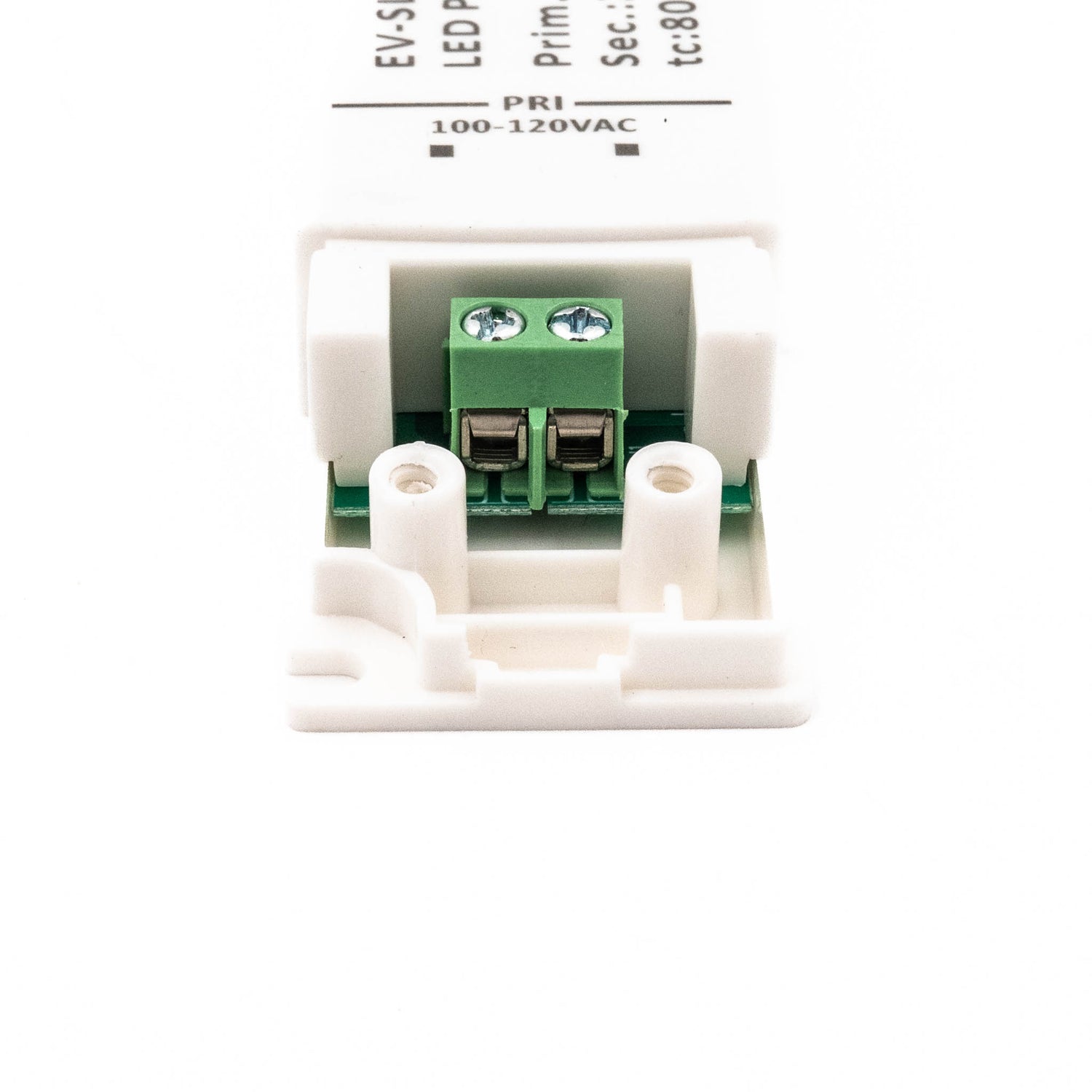

It has a plastic case with an IP20 rating for indoor use only. Connections are made via terminal blocks for both input and output.
What are the operating conditions?
It operates in temperatures from -20°C to 45°C with 45-85% relative humidity. The maximum case temperature is 90°C.
What certifications does it hold?
The unit is CE, UKCA, and cRUus marked. It complies with IEC61347 safety standards and EN61000-3-2 Class C harmonic limits.
What is the warranty period?
The product comes with a 5-year warranty.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EV-SL Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| ENVO EV-SL-60-12US Linear LED Power Supply 60W 12V 5A | 60W | 12V | 5A | IP20 | $18.03 | View |
| ENVO EV-SL-100-24 Linear LED Power Supply 100W 24V 4.16A | 100W | 24V | 4.16A | IP20 | $29.27 | View |
| ENVO EV-SL-100-12 Linear LED Power Supply 100W 12V 8.33A | 100W | 12V | 8.33A | IP20 | $28.38 | View |
| ENVO EV-SL-60-24US Linear LED Power Supply 60W 24V 2.5A | 60W | 24V | 2.5A | IP20 | $18.03 | View |
| ENVO EV-SL-150-48 Linear LED Power Supply 150W 48V 3.125A | 150W | 48V | 3.125A | IP20 | $37.73 | View |
| ENVO EV-SL-150-24 Linear LED Power Supply 150W 24V 6.25A | 150W | 24V | 6.25A | IP20 | $37.62 | View |
| ENVO EV-SL-100-48 Linear LED Power Supply 100W 48V 2.08A | 100W | 48V | 2.08A | IP20 | $29.03 | View |
