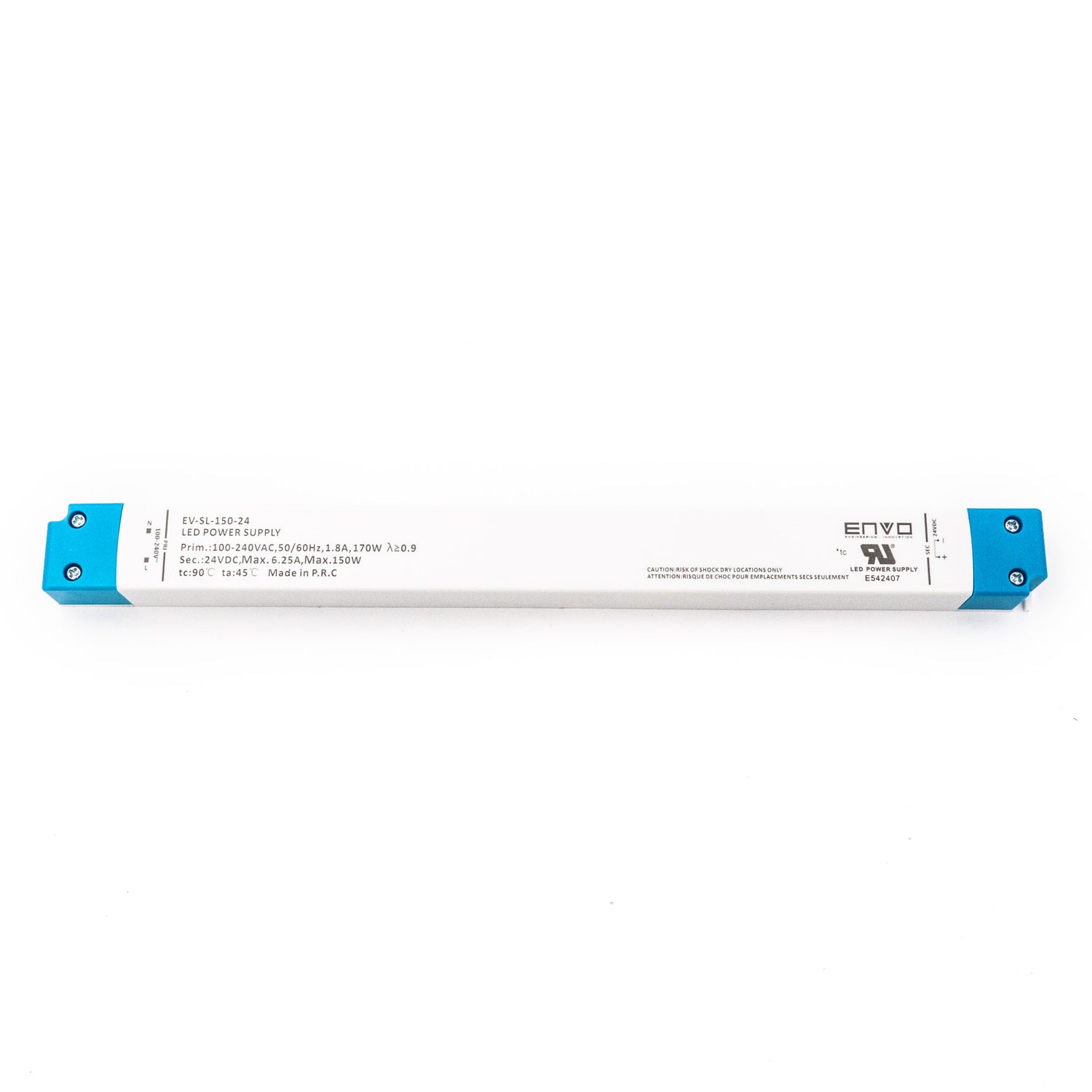

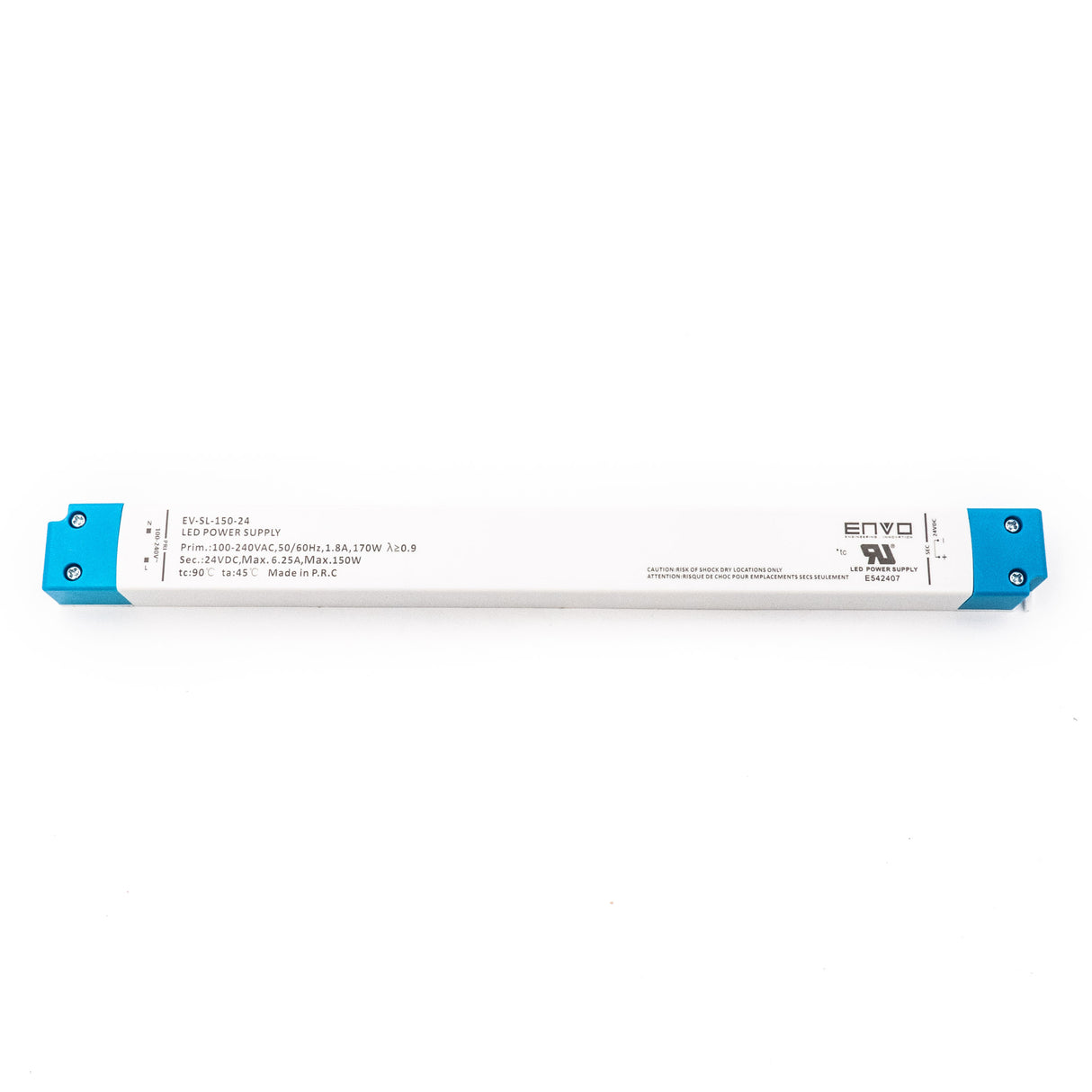

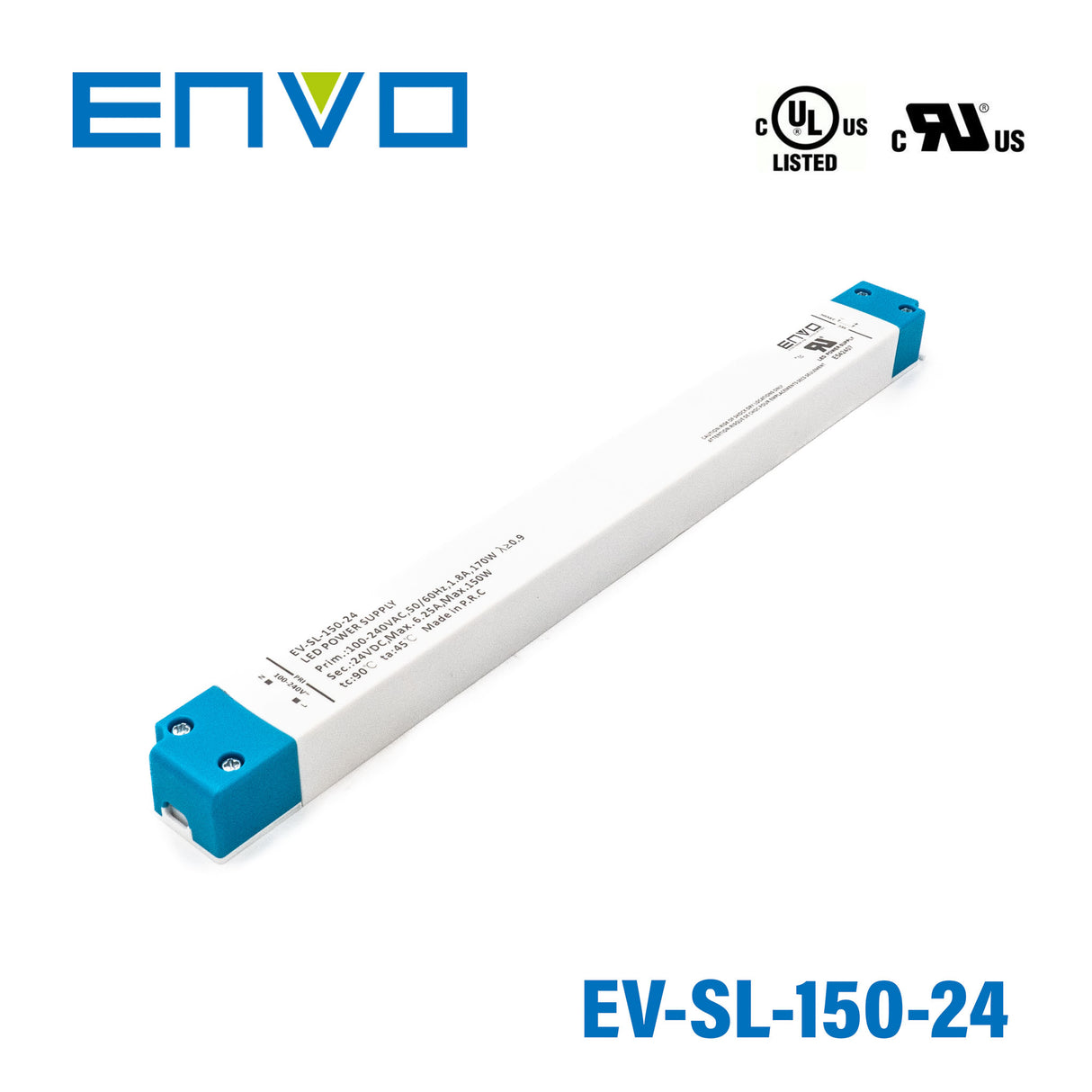

ENVO EV-SL-150-24 Linear LED Power Supply 150W 24V 6.25A
10% off 10+ units
Mix & match any ENVO LED drivers. US orders, applied automatically at checkout.
Notify me when it's back in stock
Your order will be processed within 24 hours
ENVO EV-SL-150-24 Linear LED Power Supply 150W 24V 6.25A
Overview
High cost performance, SELV. Features open circuit, short circuit overload, and overtemperature protection. Compliance with ERP directive. Warranty is 5 years.
Specifications
Input
- Input voltage-
- 100-240Vac
- Input frequency-
- 50/60Hz
- Input current-
- <0.85A
- Input power-
- <170W
- EfficiencyTyp.
- ≥ 92%
- StandbyAverage
- <0.21W
- Inrush currentPeak
- <75A
- PF-
- ≥ 0.9
Output
- Startup time-
- 0.5S
- Output voltage and precision
- 24V± 5%
- Output current range-
- 0-6.25A
- Output voltage waveVp-p
- 300mV
- Output overload-
- Yes
Environment
- Relative humidity
- 45%-85%
- IP grade
- IP20
Others
- Lifetime
- 30,000hr
- EMI
- EN55015,FCC part 15 class B
- Safety
- IEC61347-1 IEC61347-2-13
- Case material and size
- Plastic case
Certifications & ratings
- Marked features
- SELV
- Certification marks
- CE, UKCA, cRUus
Technical drawings
Downloads
Datasheet1
FAQ
What is the EV-SL-150-24 used for?
It is a 150W constant voltage LED driver designed for indoor lighting applications, providing 24V DC output.
What is the input voltage range?
The unit accepts a universal input voltage of 100-240Vac at 50/60Hz.
What are the output specifications?
It provides a 24V DC output with a current range of 0-6.25A and an efficiency of at least 92%.
What protections does the driver have?
It includes open circuit, short circuit, overload, overvoltage, and overtemperature protection. Overload and short circuit faults auto-recover, while overvoltage and overheat faults require a restart.
What is the IP rating and operating temperature?
The unit has an IP20 rating, making it suitable for indoor use only. The operating temperature range is -20°C to 45°C.
Which certifications does it hold?
The driver is marked with CE, UKCA, and cRUus certifications and complies with the ERP directive.
What is the warranty period?
The product comes with a 5-year warranty.
