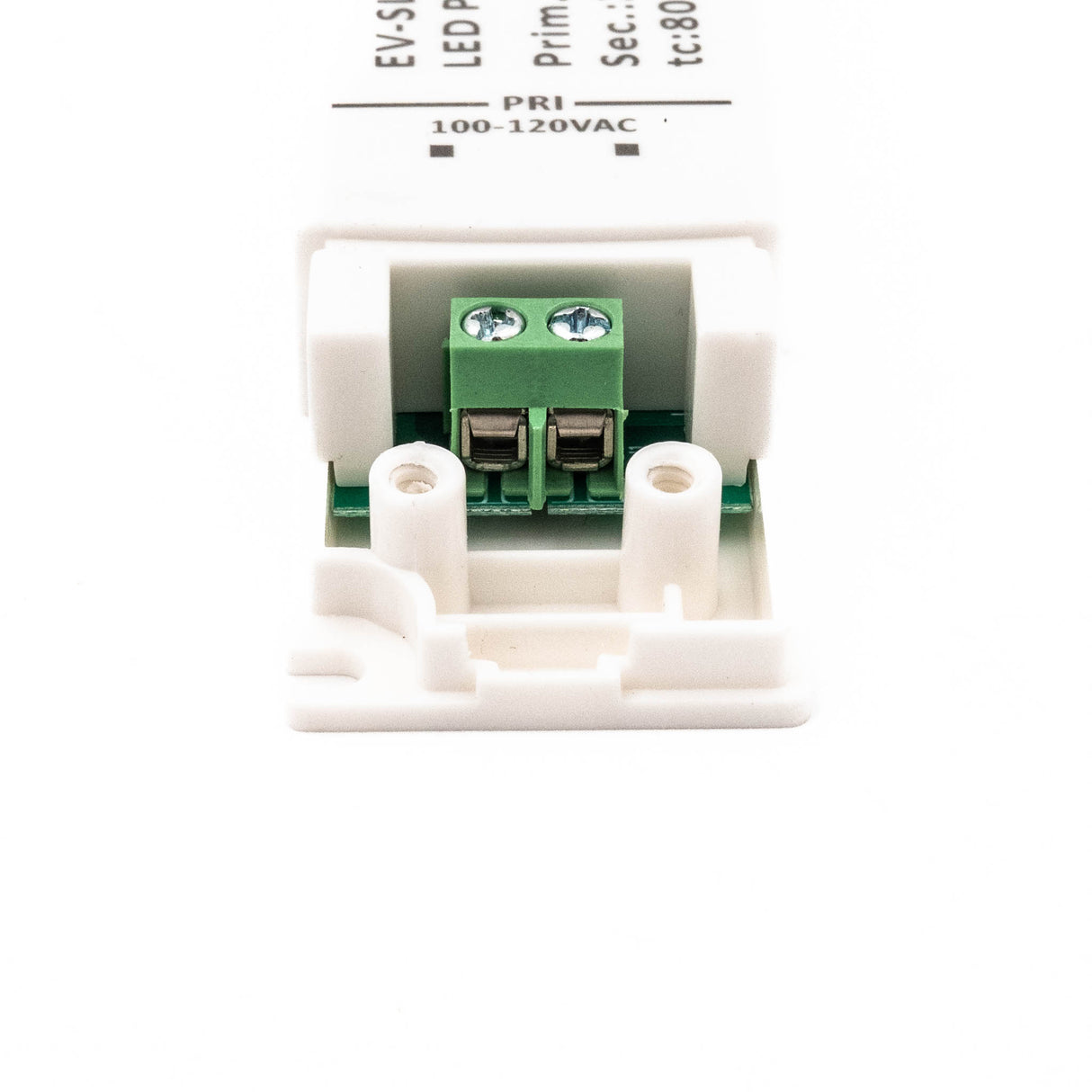

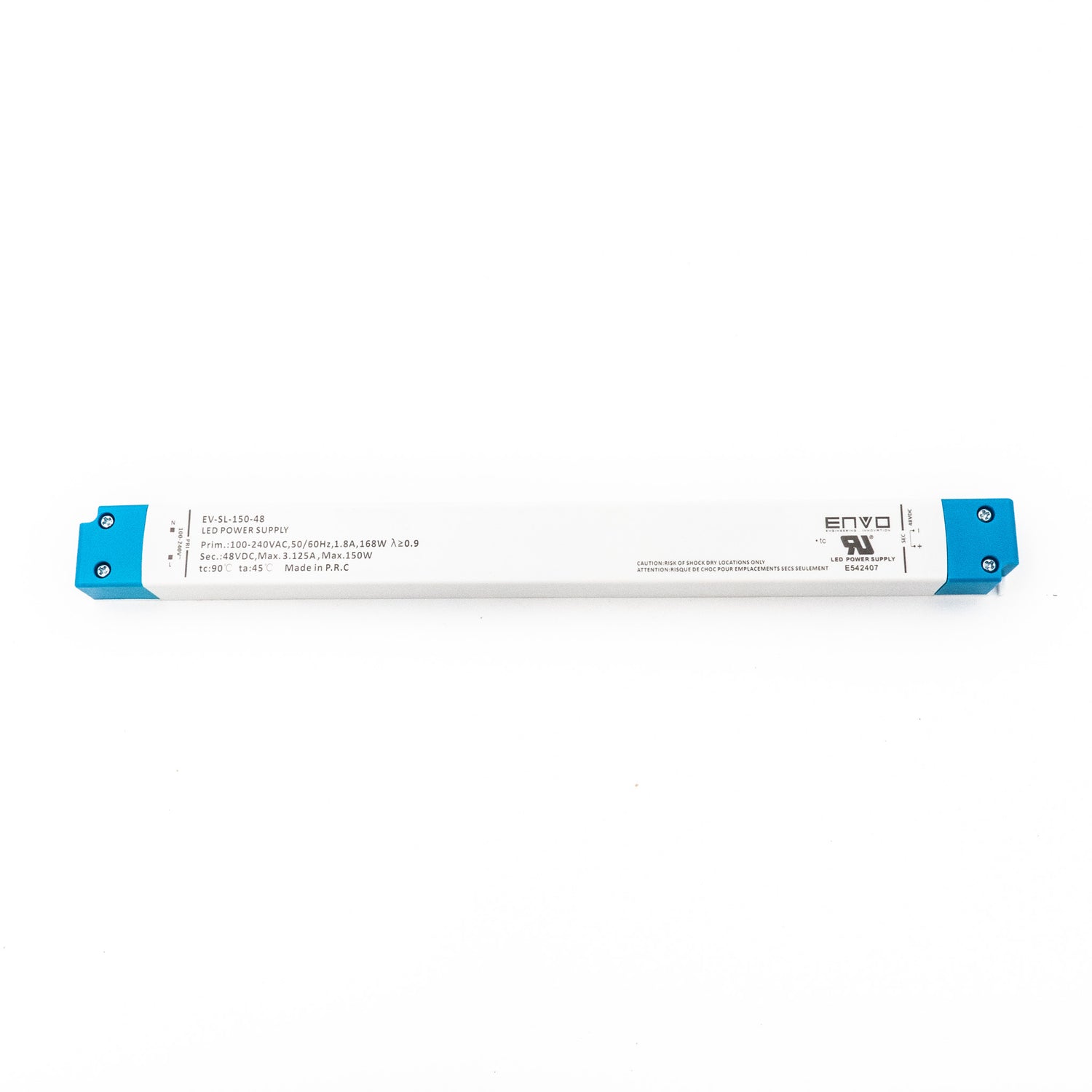

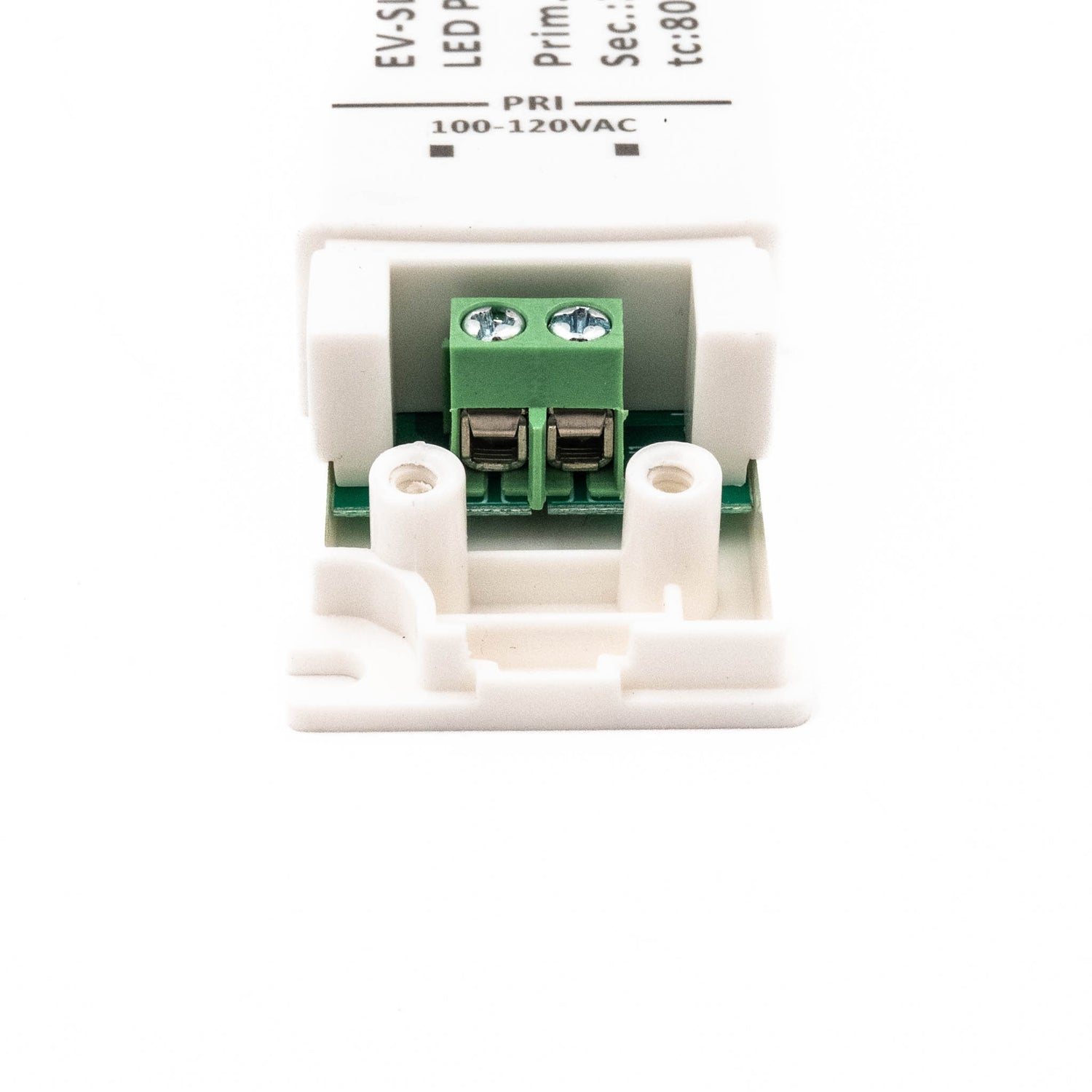

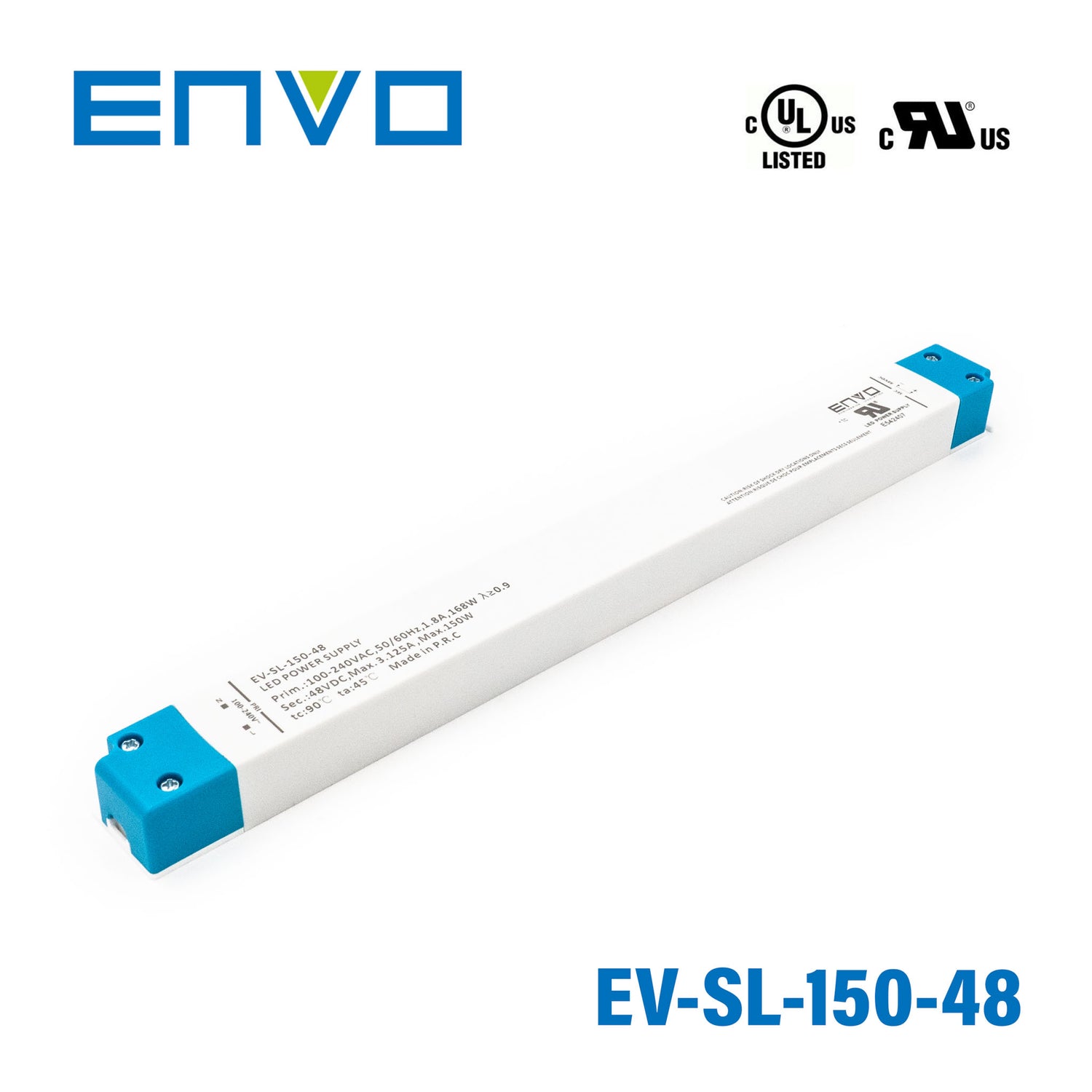

ENVO EV-SL-150-48 Linear LED Power Supply 150W 48V 3.125A
10% off 10+ units
Mix & match any ENVO LED drivers. US orders, applied automatically at checkout.
Notify me when it's back in stock
Your order will be processed within 24 hours
ENVO EV-SL-150-48 Linear LED Power Supply 150W 48V 3.125A
Overview
High cost performance and meets SELV standard. To improve the safety of products, we added open circuit, short circuit, overload, and overtemperature protection functions. Compliance with ERP directive Warranty is 5 years.
Specifications
Input
- Input voltage-
- 100-240Vac
- Input frequency-
- 50/60Hz
- Input current-
- <1.8A
- Input power-
- <168W
- EfficiencyTyp.
- ≥ 92%
- StandbyAverage
- <0.5W
- Inrush currentPeak
- <75A
- PF-
- ≥ 0.9
Output
- Startup time-
- 0.5S
- Output voltage and precision
- 48V± 5%
- Output current range-
- 0-3.125A
- Output voltage waveVp-p
- 240mV
- Output overload-
- Yes
Environment
- Relative humidity
- 45%-85%
- IP grade
- IP20
Others
- Lifetime
- 30,000hr
- EMI
- EN55015, FCC part 15 class B
- Safety
- IEC61347-1 IEC61347-2-13
- Case material and size
- Plastic case
Certifications & ratings
- Marked features
- SELV, Class II
- Certification marks
- CE, UKCA, cRUus
Technical drawings
Downloads
Datasheet1
FAQ
What is the ENVO EV-SL-150-48?
It is a 150W constant voltage LED driver with a 48V output, designed for high cost performance and meeting SELV standards.
What is the input voltage range?
The driver accepts a universal input voltage of 100-240Vac at 50/60Hz.
What are the output specifications?
It provides a 48V output (±5%) with a current range of 0-3.125A. The output voltage ripple is 240mV Vp-p.
What protection features are included?
It includes open circuit, short circuit, overload, overvoltage, and overtemperature protection. Overload and short circuit faults auto-recover, while overvoltage and overheat require a restart.
What is the IP rating and operating temperature?
The unit has an IP20 rating, making it suitable for indoor use only. The operating temperature range is -20°C to 45°C.
Which certifications does it hold?
It is CE, UKCA, and cRUus certified, complying with IEC61347-1 and IEC61347-2-13 safety standards.
What is the warranty period?
The product comes with a 5-year warranty.
