ENVO EV-SP-30-12US-TDM Triac Dimmable LED Power Supply 30W 12V 2.5A
10% off 10+ units
Mix & match any ENVO LED drivers. US orders, applied automatically at checkout.
Notify me when it's back in stock
Your order will be processed within 24 hours

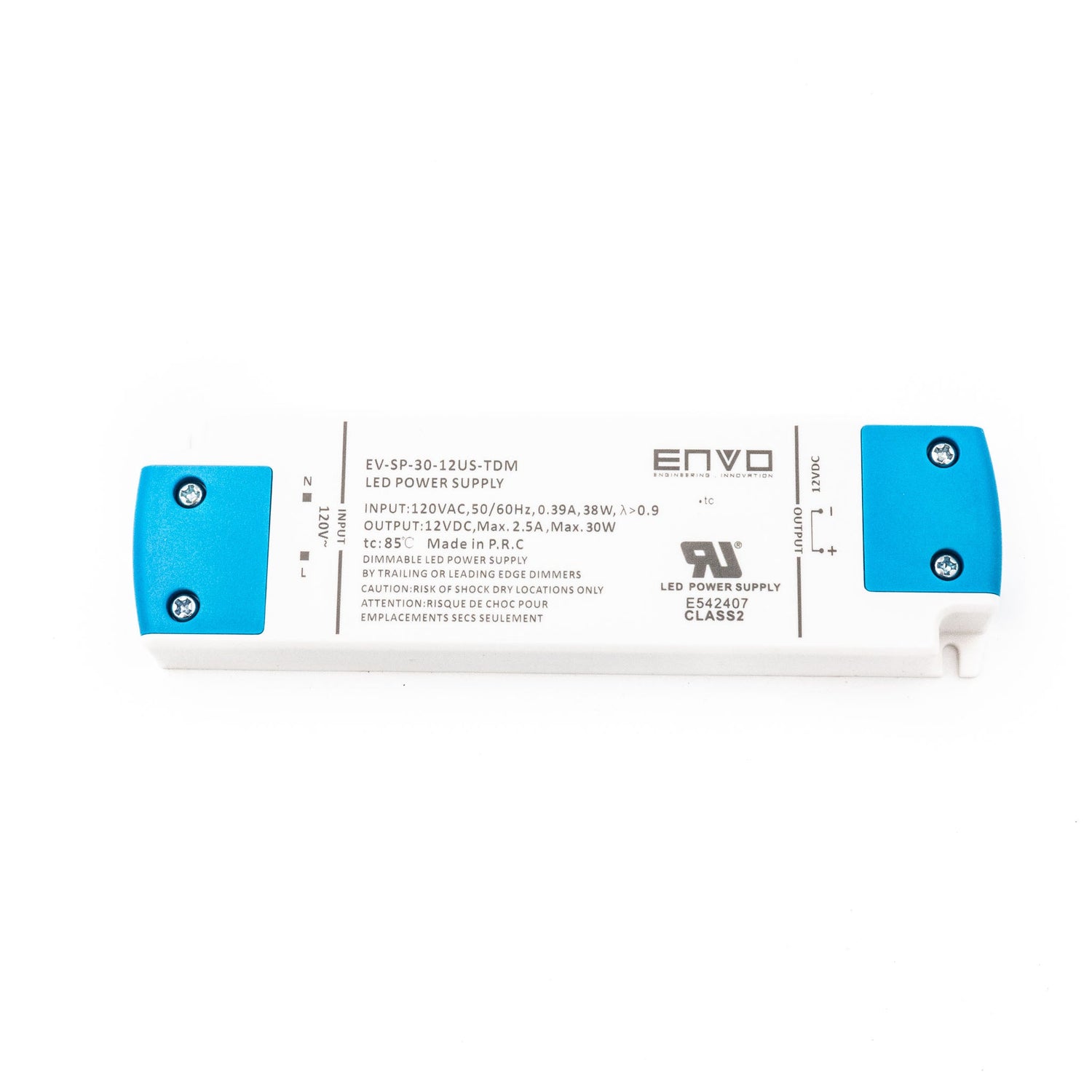

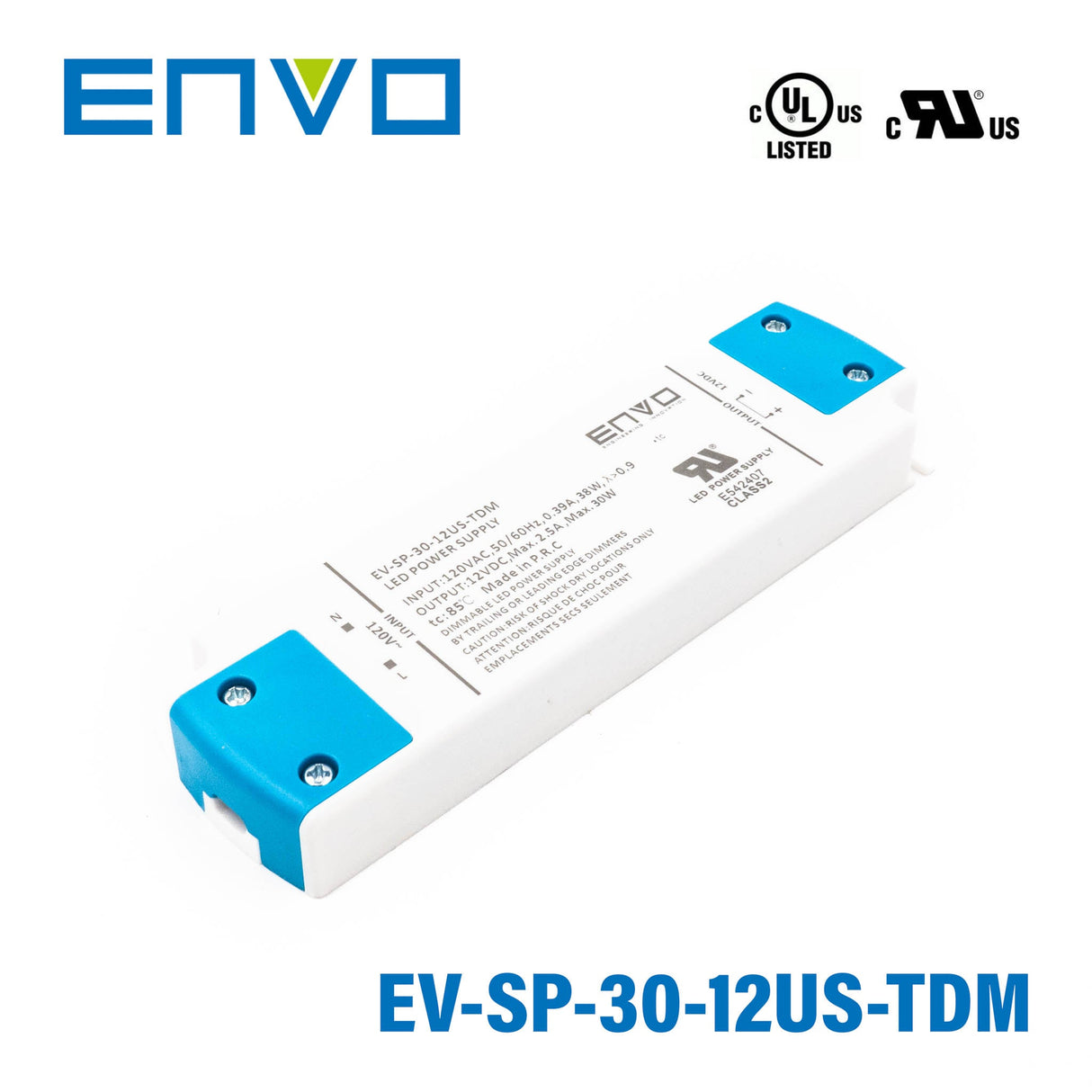

ENVO EV-SP-30-12US-TDM Triac Dimmable LED Power Supply 30W 12V 2.5A
Overview
The EV-SP30 series is an indoor triac dimming CV LED power supply. Its input voltage is 120VAC, and it operates in the temperature range of -20°C to +45°C with natural cooling enclosure. This product offers high cost performance. To enhance the safety of the product, open circuit, short circuit, and overload protection functions are integrated into the circuit. This series is designed for LED lighting and is applied to indoor lighting. It is suitable for almost all indoor applications where LED lamps can be installed. The product complies with world lighting equipment safety specifications, ensuring the safety of users and the lighting system during installation.
Features
- Suitable for leading-edge and trailing-edge triac dimmer
- American standard input voltage (120VAC)
- High PF, IP20
- Suitable for dry environment
- Protections: Open circuit / Short circuit / Overload
- Adopt plastic case and internal glue potting
- Compliance with worldwide safety regulations for lighting
- 5 years warranty
Specifications
Input
- Rated input voltage
- 120Vac
- Input voltage
- 108Vac ~ 132Vac
- Input frequency
- 60Hz
- Max. Input current
- 0.39A (120Vac/60Hz, Full Load)
- Input inrush current
- 75A (120Vac/60Hz, Cold start)
- Leakage current
- 0.7mA (120Vac/60Hz, Full Load)
- Stand-by power consumption
- 0.2W-0.5W (120Vac/60Hz, No Load)
Output
- Output voltage Range
- 12VDC
- Rated output current
- 2.5A
- Output current range
- 0.5-2.5A
- Rated output power
- 30W
- Rated output efficiency
- ≥83% (120Vac)
- Output voltage precision
- ±5%
- Output voltage ripple (PK-PK)
- <20% (Full load, Test under 20M bandwidth)
- Line regulation
- ±3%
- Load regulation
- ±5%
- Rated output voltage
- 12V±5%
- Power factor (Typ.)
- 0.9
- Efficiency (Typ.)
- ≥83%
- Dimming range
- 20%-90%
- Input power
- <38W
Others
- Lifetime
- 30,000 hours (120Vac Full load TC:75°C)
- Weight
- 135g
- Dimensions
- 158mm*45.8mm*18.3mm LxWxH
Environment
- Storage temp.
- -40°C ~ +85°C
- Storage humidity
- 5%RH ~ 95%RH
Certifications & ratings
- Safety standards
- UL8750,UL1310
- EMC standards
- Fcc Part15B
Test conditions and notes1
- Remark: All parameters not specially mentioned are measured at 120VAC input, full load, and 25°C ambient temperature.
Technical drawings
Downloads
Datasheet1
FAQ
What is this power supply used for?
It is an indoor triac dimming constant voltage LED power supply, suitable for indoor LED lighting applications.
What is the input voltage requirement?
It requires a 120Vac input (range 108-132Vac) at 60Hz, designed for American standard voltage.
What are the output specifications?
It provides a constant 12VDC output with a rated current of 2.5A and a maximum power of 30W.
How does the dimming work?
It supports leading-edge and trailing-edge triac dimmers with a dimming range of 20% to 90%.
Where can this driver be installed?
It has an IP20 rating, making it suitable for dry indoor environments only. It operates between -20°C and +45°C.
Does it require a fan?
No, it uses natural cooling and does not have a built-in fan.
What is the warranty period?
The product comes with a 5-year warranty.
