ENVO EV-SP-60-12US-TDM Triac Dimmable LED Power Supply 60W 12V 5A
10% off 10+ units
Mix & match any ENVO LED drivers. US orders, applied automatically at checkout.
Notify me when it's back in stock
Your order will be processed within 24 hours

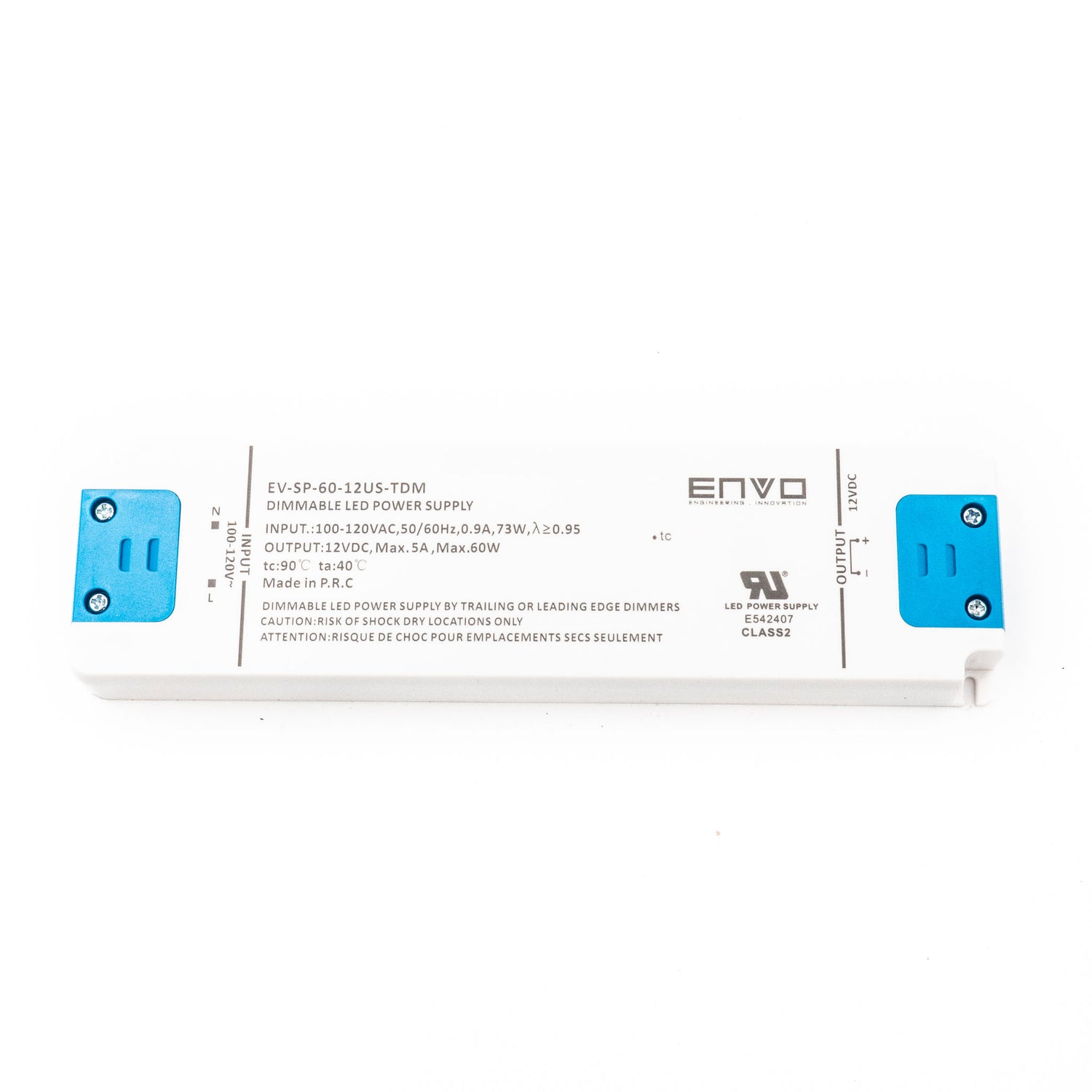

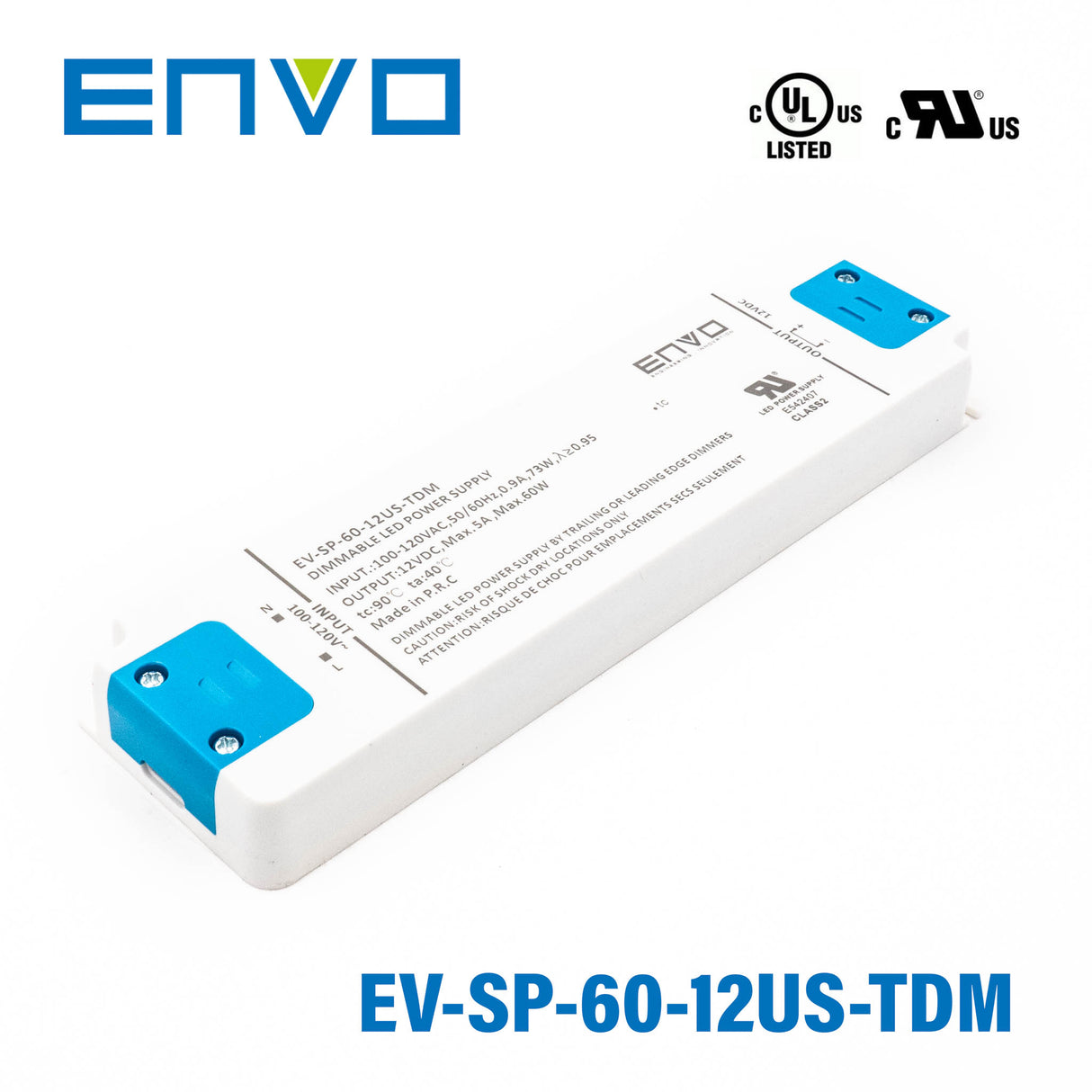

ENVO EV-SP-60-12US-TDM Triac Dimmable LED Power Supply 60W 12V 5A
Overview
EV-SP-60-12US-TDM is the model of this series: typical efficiency 83%.
The EV-SP30 series is an indoor triac dimming constant voltage LED power supply with an input voltage range of 90-132Vac and efficiency up to 85%. It operates in the temperature range of -20°C to +40°C. It features a high power factor, ultra-low total harmonic distortion, low standby power consumption, and lightning protection, along with all-round protection functions. These features not only greatly improve the reliability of the product but also guarantee its life cycle. This series is designed for LED lighting and is applied to indoor triac dimming LED lighting.
Features
- Adapt to American standard input voltage (90-132Vac)
- Active PFC function
- Suitable for dry environment
- Protections: Short circuit / Overtemperature / Overvoltage
- Plastic case
- Load range 10-100%, Dimming range 0-100%
- No flicker
- 5 years warranty
Specifications
Input
- Rated input voltage
- 100Vac - 120Vac
- Input voltage
- 90Vac - 132Vac
- Input frequency
- 47Hz - 63Hz
- Max. input current
- 0.9A (100Vac, Full Load), 0.75A (120Vac, Full Load)
- Input inrush current
- 75A (120Vac/50Hz, Cold start)
- Power factor
- 0.95 (120Vac, Full Load)
- Total harmonic input
- 15% (120Vac, Full Load)
- Leakage current
- 0.7mA (120Vac/60Hz, Full Load)
- Stand-by power consumption
- 1.5W (120Vac/60Hz, No Load)
Output
- Output voltage Range
- 11.4-12.6VDC
- Rated output current
- 5A
- Output current range
- 0-5A
- Rated output power
- 60W
- Rated output efficiency
- 83%
- Output voltage tolerance
- ±5%
- Output voltage ripple (PK-PK)
- ±3%
- Line regulation
- ±1%
- Load regulation
- ±2%
- Rated output voltage
- 12V
- THD (Typ.)
- 15%
- Power factor (Typ.)
- 0.95
Protection
- Over load
- 1.1 to 1.6 times rated load, Auto-recovery after overload removed
- Short circuit
- Hiccup mode, auto-recovery after short circuit removed
- Over voltage
- ≤ 1.5 times of rated output voltage, Auto-recovery after removing the overvoltage fault and turning the power back on
- Over temperature
- 110°C, Auto-recovery after removing the overtemperature fault and turning the power back on
Environment Requirement
- Working temp.
- -20°C to +40°C
- Storage temp.
- -40°C to +85°C
- Working humidity
- 45%RH - 85%RH
- Storage humidity
- 5%RH - 95%RH
- Cooling mode
- Natural cooling
Safety&EMC Standard
- UL/CUL
- UL8750
- Dielectric compressive strength
- Input to output 1800Vac/5mA Max/60s, Strengthened insulation, no breakdown, no flashover
- Insulation resistance
- Input to output ≥ 10MΩ (Test voltage: 500 Vdc)
- Leakage current
- ≤ 0.75 mA (120Vac)
- Conduction CE
- Fcc Part 15B
- Radiation RE
- Fcc Part 15B
Others
- Lifetime
- 30,000 hours (120Vac Full load TC:80°C)
- MTBF
- 200,000 hours (230Vac, Full load, 25°C, MIL-HDBK-217F)
- TC
- 90°C
- Warranty
- 5 years (TC:80°C)
- Weight
- 350g±10g
- Dimensions
- 217.25*60.35*21.2mm (LxWxH)
Environment
- IP grade
- IP20
Test conditions and notes1
- Remark: All parameters not specially mentioned are measured at 120VAC input, full load, and 25°C ambient temperature.
Technical drawings
Downloads
Datasheet1
FAQ
What is this power supply used for?
It is an indoor triac dimming constant voltage LED power supply designed for LED lighting applications.
What are the output specifications?
It provides a 12V DC output with a rated current of 5A and a maximum power of 60W. The output voltage range is 11.4-12.6VDC.
What is the input voltage range?
It accepts an input voltage range of 90Vac to 132Vac at 47Hz to 63Hz, suitable for American standard input voltage.
How does the dimming work?
It supports triac dimming with a dimming range of 0-100% and operates without flicker.
Where can this unit be installed?
It is suitable for dry environments only, with an IP20 rating. It operates in temperatures from -20°C to +40°C using natural cooling.
What protections are included?
It includes short circuit, overtemperature, and overvoltage protections, all with auto-recovery features.
What is the warranty period?
The product comes with a 5-year warranty.
