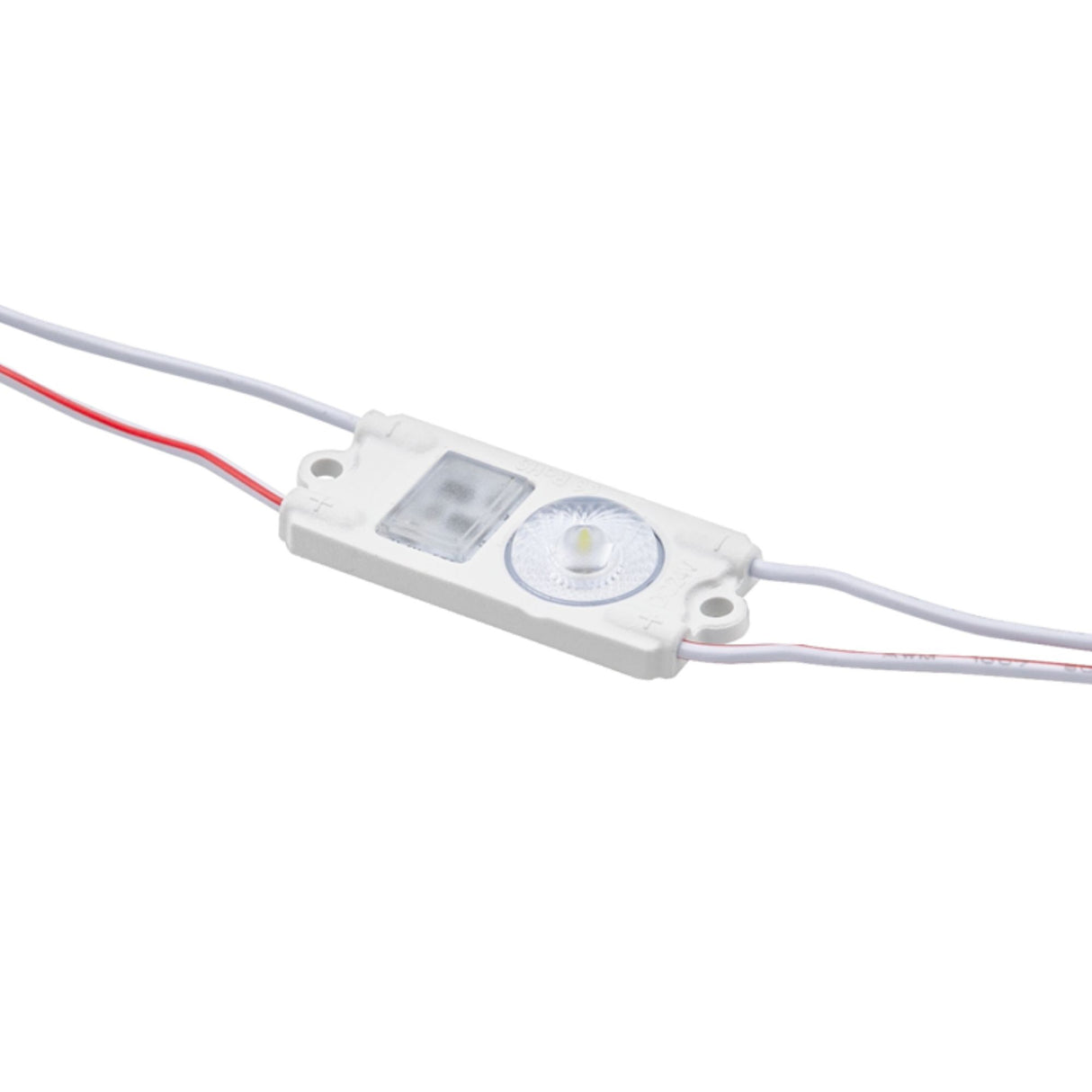

ENVO HydroLume LED Module Backlit - Single LED

The HydroLume is designed for backlighting channel letters, lightboxes, and backlit sign cabinets. Its compact 42 x 20 x 7 mm form factor makes it well suited to smaller or more detailed signage where uniform illumination is important. It is positioned for commercial environments such as retail, hospitality, and other high-visibility signage projects.

This product family is intended for signage with a lightspace depth of 40 mm to 100 mm. That makes it a practical option for compact backlit applications where space is limited but consistent coverage is still required. The 180 degree beam angle helps support even light distribution across that depth range.

Each HydroLume module is rated at 0.48 W and delivers 82 lumens of output. The family has a 180 degree beam angle, CRI 80, and a rated lifetime of 50,000 hours. It is also listed as dimmable and backed by a 7-year warranty.

The main difference across the child variants is color temperature. This family is offered in 3000K warm white, 4000K neutral white, and 6500K cool white options. Based on the provided variant data, the power, brightness, beam angle, CRI, lifetime, dimming capability, and warranty remain the same across all three.

Yes, this family is rated IP67 for resistance to water and dust, which supports use in demanding signage environments. It is also specified to operate in temperatures from -40 C to +70 C. These ratings make it suitable for both indoor and outdoor commercial signage applications.

The HydroLume family is specified for 24 V constant voltage input. Its product description also notes Constant Current Technology for stable light output and long-term performance. For buyers comparing signage modules, that means it is intended for 24 V systems rather than other input types.
