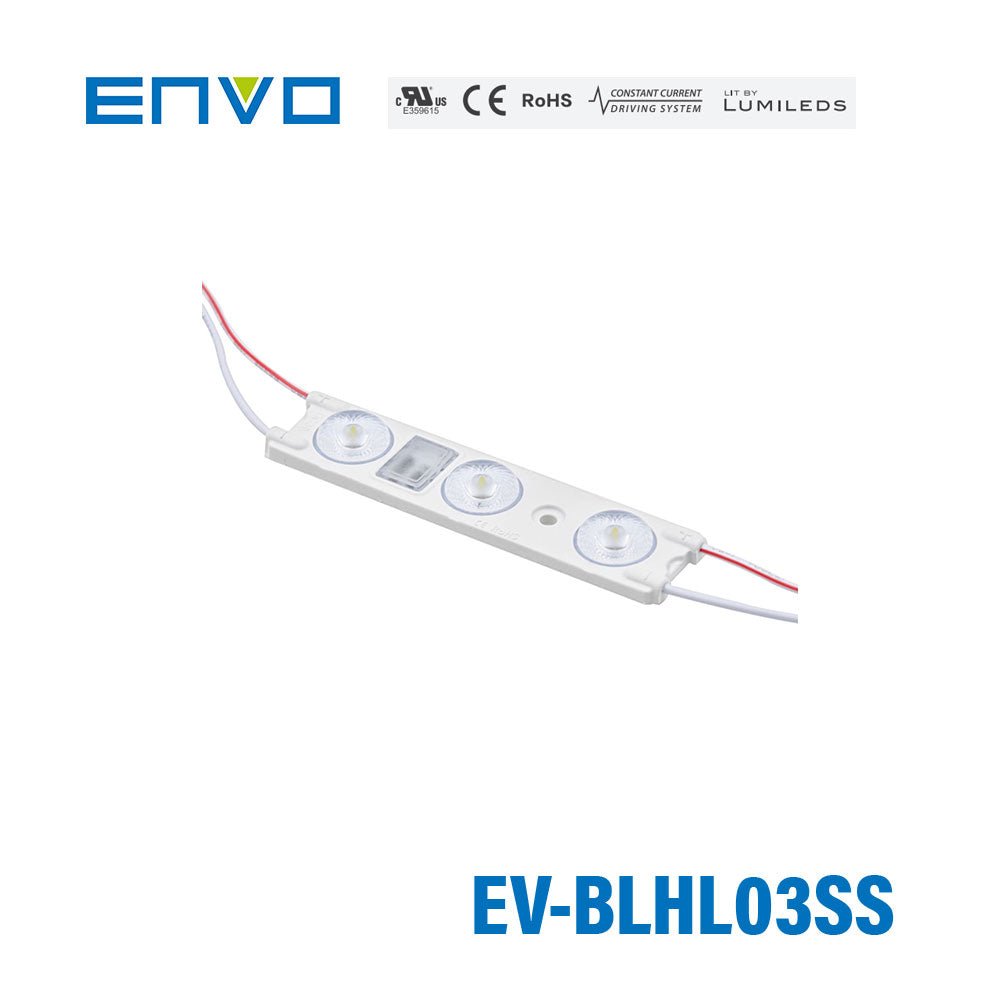

ENVO HydroLume LED Module Backlit - Triple LED
Description
Description
Exceptional Materials: Engineered with premium-grade components for superior light quality and long-lasting performance in all conditions.
Uncompromising Quality: Each HydroLume module is fully tested during production to guarantee consistent brightness and reliability.
HydroLume – Wide-Coverage Backlighting for Larger Signage
The HydroLume by ENVO is built to deliver exceptional illumination for channel letters, large backlit sign cabinets, and expansive lightboxes. Its extended 84 mm profile and Constant Current Technology work together to provide outstanding light uniformity and high efficiency. Designed for deeper signage applications, the HydroLume is perfect for large-scale commercial projects requiring bold, even backlighting.
Key Features:
-
High-Efficiency Illumination: 1.44 W per module producing 252 lm for powerful and consistent brightness.
-
Constant Current Technology: Maintains stable output, prevents flicker, and extends the lifespan of LEDs (24 V constant voltage input).
-
Ultra-Wide 180° Beam Angle: Ensures comprehensive coverage, reducing shadows and dark spots.
-
Extended Design for Coverage: 84 mm x 20 mm x 7 mm size, ideal for lightspace depths from 120 mm to 200 mm.
-
Rugged & Weatherproof: IP67-rated for water and dust resistance, with an operating range from -40°C to +70°C.
-
Quick, Secure Mounting: Equipped with 3M self-adhesive tape for easy installation.
-
Industry-Leading Assurance: Covered by an 7-year warranty for long-term peace of mind.
Application:
Perfect for large channel letters and lightboxes with depths from 120 mm to 200 mm, providing bright, uniform lighting for impactful commercial displays.
HydroLume — delivering the reach, reliability, and radiance your signage deserves.
Specifications
Specifications
-
BrandEnvo
-
SeriesHydroLume
-
Power Rating1.44 Watt
-
Rated Current0.06 Ampere
-
Dimming ControlDimmable
-
Operating Temperature-40°C~70°C
-
Warranty7 Year
-
Length3.31 in
-
Width0.79 in
-
Height0.28 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What types of signage is the ENVO HydroLume Triple LED module designed for?
The ENVO HydroLume Triple LED module is designed for large channel letters, backlit sign cabinets, and expansive lightboxes. Its wide 180 degree beam angle and extended module size make it suited to applications where even backlighting is needed across larger sign faces. The product description identifies it as a strong fit for commercial signage projects with lightspace depths from 120 mm to 200 mm.
What lightspace depth is this LED module intended for?
This module is intended for deeper signage applications, with a recommended lightspace depth range of 120 mm to 200 mm. That makes it more appropriate for larger backlit signs and channel letters rather than very shallow applications. Its 84 mm profile is part of that wide-coverage design.
What are the main performance specifications of the HydroLume Triple LED family?
Each module is rated at 1.44 W and produces 252 lumens, with a 180 degree beam angle for broad light distribution. The family has a CRI of 80, a rated lifetime of 50,000 hours, and is dimmable. Across the family, these core performance specifications remain consistent.
What is the difference between the available variants in this HydroLume family?
The child variants differ by color temperature, with options at 3000K, 4000K, and 6500K. The listed performance values stay the same across those variants, including 1.44 W power rating, 252 lumen output, 180 degree beam angle, CRI 80, dimmable control, 50,000 hour life, and 7 year warranty. For buyers comparing options, the main selection factor is the preferred light color.
Is the HydroLume Triple LED module suitable for outdoor or demanding environments?
Yes, this family is rated IP67 for resistance to water and dust, which supports use in demanding signage environments. It also has a stated operating temperature range of -40°C to +70°C. Those specifications make it suitable for projects exposed to challenging weather and temperature conditions.
What input type is this LED module compatible with?
The HydroLume Triple LED family is specified for 24 V input and uses constant current technology with a 24 V constant voltage input. It is also listed as dimmable. Buyers should match it with systems designed around 24 V LED signage products.
What size is the ENVO HydroLume Triple LED module?
The module dimensions are 84 mm long, 20 mm wide, and 7 mm high. This extended format supports wider coverage for backlit signage compared with smaller modules. Those dimensions are consistent with its intended use in larger and deeper sign applications.
What warranty and expected service life does this product family offer?
The HydroLume Triple LED family is backed by a 7 year warranty. It also has a rated lifetime of 50,000 hours. Together, those figures position it as a long-service option for commercial backlighting projects.
