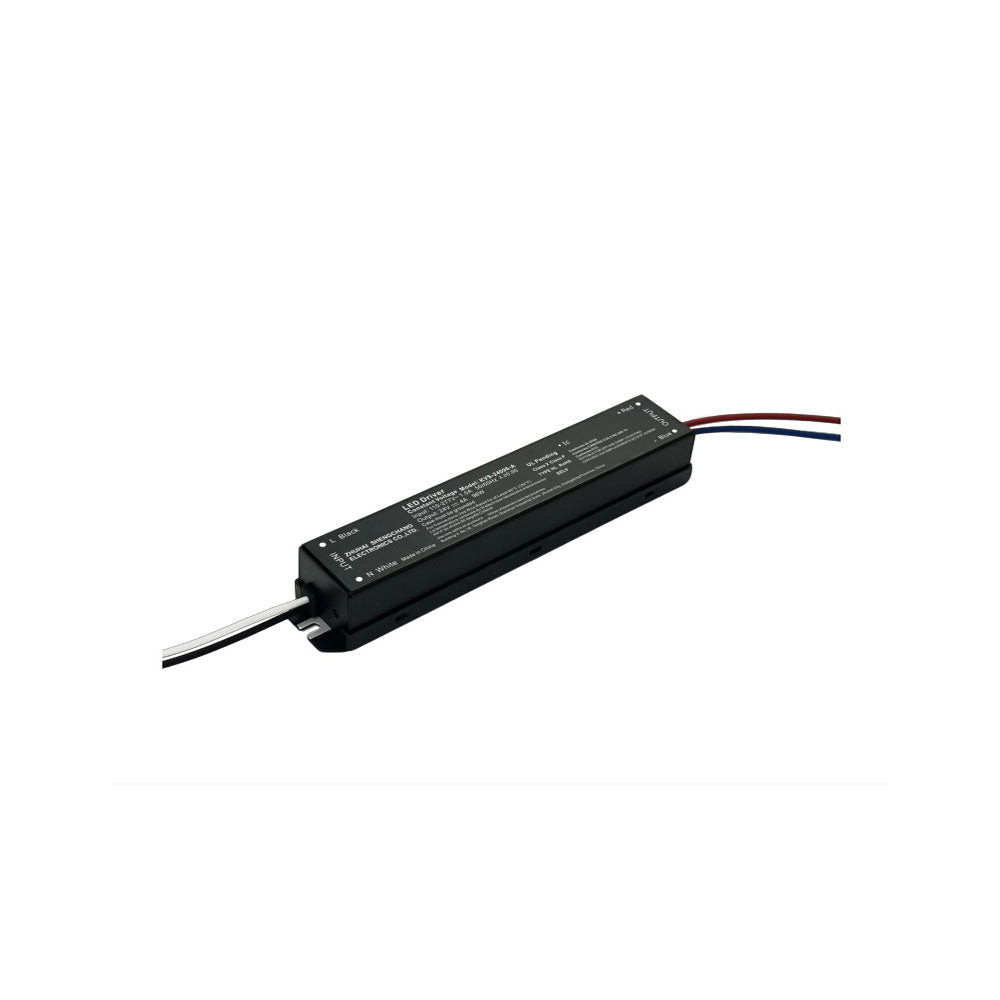

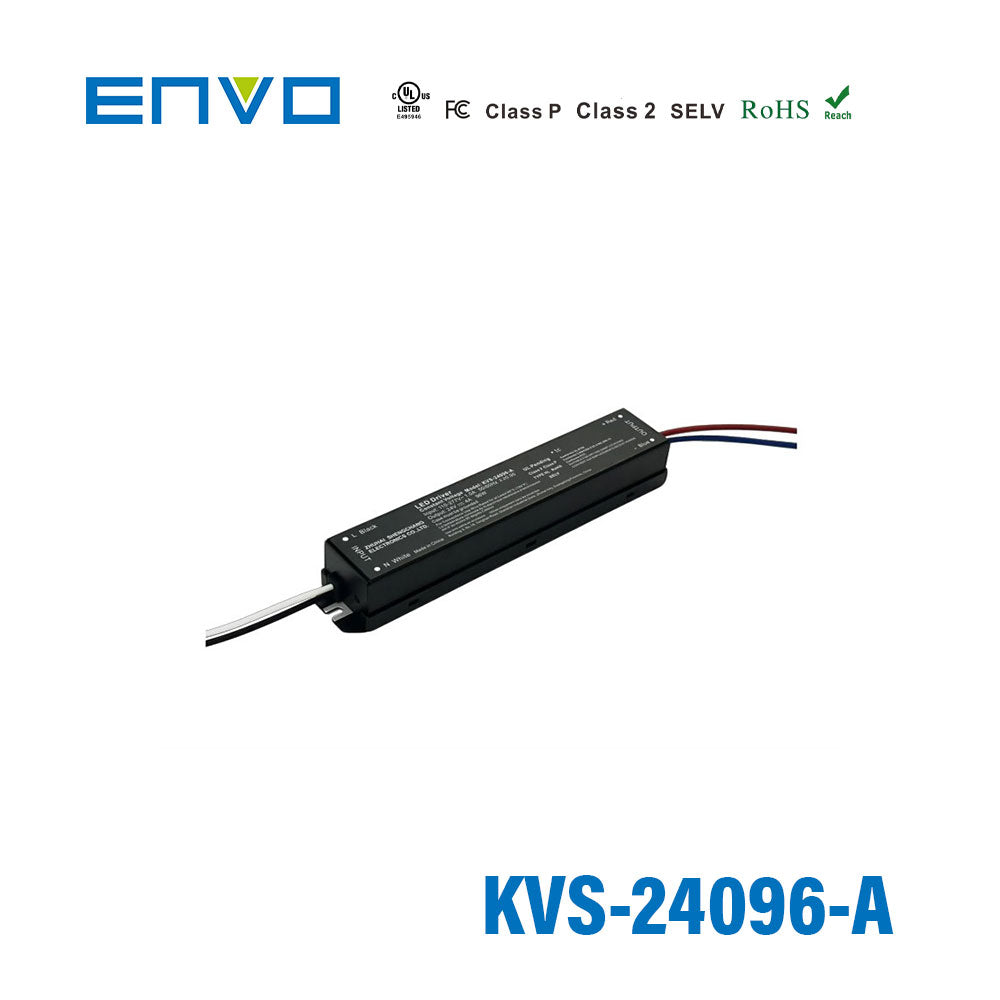

ENVO KVS-24096-A 96W 24V Non-Dimmable LED Driver
Description
Description
Features:
- Constant Voltage
- 120-277VAC
- Built-in active PFC function
- Up to 94%
- Short circuit/ Over load/ Over temperature
- Cooling by free air convection
- Full aluminum protection housing, for dry & damp locations (US)
- Suitable for the application of LED lighting
- Flicker-free
- 5 years warranty
General Specification
AC input voltage range
120-277 VAC
AC inrush current (max.)
30A,150us@50%Ipeak@120VAC; 50A,180us@50%Ipeak@277VAC
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed
Over Load
>110% Hiccup mode, recovers automatically after fault condition is removed
Over Temperature
Shell surface temparature 100°C±10°C shut down o/p voltage, automatically recover after cooling
Working Temp
-40~+50°C
Safety standards
UL8750 CAN/CSA-C22.2 No.250.13 (US)
Dimension (LxWxH)
151 x 28 x 21.5 mm
Specifications
Specifications
-
BrandEnvo
-
Power Rating96 Watt
-
Output Voltage24 Volt
-
Rated Current4 Ampere
-
Input Voltage120V~277V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetFC,ROHS,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty5 Year
-
Length5.94 in
-
Width1.1 in
-
Height0.85 in
-
Weight0.43 lb
