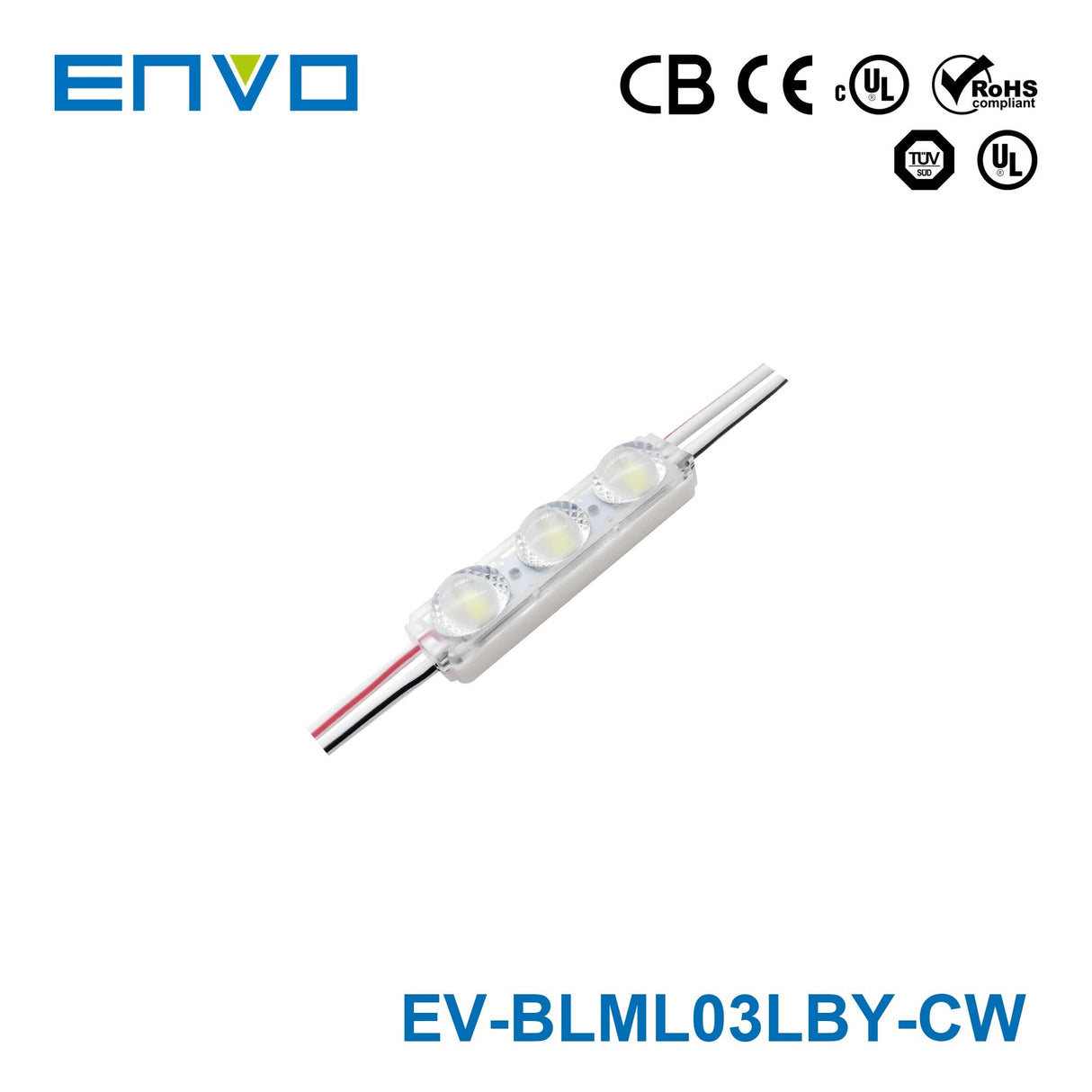

ENVO MiniLux LED Module Backlit - Triple LED
The ENVO MiniLux Backlit Triple LED module is engineered for shallow illuminated channel letters and backlit sign cabinets where space is at a premium, with a recommended lightspace depth of 30–80 mm targeting the tight cavities where standard modules would overcrowd the build or create uneven hotspots. The proprietary Diamondback lens produces a wide 180°×140° dual-axis beam from three LEDs that spreads light uniformly across the sign face, while the compact footprint and consistent 64 mm pitch provide a predictable layout grid for straightforward string planning in narrow letter returns. Running on a standard 12V DC supply, fully dimmable and IP67 rated, certified to CB, CE, cUL, RoHS, TÜV, and UL standards.
Key Features
- ✓ Input voltage: 12V DC
- ✓ Power: 0.72W per module
- ✓ Beam angle: 180°×140°
- ✓ Module dimensions: 38 × 9 × 9 mm
- ✓ Module pitch: 123 mm
- ✓ Max modules per series: 40
- ✓ Rated current: 0.06A
- ✓ CRI: 80
- ✓ Dimmable
- ✓ Ingress protection: IP67
- ✓ Operating temperature: −25°C to +60°C
- ✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
- ✓ Safety certifications: CB, CE, cUL, RoHS, TÜV, UL
- ✓ 7 year warranty
-
BrandEnvo
-
SeriesMiniLux
-
Power Rating0.72 Watt
-
Rated Current0.06 Ampere
-
Dimming ControlDimmable
-
Standards MetCB,CE,cUL,ROHS,TUV,UL
-
Operating Temperature-25°C~60°C
-
Warranty5 Year
-
Length1.5 in
-
Width0.35 in
-
Height0.35 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What applications is the ENVO MiniLux LED Module Backlit - Triple LED designed for?
This LED module family is designed for illuminated letters and light boxes where space is limited. It is intended for shallow-depth signage applications, with the product description specifying use in depths from 3-8 cm. Its compact 38 x 9 x 9 mm form factor makes it suitable for tight backlit sign cavities.
What are the main differences between the available variants in this product family?
The main variant difference in this family is color temperature. The available options are 3000K warm white, 4000K neutral white, and 7000K cool white. Based on the provided child data, all variants share the same 0.72 W power rating, 85 lm brightness, 80 CRI, 180 x 140 beam angle, 50,000-hour life, and 5-year warranty.
How bright is each ENVO MiniLux Triple LED module?
Each variant in this family is rated at 85 lumens per module. That output is paired with a 0.72 W power rating, supporting efficient illumination for compact signage applications. This makes the family suitable for projects that need strong light output in shallow depths.
What beam spread does this LED module use?
This family uses a 180 x 140 beam angle with a Diamondback optic lens. That wide distribution is intended to improve coverage across sign faces and help reduce shadowing in shallow light boxes or channel letters. It is designed for even illumination where space for module setback is limited.
Is the ENVO MiniLux LED Module Backlit - Triple LED dimmable?
Yes, this product family is listed as dimmable. That gives buyers flexibility when a project needs adjustable light levels rather than fixed full-output operation. Dimming capability applies across the parent family based on the provided specifications.
What input voltage does this LED module family use?
The parent product model specifies a 12V power input. This makes it part of a constant-voltage LED module family intended for stable lighting performance. Buyers should match the product with compatible 12V systems when evaluating it for signage applications.
What is the expected service life and warranty for this product family?
This LED module family is rated for a 50,000-hour lifetime. It also carries a 5-year warranty based on the provided product data. Those specifications make it a fit for commercial signage projects where long-term reliability is important.
