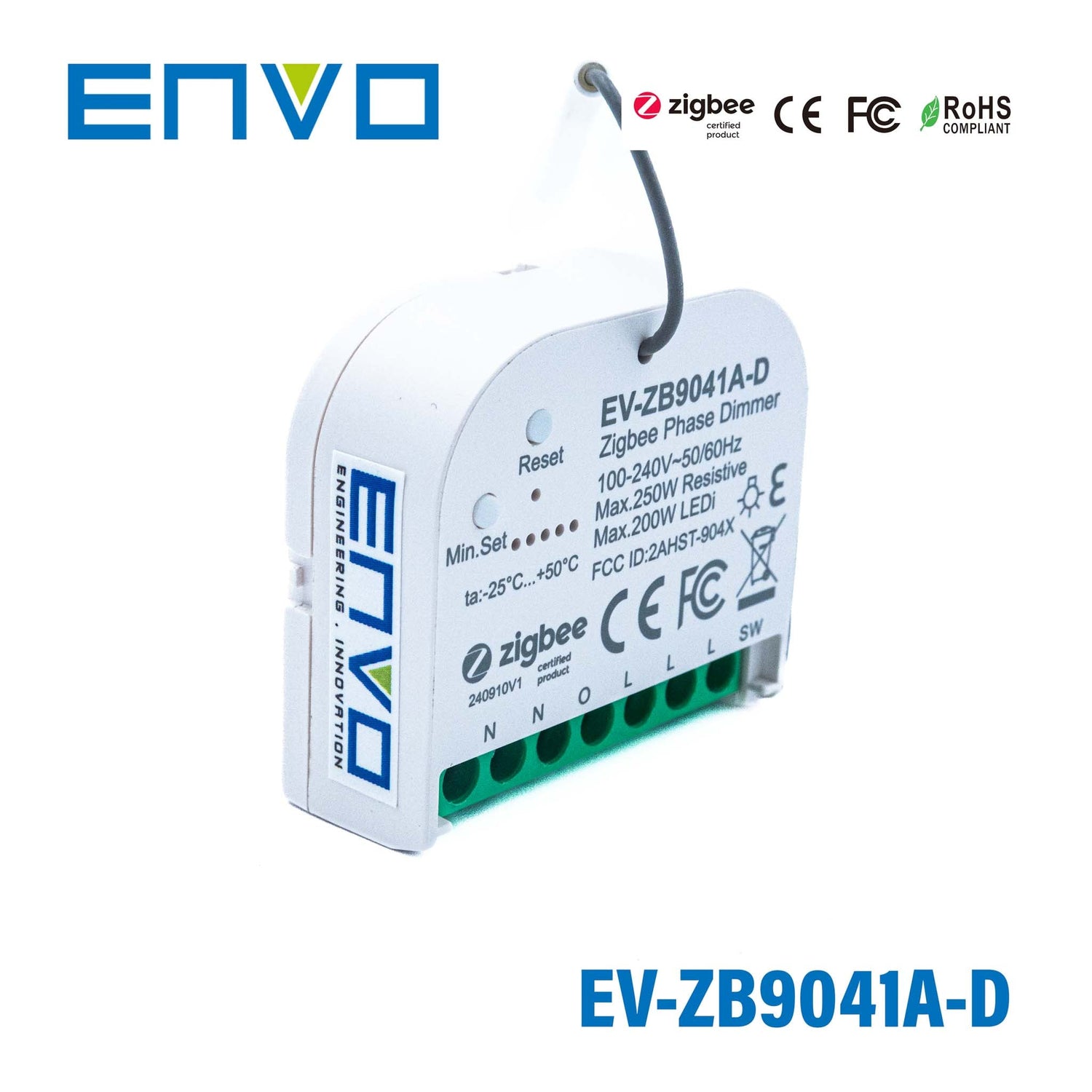

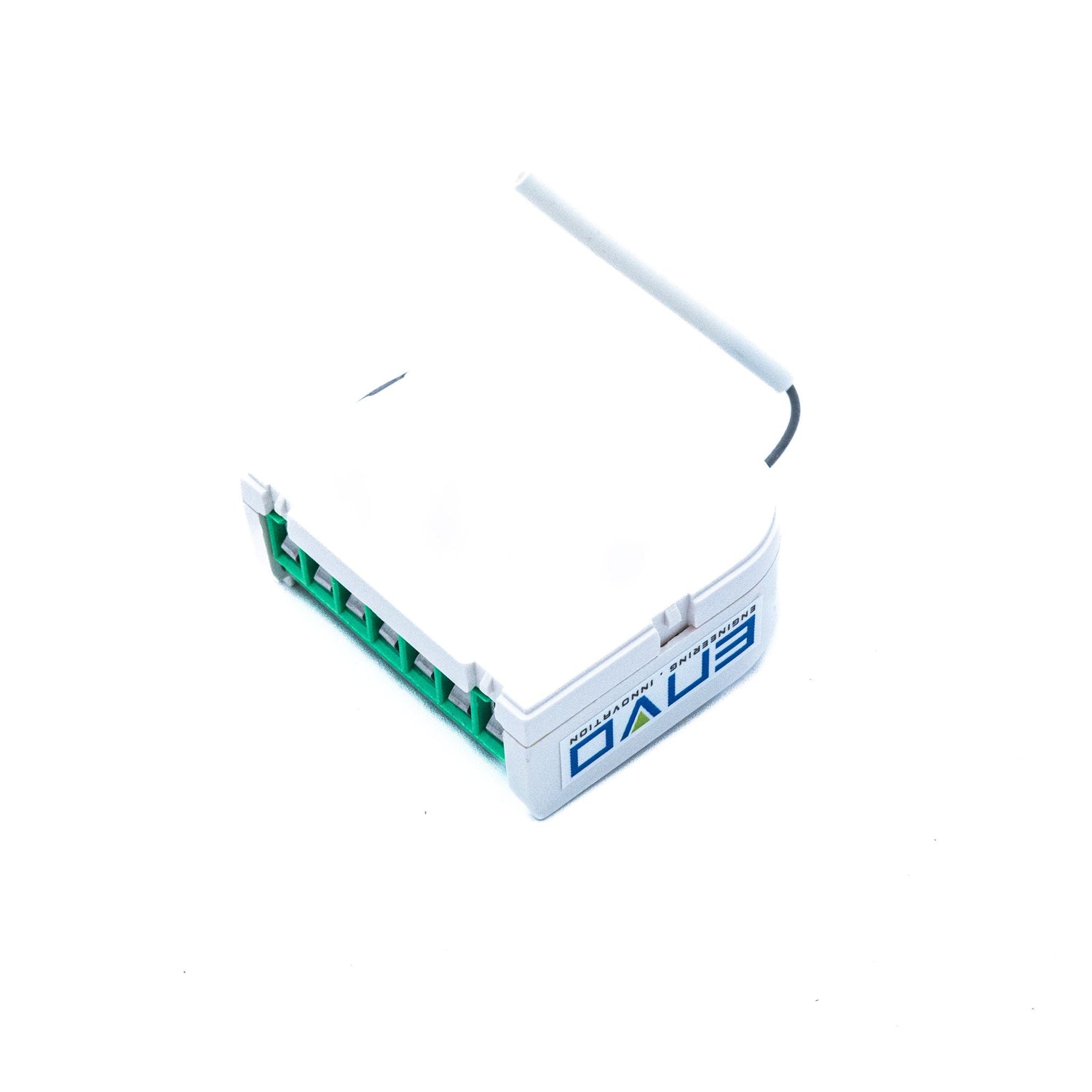

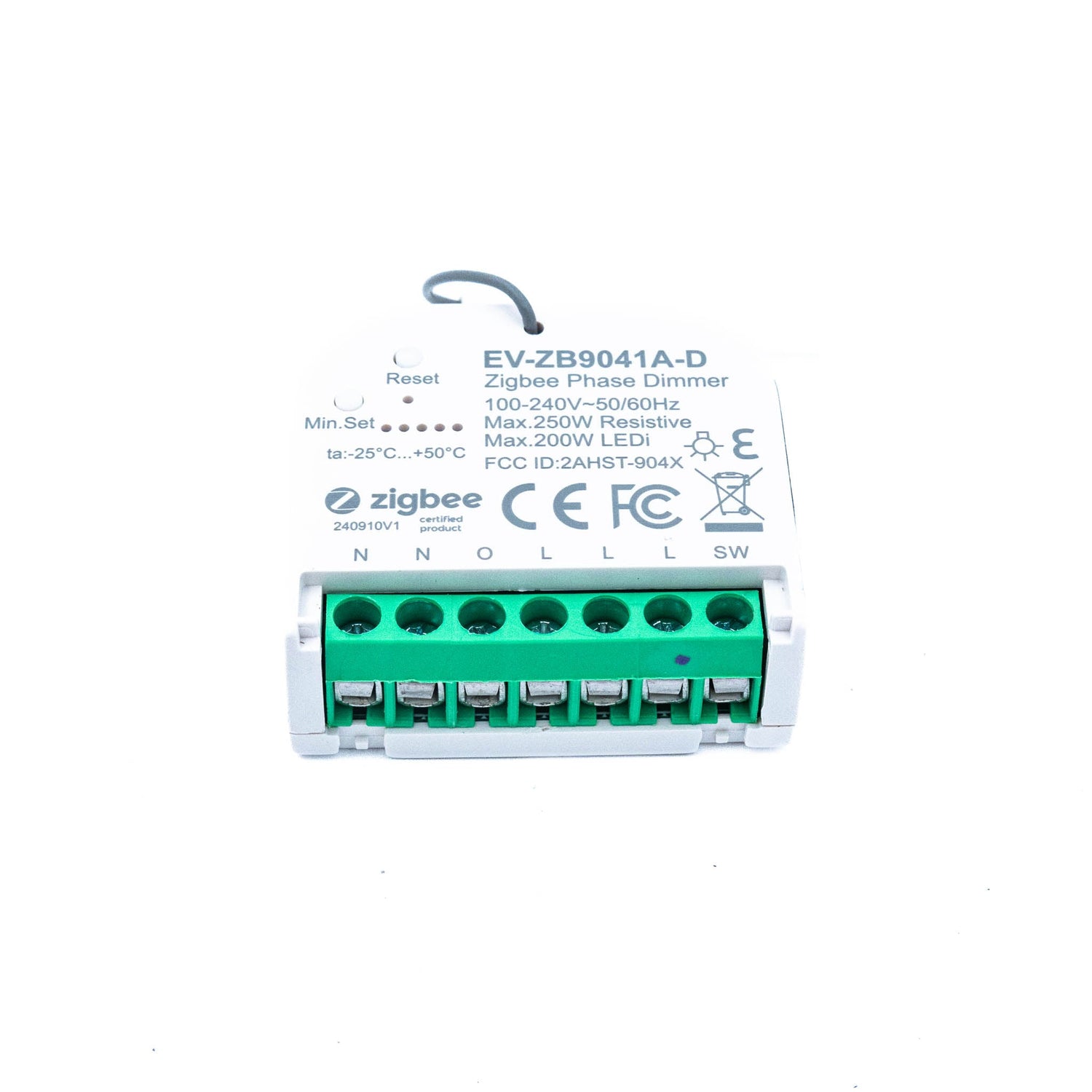

ENVO Zigbee Mini In-Wall AC Phase Smart Dimmer
Overview
EV-ZB9041A-D is the 100-240VAC output model of this series.
Features
- ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
- 100-240VAC Wide Input and Output Voltage
- Supports resistive loads, capacitive loads or inductive loads
- 1 Channel Output, Up to 250W
- Input and Output with Screw Terminals, Safe and Reliable
- Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
- Enables to control ON/OFF and light intensity of connected light source
- ZigBee end device that supports Touchlink commissioning
- Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
- Compatible with universal ZigBee gateway products
- Supports power metering
- Mini Size, Easy to be Installed into a standard 86*86mm wall box
- Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
- Advanced microprocessor control
- Implemented algorithm of smart light source detection
- Active power and energy metering functionality
- Soft start function
- Innovative minimum dimming level and startup brightness setting function
- Works with various types of switches – momentary, toggle, three-way, etc.
- Active element: semiconductor electronic switch
- To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
- The Bypass is an extension unit
Specifications
Product Data
- Input Voltage
- 100-240VAC
- Output Voltage
- 100-240VAC
- Output Current
- 0.1-1.1A
- Size(LxWxH)
- 42x38x16mm
Compatible Load Types
- Dimmable LED lamps
- 200W @ 230V, 100W @ 110V
- Dimmable LED drivers
- 200W @ 230V, 100W @ 110V
- Incandescent lighting, HV halogen lamps
- 250W @ 230V, 125W @ 110V
- Low voltage halogen lighting with electronic transformers
- 200W @ 230V, 100W @ 110V
Test conditions and notes4
- 1) Directly TouchLink (both not added to a ZigBee network), each device can link with 1 remote.
- 2) TouchLink after both added to a ZigBee network, each device can link with max. 30 remotes.
- 3) To control by both gateway and remote, add remote and device to network first then TouchLink.
- 4) After TouchLink, the device can be controlled by the linked remotes.
Downloads
Datasheet1
FAQ
What types of lighting loads can the ENVO ZigbBee Mini In Wall AC Phase Smart Dimmer control?
This model is designed for dimmable LED lamps, dimmable LED drivers, incandescent lighting, high-voltage halogen lamps, and low-voltage halogen lighting used with electronic transformers. Its AC input and output range is 100-240VAC, which makes it suitable for common mains-voltage dimming applications within its rated load limits.
Can this dimmer operate without a neutral lead?
Yes. The EV-ZB9041A-D can operate in either a two-wire configuration with no neutral lead or a three-wire configuration with a neutral lead. That flexibility makes it useful for retrofit and new-build dimming applications where neutral availability may vary.
What is the maximum load this smart dimmer can handle?
At 110V, this model supports up to 100W for dimmable LED lamps, dimmable LED drivers, and low-voltage halogen lighting with electronic transformers, and 125W for incandescent or high-voltage halogen loads. At 230V, the ratings increase to 200W for most compatible dimmable loads and 250W for incandescent or high-voltage halogen lighting.
What makes this model different from a basic in-wall dimmer?
This unit adds smart dimming features beyond simple brightness control, including Zigbee capability, active power and energy metering, soft start, and smart light source detection. It also supports minimum dimming level and startup brightness settings, which can help improve performance with compatible lighting loads.
Is the EV-ZB9041A-D suitable for commercial or professional lighting control projects?
It can be a practical option for professional projects that need compact in-wall dimming for compatible 100-240VAC lighting loads. Features such as energy metering, broad switch compatibility, and support for multiple load types make it relevant for smart lighting upgrades where space is limited.
Will this dimmer work with different switch types?
Yes. The product description states that it works with various types of switches, including momentary, toggle, and three-way styles. That gives buyers more flexibility when evaluating it for existing control schemes or standardized project specifications.
What operating temperature range is this dimmer rated for?
The rated operating temperature range is -20°C to 50°C. That allows the unit to be considered for a wide range of indoor applications, provided the surrounding conditions stay within that specified range.
