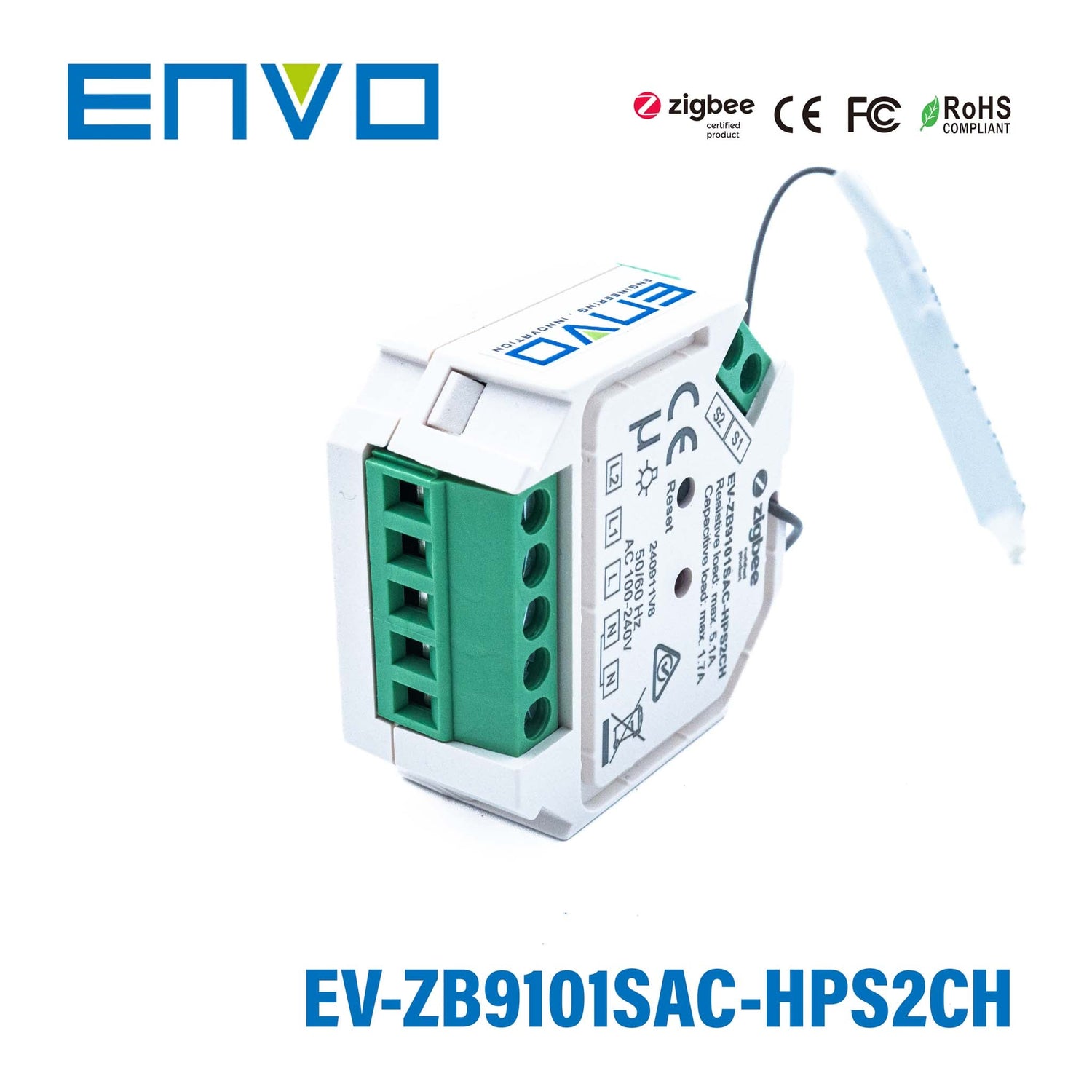

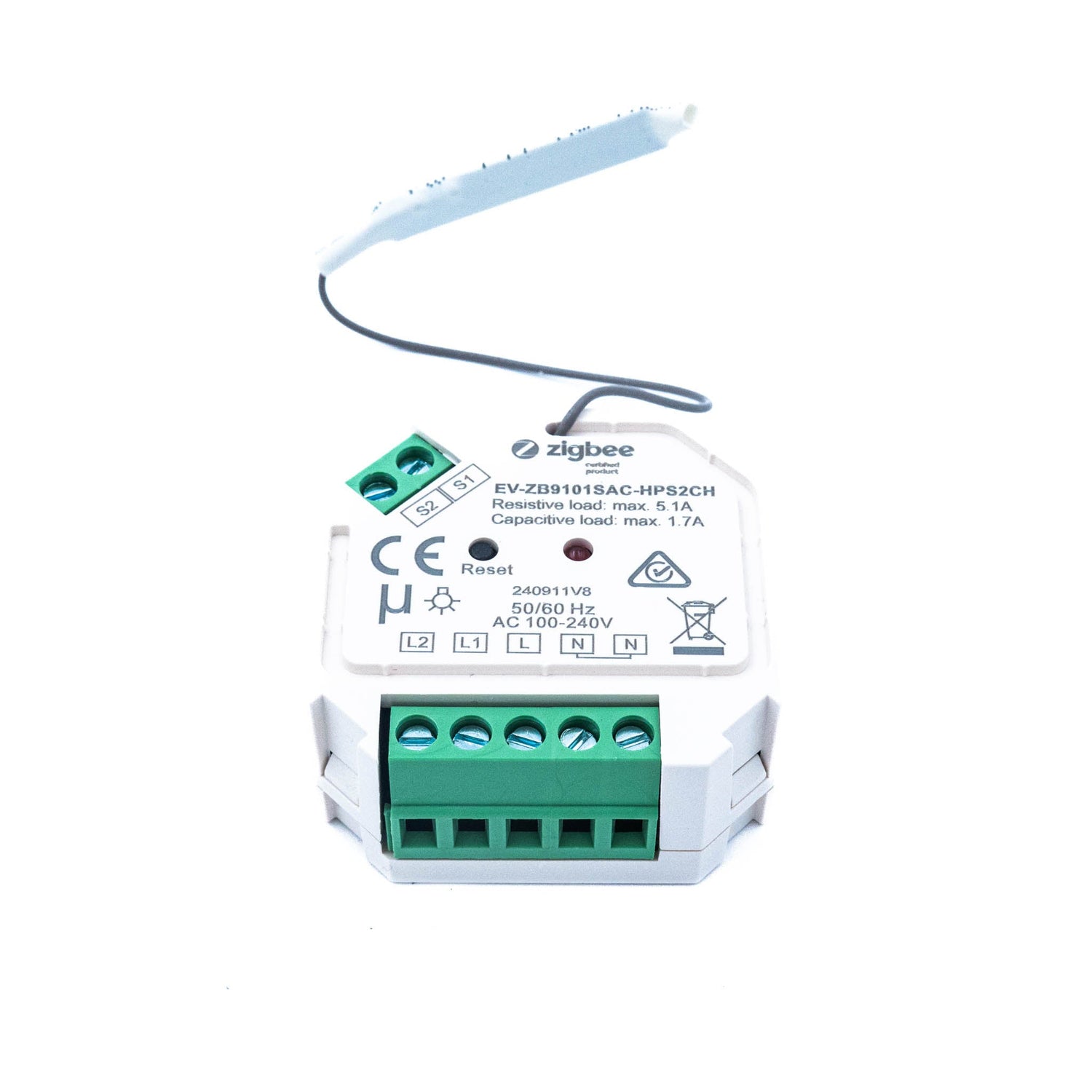

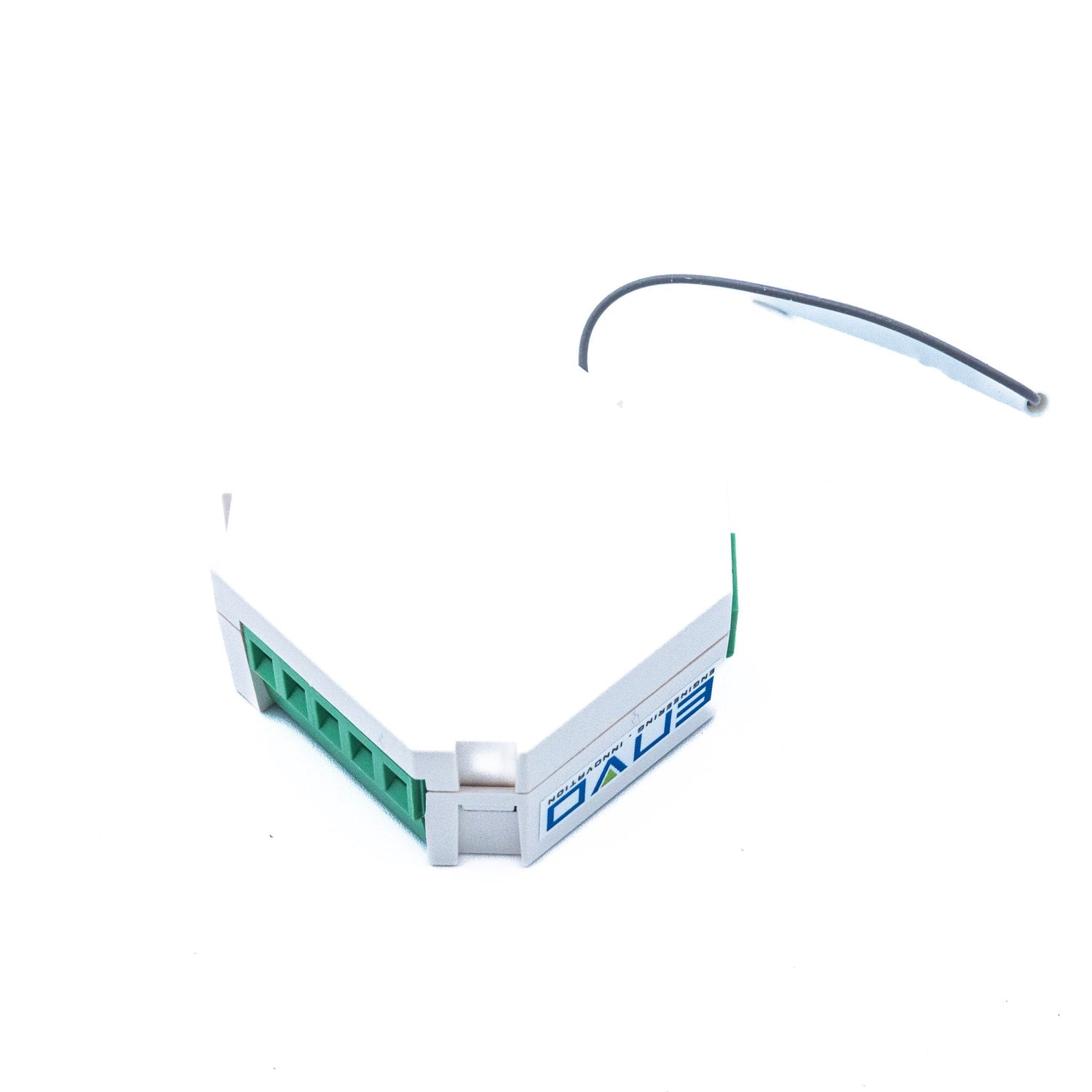

ENVO Zigbee 2-Gang In-Wall Switch - On/Off Control
Overview
EV-ZB9101SAC-HPS2CH is the 100-240VAC output model of this series.
Features
- 2-gang ZigBee in-wall switch based on latest ZigBee 3.0 protocol
- 100-240VAC wide input and output voltage
- Supports resistive loads and capacitive loads
- 2 channels output, max. load 5.1A/CH
- Input and output with screw terminals, safe and reliable
- Enables to control ON/OFF of connected load
- ZigBee device with 2 endpoints which can be controlled separately
- ZigBee end device that supports Touchlink commissioning
- Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
- Supports self-forming zigbee network without coordinator and add other devices to the network
- Supports find and bind mode to bind a ZigBee remote
- Supports zigbee green power and can bind max. 20 zigbee green power switches
- Compatible with universal ZigBee gateway products
- Can be controlled by universal single wire push switch, 2 channels can be controlled separately by 2 switches
- Active power and energy metering functionality
- Mini Size, Easy to be installed into a standard wall box
- Radio Frequency : 2.4GHz
- Waterproof grade: IP20
Specifications
Product Data
- Input Voltage
- 100-240VAC
- Output Voltage
- 100-240VAC
- Output Channel
- 2 Channels
- Max. Load
- Resistive load: max. 5.1A/CH Capacitive load: max. 1.7A/CH
- Size(LxWxH)
- 45.5x45x20.3mm
Compatible Load Types
- LED lamps with transformers
- 390W/CH @ 230V, 180W/CH @ 110V. Note: Due to variety of LED lamp designs, maximum number of LED lamps is further dependent on power factor result when connected to switch.
- LED drivers
- 390W/CH @ 230V, 180W/CH @ 110V. Note: Maximum permitted number of drivers is 390W divided by driver nameplate power rating.
- Incandescent lighting, HV Halogen lamps
- 1170W/CH @ 230V 560W/CH @ 110V
- Low voltage halogen lighting with electronic transformers
- 390W/CH @ 230V 180W/CH @ 110V
Certifications & ratings
- Certification marks
- CE, FCC, RoHS, ZigBee
Test conditions and notes4
- 1. Directly TouchLink (both not added to a ZigBee network), each device can link with 1 remote.
- 2. TouchLink after both added to a ZigBee network, each device can link with max. 30 remotes.
- 3. To control by both gateway & remote, add remote and device to network first then TouchLink.
- 4. After TouchLink, the device can be controlled by the linked remotes.
Downloads
Datasheet1
FAQ
What does the ENVO ZigBee 2Gang In-wall Switch control?
This model provides on/off control for two separate channels in one compact in-wall device. It is designed for switching connected loads rather than dimming them, and each ZigBee endpoint can be controlled independently.
Is this switch a dimmer or only an on/off controller?
The EV-ZB9101SAC-HPS2CH is an on/off controller, not a dimmer. It is intended for applications where you need ZigBee-based switching of two loads without brightness adjustment.
What load capacity does this ZigBee switch support?
This 2-channel model supports up to 5.1A per channel for resistive loads and up to 1.7A per channel for capacitive loads. It operates on 100-240VAC input and output, with a listed power rating of 1170W per channel for incandescent loads at 230V.
Is the ENVO ZigBee 2Gang switch compatible with standard ZigBee systems?
Yes. It uses ZigBee 3.0 and is described as compatible with universal ZigBee gateway products. It also supports Touchlink commissioning, find-and-bind mode, ZigBee Green Power, and can bind up to 20 ZigBee Green Power switches.
Does this model support energy monitoring?
Yes. The switch includes active power and energy metering functionality, which can be useful for monitoring load usage in commercial or smart building environments. This adds visibility beyond basic on/off control.
Where can this switch be used?
This model is intended for indoor use, with an IP20 rating and an operating temperature range of -20°C to 50°C. It should not be exposed to moisture, making it better suited to dry interior environments.
