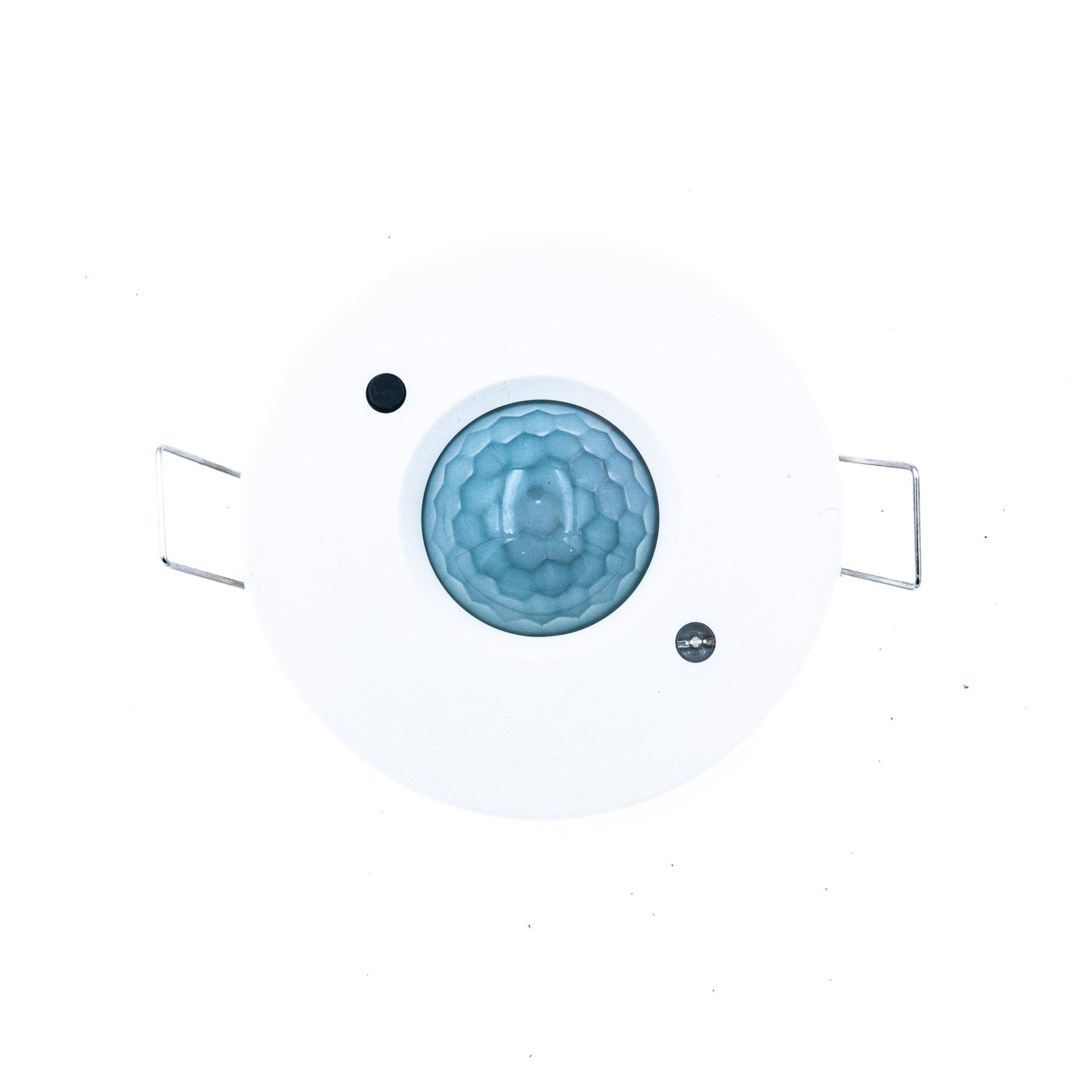

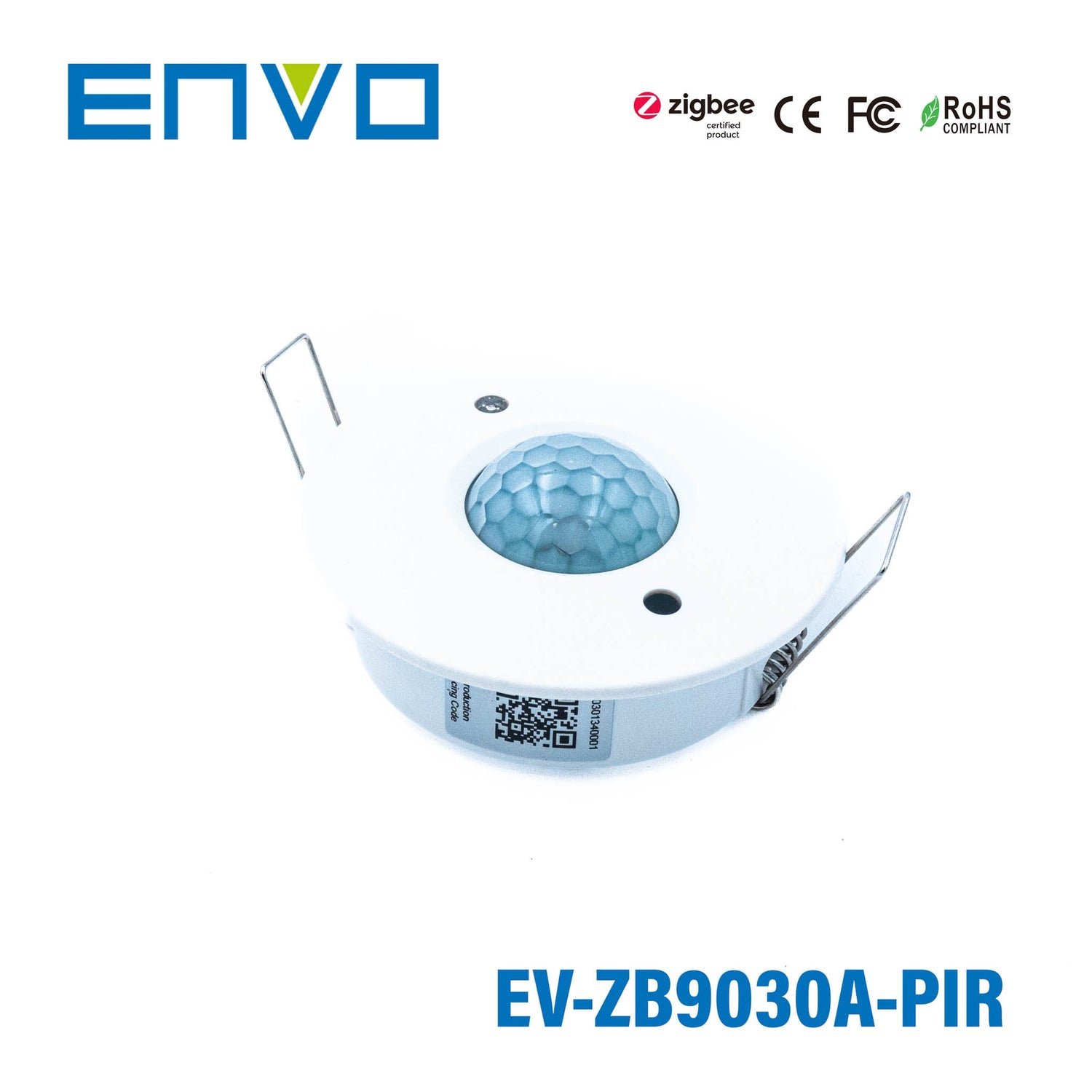

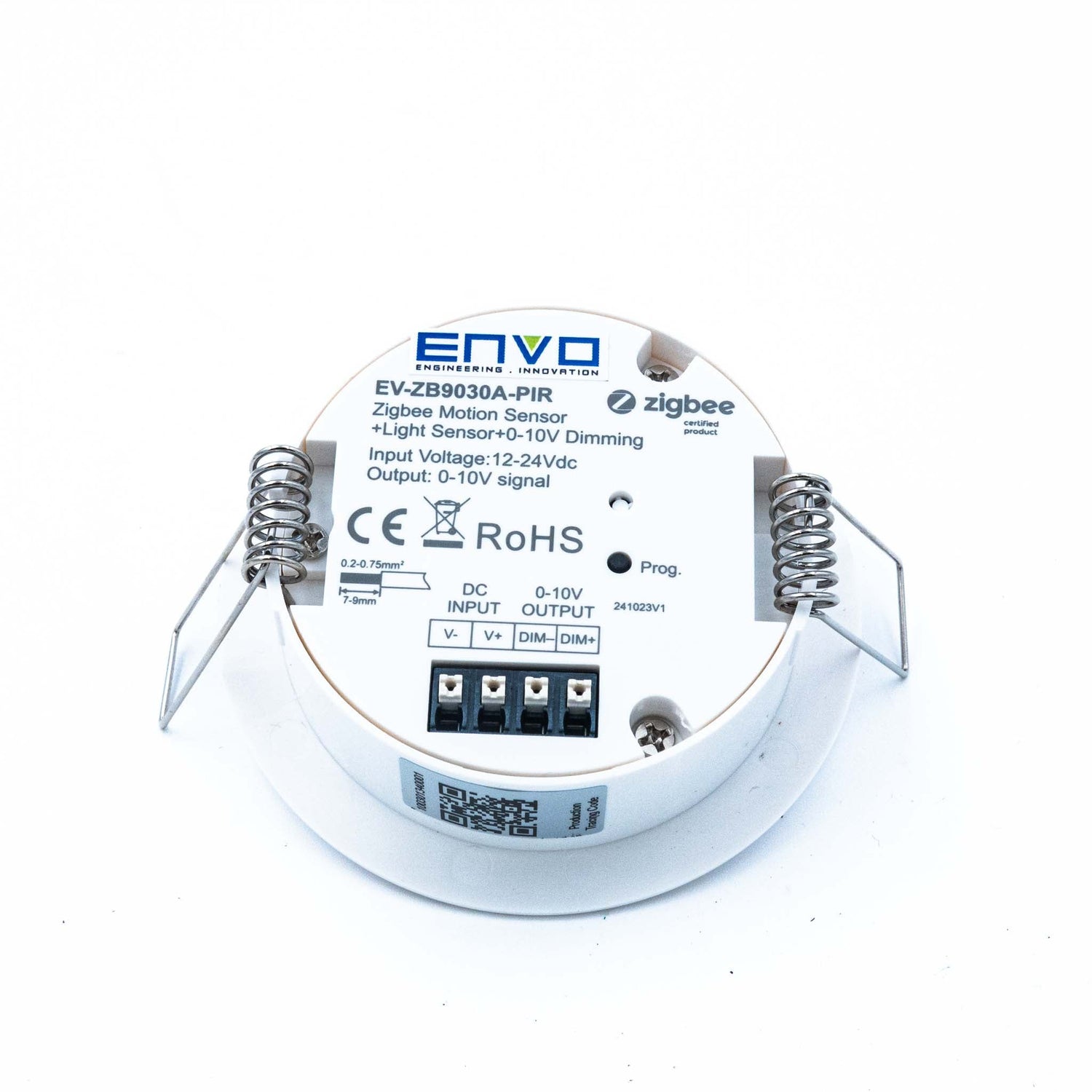

ENVO Zigbee Ceiling Mounted PIR Sensor, 0-10V Dimming
Overview
The Zigbee sensor is a 4 in 1 device that combines occupancy sensing, daylight harvesting, 0-10V dimming and Zigbee radio circuits. When used with 0-10V LED drivers, it enables any lighting manufacturer to deliver wirelessly-controllable and sensor-equipped fixtures. The sensor is suitable for low bay applications which need medium size detection area and sensor based automation.
Features
- Zigbee 3.0 compliant
- PIR motion detection
- Daylight harvesting
- Works with 0-10V dim-to-off LED drivers
- Autonomous sensor-based control
- OTA firmware upgrade
- Ceiling recessed installation
- Can be use for indoor applications
Specifications
Physical Information
- Cutting Hole
- 70-73mm
- Material / Color
- ABS / White
- Wire Gauge
- 26-16 AWG (0.2-1.3 mm2)
- Strip Length
- 0.28-0.35 in. / 7-9 mm
Electrical Information
- Input Voltage
- 12/24 VDC
- Current Consumption
- < 30mA (when dimming method = sink)
- Dimming Control
- Analog (0-10V)
- Dimming Output
- 4mA (sink) / 20mA (source)
- Status Indicators
- Red (motion detection)
Wireless Communication
- Radio Frequency
- 2.4 GHz
- Wireless Protocol
- Zigbee 3.0
- Wireless Range
- 100 feet (30m) Line of Sight
- Radio Certification
- FCC/IC, CE
Lighting Control
- Features
- Continuous dimming, Individual/group addressing, Scene control, Task tuning (0-100%), Autonomous sensor-based control, Scheduler control
Environment
- Operating Temperature Range
- 32˚F to 104˚F / 0˚C to 40˚C (indoor use only)
- Operating Humidity
- 0-95% (non condensing)
- Safety Certification
- cULus Listed, CE
Sensing
- Occupancy Sensing Type
- PIR sensor
- Detection Sensitivity
- 0-15, 0 is 100% the max. sensitivity, 15 is the min. sensitivity
- Lux Detection Range
- 0-1000 Lux
- Mounting Height
- Recommended height: 8ft (2.5m)
- Detection Angle
- 130°
- Sensing Information
- Can be shared within Zigbee mesh network
Typical applications
- Residences
- Offices
- Meeting rooms
- Corridors
Downloads
Datasheet1
FAQ
What is the ENVO Zigbee Ceiling Mounted PIR Sensor used for?
This sensor is designed for autonomous lighting control in indoor spaces using PIR motion detection and daylight harvesting. It works with 0-10V dim-to-off LED drivers to help reduce energy use and support energy code compliance.
Is this sensor compatible with Zigbee systems?
Yes. This model is Zigbee 3.0 compliant and is described as compatible with universal Zigbee platforms that support sensors. It also supports OTA firmware upgrades and operates on a robust mesh network.
What dimming method does this PIR sensor support?
This model uses analog 0-10V dimming control. Its dimming output is rated at 4mA in sink mode and 20mA in source mode, and it is intended for use with 0-10V dim-to-off LED drivers.
Where is this sensor best suited to operate?
The sensor is intended for indoor applications. Its operating temperature range is 0°C to 40°C, making it suitable for typical conditioned commercial or interior environments.
How compact is the ENVO Zigbee Ceiling Mounted PIR Sensor?
This is a compact ceiling recessed sensor with a 70-73mm cutting hole. Its small white housing helps it fit discreetly into ceiling-mounted lighting control applications.
What are the power and wireless specifications for this model?
The sensor operates on 12/24 VDC input and uses 2.4 GHz radio frequency communication. Its wireless range is rated up to 100 feet (30 meters) line of sight.
