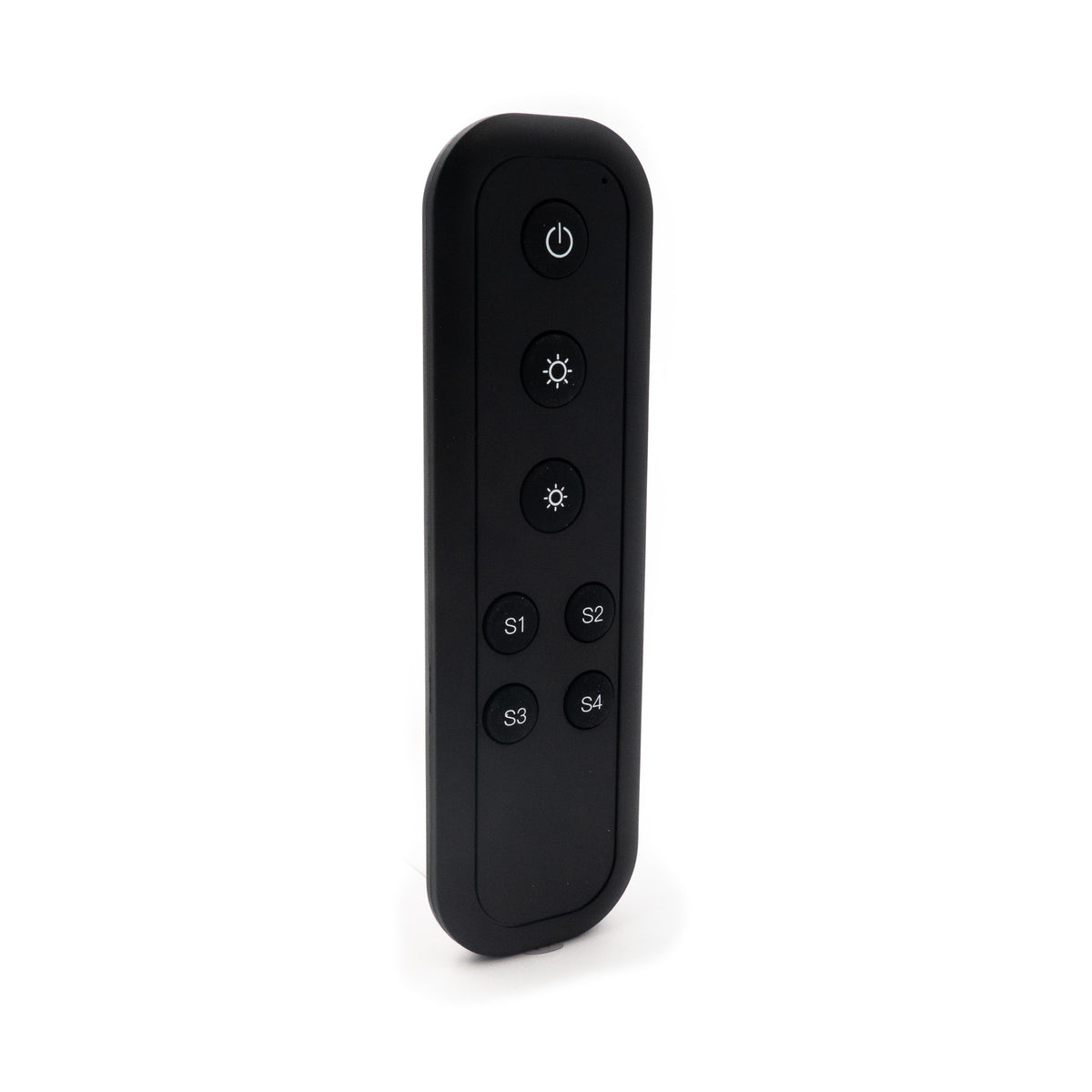

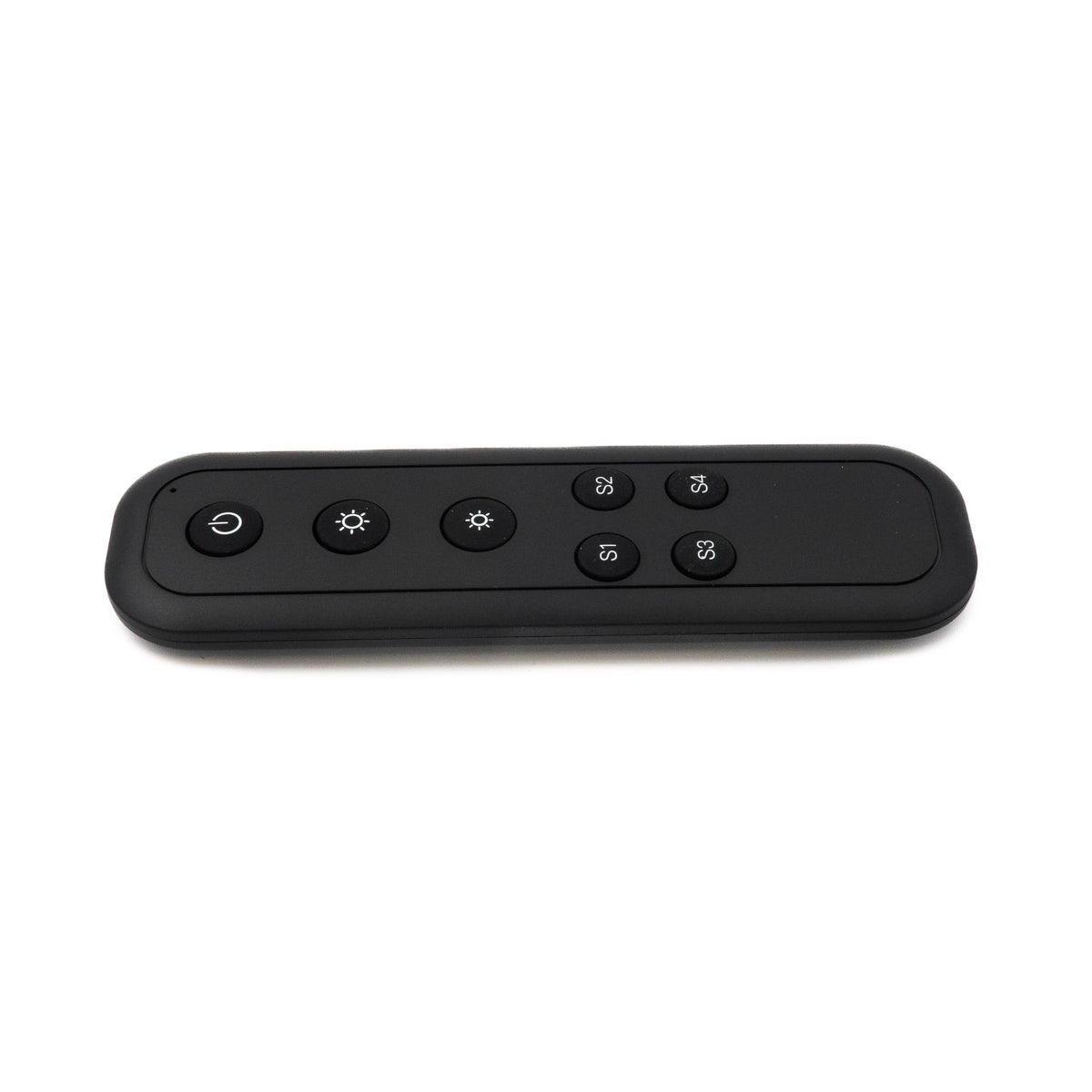

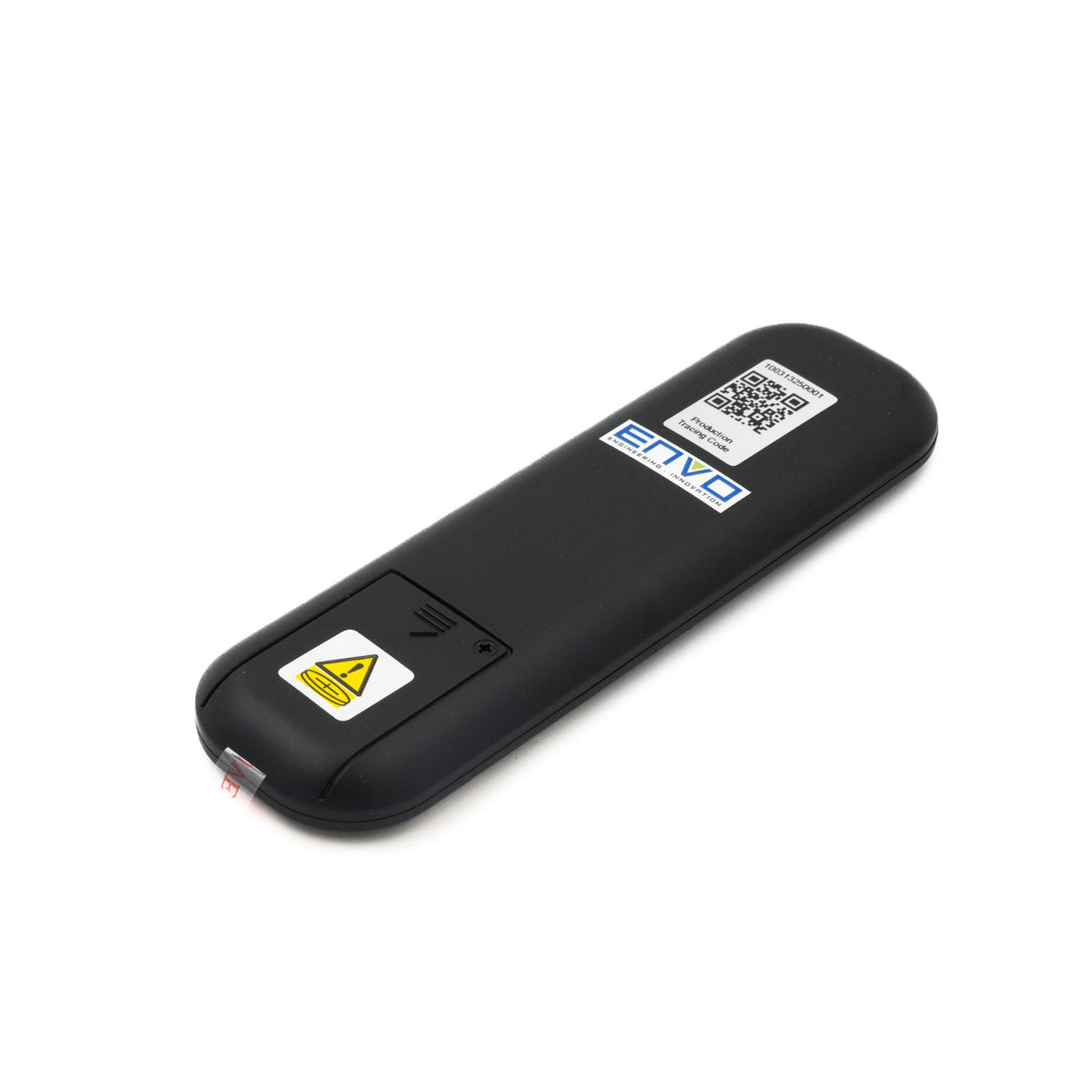

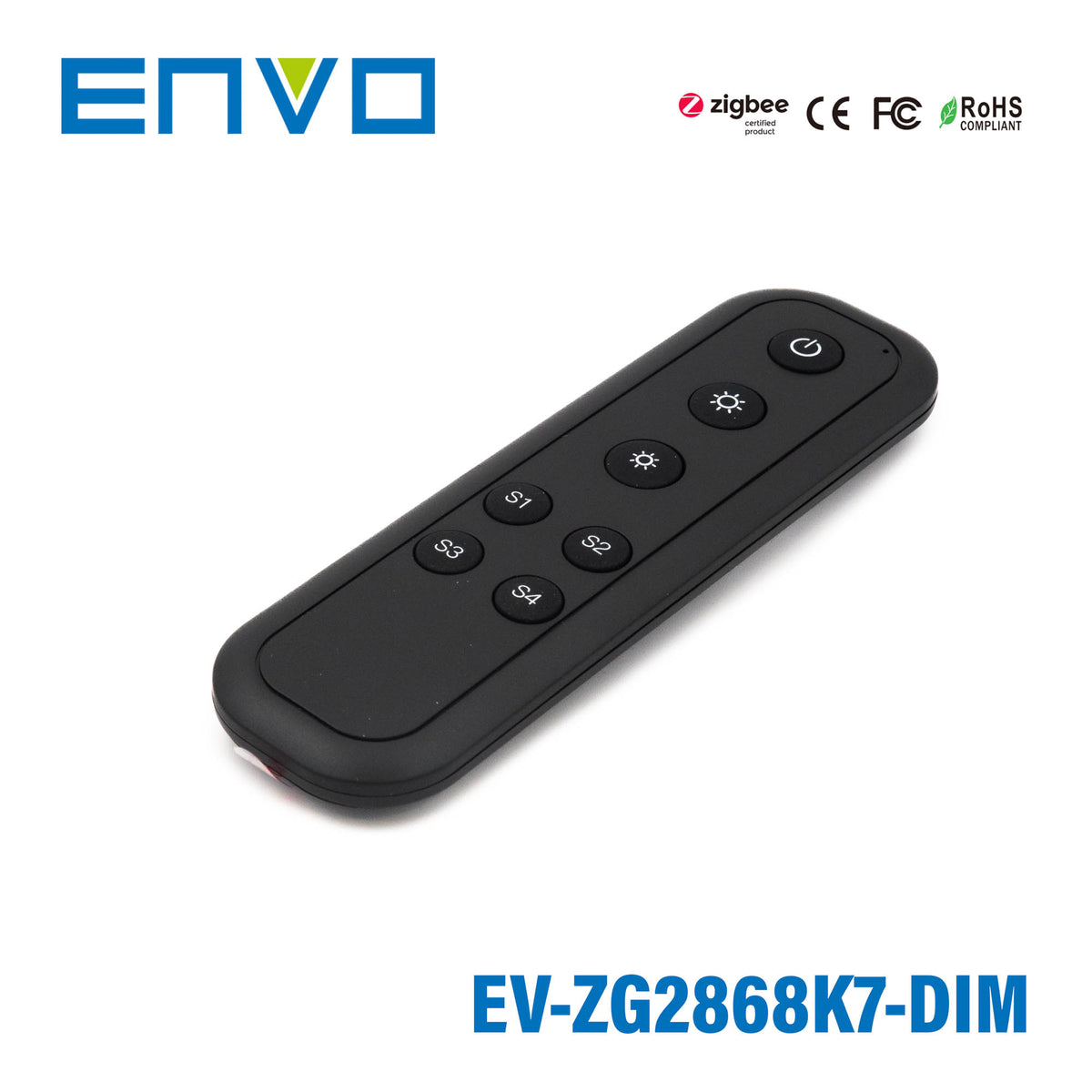

ENVO Zigbee Economic Single Colour Remote
Overview
Features
- ZigBee single color remote based on ZigBee 3.0
- Enables to control single color lighting devices
- Battery powered remote with low power consumption
- Enables to pair ZigBee lighting devices through Touchlink commissioning
- Supports 1 group for binding max. 30 lighting devices
- 2.4 GHz global operation
- Transmission range up to 30m
- Compatible with universal ZigBee Gateway products
Specifications
Product Data
- Protocol
- ZigBee 3.0
- Operation Voltage
- 3VDC (CR2025 battery)
- Transmission Frequency
- 2.4GHz
- Transmission Range (free field)
- 30m
- Dimming Range
- 0.1%-100%
- Dimension
- 137x40x11.5mm
- Waterproof Grade
- IP20
Certifications & ratings
- Certification marks
- CE, FCC, RoHS
Test conditions and notes5
- Note: Before the first use, please remove the protective film on the battery.
- Note: a. For adding/removing devices via Touchlink, the distance between the remote and the device must be < 10cm.
- b. Directly TouchLink(both remote and device are not connected to a Zigbee network), please reset them to factory settings first. Each remote can connect to a maximum of 30 devices. If you want to Touchlink with the second device or more devices, please ensure that the first linked device remains powered on.
- c. Touchlink after both remote and device are connected to the Zigbee network. Each device can connect to a maximum of 30 remotes.
- d. To control by both remote and gateway, first add them to the network, and then Touchlink. In this case, the device can be controlled by the linked remote and Zigbee Hub.
Downloads
Datasheet1
FAQ
What is the ENVO ZigBee Economic Single Color Remote used for?
This remote is designed to control single color ZigBee lighting devices. It is intended for dimming and basic remote control in compatible ZigBee 3.0 lighting systems. It fits applications where a simple handheld controller is needed for single color lights.
Is this remote compatible with standard ZigBee gateways?
Yes, this model uses ZigBee 3.0 and is described as compatible with universal ZigBee Gateway products. That makes it suitable for use in broader ZigBee lighting ecosystems, provided the target devices also support the relevant ZigBee control functions. It also supports Touchlink commissioning for pairing compatible ZigBee lighting devices.
How many lighting devices can this remote control as a group?
This remote supports 1 group for binding up to 30 lighting devices. That makes it appropriate for controlling a small to medium single-zone lighting group from one handheld remote. It is not intended for multi-group control from the same unit.
What are the operating range and wireless frequency of this remote?
The remote operates on the 2.4 GHz band and has a transmission range of up to 30 meters in free-field conditions. Actual performance can vary depending on walls, interference, and the surrounding environment. For open indoor spaces, it is designed to provide typical short-range ZigBee remote coverage.
Can this remote dim lights or is it only for on/off control?
This model supports dimming control for single color lighting devices. Its stated dimming range is 0.1% to 100%, which makes it suitable for applications requiring low-level dimming as well as full brightness control. It is specifically positioned as a ZigBee dimmer remote rather than only an on/off controller.
What environmental conditions is this remote rated for?
The unit is rated IP20, which means it is intended for dry indoor environments and should not be exposed to moisture. The product description explicitly states that the device should not be exposed to moisture and is for indoor use only.
