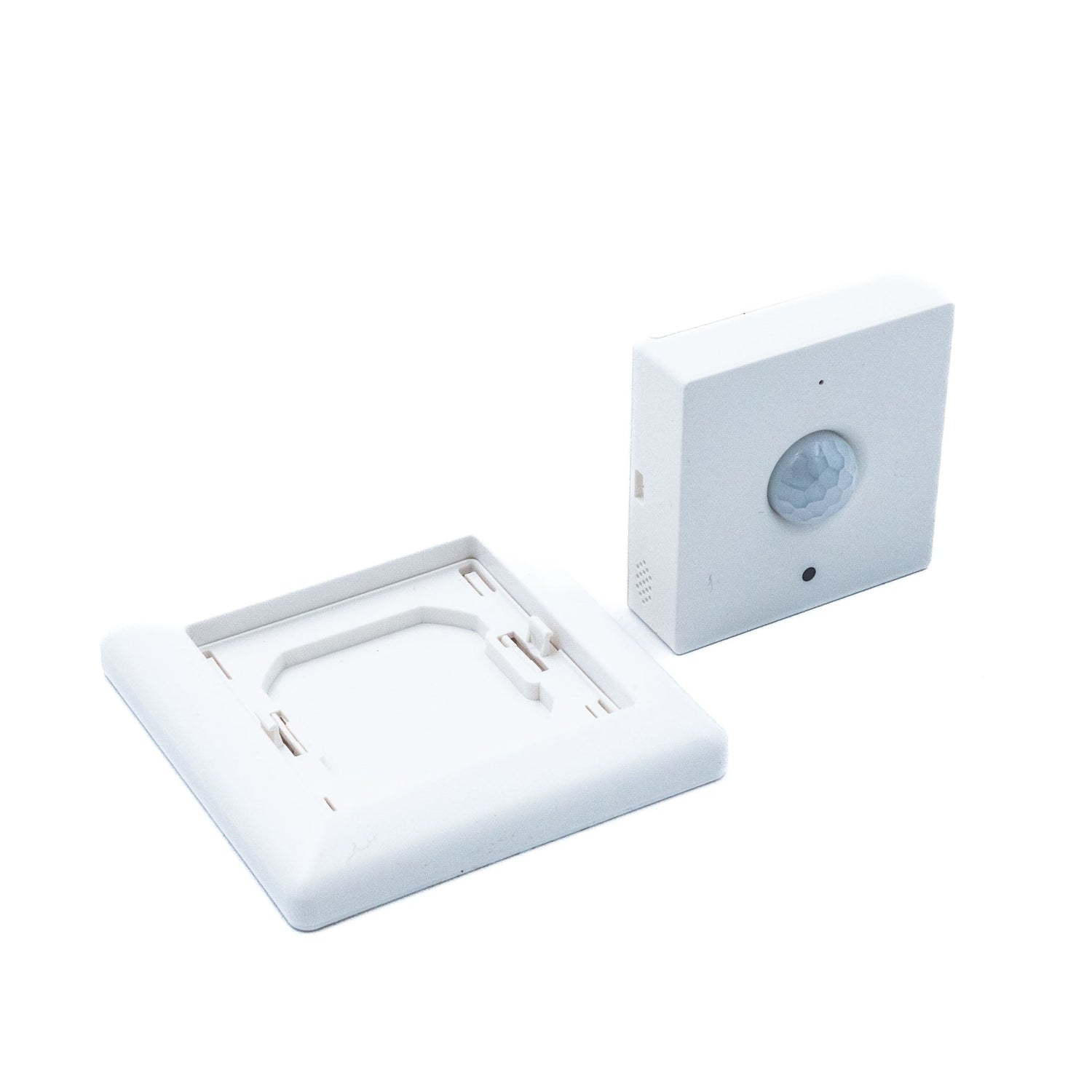

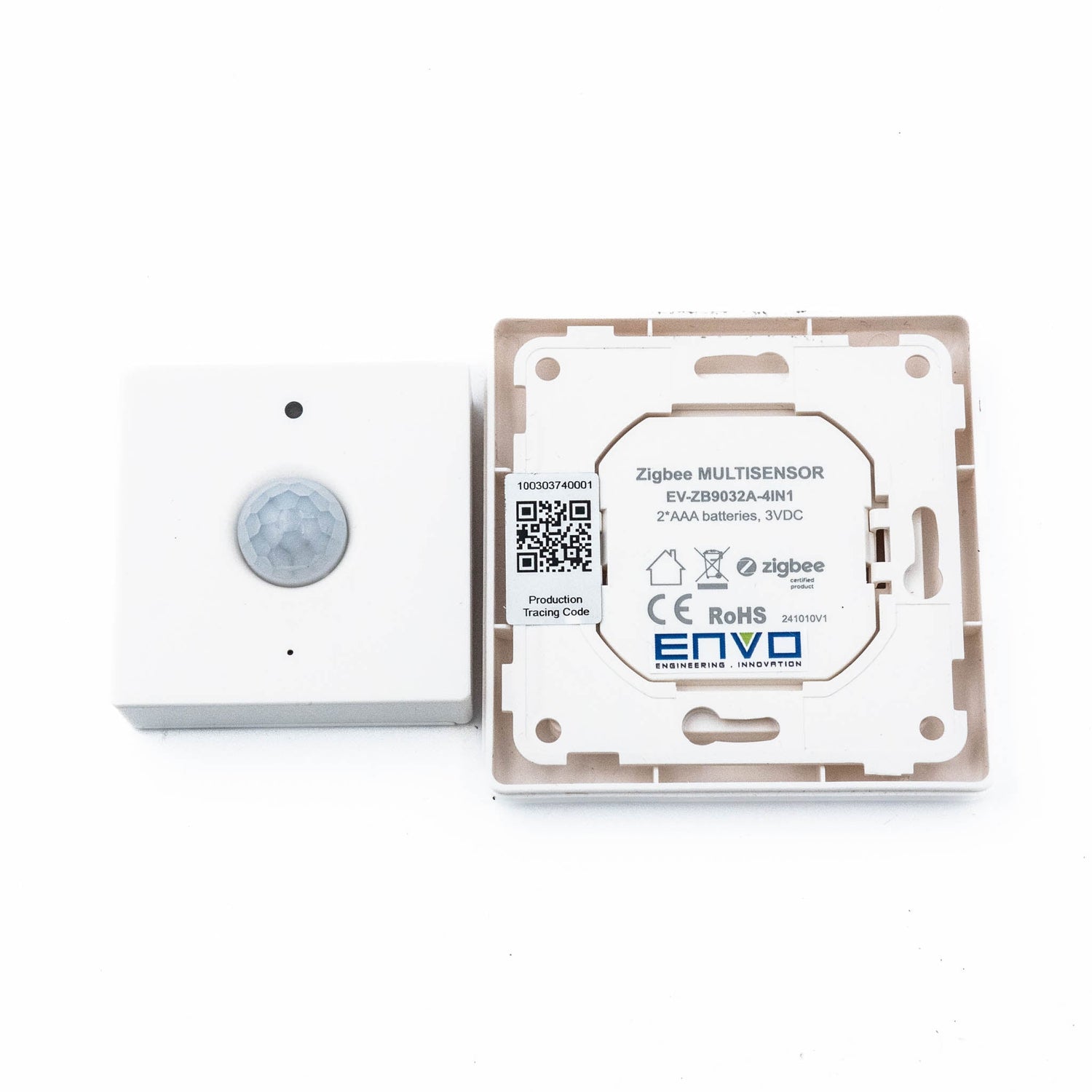

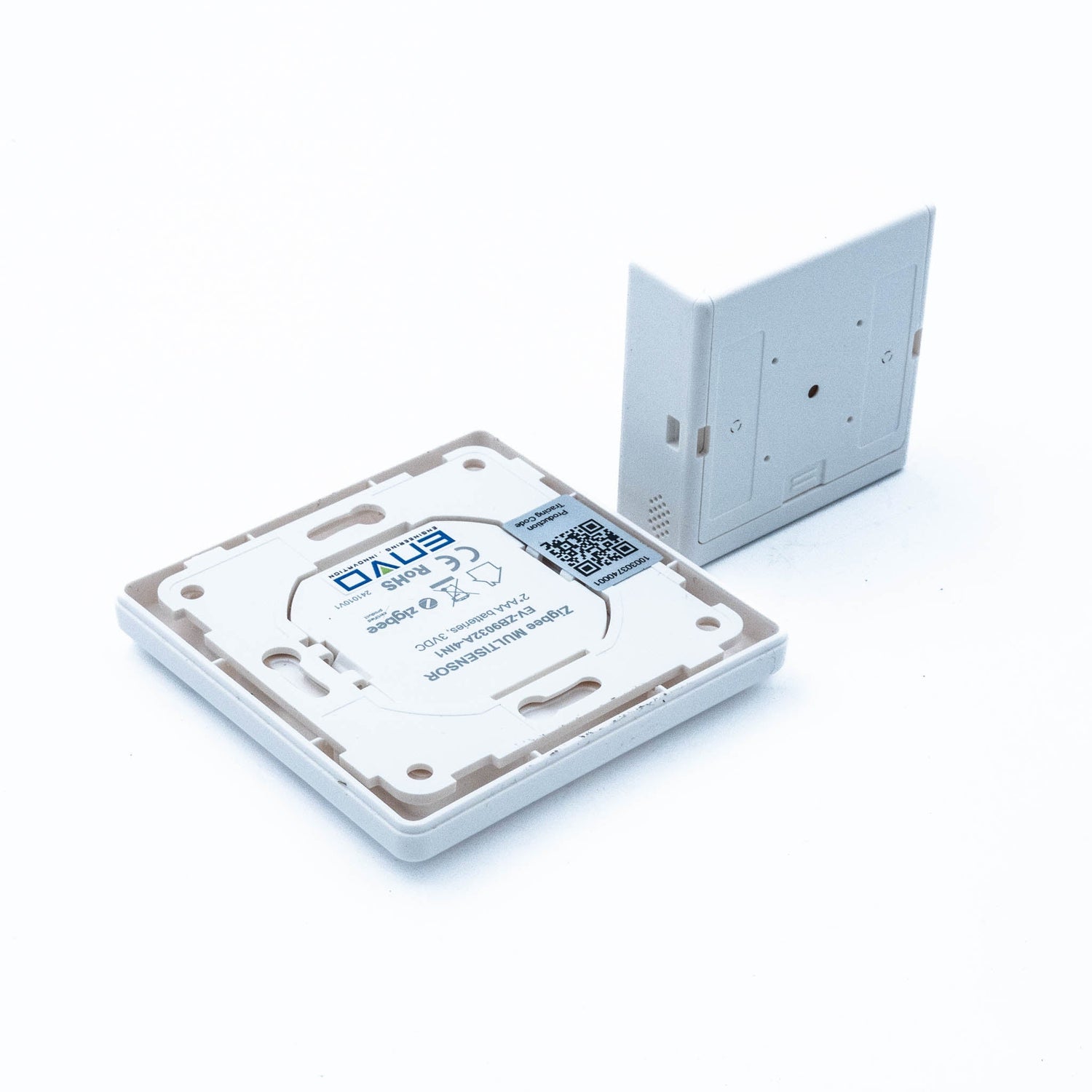

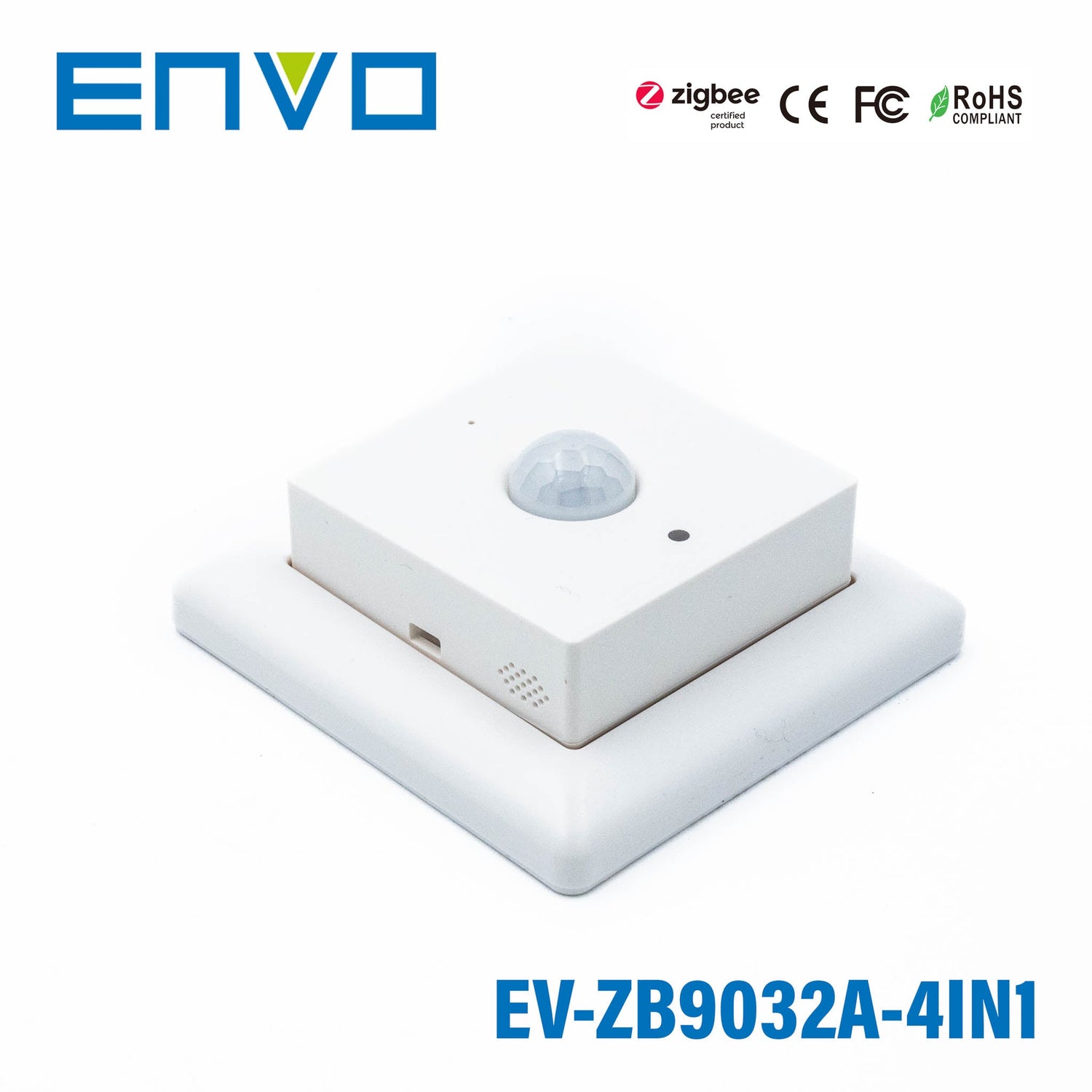

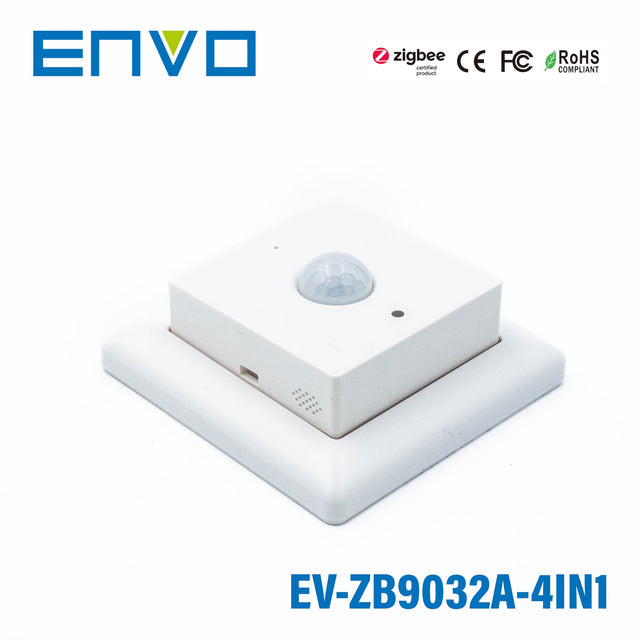

ENVO ZigBee Motion + Light + Temperature + Humidity 4-in-1 Sensor
Overview
The Zigbee sensor is a battery powered low power consumption 4 in 1 device that combines PIR motion sensor, temperature sensor, humidity sensor, and illuminance sensor. The PIR motion sensor trigger and sensitivity can be configured. The sensor supports low battery power alarm, if the power is lower than 5%, the motion sensor trigger and report will be forbidden, and the alarm will be reported every one hour until the battery power is higher than 5%. The sensor is suitable for smart home applications which need sensor based automation.
Features
- Zigbee 3.0 compliant
- PIR motion sensor, long detection range
- Temperature sensing, automates your home heating or cooling
- Humidity sensing, automates your home humidifying or dehumidifying
- Illuminance measuring, daylight harvesting
- Autonomous sensor-based control
- OTA firmware upgrade
- Wall mount installation
- Can be use for indoor applications
- Cost-effective solution for energy savings
- Energy code compliance
- Robust mesh network
- Compatible with universal Zigbee platforms that support sensor
Specifications
Physical Information
- Dimensions
- 55.5*55.5*23.7mm
- Material / Color
- ABS / White
Electrical Information
- Operate Voltage
- 3VDC (2*AAA Batteries)
- Standby Consumption
- 10uA
Wireless Communication
- Radio Frequency
- 2.4 GHz
- Wireless Protocol
- Zigbee 3.0
- Wireless Range
- 100 feet (30m) Line of Sight
- Radio Certification
- CE
Sensing
- Motion Sensor Type
- PIR sensor
- PIR sensor Detection Range
- Max. 7 meters
- Recommended Installation Height
- Wall mount, 2.4 meters
- Temperature Range and Precision
- -40°C~+125°C, ±0.1°C
- Humidity Range and Precision
- 0 – 100% RH (non-condensing), 3%
- Illuminance Measuring Range
- 0~10000 lux
Environment
- Operating Temperature Range
- 32°F to 104°F / 0°C to 40°C (indoor use only)
- Operating Humidity
- 0-95% (non condensing)
- Waterproof Rating
- IP20
- Safety Certification
- CE
LED Indicator Status
- PIR motion sensor triggered
- Flashing once rapidly
- Powered on
- Staying solid on for 1 second
- OTA firmware update
- Flashing twice rapidly with 1 second interval
- Identify
- Flashing slowly (0.5S)
- Joining a network (Triple press the button)
- Flashing rapidly continuously
- Joined successfully
- Staying solid on for 3 seconds
- Leaving a network or reset (Long press the button)
- Flashing slowly (0.5S)
- Already in a network (Short press the button)
- Staying solid on for 3 seconds
- Not in any network (Short press the button)
- Flashing three times slowly (0.5S)
Typical applications
- Smart home
Downloads
Datasheet1
FAQ
What does the ENVO ZigBee Motion + Light + Temperature + Humidity 4-in-1 Sensor measure?
This model combines four sensing functions in one device: PIR motion detection, illuminance measurement, temperature sensing, and humidity sensing. It is designed to support automation decisions based on occupancy and surrounding environmental conditions.
What applications is this 4-in-1 ZigBee sensor suited for?
It is well suited for indoor smart home applications that need occupancy-based and environment-based automation. Typical use cases include daylight harvesting, energy-saving lighting control, and temperature or humidity-based HVAC automation.
Is this sensor compatible with standard ZigBee platforms?
Yes, this sensor is Zigbee 3.0 compliant and is described as compatible with universal Zigbee platforms that support sensors. Compatibility still depends on whether the platform supports this type of motion, light, temperature, and humidity sensor device.
Can this sensor be used outdoors or in harsh environments?
No, this model is specified for indoor applications. Its listed operating temperature range is 0°C to 40°C, so it is intended for normal indoor environmental conditions rather than exposed outdoor use.
How is this model different from a standard motion-only sensor?
Unlike a motion-only sensor, this model adds light, temperature, and humidity sensing in the same unit. That makes it a stronger fit for projects that want broader automation logic and energy-saving control from a single ZigBee sensor.
What are the key operating specs for this sensor?
The sensor uses Zigbee 3.0 at 2.4 GHz and is powered by 3VDC from two AAA batteries. It has a standby consumption of 10uA, a wireless range of up to 100 feet (30 m) line of sight, and dimensions of 55.5 x 55.5 x 23.7 mm.
