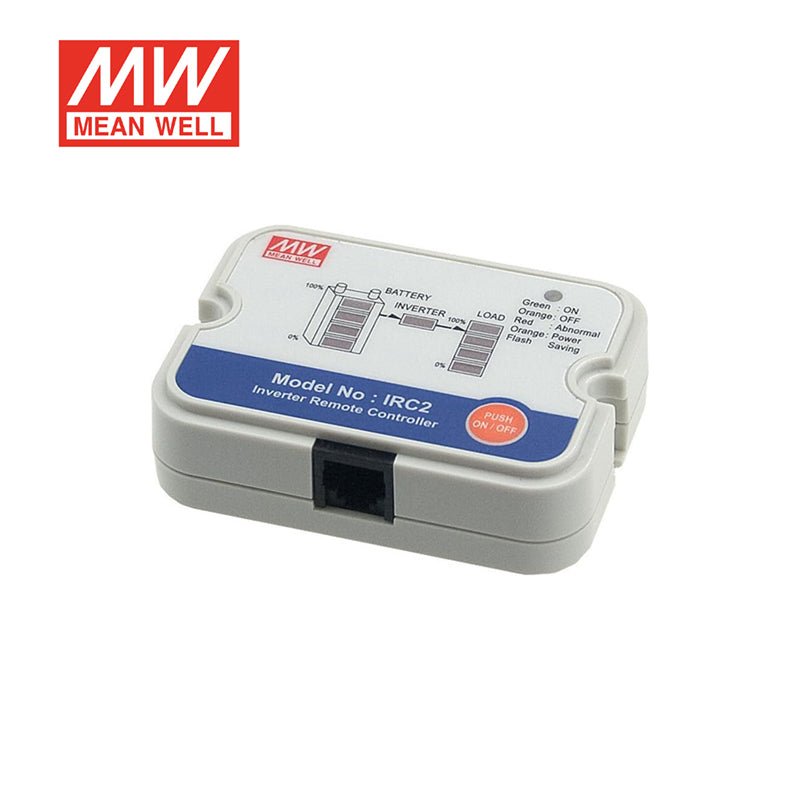

Mean Well IRC-2-25FT Power Inverter Remote Control with 25ft (7.6m)...
Overview
IRC1 / IRC2 / IRC3 is the monitoring and control unit used for the inverter series. It can decode the RS-232 signal sent by inverter series and display through digital meters. IRC1 / IRC2 / IRC3 can also turn ON/OFF of inverter remotely that make the basic control more easily.
Features
- Wall-mount and control panel acceptable
- Built-in ON/OFF button
- Digital meters for battery level, output load level, and operating status on remote control panel
- LED indicators for remote ON/OFF, abnormal and power saving mode
- Remote panel with 10FT cable length, optional for 25FT or 50FT
- Connect directly to the remote socket of inverter, no power supply needed
- 3 years warranty
Specifications
OUTPUT
- DIGITAL METER
- Display the battery level, output load level, and operating status of inverter unit
- CONTROL OUTPUT
- Remote ON/OFF for inverter unit
- LED INDICATOR
- Remote turn ON(Green) ; Remote turn Off(Orange) ; Abnormal (Red) ; Saving mode (Orange flash)
FUNCTION
- REMOTE ON/OFF CONTROL
- The controlled inverter unit can be turned ON/OFF on the remote control panel for IRC1 / IRC2 / IRC3
- POWER SAVING CONTROL
- Power saving enable / disable activation
- SUITABLE SERIES
- TS-700 / 1000 / 1500 / 3000 NTS-750 / 1200 / 1700 / 2200 / 3200 NTU-1200 / 1700 / 2200 / 3200
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +50℃
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
EMC
- EMC EMISSION
- Compliance to BS EN/EN55032 class A, BS EN/EN61000-3-2,3, FCC PART 15 class A
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035
OTHERS
- MTBF
- 4352.7 / 858.7 / 632.9K hrs min. Telcordia SR-332 (Bellcore) ; 807.1 / 746.6 / 722.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 75*55*21mm (L*W*H)
- PACKING
- 0.26Kg; 24pcs/7.3Kg/1.75CUFT
Certifications & ratings
- Certification marks
- FCC, CE, UKCA
Test conditions and notes2
- 1. The remote control can not re-power on for inverter at abnormal status.
- 2. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

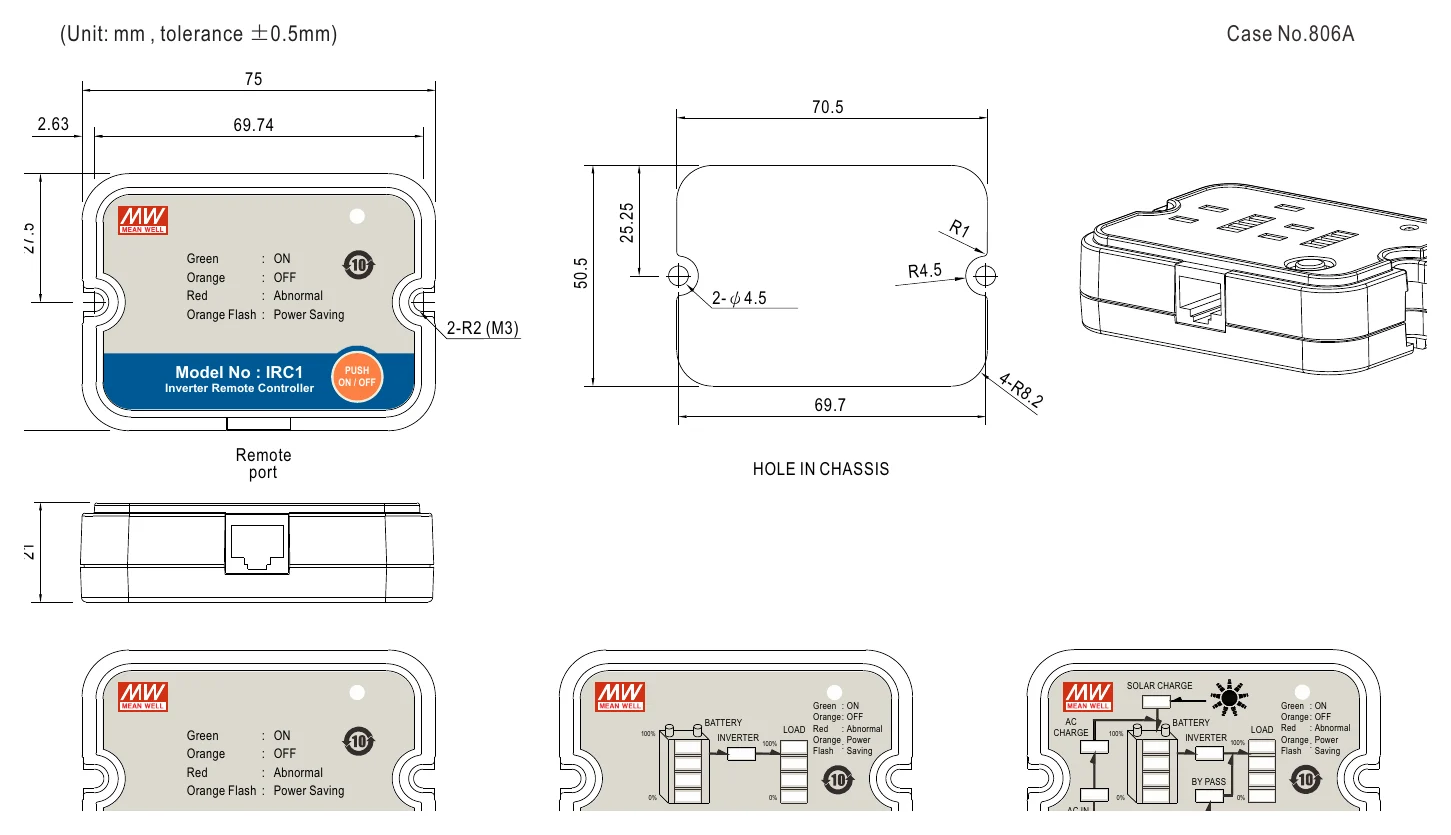

Technical drawings
FAQ
What is the Mean Well IRC-2-25FT used for?
The Mean Well IRC-2-25FT is a remote control panel for compatible Mean Well power inverters. It lets users control inverter ON/OFF functions remotely and monitor battery level, output load level, and operating status from the panel.
What information can the IRC-2-25FT display on the remote panel?
The panel includes digital meters for battery level, output load level, and operating status. It also has LED indicators for remote ON/OFF, abnormal condition, and power saving mode, giving users quick status visibility at the panel.
Is the Mean Well IRC-2-25FT suitable for industrial or demanding environments?
This remote panel is rated for operation from -20°C to +50°C, which supports use in a wide range of working environments. It also has a vibration specification of 10 to 500Hz at 2G, tested along the X, Y, and Z axes.
What inverters is the IRC-2-25FT compatible with?
The IRC-2-25FT is listed as suitable for Mean Well TS-700/1000/1500/3000, NTS-750/1200/1700/2200/3200 and NTU-1200/1700/2200/3200 series inverters. It provides remote ON/OFF control of the inverter unit and connects to it through the panel's remote port.
What are the physical size and warranty of the IRC-2-25FT?
The remote panel measures 75 x 55 x 21 mm and weighs 0.26 kg. The datasheet does not state a warranty period for this model.
