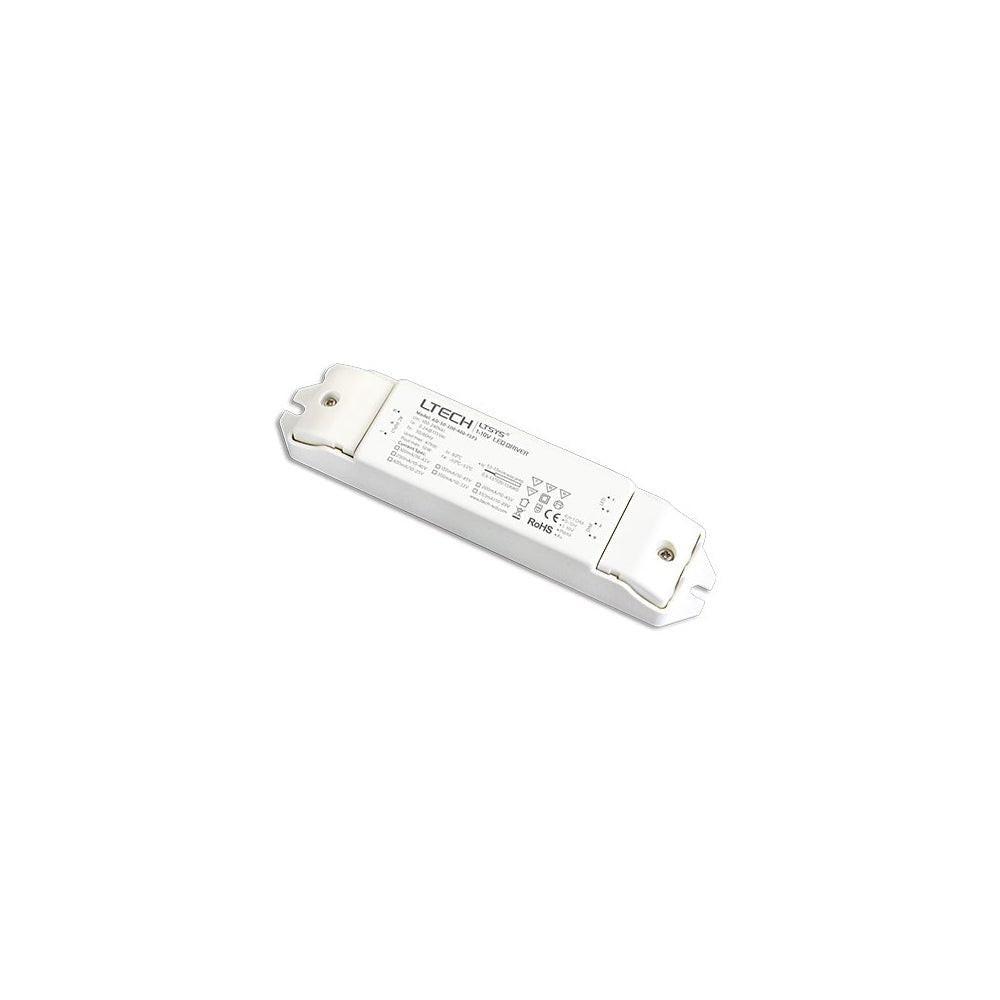

Ltech AD-10-100-400-F1P1 LED intelligent Driver
SKU:
AD-10-100-400-F1P1
Datasheet:
$17.42 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Your order will be processed within 24 hours
Ltech AD-10-100-400-F1P1 LED intelligent Driver
$17.42 USD
Unit price /
Unavailable
Description
Description
T-PWM digital dimming, present a perfect visual experience. Built-in SCM, dimming curve and smoothing time can be customized. Automatic recognition of 0-10V, 1-10V input signal. Dimming range: 0~100%, LED start at 0.01% possible. Flicker-free (IEEE 1789), achieve the level of exemption assessment. Innovative thermal management technology, intelligent power life protection. Over-heat / Over load / Short circuit protection. Class 2 power supply. Full protective plastic housing. Compliant with Safety Extra Low Voltage standard. Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ
Specifications
Specifications
-
BrandLtech
-
Power Rating10 Watt
-
Output Voltage45 Volt
-
Rated Current0.4 Ampere
-
Input Voltage10V~240V
-
No of Output400
-
Dimming Control1-10V
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length5.32 in
-
Width1.34 in
-
Height1.26 in
-
Weight0.18 lb
File Downloads
File Downloads
Specification Sheet
