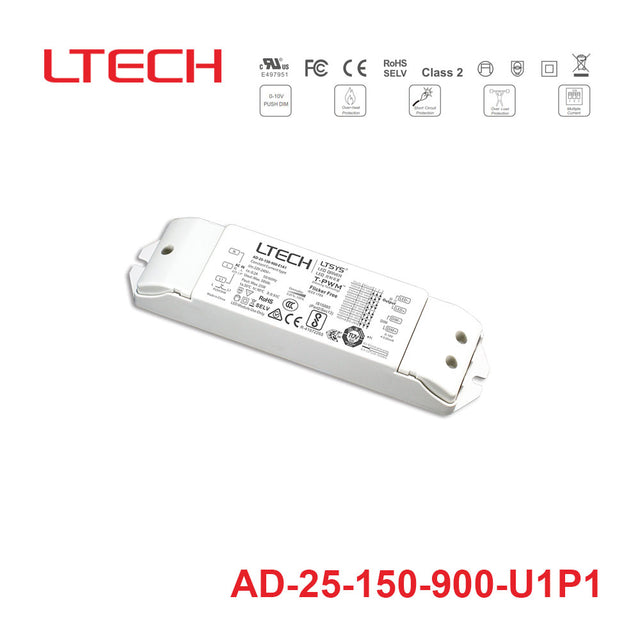

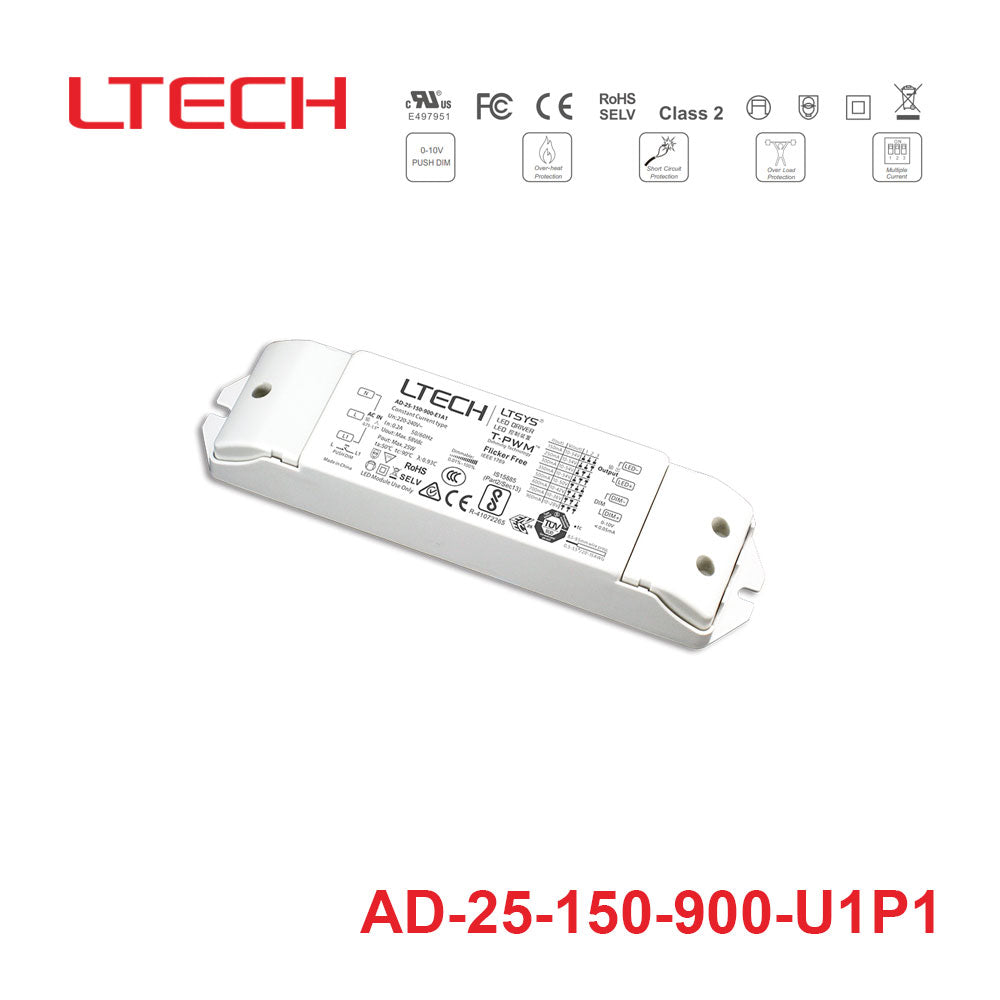

LTECH AD-25-150-900-U1P1 25W 150 ~ 900mA CC 0/1-10V LED Driver - Selectable Output

$46.06 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

  • Dimming interface: 0-10V (1-10V/10V PWM/RX)
  • Push Dim
  • T-PWM digital dimming
  • Built-in single chip
  • dimming curve and smoothing time can be customized.
  • Automatic recognition of 0-10V
  • 1-10V input signal
  • Innovative thermal management technology
  • intelligent power life protection.
  • Dimming range:0~100%
  • LED start at 0.01% possible.
  • 0-100% flicker-free (IEEE 1789 standard)
  • Multi-current & wide voltage
  • suitable for different power LED.
  • Non-load output voltage 0V to prevent damages to LED caused by poor contact.
  • Suitablefor internal lights application for I/II/III
  • 5 years warranty (Rubycon capacitor).

Specifications

  • Brand
    Ltech
  • Series
    Ltech 0/1-10V Series
  • Power Rating
    25 Watt
  • Output Voltage
    58 Volt
  • Rated Current
    0.15 Ampere
  • Input Voltage
    220V~277V
  • No of Output
    1
  • Dimming Control
    0-10V,1-10V
  • Standards Met
    CB,CCC,CE,EMEC,RCM,ROHS,TUV
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~55°C
  • Warranty
    5 Year
  • Length
    6.89 in
  • Width
    1.73 in
  • Height
    1.18 in
  • Weight
    0.4 lb
