Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

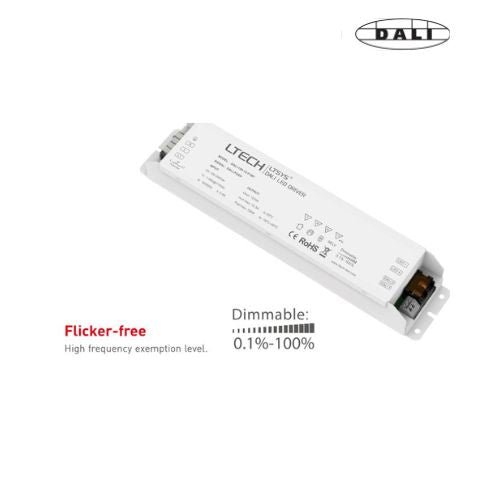

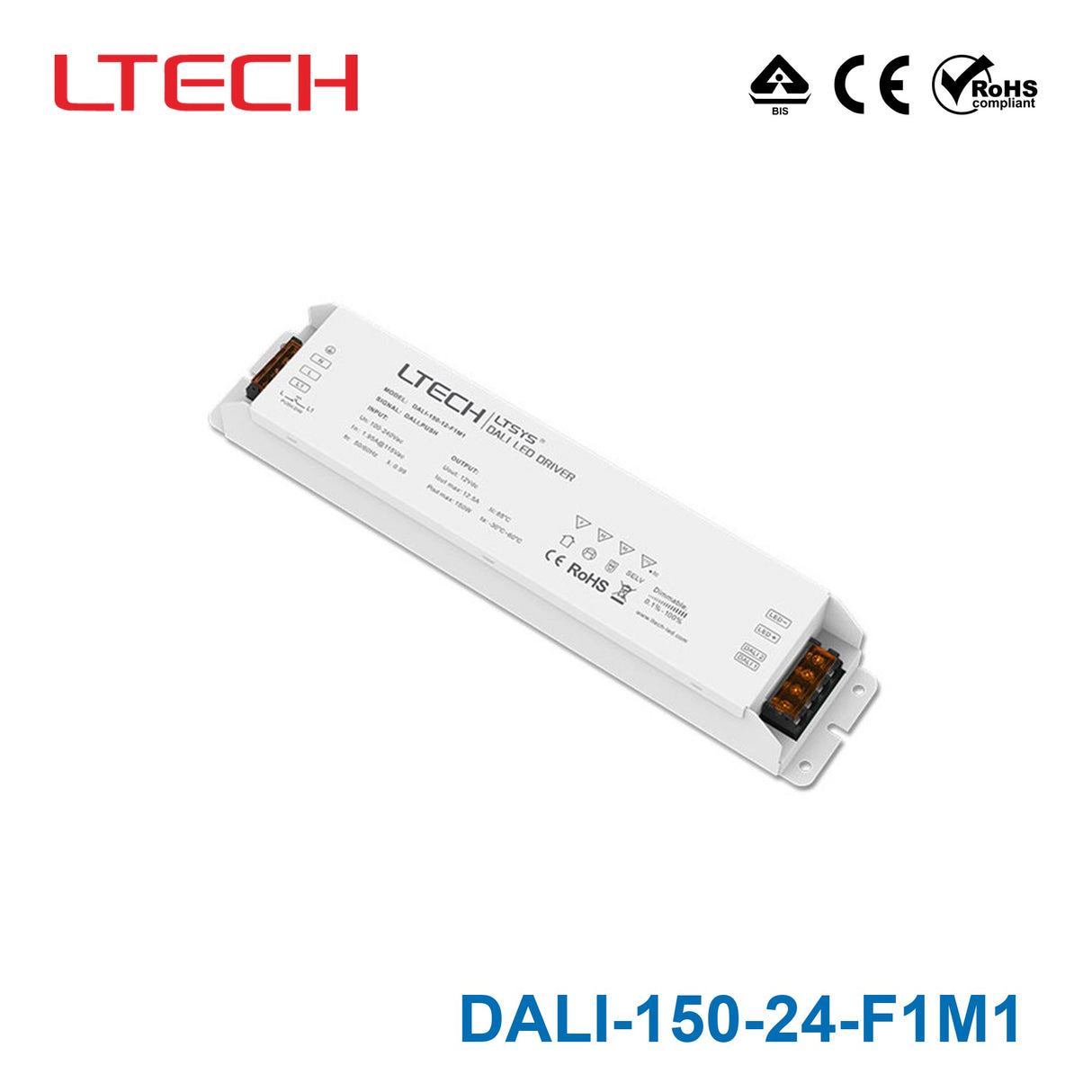

LTECH DALI-150-24-F1M1 150W 24VDC CV DALI LED Driver
$118.19 USD
Unit price /
Unavailable
Description
Description
- Dimming interface: DALI
- Push DIM
- Dimming range from 0-100%
- LED start at 0.1% possible.
- DALI dimming curve: Liner curve or logarithmic curve.
- 0~100% flicker-free
- achieve the level of exemption assessment.
- Over-heat / Over load / Short circuit protection
- recover automatically.
- DALI bus standard: IEC62386-101
- 102
- 207
- Compliant with Safety Extra Low Voltage standard.
- Suitable for indoor I/II/III type lamps application.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.25 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty5 Year
-
Length10.75 in
-
Width2.24 in
-
Height1.46 in
-
Weight1.74 lb
