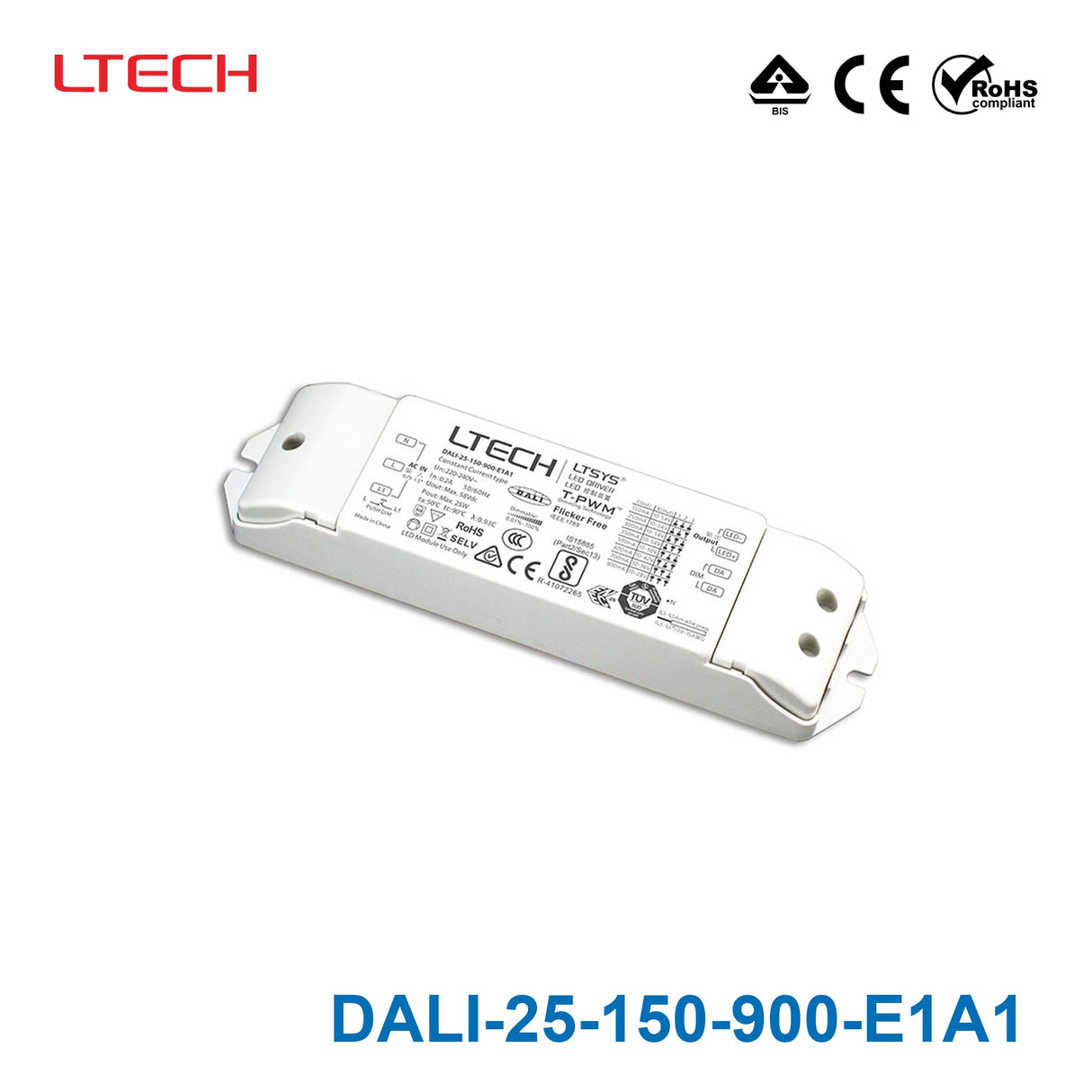

LTECH DALI-25-150-900-E1A1 25W 150mA~900mA CC Dali LED Driver - Selectable Output

$43.43 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

  • Dimming interface: DALI
  • Push DIM
  • T-PWM digital dimming
  • Dimming range: 0~100%
  • LED start at 0.01% possible.
  • 0-100% flicker-free
  • (IEEE 1789 standard)
  • Innovative thermal management technology
  • intelligent power life protection.
  • DALI dimming curve can be either linear or logarithmic.
  • Multi-current & wide voltage
  • suitable for different power LED.
  • Non-load output voltage 0V to prevent damages to LED caused by poor contact
  • Short circuit / Over load/Over heat
  • Non-load protection recover automatically
  • DALI bus standard: IEC62386-101
  • 102
  • 207
  • Suitable for internal lights application for I/II/III
  • 5 years warranty (Rubycon capacitor).

Specifications

  • Brand
    Ltech
  • Series
    Ltech DALI Series
  • Power Rating
    25 Watt
  • Output Voltage
    58 Volt
  • Rated Current
    0.15 Ampere
  • Input Voltage
    220V~240V
  • No of Output
    1
  • Dimming Control
    DALI
  • Standards Met
    BIS,CE,ROHS
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~50°C
  • Warranty
    5 Year
  • Length
    6.57 in
  • Width
    1.61 in
  • Height
    1.26 in
  • Weight
    0.37 lb
