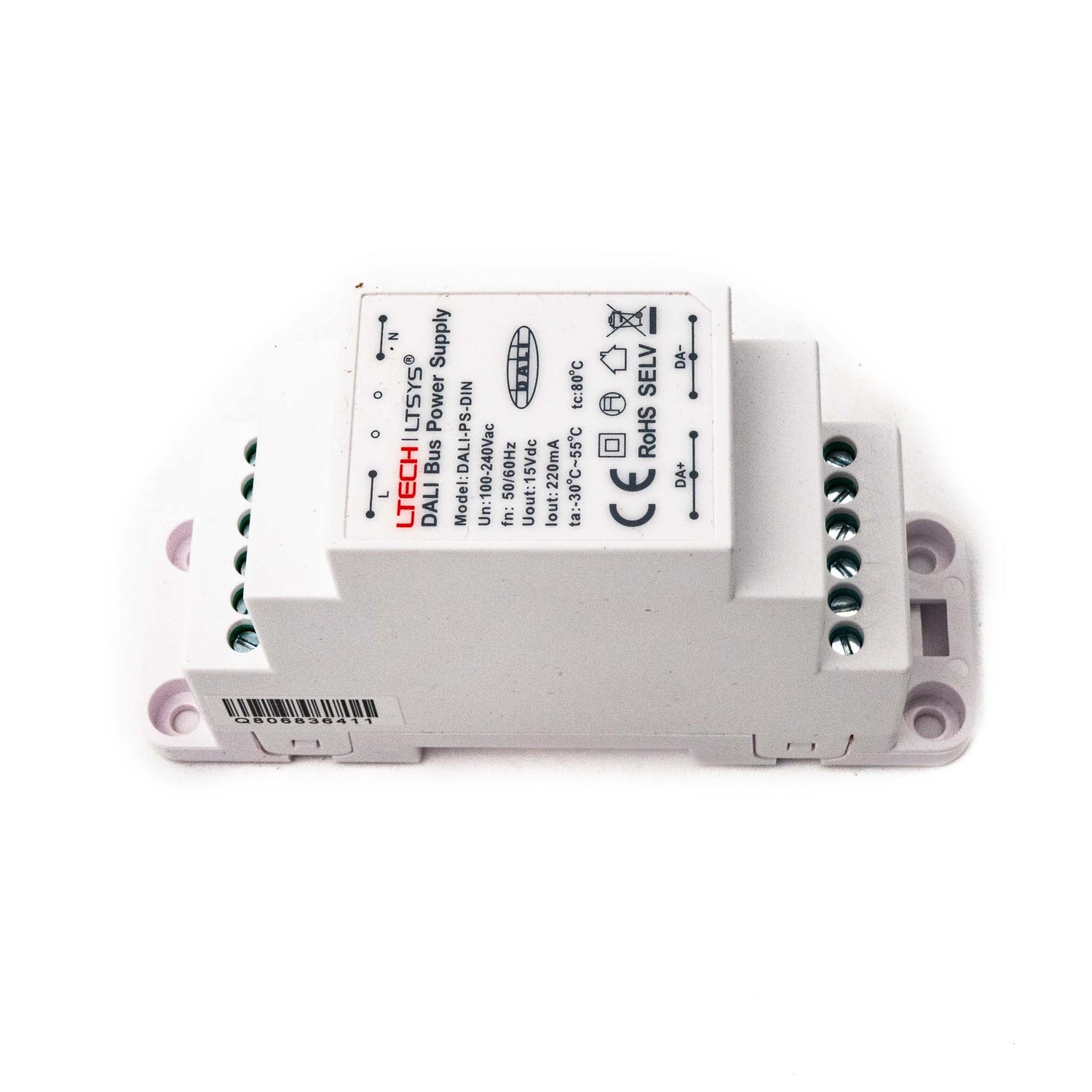

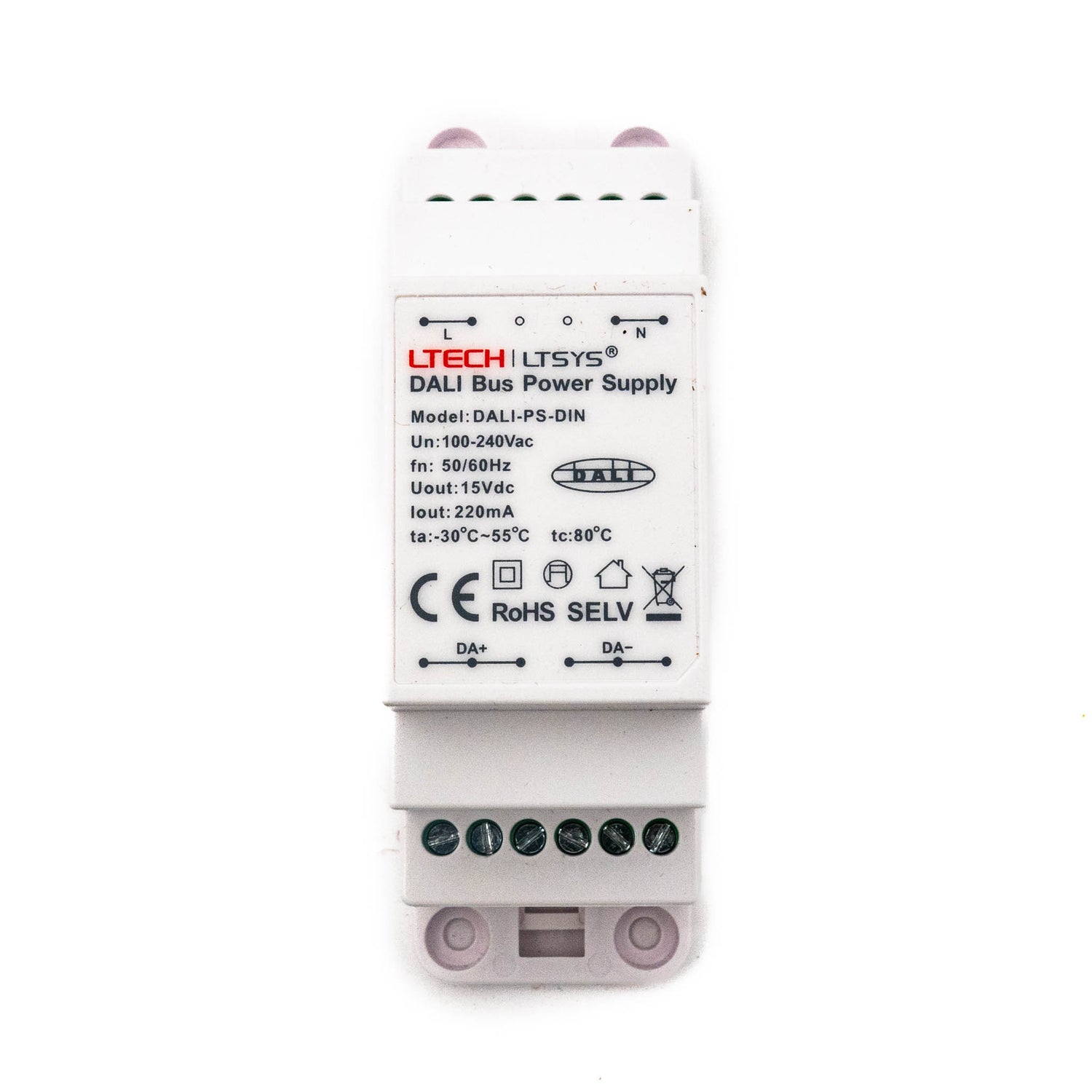

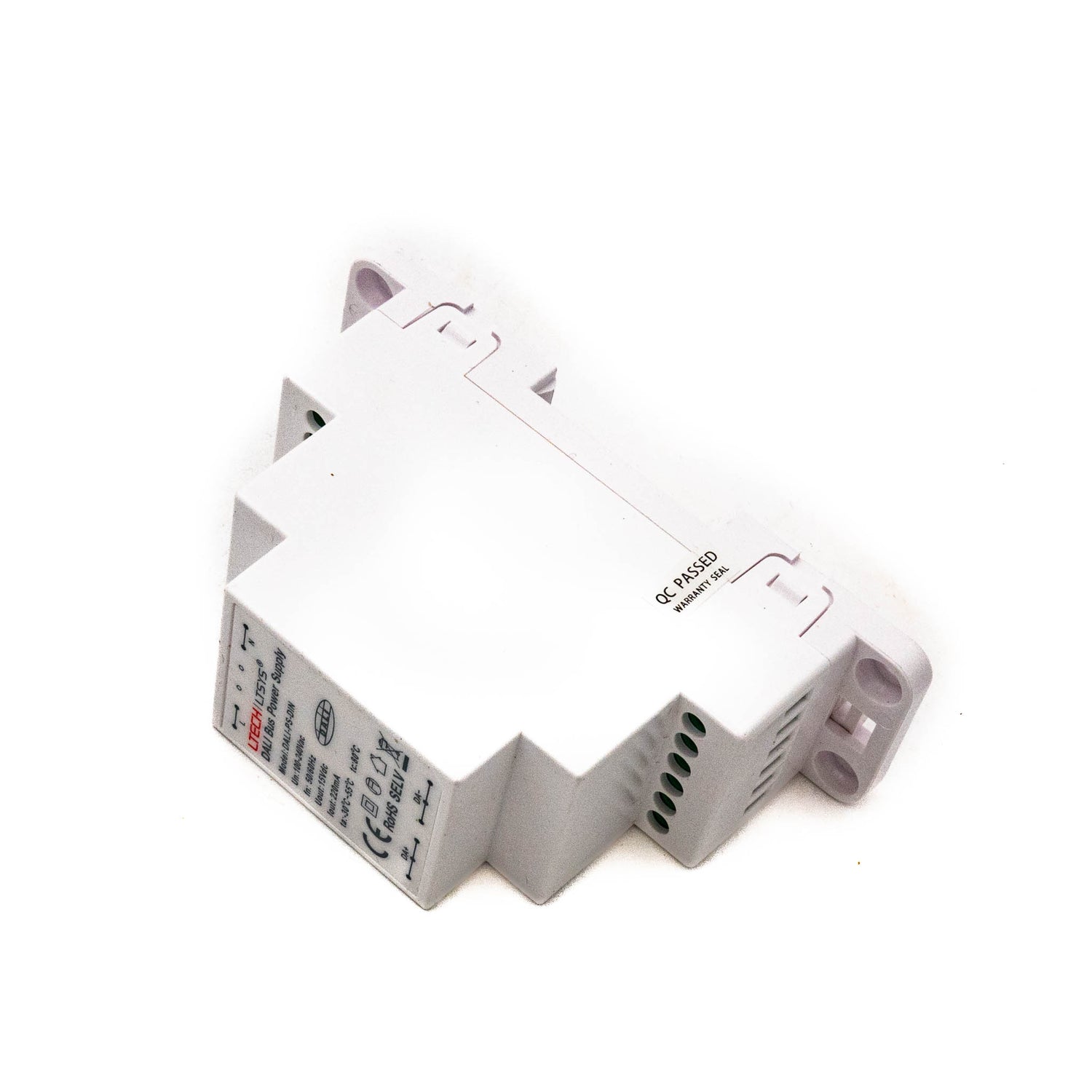

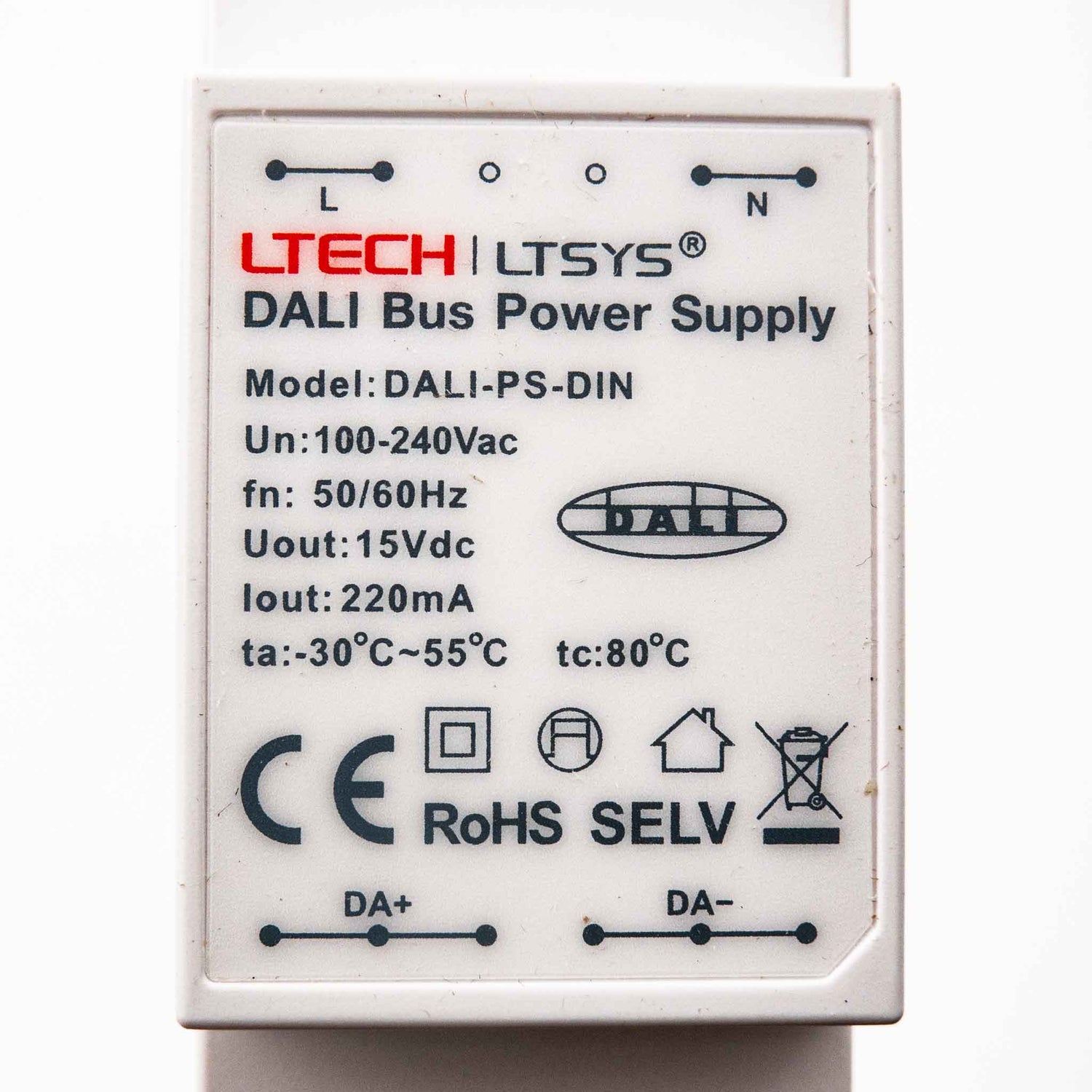

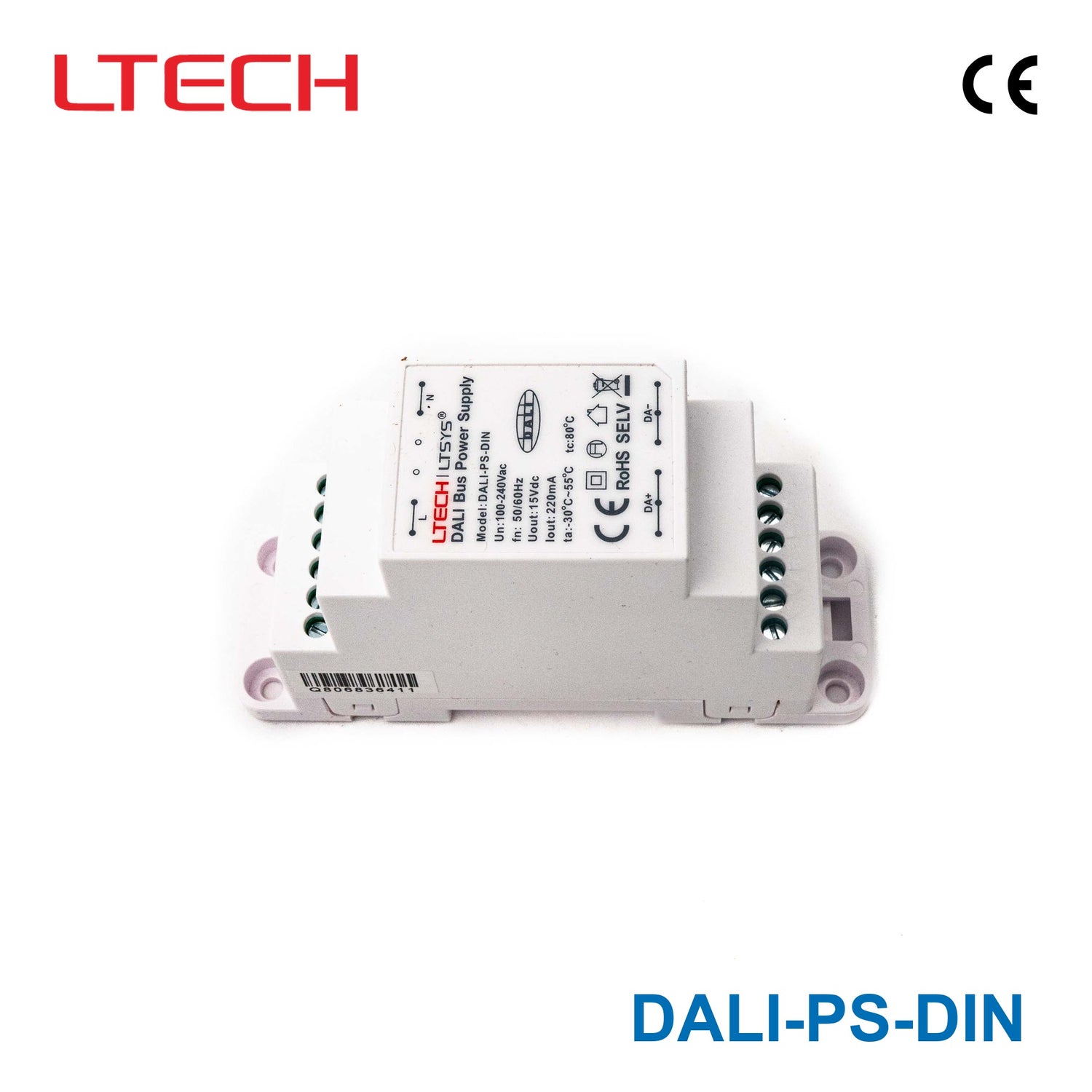

Ltech DALI-PS-DIN LED Power Supply 15V DC
Description
Description
Product Type DIN-Rail Power Supply
Length (mm) 112
Width (mm) 67
Height (mm) 35
Housing Color White
Housing Material PC
Mounting DIN-Rail
Weight (g) 125
Input Domain AC
Input Voltage 100 ~ 240V AC
Output Voltage 15V DC
LED Output Current (max per output, mA) 200
Output Current Max. (A) 0.2
Output Power Range (W) 0~3
Power Supply Internal
Inrush Current 10A @ 230VAC
Specifications
Specifications
-
BrandLtech
-
Output Voltage15 Volt
-
Rated Current0.2 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Standards MetCE
-
Operating Temperature-20°C~50°C
-
Warranty2 Year
-
Length4.41 in
-
Width2.64 in
-
Height1.38 in
-
Weight0.29 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Ltech DALI-PS-DIN used for?
The Ltech DALI-PS-DIN is a DIN-rail power supply designed for DALI-related control system applications that need a 15V DC output. It is intended for low-power use cases, with an output current up to 0.2A and an output power range of 0 to 3W.
What are the electrical specifications of the DALI-PS-DIN?
This model accepts 100 to 240V AC input and provides a 15V DC output. Its maximum output current is 0.2A, and the listed output power range is 0 to 3W. The inrush current is rated at 10A at 230VAC.

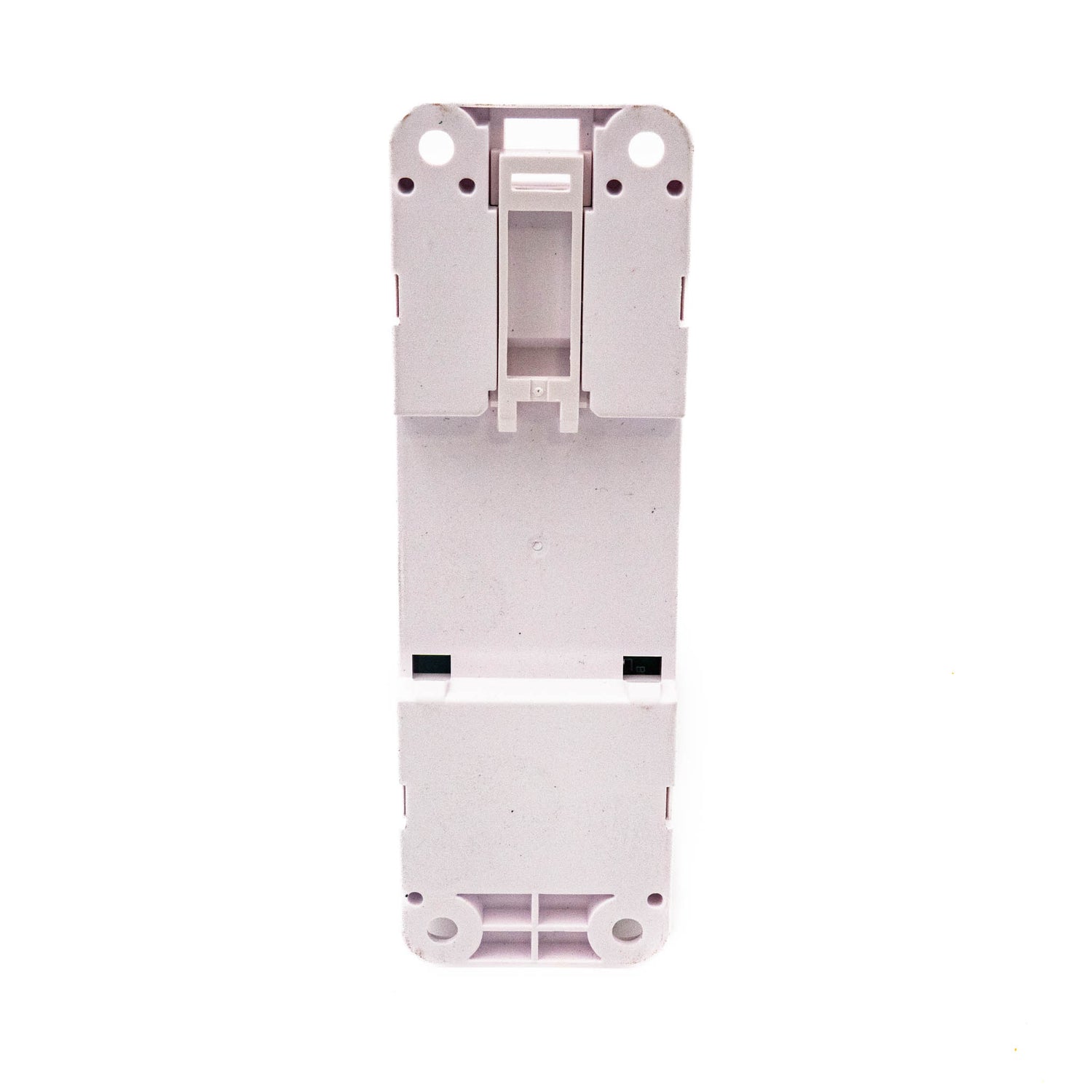

Is this power supply suitable for DIN-rail mounting?
Yes. The DALI-PS-DIN is specifically built for DIN-rail mounting, which makes it suitable for control panels and other organized enclosure-based applications. Its compact housing measures 112 mm long, 67 mm wide, and 35 mm high.
What operating temperature range is supported by this model?
The specified operating temperature range is -20°C to 50°C. This makes it appropriate for many indoor commercial and industrial control environments, provided the surrounding conditions stay within that range.
How compact is the Ltech DALI-PS-DIN?
This power supply has a compact DIN-rail form factor with dimensions of 112 x 67 x 35 mm. It also weighs about 0.13 kg, which helps when space and enclosure weight are considerations in panel design.
What kind of systems is the DALI-PS-DIN compatible with?
Based on its product type and category, this model is intended for DALI and LED control system applications that require a 15V DC internal power supply. Compatibility should be evaluated against equipment that matches its 15V DC output and low-power 0.2A maximum current rating.
What warranty is offered for the Ltech DALI-PS-DIN?
The listed warranty period for this model is 2 years. For commercial buyers, this can be useful when comparing support coverage across similar DIN-rail power supply options.
