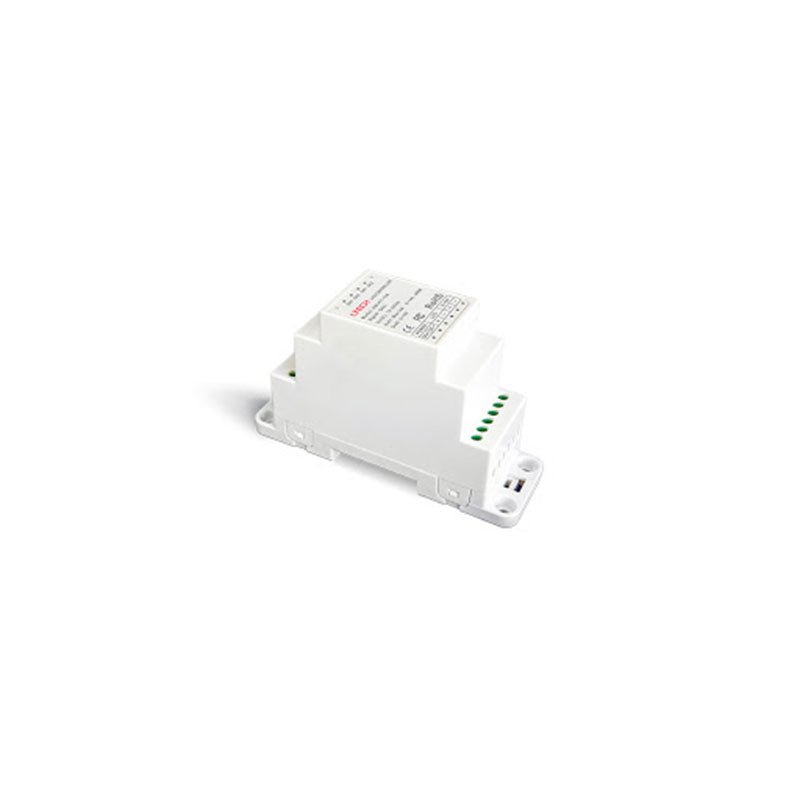

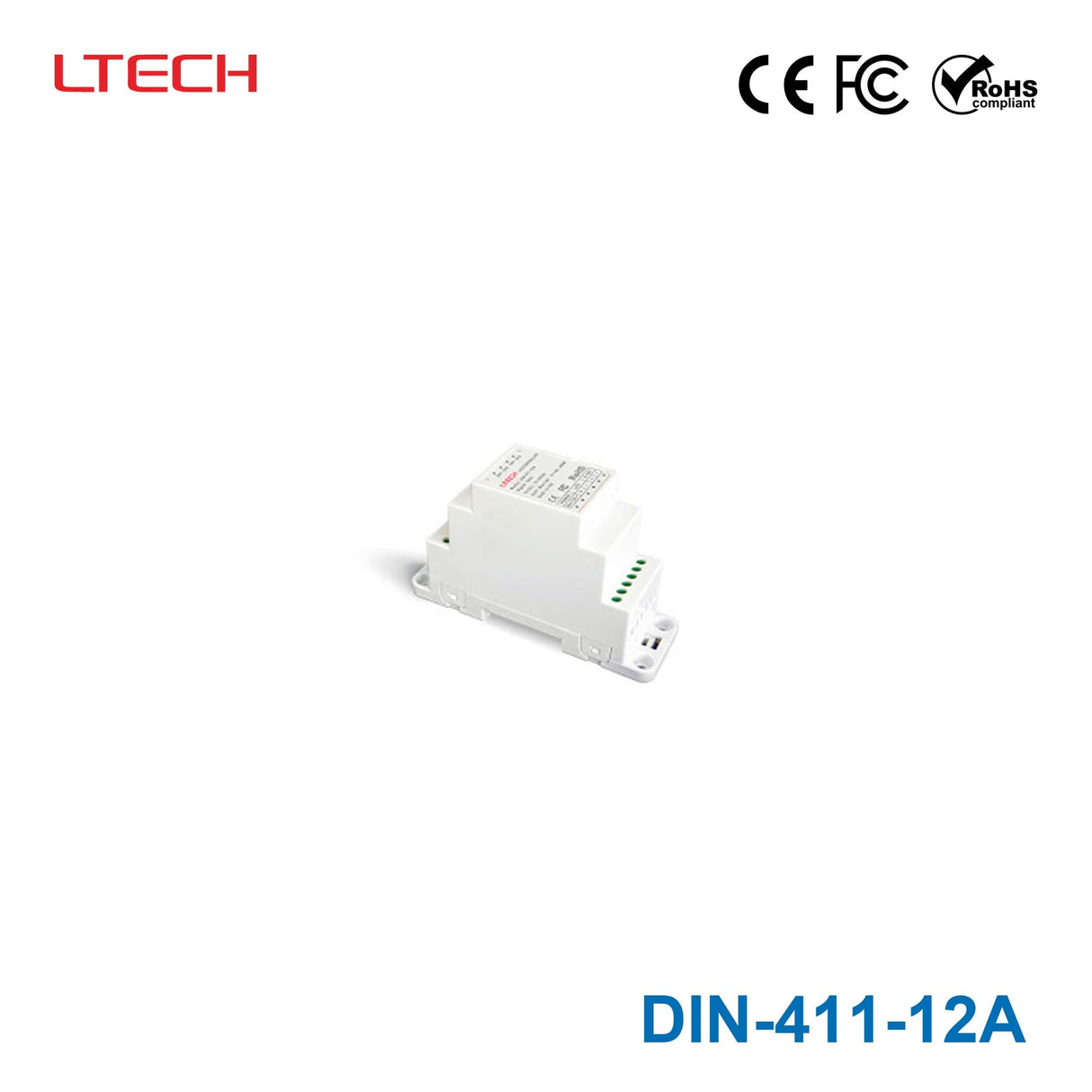

Ltech DIN-411-12A Constant Voltage Controller - DALI Dimming
The Ltech DIN-411-12A is a constant voltage LED controller designed for dimming LED strips with a DALI signal. It is intended for projects that need centralized control in a DIN rail-mounted format.
Input 12~24VDC. 1 channels at 12A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~24VDC
- ✓Control protocol: DALI
- ✓Output signal: PWM
- ✓Output channels: 12A - 1 Channel
- ✓Maximum load: 12A per channel
- ✓Maximum total load: 288W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, ROHS
- ✓Dimensions: 112 x 35 x 67mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating288 Watt
-
Output Voltage24 Volt
-
Rated Current12 Ampere
-
Input Voltage12V~24V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length4.41 in
-
Width1.38 in
-
Height2.64 in
-
Weight0.26 lb
::specification::
Frequently Asked Questions
What is the Ltech DIN-411-12A used for?
The Ltech DIN-411-12A is a constant voltage LED controller designed for dimming LED strips with a DALI signal. It is intended for projects that need centralized control in a DIN rail-mounted format.
What electrical rating does this controller support?
This model is rated for 24 V output and 12 A current, with a maximum power rating of 288 W. Those specifications make it suitable for higher-load constant voltage LED strip applications within its rated limits.
Does this controller support DALI dimming?
Yes, this controller is specifically built for DALI dimming. The product description identifies it as a DALI LED controller for dimming LED strips using a DALI signal.
What output types are available on the DIN-411-12A?
According to the product description, this controller provides two output signals: a 10A output and a 0-10V signal. That gives buyers a model intended for DALI-based LED control with both output types available on the same unit.
Is this model suitable for control panels or DIN rail cabinets?
Yes, the DIN-411-12A is designed to be mounted on a DIN rail. That makes it a practical choice for commercial and industrial lighting control setups where panel-based installation is preferred.
What operating temperature range can this controller handle?
The specified operating temperature range is -30 °C to 55 °C. This supports use in demanding indoor environments where lighting control equipment may be exposed to wider temperature variation.
What warranty is offered for the Ltech DIN-411-12A?
This model includes a 5-year warranty period. That longer warranty can be useful for commercial buyers who want stronger coverage for ongoing lighting control projects.
