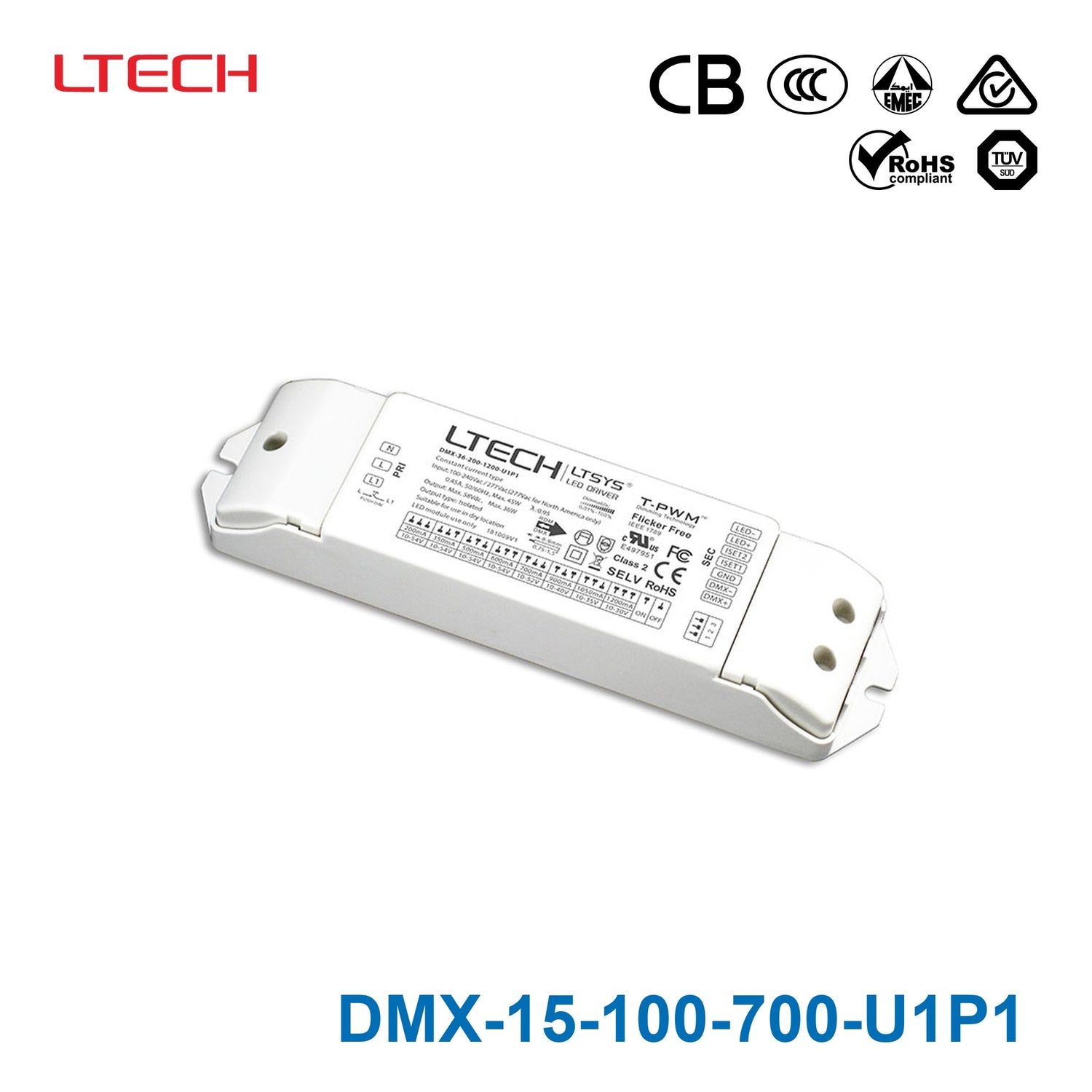

Ltech DMX-15-100-700-U1P1 15W 100~700mA CC DMX LED Driver - Selecta...
Description
Description
- Dimming interface: DMX512/RDM
- Push DIM
- T-PWM digital dimming
- With RDM remote device management protocol.
- DIP switch for 8 optional currents' quick selection.
- 0-100% flicker-free
- High Frequency Exemption
- Dimming range from 0-100%
- LED start at 0.01%possible.
- Innovative thermal management technology
- intelligent power life protection.
- Multi-current & wide voltage
- suitable for different power LED.
- Short circuit / Over load/Over heat/Over voltage
- Non-load protection
- recover automatically
- Non-load output voltage 0V to prevent damages to LED caused by poor contact
- Suitable for indoor I/II/III
- 5 years warranty (Rubycon capacitor).
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating15 Watt
-
Output Voltage58 Volt
-
Rated Current0.1 Ampere
-
Input Voltage100V~277V
-
No of Output1
-
Dimming ControlDMX
-
Standards MetCB,CCC,EMEC,RCM,ROHS,TUV
-
Operation ModeConstant Current
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED driver is the Ltech DMX-15-100-700-U1P1?
The Ltech DMX-15-100-700-U1P1 is a 15W constant current LED driver with selectable output current. It supports a current range from 100mA up to 700mA, making it suitable for a range of constant current LED applications that need adjustable output.
What dimming protocols does this LED driver support?
This model supports DMX512/RDM dimming and also includes Push DIM functionality. It uses T-PWM digital dimming and provides a 0-100% dimming range with flicker-free performance, including very low-end dimming startup at 0.01%.
What makes this driver a good choice for DMX lighting projects?
This driver is designed for DMX-based LED control and includes RDM remote device management support, which is useful in commercial and architectural lighting systems. Its selectable current options and wide voltage capability also help it fit a broader range of constant current LED fixtures.
Can this driver be used in demanding indoor environments?
Yes, the driver is rated for indoor applications and operates in ambient temperatures from -20°C to 50°C. It also includes thermal management and multiple protection features to help support reliable operation in professional environments.
What protection features are included in the DMX-15-100-700-U1P1?
This model includes short circuit, overload, overheat, overvoltage, and non-load protection. It is designed to recover automatically, and its non-load output voltage drops to 0V to help reduce the risk of LED damage from poor contact conditions.
How does this model compare with a fixed-current LED driver?
Unlike a fixed-current driver, the DMX-15-100-700-U1P1 offers eight selectable current settings via DIP switch, which gives more flexibility when matching the driver to different constant current LEDs. That can simplify product selection when a project uses LEDs with different current requirements within the supported range.
What warranty is offered with this LED driver?
The Ltech DMX-15-100-700-U1P1 includes a 5-year warranty. The product description also notes the use of a Rubycon capacitor, supporting its long-service-life positioning for commercial use.
