Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

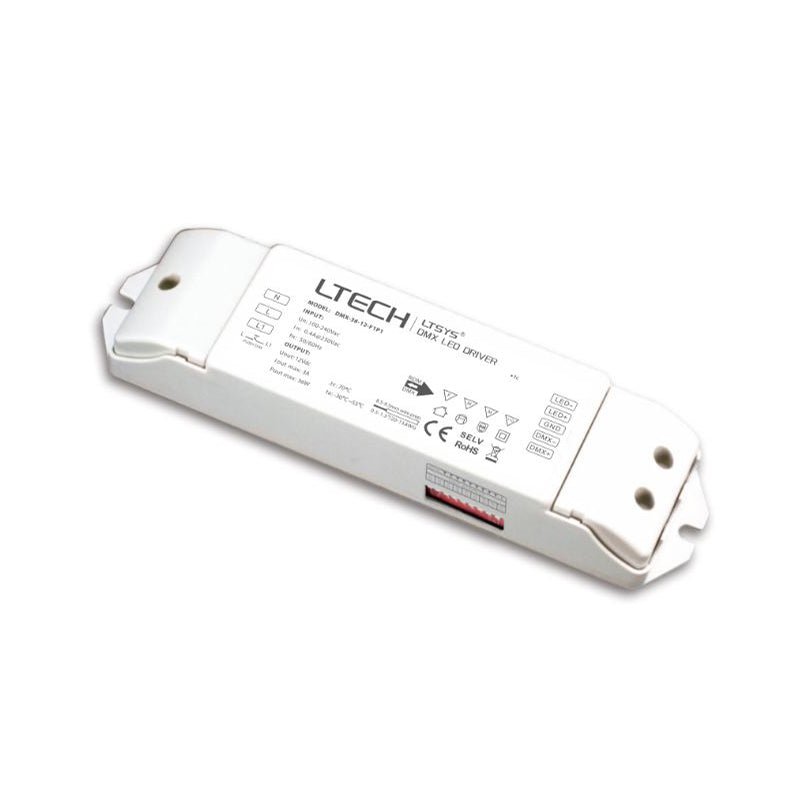

Ltech DMX-150-24-F1M1 150W 24VDC CV DMX LED Driver - DMX dimmable
- Dimming interface: DMX512/RDM
- Push DIM.
- With the RDM remote device management protocol.
- PWM digital dimming
- no alter LED colorrendering index.
- 0~100% flicker-free
- achieve the level of exemption assessment.
- Dimming range from 0-100%
- LED start at 0.1%possible.
- Short circuit / Over-heat / Over load protection
- short circuit protection
- recover automatically
- Compliant with Safety Extra Low Voltage standard.
- Suitable for indoor I/II/IIItype lamps application
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.25 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming ControlDMX
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty5 Year
-
Length10.75 in
-
Width2.24 in
-
Height1.46 in
-
Weight1.74 lb
::specification::
Frequently Asked Questions
What type of LED lighting is the Ltech DMX-150-24-F1M1 designed for?
This model is a 24VDC constant-voltage LED driver for indoor lighting applications that need DMX dimming. It is suited to I, II, and III type lamp applications where a 24V constant-voltage output is required. It is not a constant-current driver.
What are the main output specifications of the DMX-150-24-F1M1?
The Ltech DMX-150-24-F1M1 is rated at 150W with a 24VDC output. Its rated output current is 6.25A. These specs make it a higher-power 24V constant-voltage option within a DMX-controlled lighting system.
Does this LED driver support DMX control and RDM?
Yes. This model uses DMX512/RDM as its dimming interface and includes RDM remote device management support. It also supports Push DIM, giving it flexibility in control method depending on the lighting system design.
How does the dimming performance of this model compare to basic on/off LED drivers?
Unlike a basic non-dimmable LED driver, the DMX-150-24-F1M1 is built for continuous dimming from 0 to 100 percent. It uses PWM digital dimming, supports flicker-free operation across the dimming range, and can start LEDs at 0.1 percent. That makes it better suited to projects where smooth low-level dimming matters.
What protection features are included in the DMX-150-24-F1M1?
This model includes short-circuit, over-heat, and over-load protection. The short-circuit protection is described as automatic recovery. It is also compliant with the Safety Extra Low Voltage standard.
What operating environment is this LED driver rated for?
The specified operating temperature range is -30°C to 60°C. The product description states it is suitable for indoor I, II, and III type lamp applications. If the project requires outdoor suitability, that would need to be confirmed separately from this model data.
