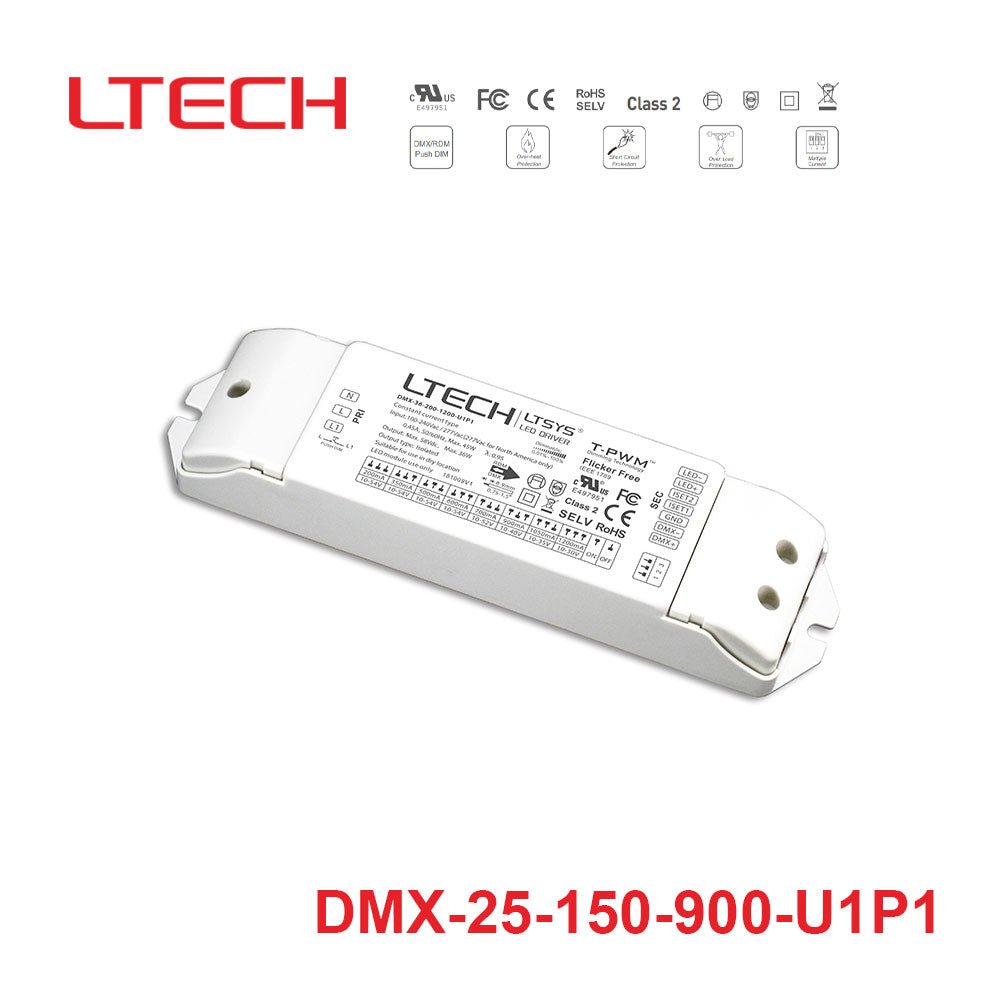

LTECH DMX-25-150-900-U1P1 25W 150~900mA CC DMX LED Driver - Selecta...
$48.97 USD
Unit price /
Unavailable
Description
Description
- Dimming interface: DMX512/RDM
- Push DIM
- T-PWM digital dimming
- With RDM remote device management protocol.
- Dimming range: 0~100%
- LED start at 0.01% possible.
- DIP switch for 8 optional currents' quick selection
- ISET arbitrarilycurrent selection.
- 0-100% flicker-free
- (IEEE 1789 standard)
- Innovative thermal management technology
- intelligent power life protection.
- Multi-current & wide voltage
- suitable for different power LED.
- Short circuit / Over load/Over heat/Over voltage
- Non-load protection
- recover automatically
- Non-load output voltage 0V to prevent damages to LED caused by poor contact
- Suitable for internal lights application for I/II/III
- 5 years warranty (Rubycon capacitor).
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating25 Watt
-
Output Voltage58 Volt
-
Rated Current0.15 Ampere
-
Input Voltage100V~277V
-
No of Output1
-
Dimming ControlDMX
-
Standards MetCB,CCC,EMEC,RCM,ROHS,TUV
-
Operation ModeConstant Current
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other DMX-25 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Ltech DMX-25-150-900-E1A1 25W 150~900mA CC DMX LED Driver - Selectable Output | 25W | 58V | 0.15A | Indoor | $43.43 | View |
