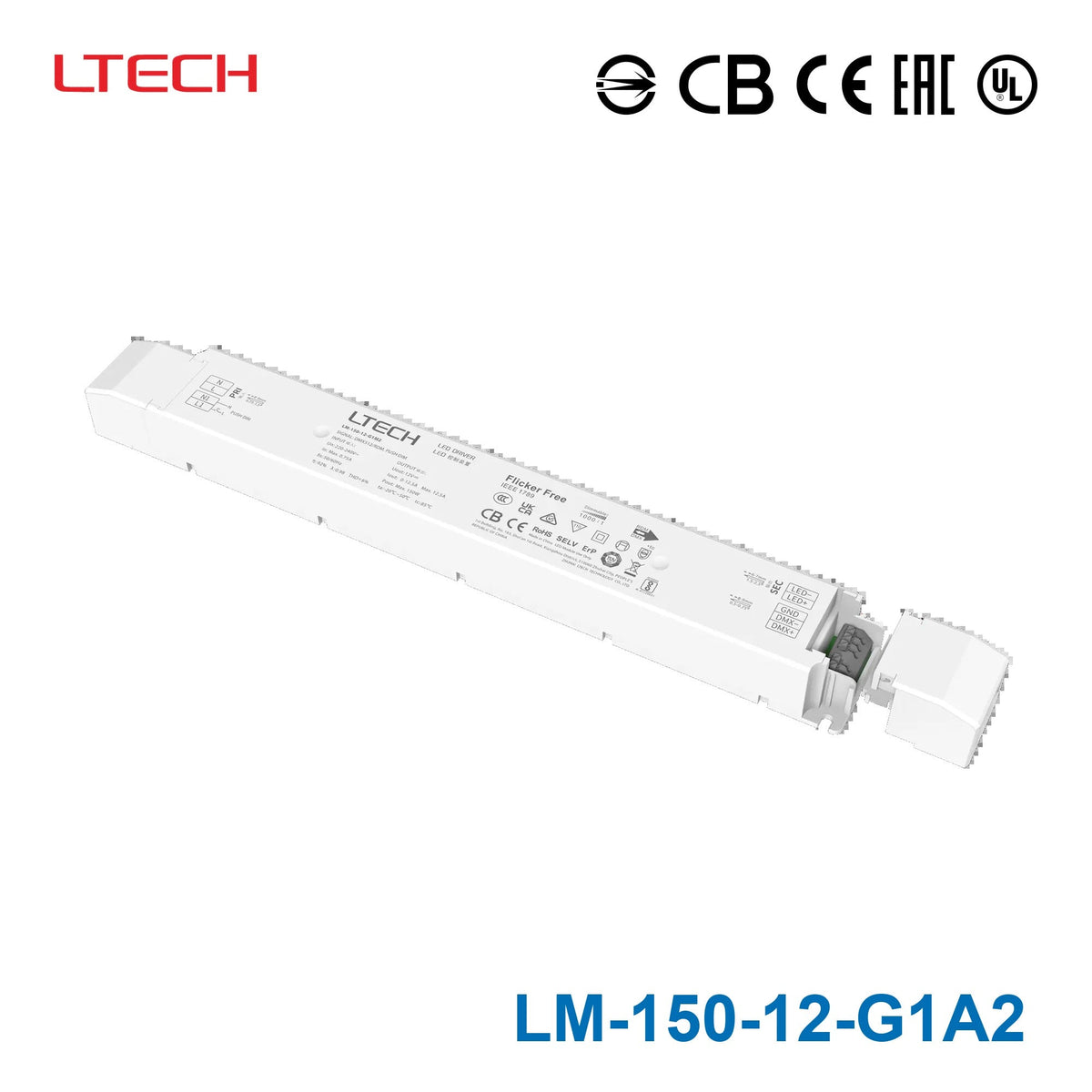

Ltech LED Driver 0-10V 150W 12V - LM-150-12-G1A2
-
BrandLtech
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current12.5 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming Control10V PWM
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length13.86 in
-
Width1.73 in
-
Height1.3 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
What kind of applications is the LM-150-12-G1A2 suited for?
This model is a 12V constant-voltage LED driver with up to 150W output, so it is suited to 12V LED lighting loads that need a higher-power driver. It is a practical fit for commercial or architectural low-voltage LED applications where 0-10V style dimming control is required.
What dimming methods does this LED driver support?
The LM-150-12-G1A2 supports 0-10V dimming and also lists compatibility with 1-10V, PWM, RX, and Push Dim control methods. Its stated dimming range is 0 to 100%, with LED start at 0.1% possible.
Is this the right driver if my lighting system needs 12V DC output?
Yes, this model is specifically rated for 12V DC output and can deliver up to 12.5A. It is intended for applications where the LED load is designed for 12V constant-voltage power rather than another output voltage.
How does the output capacity of the LM-150-12-G1A2 compare with smaller 12V LED drivers?
This unit is rated at up to 150W and 12.5A, which places it in a higher-capacity range than many smaller 12V drivers used for lighter loads. It is better suited when the project needs more total 12V output while still using dimming control options such as 0-10V or Push Dim.
What operating conditions is this LED driver rated for?
The specified working temperature range is -20°C to 50°C. It is also rated for 220-240Vac input, with efficiency above 93%, making it appropriate for installations operating within those electrical and ambient temperature limits.
What are the key physical and warranty details for this model?
The LM-150-12-G1A2 measures 352 x 43 x 30 mm and has a listed gross weight of about 300 g. It also carries a 5-year warranty period, which is useful for longer-term commercial lighting projects.
