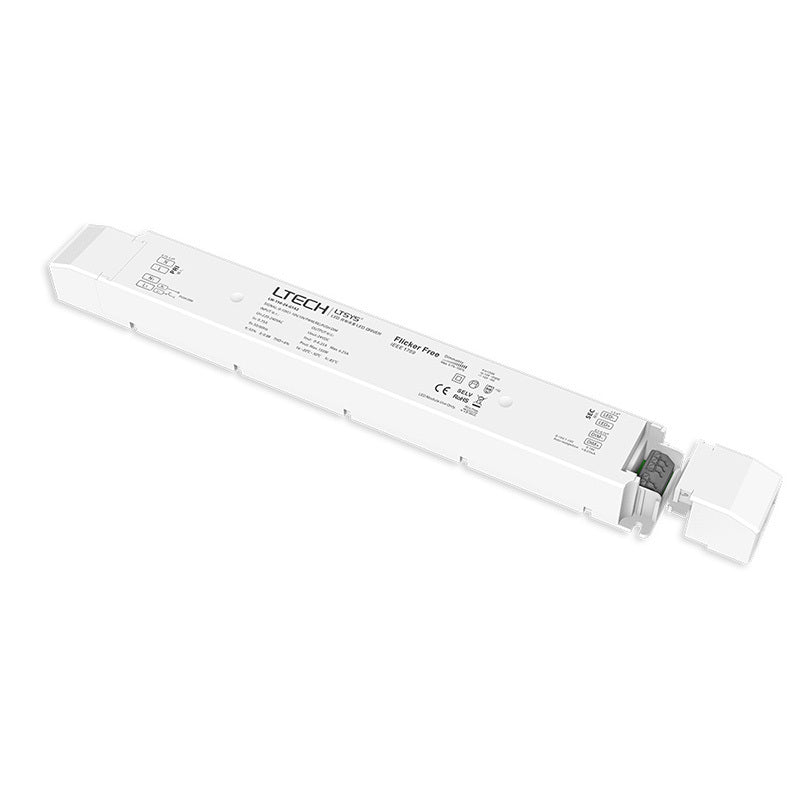

Ltech LED Driver 0-10V 150W 24V - LM-150-24-G1A2
-
BrandLtech
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.25 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming Control10V PWM
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length13.86 in
-
Width1.73 in
-
Height1.3 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
What type of LED lighting is the LM-150-24-G1A2 designed for?
The LM-150-24-G1A2 is a 24V LED driver rated up to 150W, so it is suited to 24VDC LED lighting applications that need a higher-power constant-voltage supply. Its 6.25A maximum output makes it a fit for larger 24V lighting loads within that power limit.
What dimming methods does this model support?
This model supports 0-10V dimming and is also compatible with 1-10V, PWM, RX, and Push Dim control methods as listed in the product data. It offers a 0-100% dimming range, with LED start at 0.1% possible for very low light output.
What are the main electrical specifications of the LM-150-24-G1A2?
The LM-150-24-G1A2 has a 24VDC output, maximum 150W output power, and maximum 6.25A output current. Its input voltage is 220-240Vac ±10%, and the listed efficiency is over 93%.
How efficient is this LED driver?
This model is rated at greater than 93% efficiency. It also lists a high power factor, with PF greater than 0.95 at 230Vac at full load, which is useful in commercial and professional lighting environments.
Can this LED driver be used in demanding temperature conditions?
The specified working temperature range is -20°C to 50°C. That makes it suitable for a wide range of indoor and protected commercial lighting environments, provided the application stays within that temperature window.
What size is the LM-150-24-G1A2?
The driver dimensions are 352 × 43 × 30 mm, and the listed gross weight is 300 g ±10%. Its long, slim form factor can help where space is limited but a 150W 24V driver is required.
