Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

×
High Resolution Image

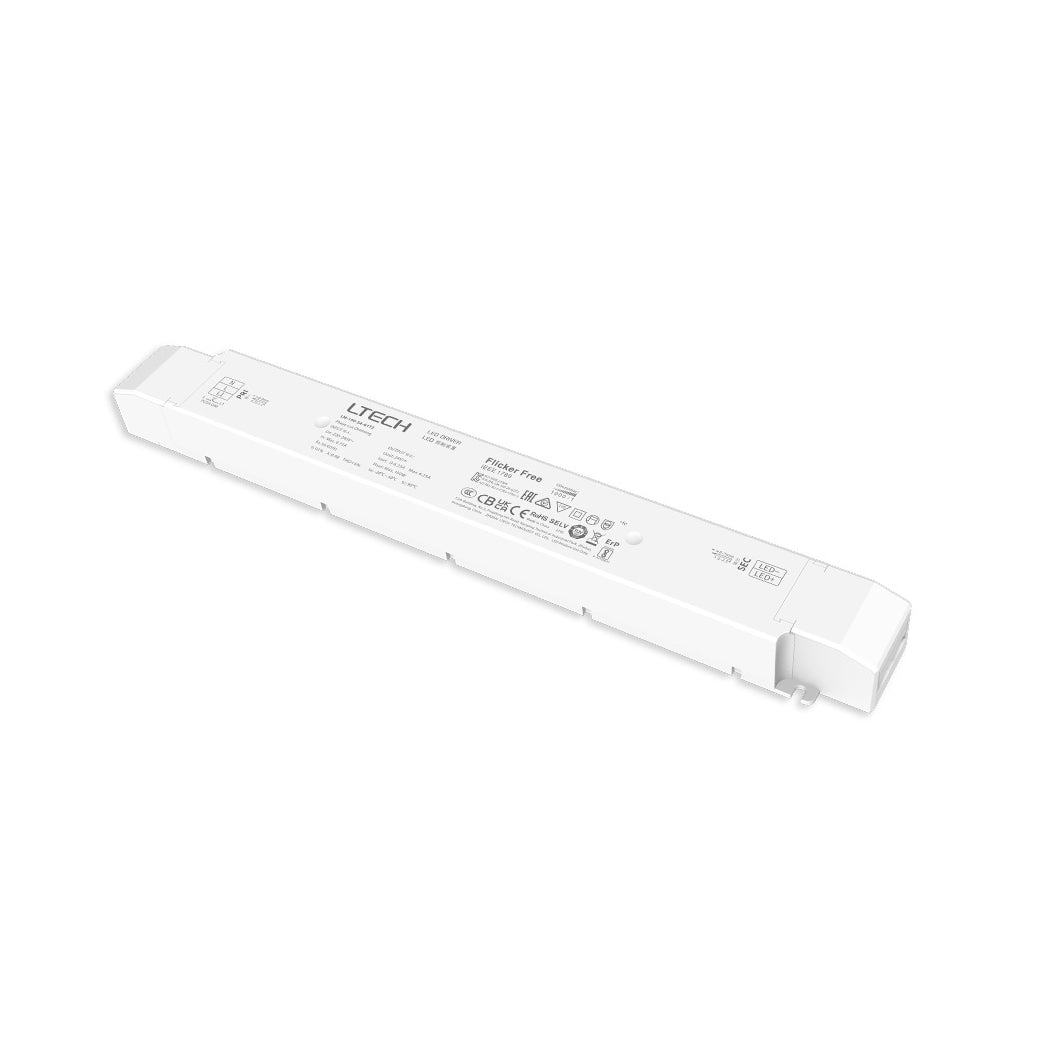

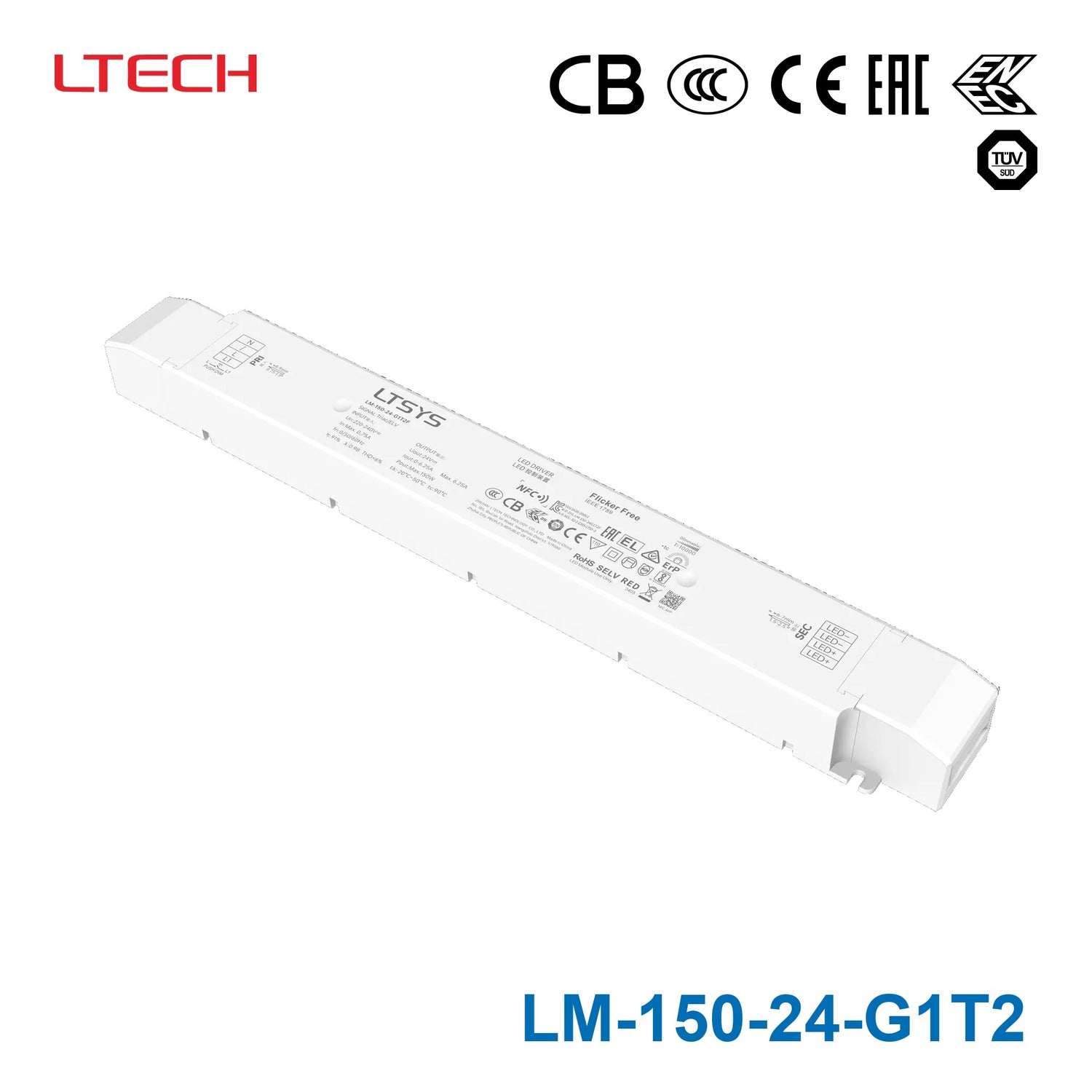

LTECH LM-150-24-G1T2 CV Triac Dimmable Driver 150W 24V

$93.90 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

The housing is made from V0 flame retardant PC materials that

SAMSUNG/COVESTRO uses.


The clamshell design and screwless type for strain-relief. The design

of dismountable end cap allows you to adjust the length of housing

depending on your needs.


With soft-on and fade-in dimming function, enhancing your visual comfort.


High frequency exemption level.


Dimming from 0~100%, down to 0.1%.


Support Leading edge (Triac), Trailing edge (ELV) and

Push DIM.


The secure and reliable design for signal isolation.


Innovative thermal management technology intelligently

protects the life of the LED driver.


Overheat, over voltage , overload, short circuit protection

and automatic recovery.


Suitable for Class Ⅰ/Ⅱ/Ⅲ indoor light fixtures.

Up to 50,000-hour life time.


5-year warranty (Rubycon capacitor).


Specifications

  • Brand
    Ltech
  • Series
    Ltech Triac Series
  • Power Rating
    150 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    6.25 Ampere
  • Input Voltage
    220V~240V
  • No of Output
    1
  • Dimming Control
    Dimmable
  • Standards Met
    CB,CCC,CE,EAC,ENEC,SELV,TUV
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~50°C
  • Warranty
    5 Year
  • Length
    13.86 in
  • Width
    1.69 in
  • Height
    1.18 in
  • Weight
    0.95 lb
