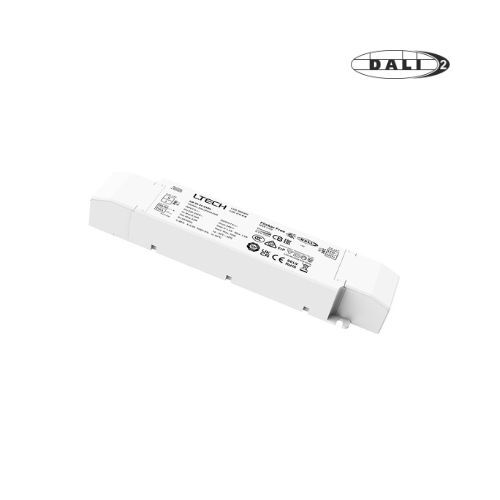

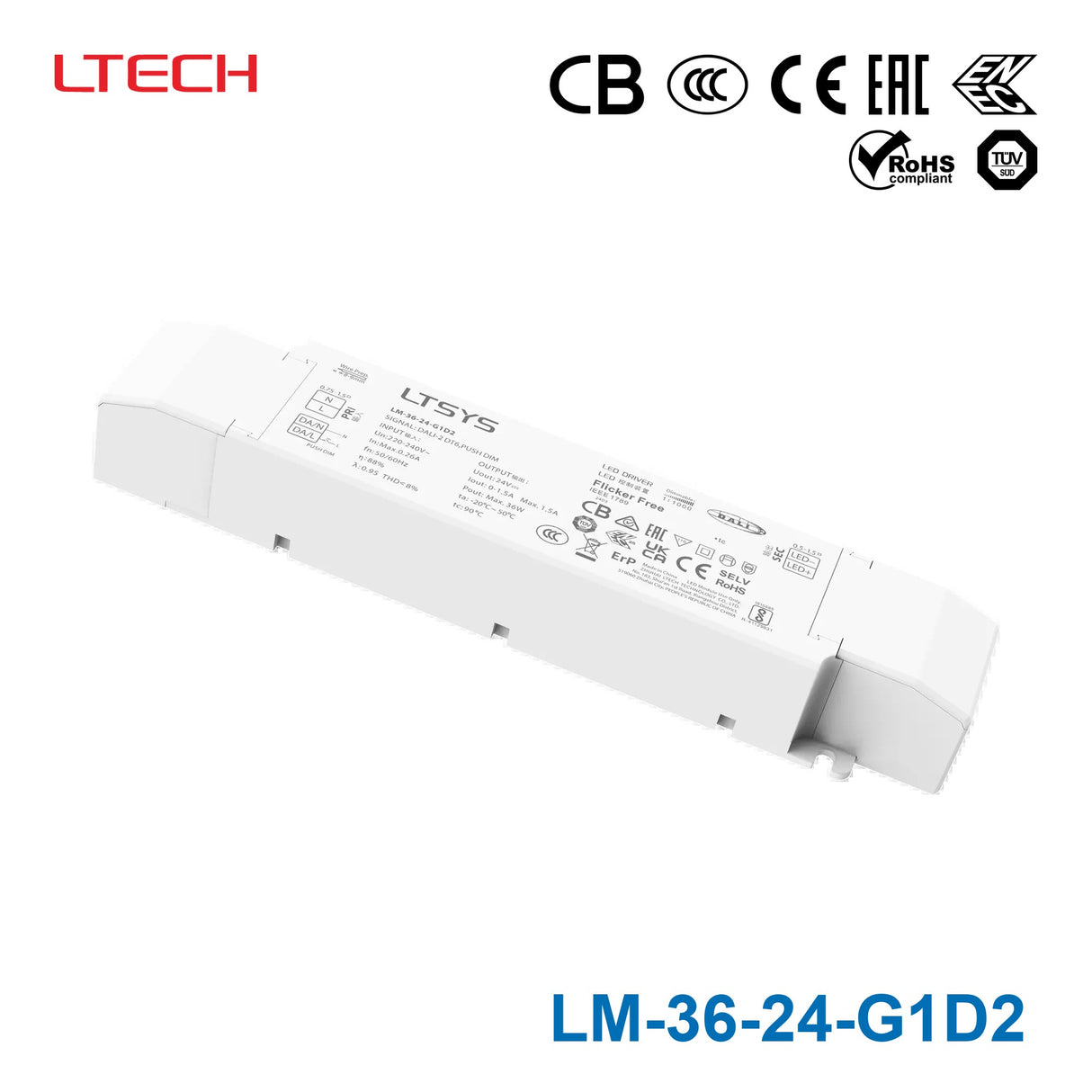

LTECH LM-36-24-G1D2 CV DALI2 Dimmable Driver

SKU:
LM-36-24-G1D2

$44.64 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

LED Intelligent Driver

    • Small size and lightweight. Adopt SAMSUNG/COVESTRO V0 flame-resistant polycarbonate protective housings
    • The design of the dismountable end cap allows you to adjust the length of housing depending on your needs
    • Dimming interfaces: DALI-2, Push DIM
    • Dimming range: 0~100%, dimming down to 0.1%
    • Flicker-free with high-frequency exemption level in 0~100% dimming process
    • High-performance drivers: Efficiency 88%, PF>0.95. THD<8%
    • Comply with the EU's ErP Directive, standby power consumption<0.5W
    • The secure and reliable design for signal isolation
    • Innovative thermal management technology intelligently protects the lifetime of the driver
    • Over-heat / Over voltage / Overload / Short circuit protection, recover automatically
    • DALI bus standard IEC62386-101, 102,207
    • Suitable for lamp applications of indoor I/II/III types
    • up to 50000-hour lifetime
    • 5 years warranty (Rubycon Capacitor)

    Specifications

    • Brand
      Ltech
    • Series
      Ltech DALI Series
    • Power Rating
      36 Watt
    • Output Voltage
      24 Volt
    • Rated Current
      1.5 Ampere
    • Input Voltage
      200V~240V
    • No of Output
      1
    • Dimming Control
      DALI,Push Dimming
    • Standards Met
      CB,CCC,CE,EAC,ENEC,ROHS,SELV,TUV
    • Operation Mode
      Constant Voltage
    • Operating Temperature
      -20°C~50°C
    • Warranty
      5 Year
    • Length
      8.27 in
    • Width
      1.69 in
    • Height
      1.18 in
    • Weight
      0.44 lb

    File Downloads

    ::specification::
