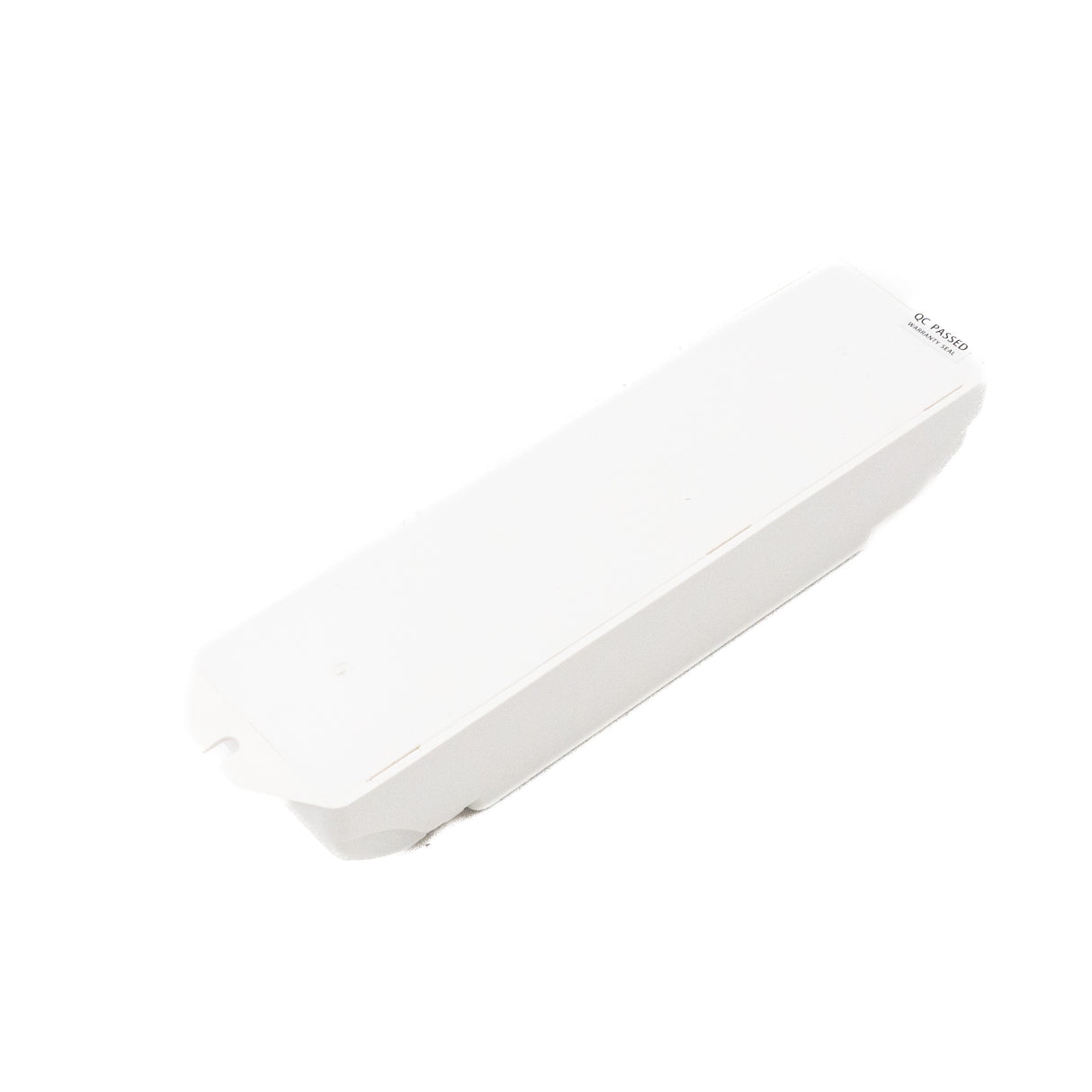

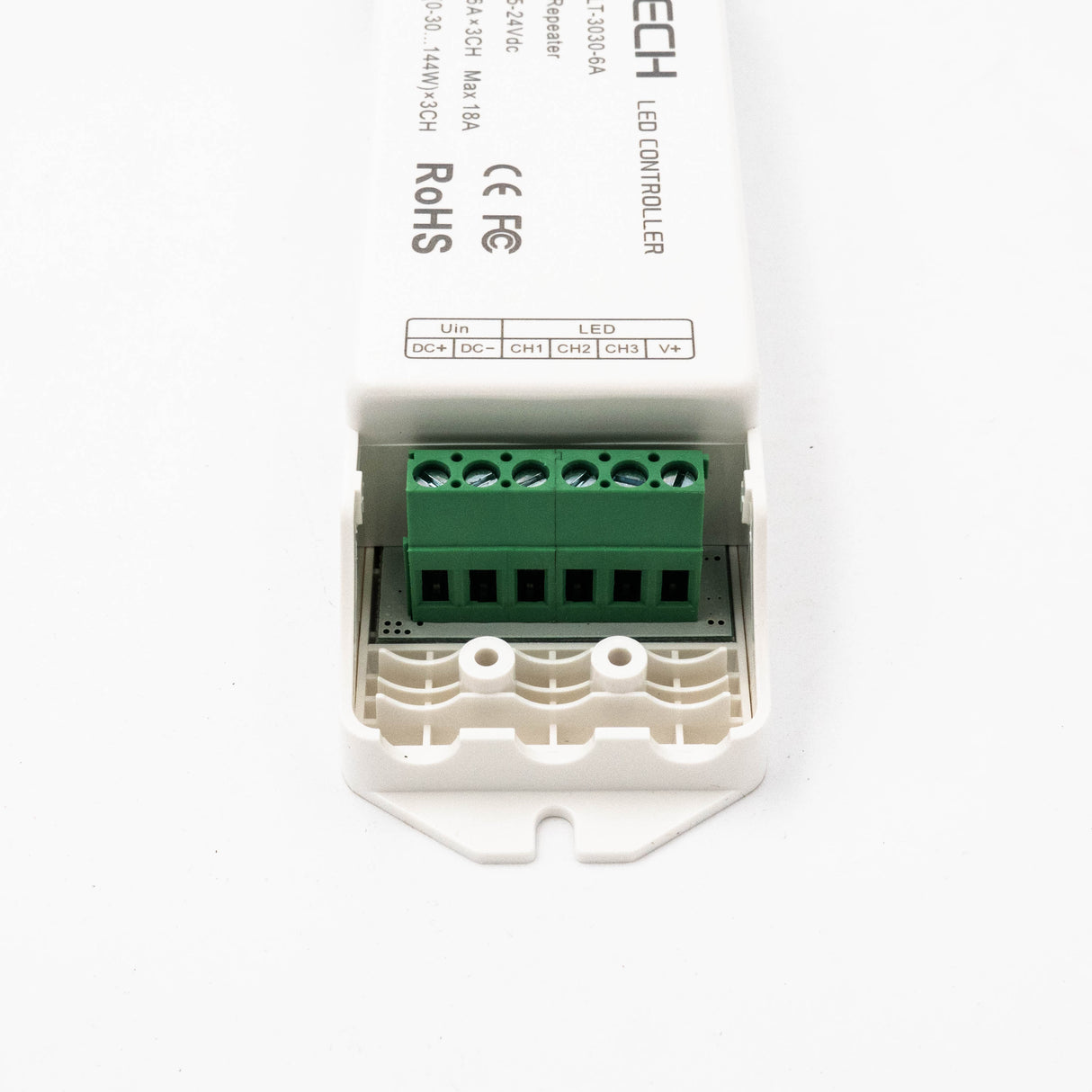

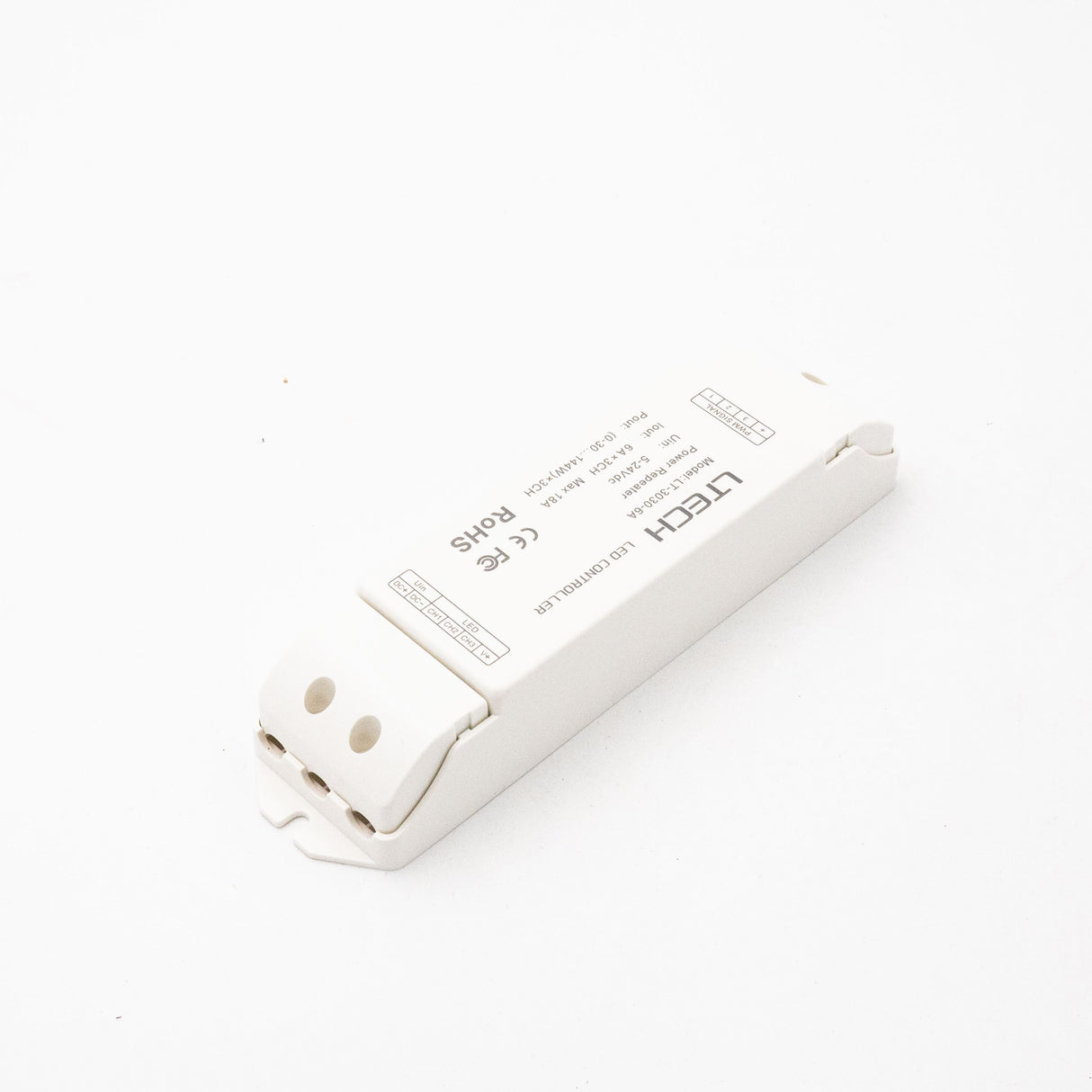

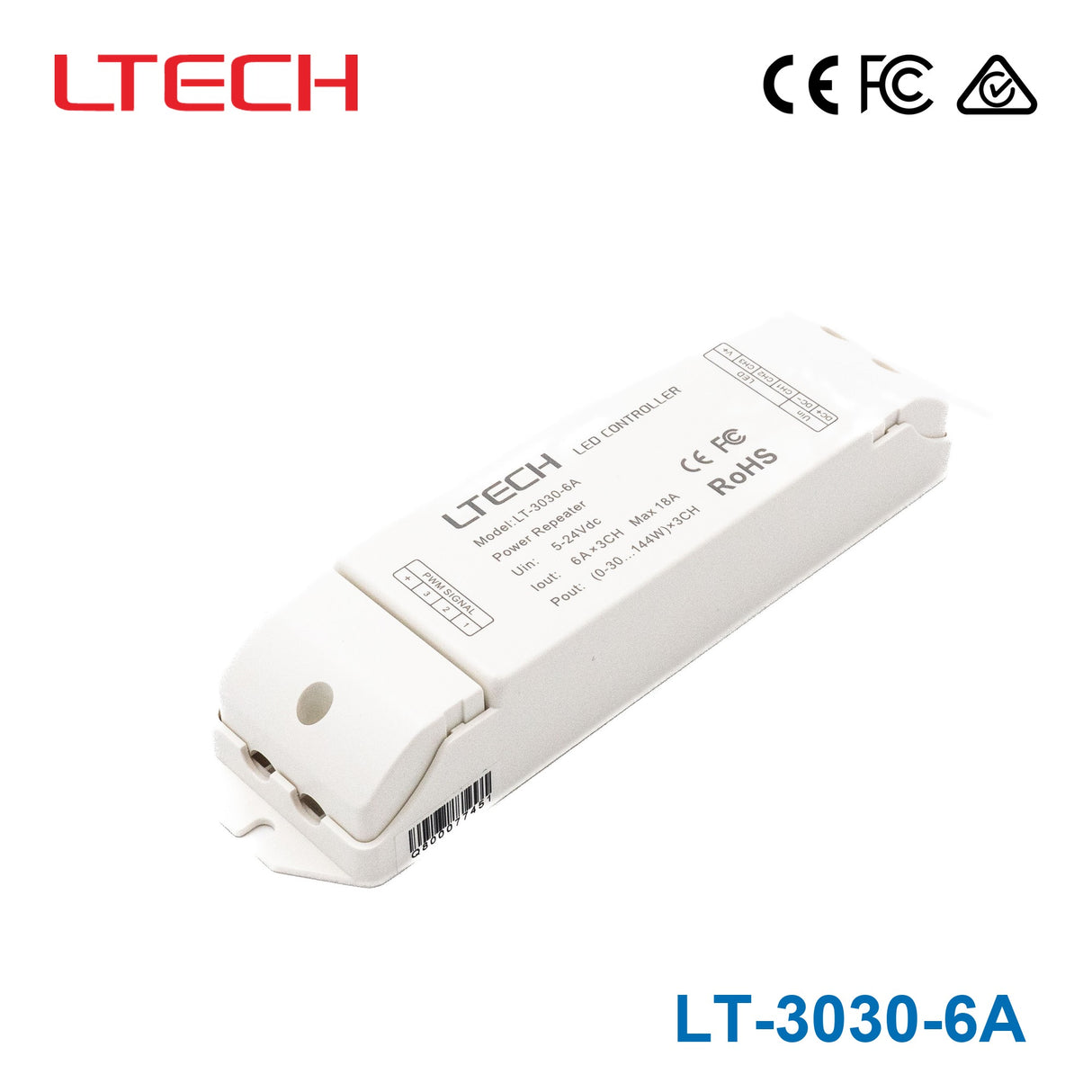

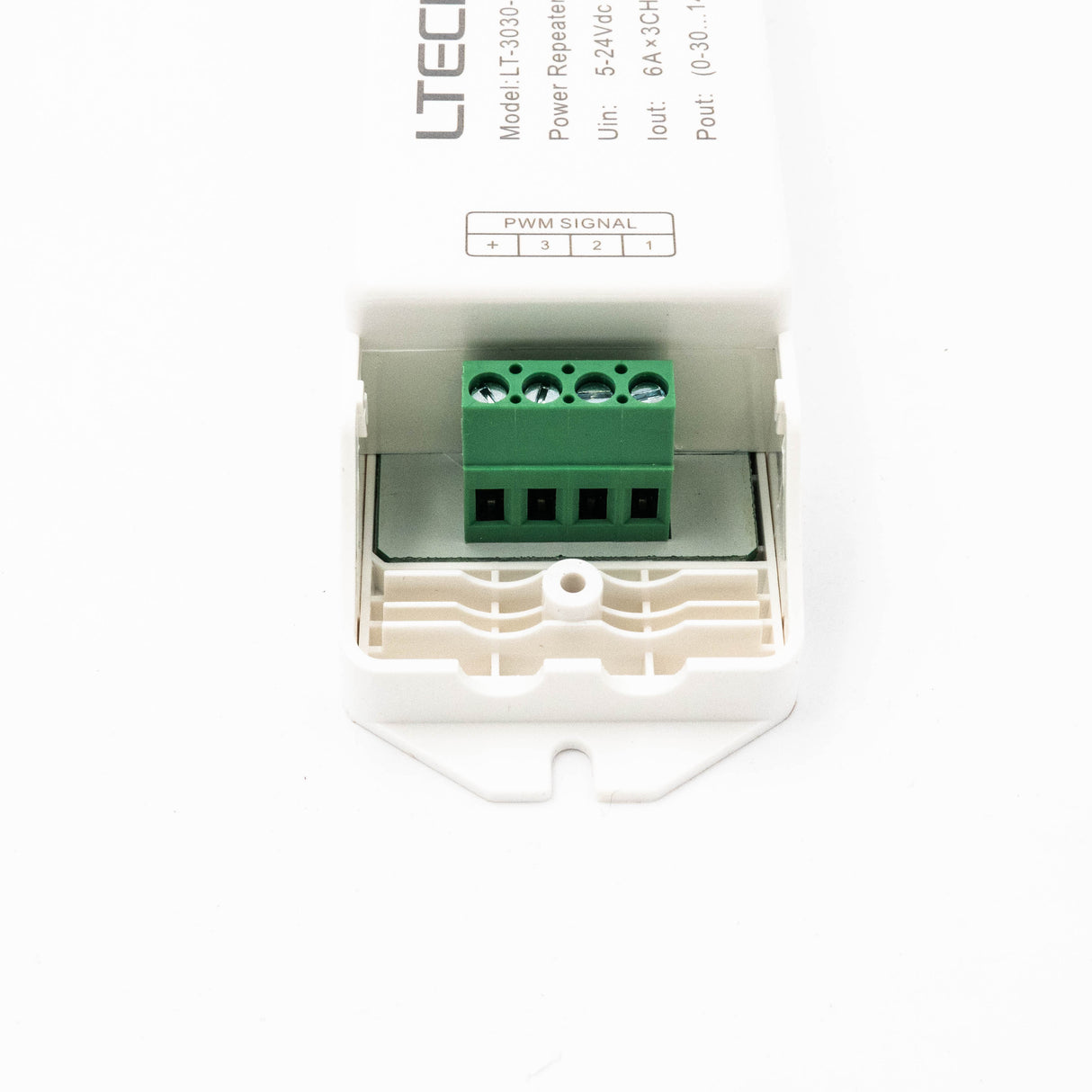

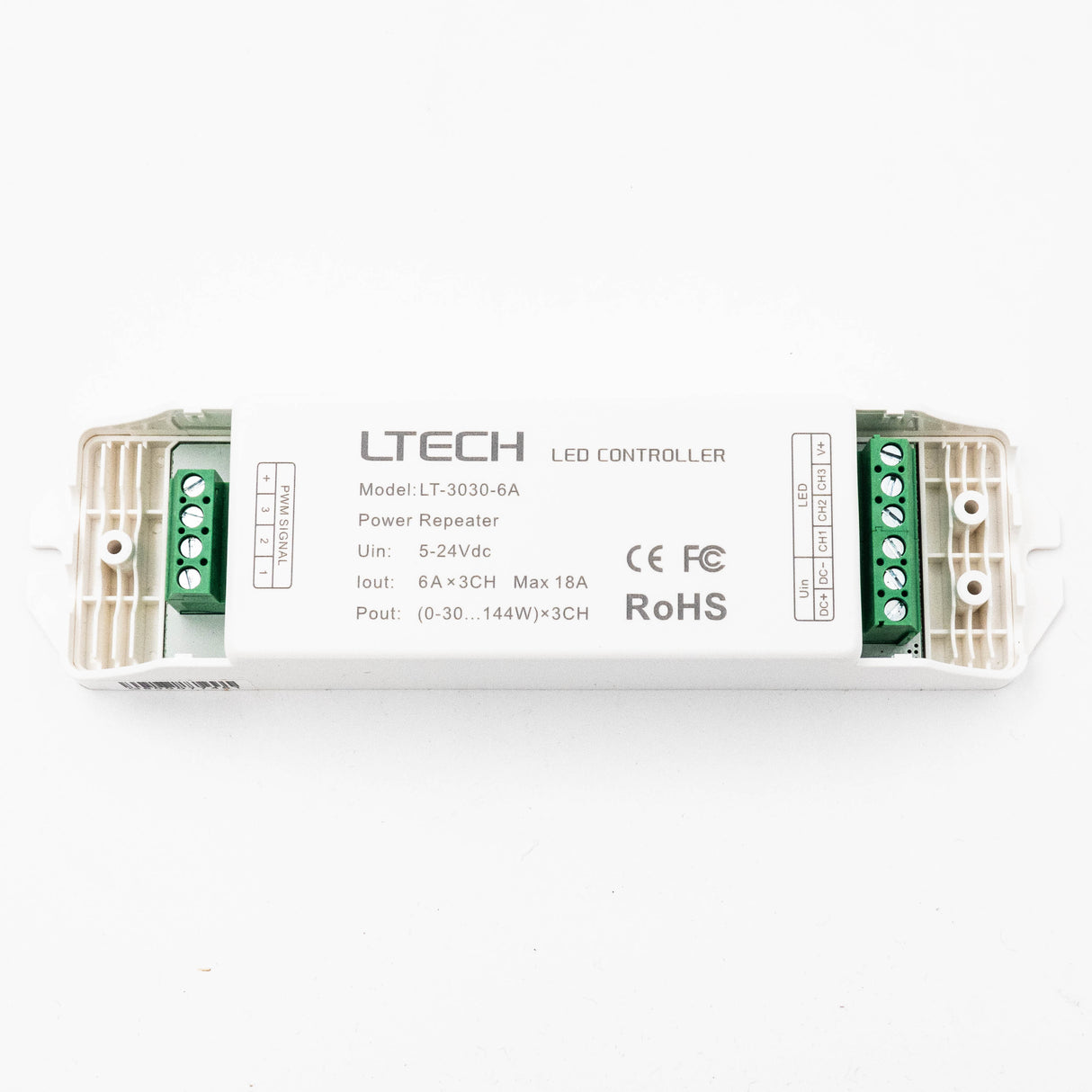

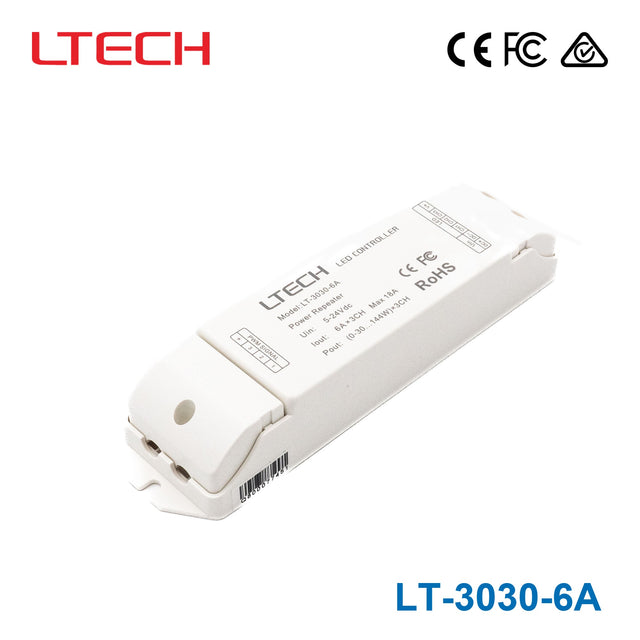

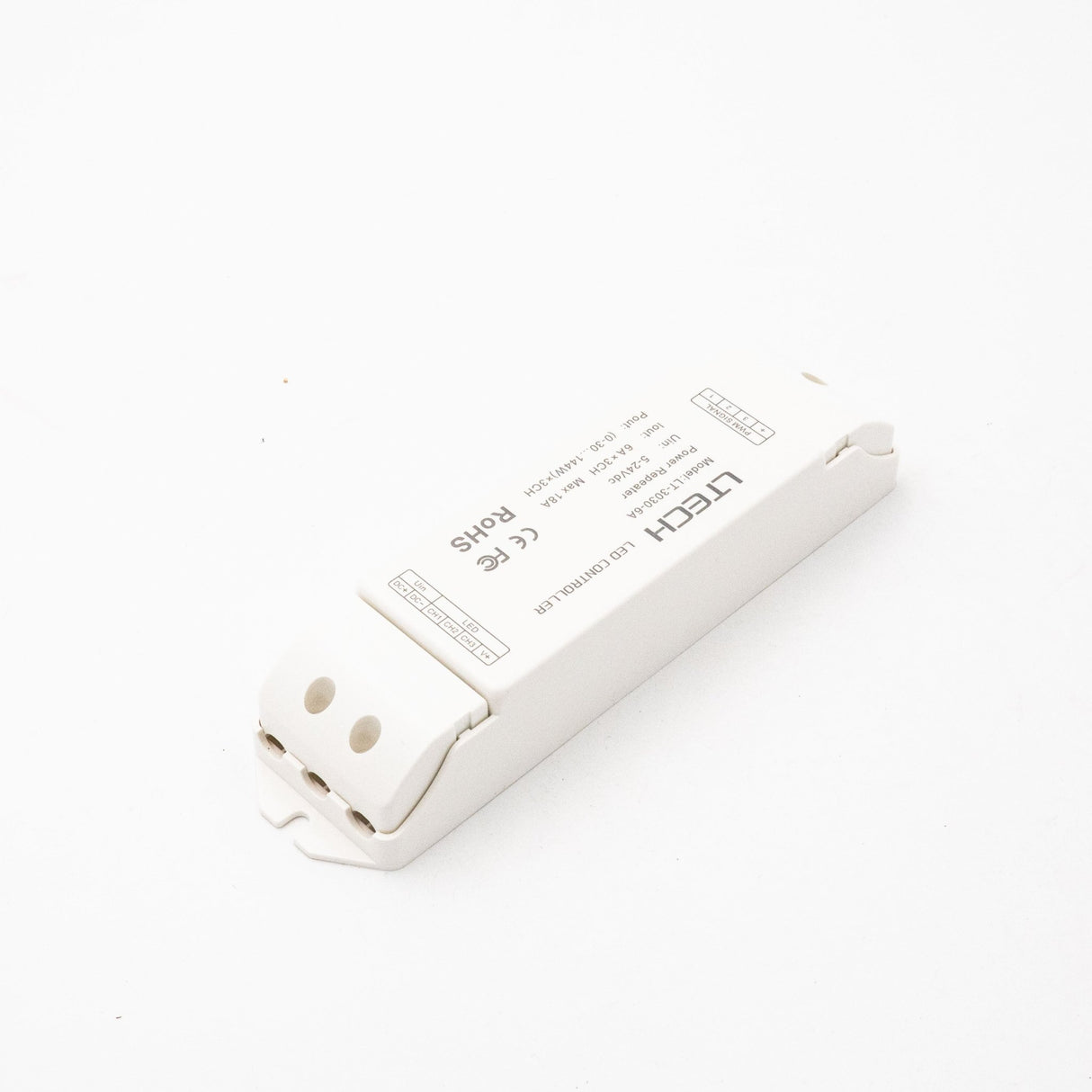

Ltech LT-3030-6A PWM Constant Voltage Repeater - RGB
The LT-3030-6A is a PWM constant voltage repeater designed to expand the output capacity of compatible LED control systems. It is intended for RGB lighting applications where the original controller needs additional power handling without changing the control signal.
Input 5~24VDC. 3 channels at 6A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 5~24VDC
- ✓Output signal: PWM
- ✓Output channels: 6A - 3 Channel
- ✓Maximum load: 6A per channel
- ✓Maximum total load: 432W
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 175 x 44 x 30mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech Repeater
-
Power Rating432 Watt
-
Output Voltage24 Volt
-
Rated Current18 Ampere
-
Input Voltage5V~24V
-
No of Output3
-
Dimming ControlNon Dimmable
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.31 lb
::specification::
Frequently Asked Questions
What is the Ltech LT-3030-6A used for?
The LT-3030-6A is a PWM constant voltage repeater designed to expand the output capacity of compatible LED control systems. It is intended for RGB lighting applications where the original controller needs additional power handling without changing the control signal.
Is the LT-3030-6A a standalone LED controller?
No. This model is a repeater, not a standalone controller, so its role is power expansion for compatible PWM-controlled systems. Buyers choosing between a controller and a repeater should use the LT-3030-6A when they need to extend capacity rather than add independent control functions.
What are the key electrical ratings of the LT-3030-6A?
This model is rated for 24 V output, 18 A rated current, and 432 W power handling. Those published ratings make it suitable for higher-load RGB constant-voltage LED applications that need signal-following power expansion.
What kind of control signal does the LT-3030-6A support?
The LT-3030-6A accepts PWM control, which is the basis for its repeater function. It is built to follow and expand the power side of compatible PWM-controlled LED systems rather than operate as a separate dimming controller.
Can the LT-3030-6A be used in demanding indoor or outdoor equipment environments?
This repeater has a specified operating temperature range of -30 C to 55 C, which supports use in a wide range of equipment environments. Buyers should still confirm that the surrounding enclosure and overall system design stay within that temperature window.
Does the LT-3030-6A include signal isolation or protection features?
Yes. The product description states that its signal input and output include security protection with 5 KV photoelectric isolation. That is relevant for commercial and industrial buyers who want an added protection feature in LED control expansion hardware.
