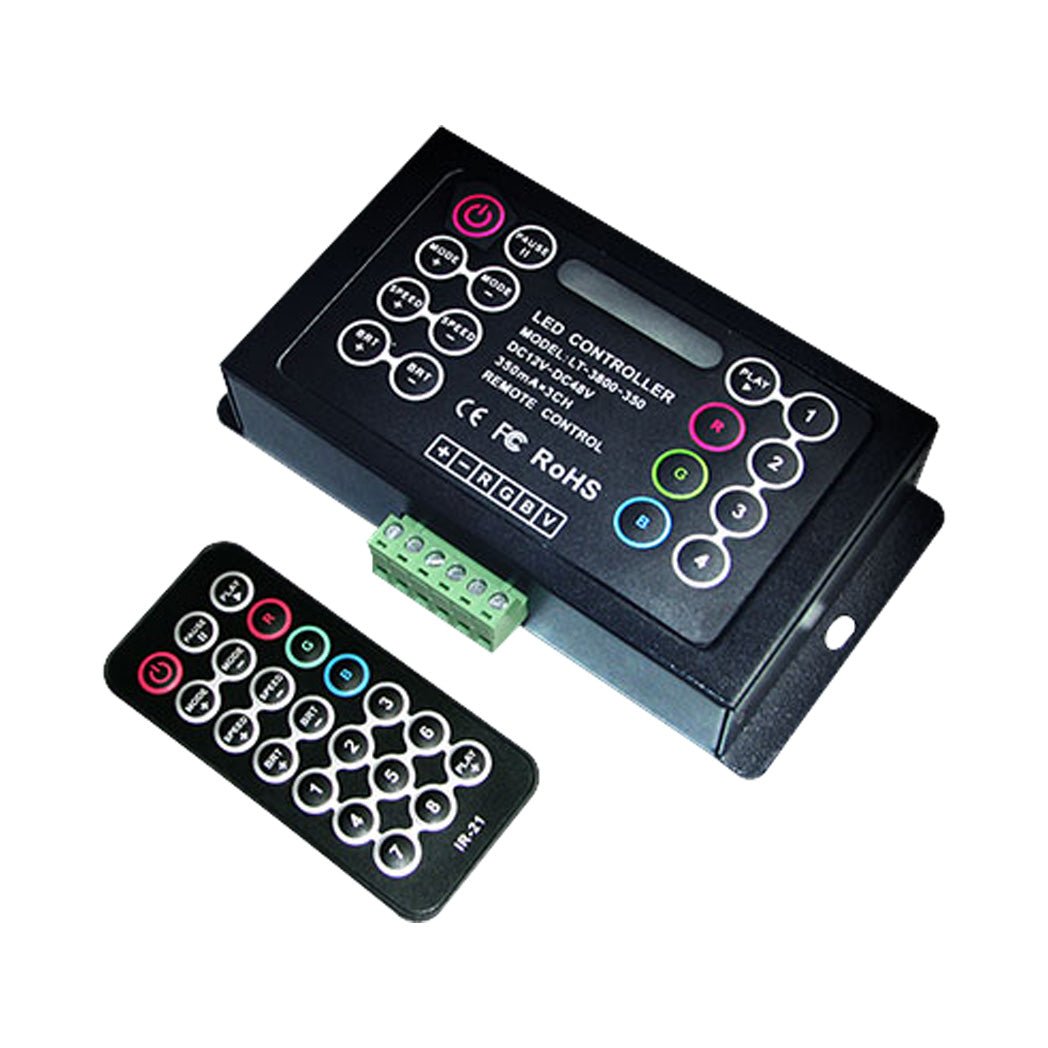

Ltech LT-3800-350 Constant Current LED Controller
The Ltech LT-3800-350 is a constant current RGB LED controller intended for color-changing LED lighting applications. It is designed as a standalone controller for users who want built-in control modes and handheld remote operation in one unit.
Input 12~48VDC. 350mA/700mA/1050mA, 3 Channel. Operating temperature -30~+65°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~48VDC
- ✓Output signal: Normal
- ✓Output channels: 350mA/700mA/1050mA - 3 Channel
- ✓Maximum total load: 50W
- ✓Ingress protection: IP20
- ✓Operating temperature: -30~+65°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 142 x 30 x 30mm
- ✓5 year warranty
-
BrandLtech
-
Power Rating50 Watt
-
Output Voltage48 Volt
-
Rated Current0.35 Ampere
-
Input Voltage12V~48V
-
No of Output3
-
Dimming ControlNon Dimmable
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length5.59 in
-
Width1.18 in
-
Height1.18 in
-
Weight0.77 lb
::specification::
Frequently Asked Questions
What type of LED application is the LT-3800-350 designed for?
The Ltech LT-3800-350 is a constant current RGB LED controller intended for color-changing LED lighting applications. It is positioned as a standalone controller for users who want built-in control modes and handheld remote operation in one unit.
What are the main electrical ratings of the LT-3800-350?
This model is rated for 50 W output power, 48 V output voltage, and 350 mA rated current. Those published values identify it as a constant current controller for LED systems that match those operating requirements.
Does the LT-3800-350 include built-in lighting effects?
Yes. The product description states that the controller has 18 built-in modes for color-changing LED operation. It also includes touch functional buttons and an IR wireless remote control panel for selecting those modes.
Is the LT-3800-350 a dimming controller?
No. The listed dimming control specification for this model is "none." Buyers looking specifically for a controller with a stated dimming interface or protocol should compare it against models with that feature explicitly listed.
What LED systems is the LT-3800-350 compatible with?
The description identifies it as an RGB controller for LED lights using 4-pin 3-loop cables with a common anode configuration. Compatibility should therefore be evaluated against LED products that match that RGB and common-anode controller format.
Can the LT-3800-350 be used in demanding temperature conditions?
This controller is specified for an operating temperature range of -30 degrees C to 65 degrees C. That makes it suitable for environments that may be significantly colder or warmer than normal indoor room conditions, as long as the rest of the system is rated appropriately.
What warranty is listed for the LT-3800-350?
The published warranty period for the LT-3800-350 is 5 years. For B2B buyers, that can be a useful indicator when comparing lifecycle expectations across similar LED controller products.
