Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

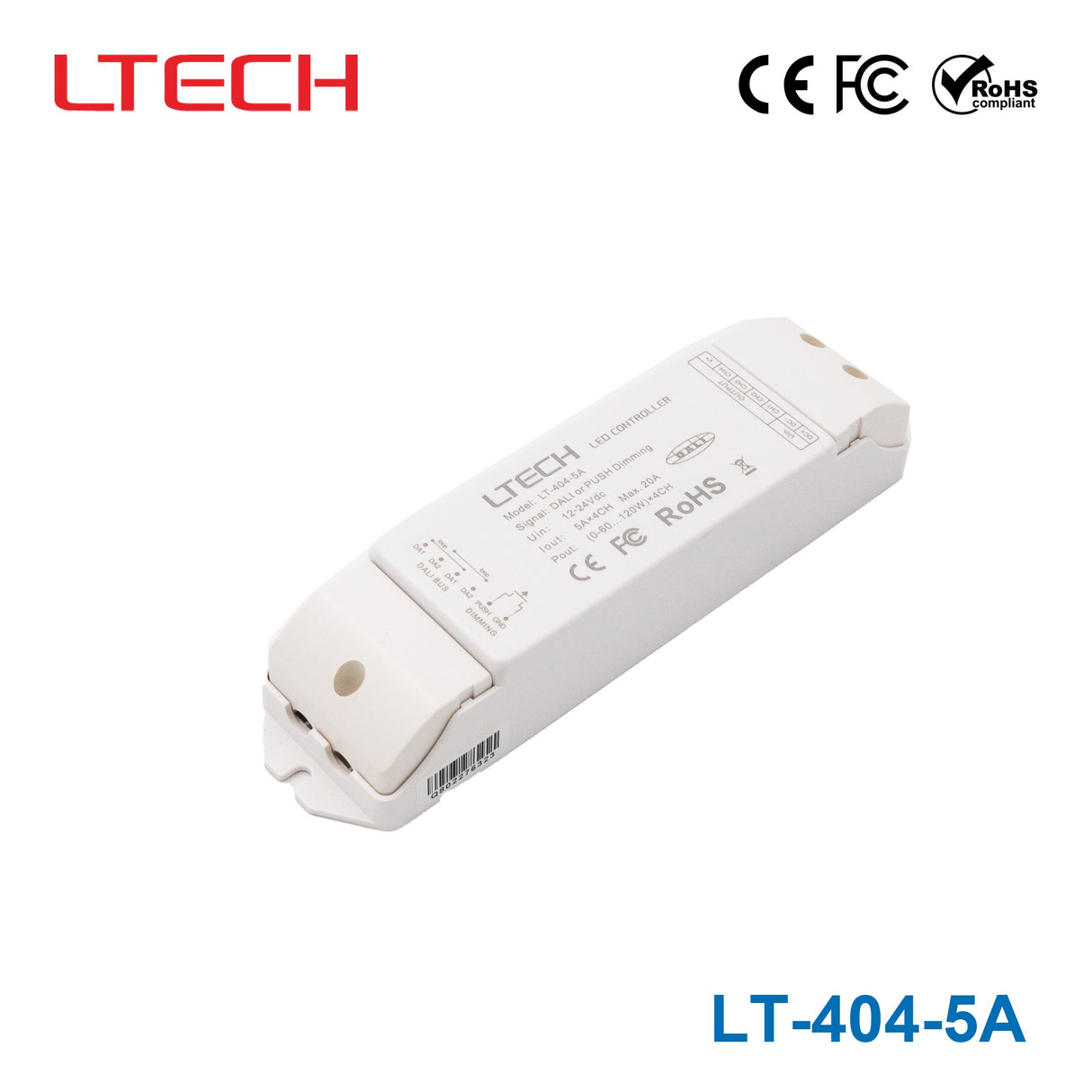

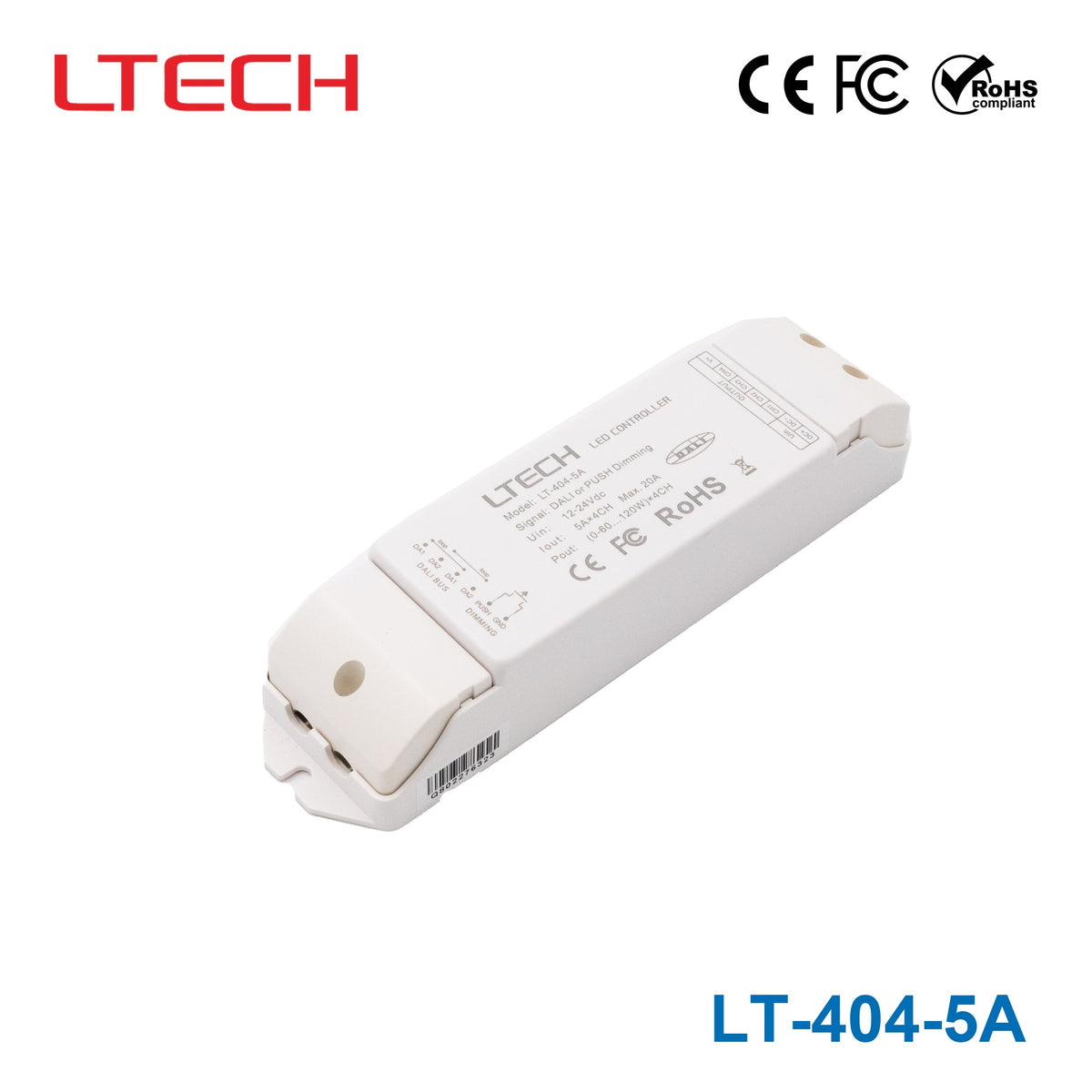

Ltech LT-404-5A Constant Voltage Controller - DALI/Push RGBW
$75.17 USD
Unit price /
Unavailable
Description
Description
Dimming interface: DALI, Push Dim.
PWM digital dimming, standard DALI logarithmic dimming curve.
Dimming range: 0~100%, LED start at 0.1% possible.
4CH isolated control output, Max. current output: 20A.
Full protective plastic housing.
DALI bus standard: IEC62386.
Suitable for indoor environments.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage12V~24V
-
No of Output4
-
Dimming ControlDALI,Push Dimming
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.31 lb
