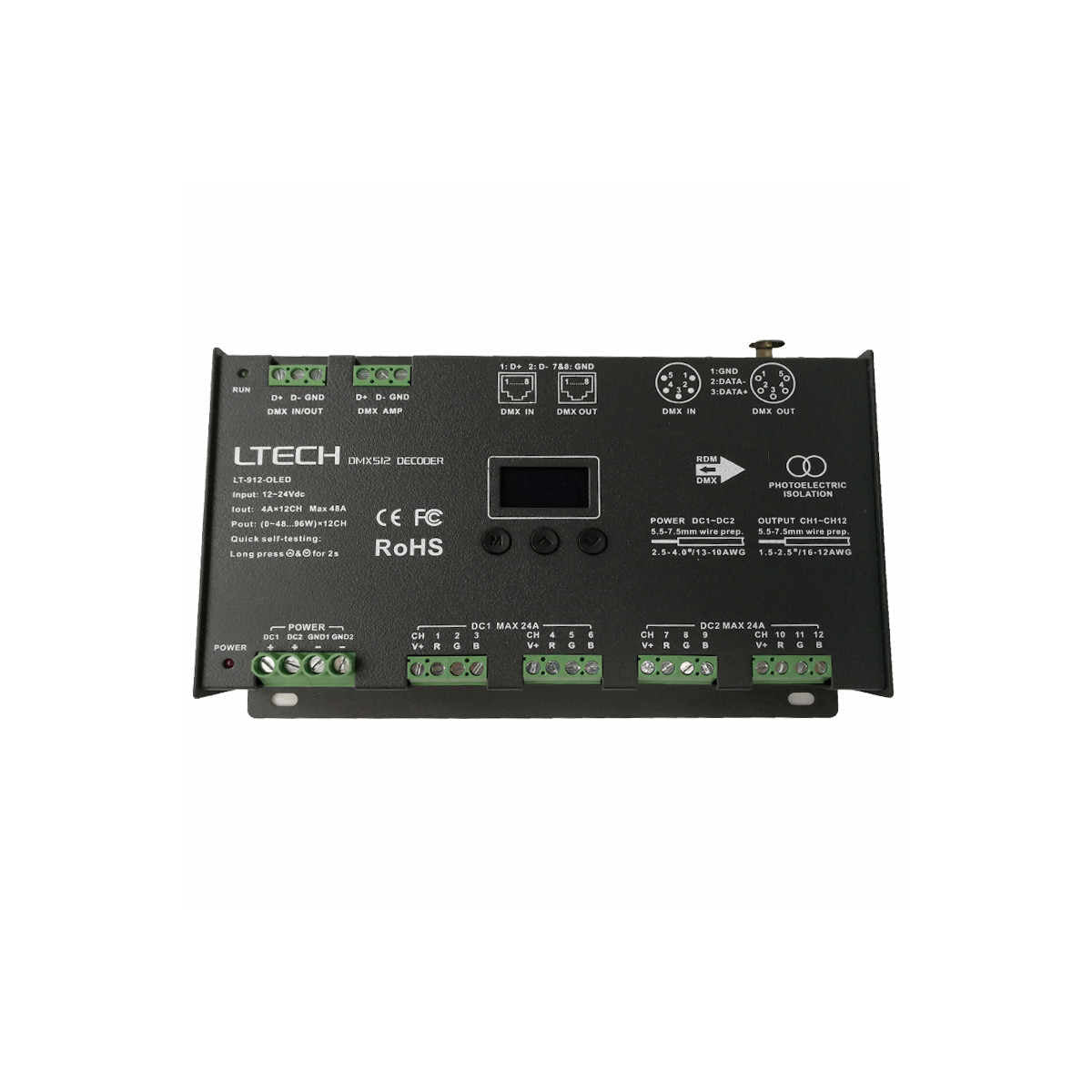

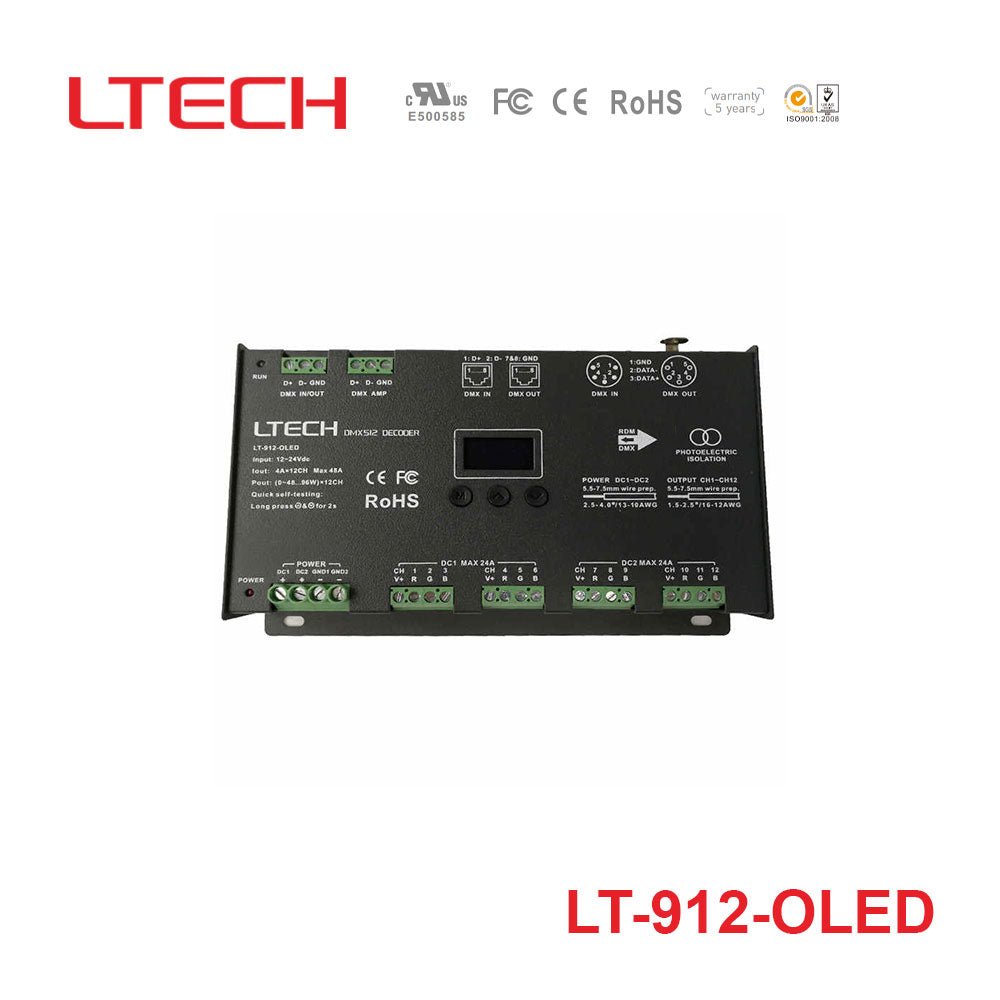

Ltech LT-912-OLED Constant Voltage Decoder - DMX/RDM
Description
Description
The 12-channel OLED DMX decoder is suitable for applications where multiple DIM, CT or RGB must be controlled with a DMX signal. In case you are using RGB FlexStrip a maximum of 4 modules can be connected. It has 12 channels of 4A (48A max) and a maximum power of 1152W. Works with 12 and 24 Volt DC LED modules. Has multiple DMX sockets to chose from: RJ45, Green terminal and XLR-5. Also supports 8 & 16 bit functions and has 0.1 - 9,9 dimming curve.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating1152 Watt
-
Output Voltage24 Volt
-
Rated Current48 Ampere
-
Input Voltage12V~24V
-
No of Output12
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length7.09 in
-
Width4.8 in
-
Height1.54 in
-
Weight1.61 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Ltech LT-912-OLED designed to do?
The LT-912-OLED is a 12-channel constant-voltage decoder for DMX/RDM lighting control systems. It is intended for projects where multiple dimming, color temperature, or RGB loads need to be controlled from a DMX signal. This model supports 12V and 24V DC LED modules.
How much output capacity does the LT-912-OLED provide?
This decoder provides 12 output channels rated at 4A each, with a 48A maximum total current. Its maximum power rating is 1152W. That makes it suitable for larger multi-channel constant-voltage LED control applications.
Is the LT-912-OLED compatible with both DMX and RDM control systems?
Yes, this model supports both DMX and RDM dimming control. That makes it appropriate for installations that require standard DMX operation as well as systems using RDM-capable device management. The product description specifically identifies DMX/RDM support for this decoder.
What kinds of lighting applications is this decoder best suited for?
The LT-912-OLED is best suited for multi-channel constant-voltage LED applications where DIM, CT, or RGB control is needed. It is a practical option for commercial and architectural lighting systems that need many independently controlled channels from one decoder. For RGB FlexStrip use, the product description states that up to 4 modules can be connected.
Why choose the LT-912-OLED over a lower-channel DMX decoder?
A key differentiator is its 12-channel design, which allows more controlled outputs from a single decoder than lower-channel models. It also combines DMX/RDM support, an OLED display, and both 8-bit and 16-bit functionality in one unit. This makes it a stronger fit for more complex multi-zone or multi-function LED control layouts.
Does the LT-912-OLED support fine dimming control?
Yes, the decoder supports both 8-bit and 16-bit functions. It also offers a dimming curve range from 0.1 to 9.9. These features make it better suited for applications where smoother or more precise dimming behavior is important.
Is the LT-912-OLED suitable for demanding operating environments?
This model is rated for operation from -30 C to 65 C, which gives it a wide working temperature range. That makes it more suitable than basic indoor-only control gear for projects exposed to colder or hotter conditions. It also includes a 5-year warranty, which is a useful indicator for long-term commercial use.
