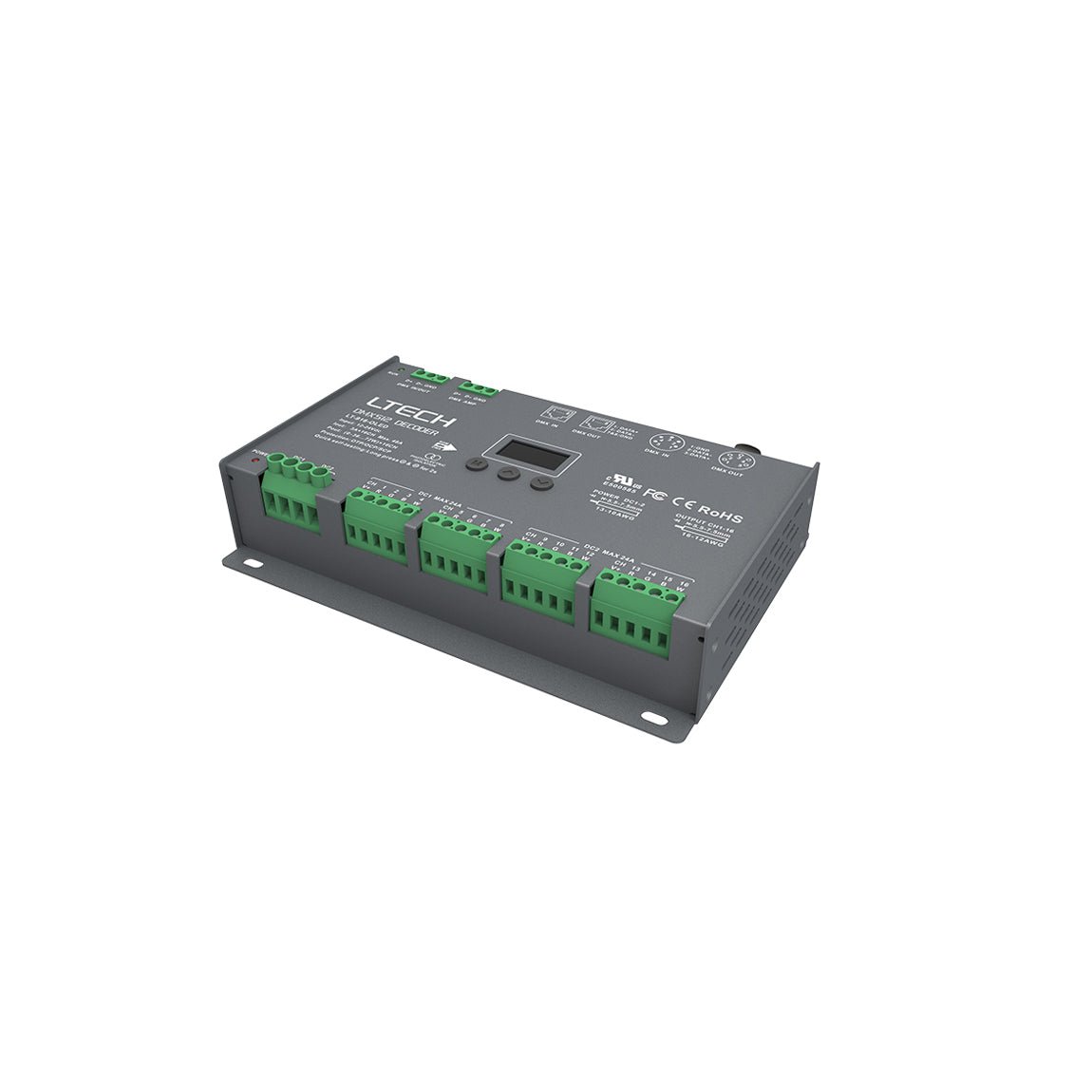

Ltech LT-916-OLED Constant Voltage Decoder - DMX/RDM
The Ltech LT-916-OLED is a constant voltage DMX/RDM decoder built for high-power, multi-channel LED control applications. It provides 16 output channels and is suited for commercial or architectural projects that need centralized control across multiple lighting zones or fixture groups.
Input 12~24VDC. 16 channels at 3A each. Operating temperature -30~+65°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~24VDC
- ✓Control protocol: DMX, RDM
- ✓Output signal: DMX Signal, PWM, RDM Signal
- ✓Output channels: 3A - 16 Channel
- ✓Maximum load: 3A per channel
- ✓Maximum total load: 1152W
- ✓Operating temperature: -30~+65°C
- ✓Certifications: CE, FCC, ROHS, UL
- ✓Dimensions: 180 x 122 x 39mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating1152 Watt
-
Output Voltage24 Volt
-
Rated Current48 Ampere
-
Input Voltage12V~24V
-
No of Output16
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length7.09 in
-
Width4.8 in
-
Height1.54 in
-
Weight1.61 lb
