Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

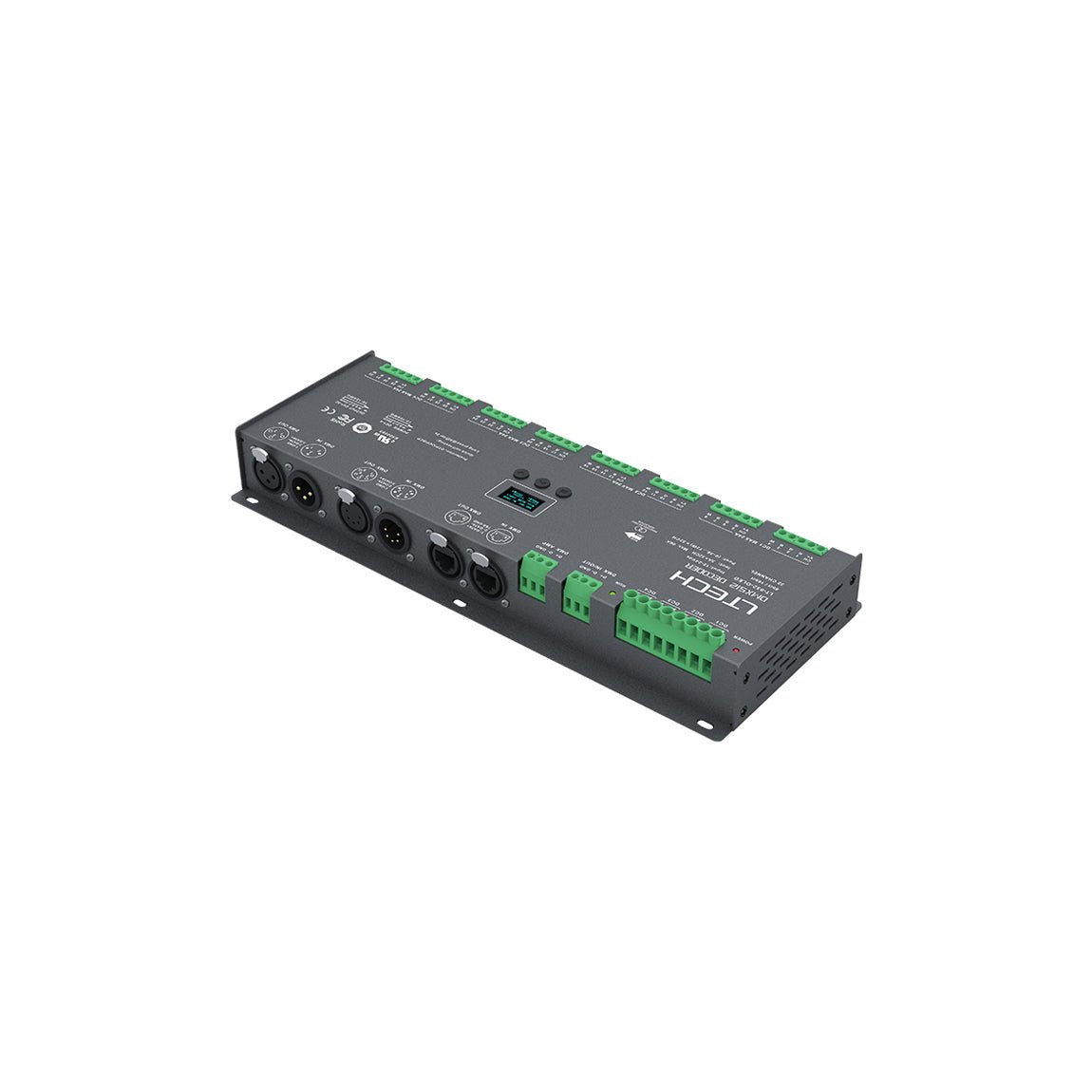

Ltech LT-932-OLED Constant Voltage Decoder - DMX/RDM
The LT-932-OLED is a constant voltage DMX/RDM decoder designed for LED control applications that need many output channels. It is suited for dimming, color temperature, RGB, and RGBW control in commercial and professional lighting systems. Its 32-channel design makes it a fit for larger multi-zone LED projects.
Input 12~24VDC. 32 channels at 3A each. Operating temperature -30~+65°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~24VDC
- ✓Control protocol: DMX, RDM
- ✓Output signal: DMX Signal, PWM, RDM Signal
- ✓Output channels: 3A - 32 Channel
- ✓Maximum load: 3A per channel
- ✓Maximum total load: 2304W
- ✓Operating temperature: -30~+65°C
- ✓Certifications: CE, FCC, ROHS
- ✓Dimensions: 300 x 122 x 39mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating2304 Watt
-
Output Voltage24 Volt
-
Rated Current96 Ampere
-
Input Voltage12V~24V
-
No of Output32
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length11.81 in
-
Width4.8 in
-
Height1.54 in
-
Weight2.6 lb
::specification::
Frequently Asked Questions
What is the Ltech LT-932-OLED used for?
The LT-932-OLED is a constant voltage DMX/RDM decoder designed for LED control applications that need many output channels. It is suited for dimming, color temperature, RGB, and RGBW control in commercial and professional lighting systems. Its 32-channel design makes it a fit for larger multi-zone LED projects.
How many channels does the LT-932-OLED provide?
This model provides 32 output channels, with each channel rated at 3A. That gives it a maximum combined current of 96A. For RGBW strip applications, up to 8 modules can be controlled from the unit.
What is the maximum power capacity of the LT-932-OLED?
The LT-932-OLED supports up to 2304W maximum power. It is built for high-capacity constant voltage LED control where many channels need to be managed from a single decoder. That makes it suitable for larger architectural or commercial lighting systems.
Does the LT-932-OLED support both DMX and RDM control?
Yes, this model supports both DMX and RDM control. That makes it suitable for systems that require standard DMX dimming as well as RDM-capable environments. The product description specifically identifies it as a DMX/RDM decoder.
What voltage LED systems is the LT-932-OLED compatible with?
According to the product description, the LT-932-OLED works with 12V and 24V DC LED modules. The structured product data lists a 24V output voltage for this model. Buyers should confirm the target LED module voltage matches the product requirements before purchase.
What dimming and control features does the LT-932-OLED include?
The LT-932-OLED supports 8-bit and 16-bit functions for more precise control options. It also offers a dimming curve range of 0.1 to 9.9. These features make it better suited to professional lighting applications that need finer dimming behavior.
Is the LT-932-OLED suitable for demanding environments?
This model is rated for operation from -30°C to 65°C. That wide temperature range makes it appropriate for installations where environmental conditions may vary significantly. It also includes a 5-year warranty, which is useful for commercial buyers evaluating long-term reliability.
