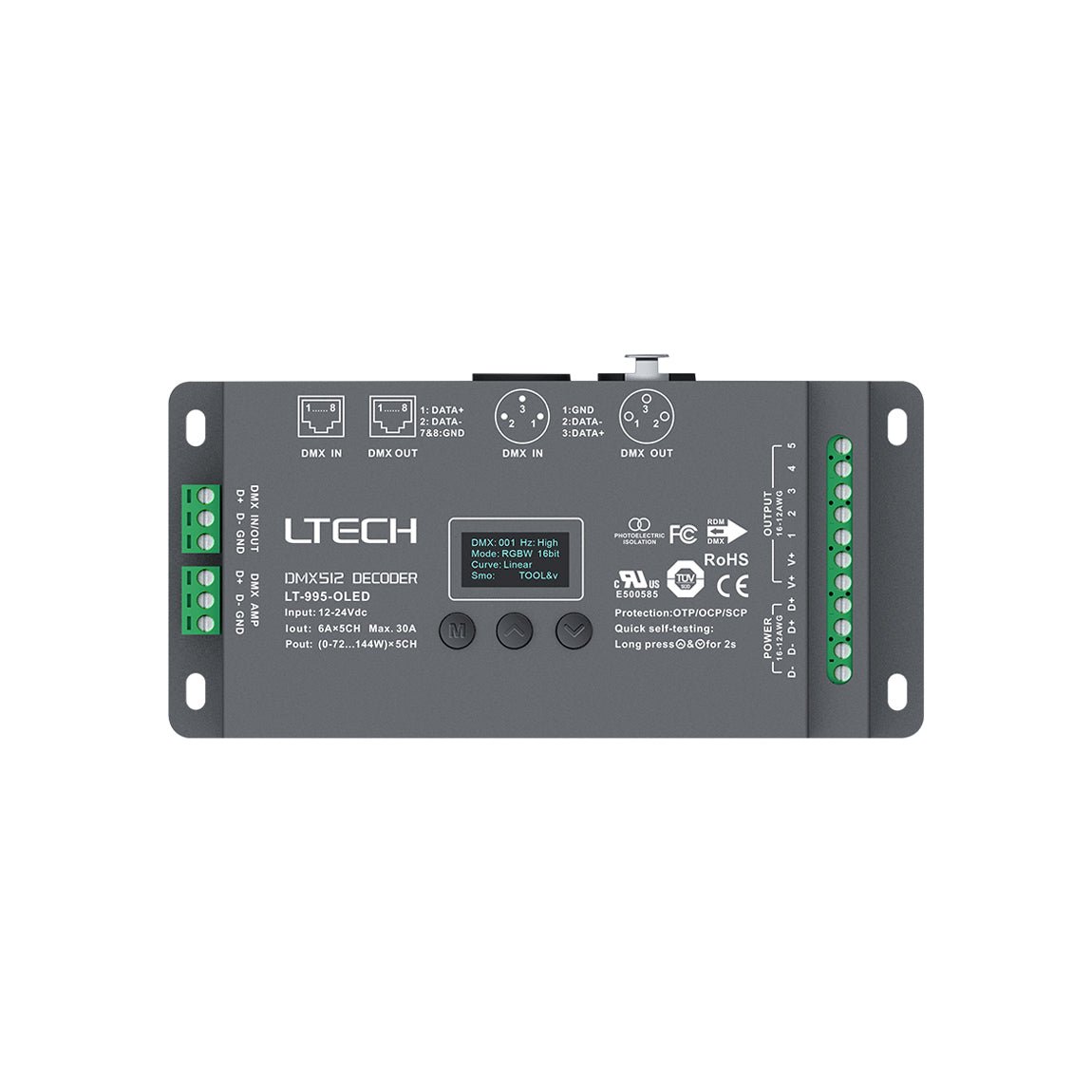

Ltech LT-995-OLED Constant Voltage Decoder - DMX/RDM
The LT-995-OLED is designed for constant voltage LED control in DMX and RDM systems. It supports dimming, color temperature, RGB, RGBW, and RGBWY lighting applications, which makes it suitable for commercial and architectural LED projects that need multi-channel control.
Input 12~24VDC. 5 channels at 4A each. Operating temperature -30~+65°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~24VDC
- ✓Control protocol: DMX, RDM
- ✓Output signal: DMX Signal, PWM, RDM Signal
- ✓Output channels: 4A - 5 Channel
- ✓Maximum load: 4A per channel
- ✓Maximum total load: 720W
- ✓Operating temperature: -30~+65°C
- ✓Certifications: CE, FCC, ROHS, UL
- ✓Dimensions: 169 x 80 x 39mm
- ✓5 year warranty
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating720 Watt
-
Output Voltage24 Volt
-
Rated Current30 Ampere
-
Input Voltage12V~24V
-
No of Output5
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length6.65 in
-
Width3.15 in
-
Height1.54 in
-
Weight1.21 lb
::specification::
Frequently Asked Questions
What applications is the Ltech LT-995-OLED designed for?
The LT-995-OLED is designed for constant voltage LED control in DMX and RDM systems. It supports dimming, color temperature, RGB, RGBW, and RGBWY lighting applications, which makes it suitable for commercial and architectural LED projects that need multi-channel control.
What are the output capacity and power limits of the LT-995-OLED?
This decoder provides 5 output channels rated at 6A each, with a combined maximum current of 30A. It supports up to 720W total power and is intended for use with 12V and 24V DC LED modules.
Does the LT-995-OLED support both DMX and RDM control?
Yes, this model supports both DMX and RDM dimming control. That makes it a good fit for projects that require standard DMX operation while also benefiting from RDM-capable system environments.
Is the LT-995-OLED suitable for RGBW and RGBWY lighting systems?
Yes, the LT-995-OLED is intended for multi-channel LED formats including RGBW and RGBWY. Its 5-channel design allows it to handle more complex color control applications than simpler single-color or lower-channel decoders.
What dimming performance features does the LT-995-OLED offer?
The LT-995-OLED supports both 8-bit and 16-bit functions and includes a dimming curve range of 0.1 to 9.9. These features help it fit projects where finer dimming behavior and smoother control resolution are important.
Can the LT-995-OLED be used in demanding indoor or industrial environments?
This model is rated for operation from -30°C to 65°C, which gives it a broad working temperature range. That makes it suitable for demanding environments where temperature tolerance matters, provided the rest of the system is specified appropriately.
How does the LT-995-OLED compare with lower-capacity LED decoders?
Compared with lower-capacity decoders, the LT-995-OLED offers 5 channels, up to 30A total output current, and up to 720W maximum power. It is better suited to higher-load or more feature-rich constant voltage LED control applications that need DMX/RDM support and multiple control modes.
