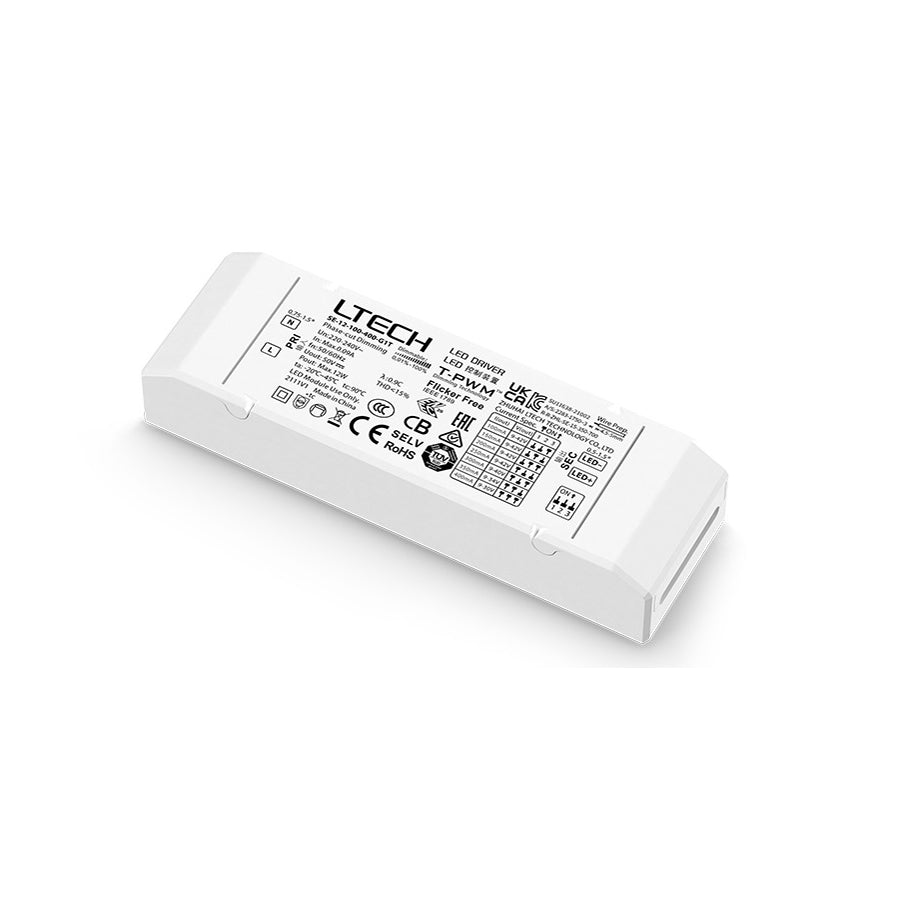

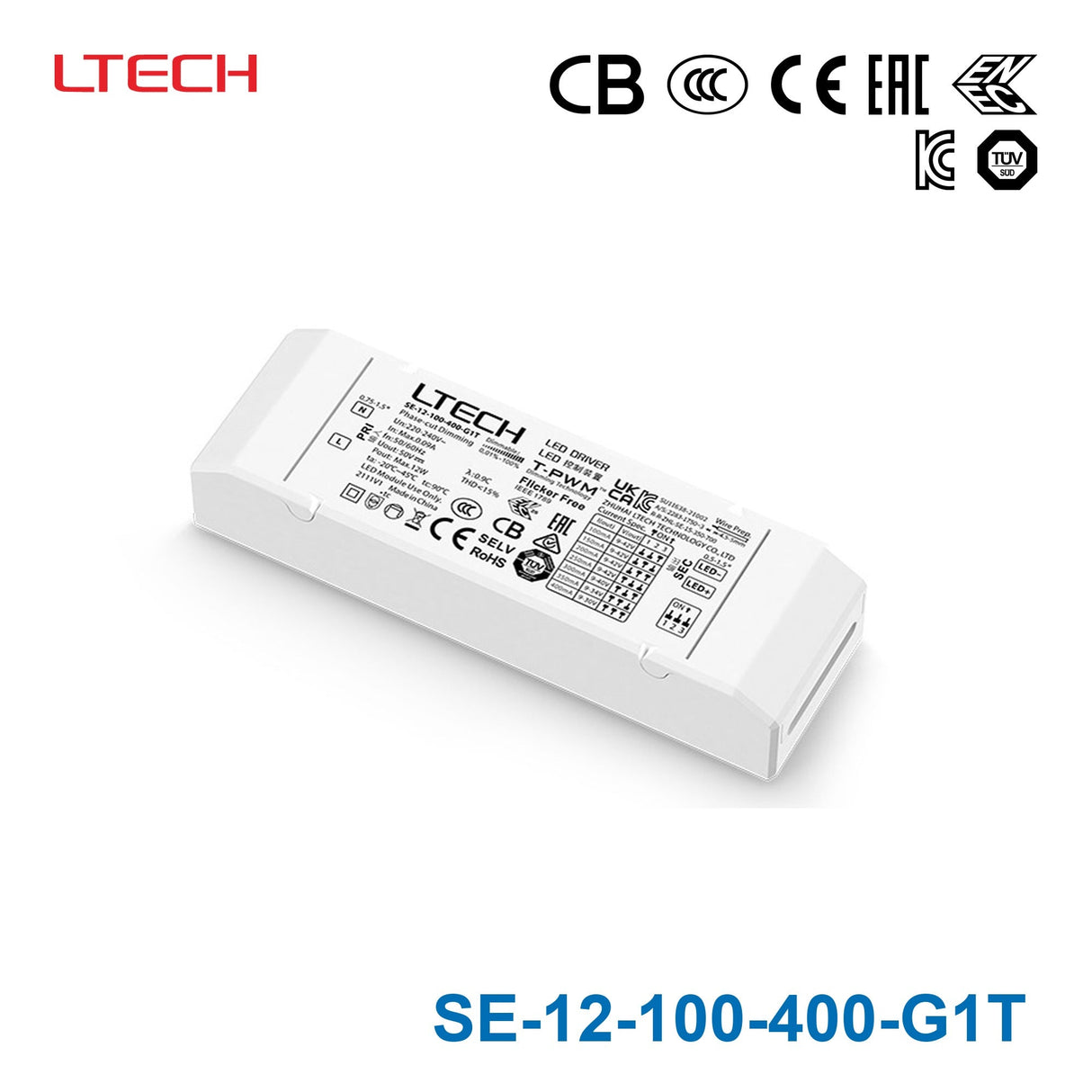

LTECH SE-12-100-400-G1T 12W 100mA ~ 400mA CC Triac LED Driver
SKU:
SE-12-100-400-G1T
Datasheet:
$21.33 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Your order will be processed within 24 hours
LTECH SE-12-100-400-G1T 12W 100mA ~ 400mA CC Triac LED Driver
$21.33 USD
Unit price /
Unavailable
Description
Description
Intelligent LED Driver
| Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings with small size and light weight. |
| The clamshell design and screwless type for strain-relief, tensile strength of wires complies with the 0.5-1.5mm² wire diameter 60N tensile test,and complies with the tensile test standard GB7000.1-2015/IEC60598-1：2014. |
| Soft-on and fade-in dimming function enhances your visual comfort. |
| T-PWM dimming technology allows continuous and flicker-free images under high-speed shooting. |
| Dimming from 0~100%, down to 0.01%. |
| 0-100% flicker-free dimming with high frequency exemption level. |
| Innovative thermal management technology protects the power life intelligently. |
| Multiple current levels & wide voltage, suitable for different power LEDs. |
| Class 2 LED driver, full protective plastic housing. |
| Comply with Safety Extra Low Voltage standard |
| Over voltage, overload, shortcircuit protection and automatic recovery |
| Suitable for indoor light applications of I/II/III type. |
| Up to 50000-hour lifetime. |
| 5-year warranty (Rubycon capacitor) |
Specifications
Specifications
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating12 Watt
-
Output Voltage22 Volt
-
Rated Current0.35 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-20°C~45°C
-
Warranty5 Year
-
Length4.37 in
-
Width1.38 in
-
Height0.79 in
-
Weight0.02 lb
File Downloads
File Downloads
Specification Sheet
