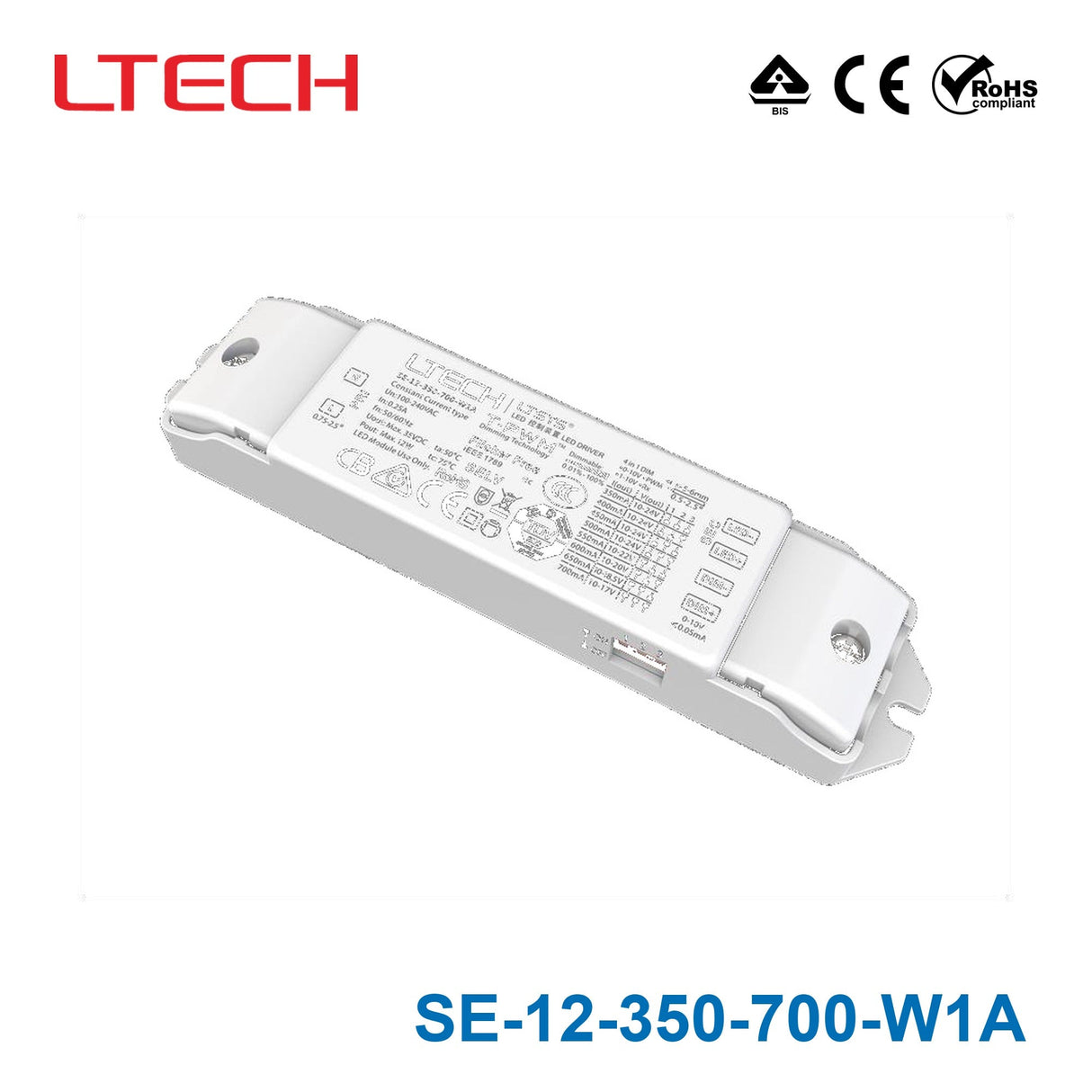

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
LTECH SE-12-350-700-W1A 12W 350~700mA CC 0/1-10V LED Driver - Sel...
$55.27 USD
Unit price /
Unavailable
Description
Description
- Dimming interface: 0-10V (1-10V/10V PWM/RX)
- Built-in SCM
- automatic recognition of 0-10V
- 1-10V input signal.
- T-PWM digital dimming
- Innovative thermal management technology
- intelligent power life protection.
- Dimming range:0~100%
- LED start at 0.01% possible.
- 0-100% flicker-free (IEEE 1789 standard)
- Over-heat / Over voltage / Over load / Short circuit protection
- recover automatically.
- Suitablefor internal lights application for I/II/III
- 5 years warranty (Rubycon capacitor).
Specifications
Specifications
-
BrandLtech
-
SeriesLtech 0/1-10V Series
-
Power Rating12 Watt
-
Output Voltage50 Volt
-
Rated Current0.35 Ampere
-
Input Voltage200V~240V
-
No of Output1
-
Dimming Control0-10V,1-10V
-
Standards MetCB,CCC,CE,EMEC,RCM,ROHS,TUV
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty5 Year
-
Length5.32 in
-
Width1.18 in
-
Height0.79 in
-
Weight1.76 lb
