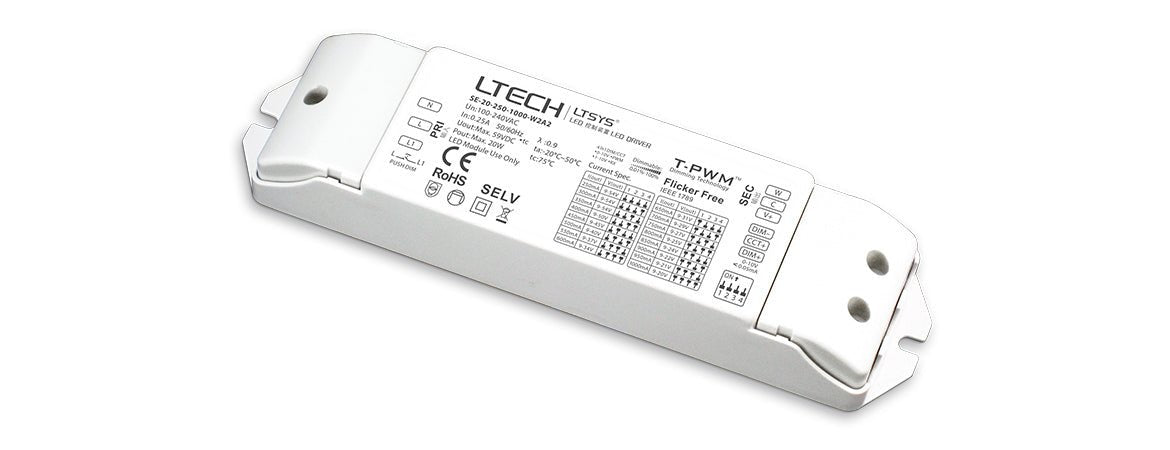

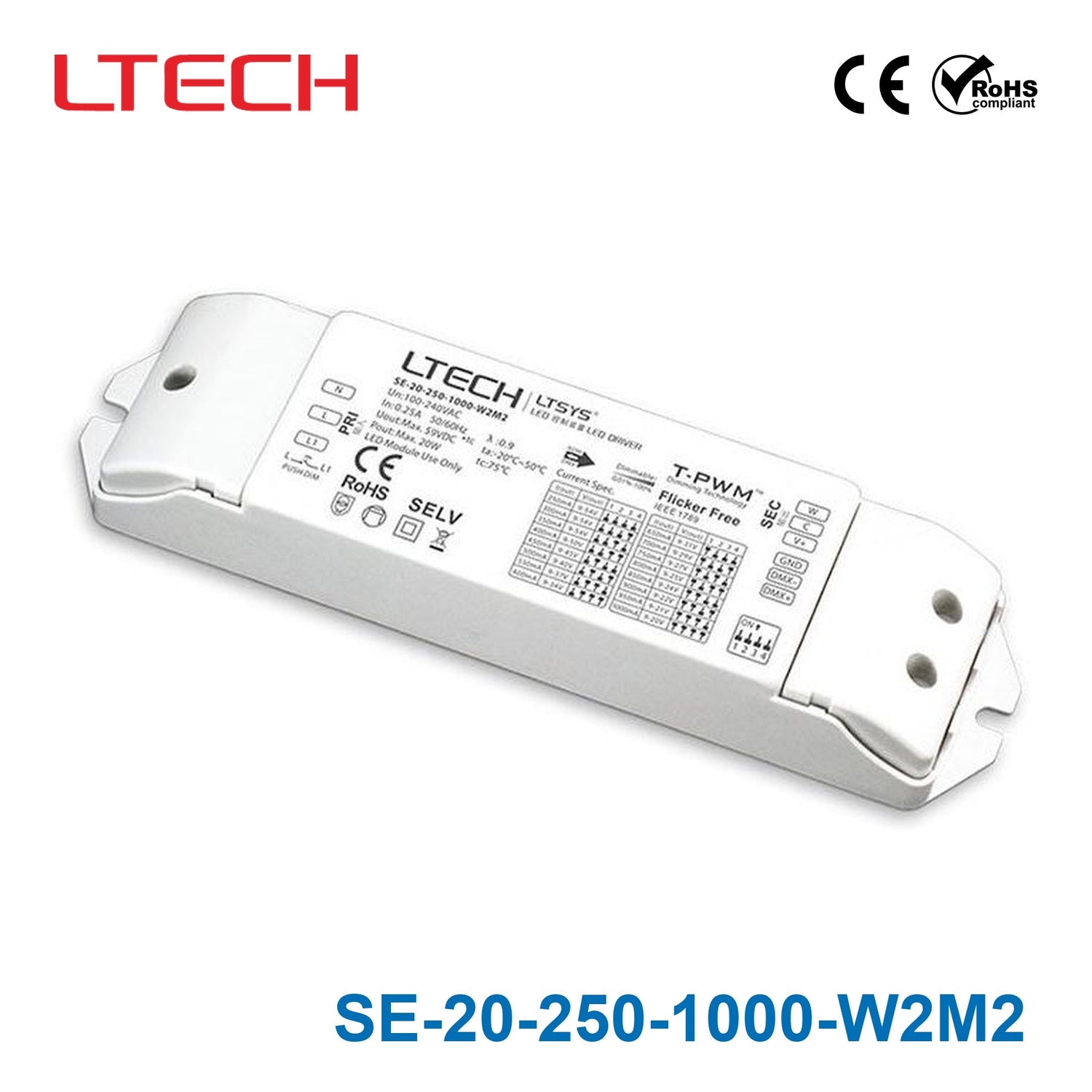

LTECH SE-20-250-1000-W2M2 20W 250mA~1000mA CC DMX512/RDM LED Driver
Description
Description
Intelligent LED Driver
| Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings with small size and light weight. |
| Soft-on and fade-in dimming function enhances your visual comfort. |
| T-PWM dimming technology allows continuous and flicker-free images under high-speed shooting. |
| Dimming from 0~100%, down to 0.01%. |
| Multiple current levels and wide voltage, suitable for different power LEDs. |
| Over voltage, overload, short-circuit protection and automatic recovery. |
| 5-year warranty. |
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating20 Watt
-
Output Voltage59 Volt
-
Rated Current0.25 Ampere
-
Input Voltage100V~240V
-
No of Output2
-
Dimming ControlDMX
-
Standards MetCE,ROHS
-
Operation ModeConstant Current
-
Operating Temperature-20°C~50°C
-
Warranty3 Year
-
Length6.57 in
-
Width1.61 in
-
Height1.26 in
-
Weight0.35 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED application is the LTECH SE-20-250-1000-W2M2 designed for?
This model is a constant current LED driver intended for powering LEDs that require regulated output current rather than constant voltage. Its adjustable current range from 250mA to 1000mA makes it suitable for a variety of power LED applications where DMX512/RDM dimming is required.
What are the key output limits of the SE-20-250-1000-W2M2?
The driver is rated for 20W maximum output power, with output voltage up to 54V and rated current up to 1000mA. It supports multiple current levels within the 250mA to 1000mA range, which helps match different constant current LED loads.
Does this LED driver support DMX control and RDM features?
Yes. The SE-20-250-1000-W2M2 is identified as a DMX512/RDM LED driver, so it is intended for lighting systems that use DMX-based dimming and remote device management compatibility. This makes it better suited to controlled lighting environments than a non-dimming or basic analog driver.
How smooth is the dimming performance on this model?
This driver supports dimming from 0 to 100%, with a stated low-end dimming capability down to 0.01%. It also includes soft-on and fade-in dimming plus T-PWM dimming technology for continuous, flicker-free performance, including under high-speed shooting conditions.
Is the SE-20-250-1000-W2M2 suitable for demanding commercial or professional environments?
It is built with V0 flame-resistant polycarbonate protective housing from SAMSUNG/COVESTRO and includes over-voltage, overload, and short-circuit protection with automatic recovery. Those features make it a practical choice for professional LED applications where durability and protection matter.
What operating temperature range does this LED driver support?
The specified operating temperature range is -20°C to 50°C. That range supports use in a wide variety of indoor and controlled-environment installations, provided the application stays within the product's rated conditions.
What warranty is offered for the LTECH SE-20-250-1000-W2M2?
This model includes a 5-year warranty period. For B2B buyers, that can be an important factor when evaluating lifecycle cost and long-term reliability for LED driver selection.
