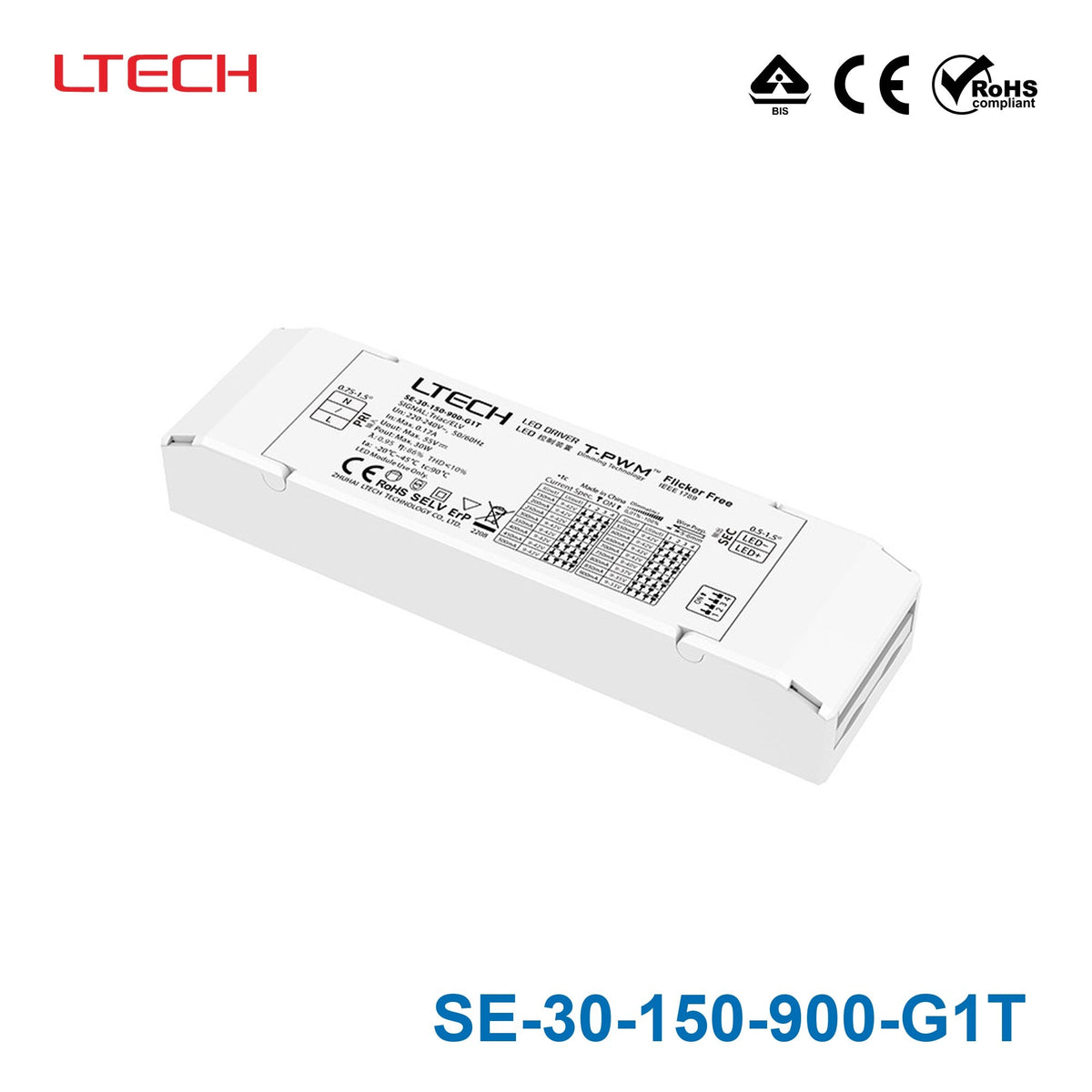

LTECH SE-30-150-900-G1T 30W 150mA ~ 900mA CC Triac LED Driver

Name: LTECH SE-30-150-900-G1T 30W 150mA ~ 900mA CC Triac LED Driver
Brand: Ltech
SKU: SE-30-150-900-G1T
Price: 23.44 USD
Availability: InStock

SKU:

SE-30-150-900-G1T

Datasheet:

SE-30-150-900-G1T Datasheet

$23.44 USD

Shipping calculated at checkout.

Quantity Prices

Quantity	Discount	Unit Price
10+	5%	$22.27
20+	7%	$21.80
50+	9%	$21.33
100+	10%	$21.10
200+	11%	$20.86
500+	13%	$20.39
1000+	15%	$19.92

This discount is applied to the total quantity of this product in your cart

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Intelligent LED Driver

The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO.

Small size and light weight. The clamshell design and screwless type for strain-relief.

Support Leading edge(Triac), Trailing edge(ELV).

With soft-on and fade-in dimming function, enhancing your visualcomfort.

T-PWM™ dimming technology allows continuous and flicker-freeimages under high-speed photography.

Dimming from 0~100%, down to 0.01%.

The whole dimming process is flicker-free with high frequency exemption level.

Multiple current levels and wide voltage range. Suitable for differentpower of LEDs.

Class 2 LED driver, Safety Extra Low Voltage (SELV).

Innovative thermal management technology intelligently protects thelife of the LED driver.

Overheat, overload, short circuit protection and automatic recovery.

Suitable for indoor light applications of I/II/III type.

Up to 50000-hour lifetime.

5-year warranty (Rubycon capacitor)

Specifications

Brand

Ltech
Series

Ltech Triac Series
Power Rating

30 Watt
Output Voltage

55 Volt
Rated Current

0.15 Ampere
Input Voltage

220V~240V
No of Output

1
Dimming Control

AC Phase Cut Dimming
Standards Met

BIS,CE,ROHS
Operation Mode

Constant Current
Operating Temperature

-20°C~45°C
Warranty

5 Year
Length

5.59 in
Width

1.57 in
Height

0.91 in
Weight

0.36 lb

File Downloads

Specification Sheet

Spec Sheet (SE-30-150-900-G1T)(EN)
