Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

×
High Resolution Image

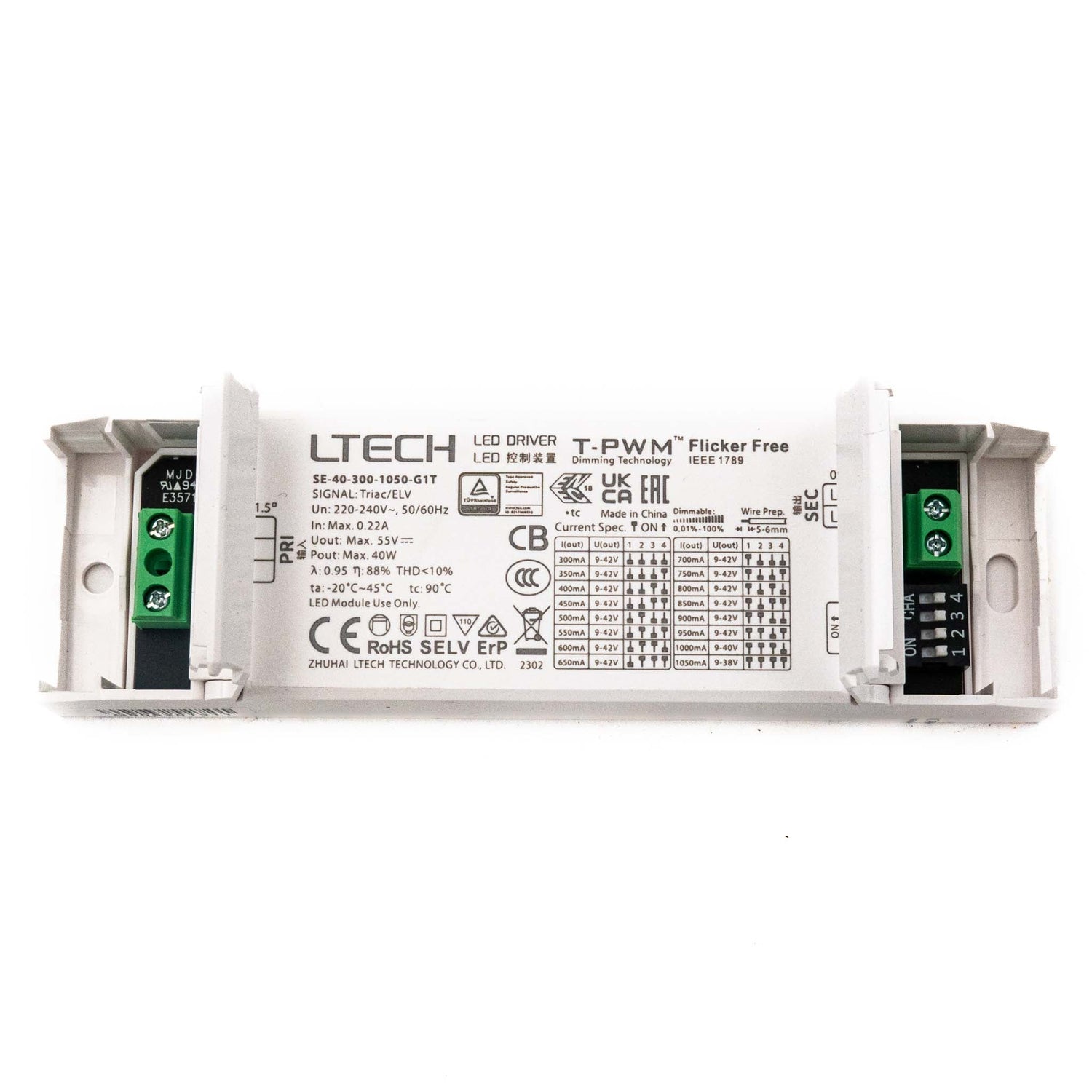

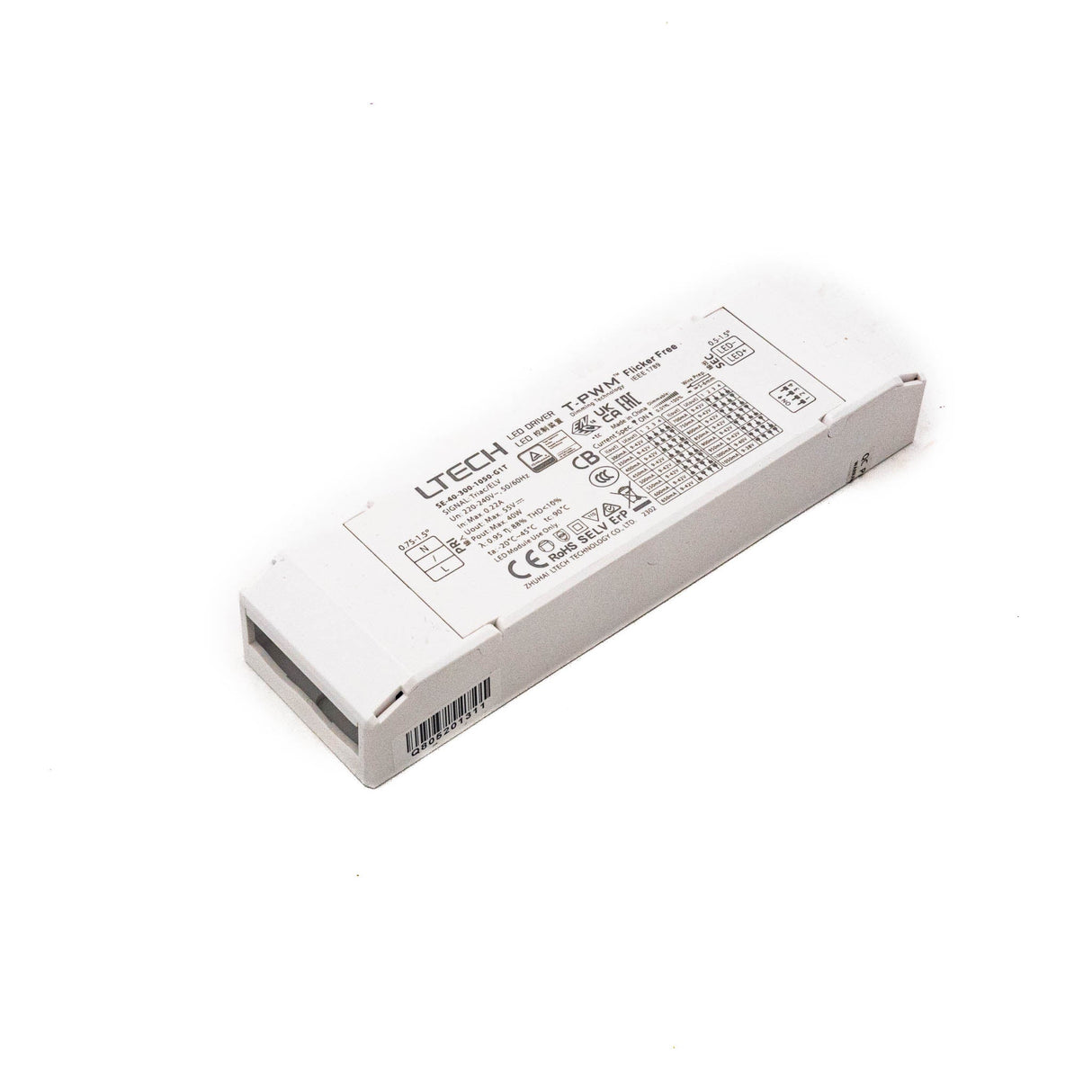

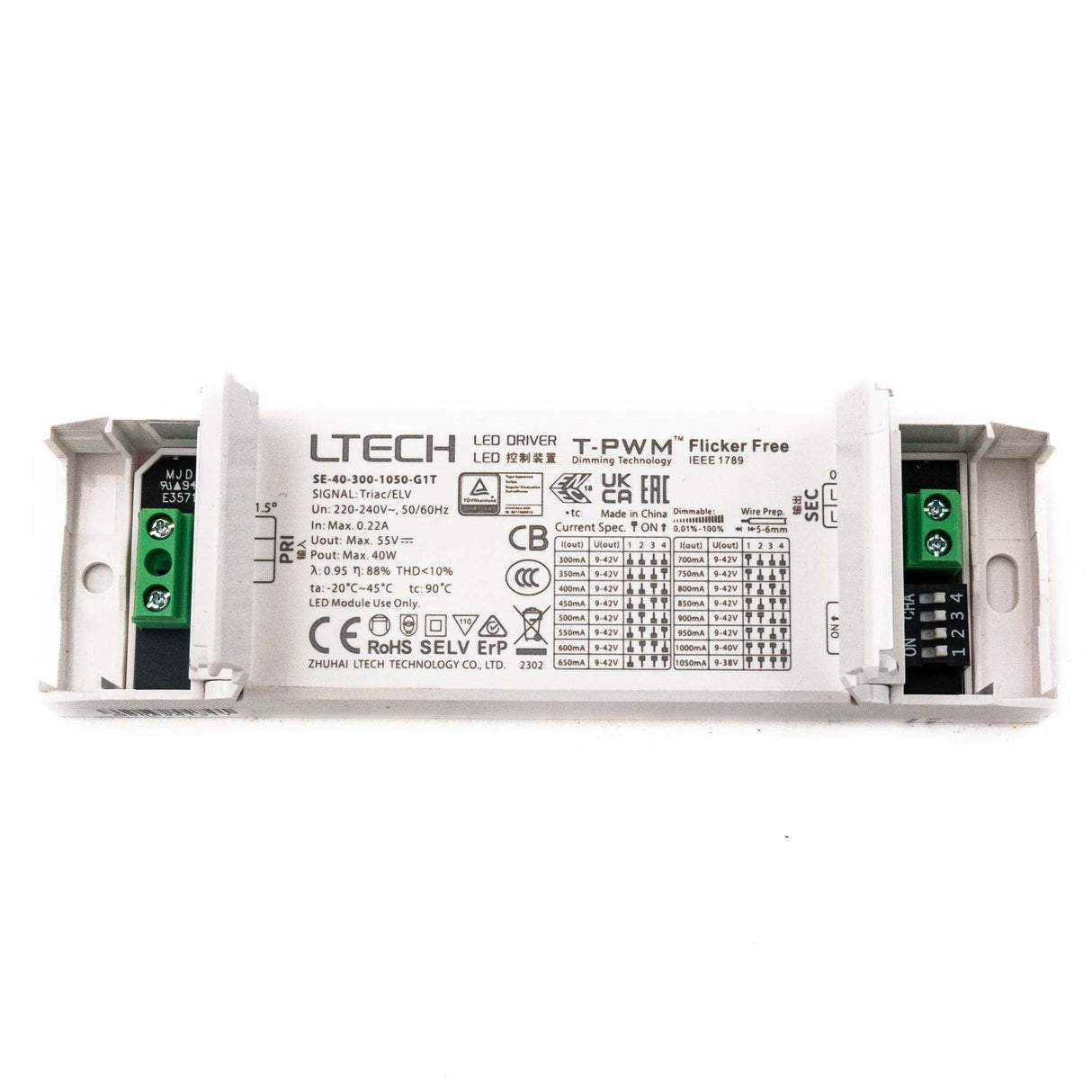

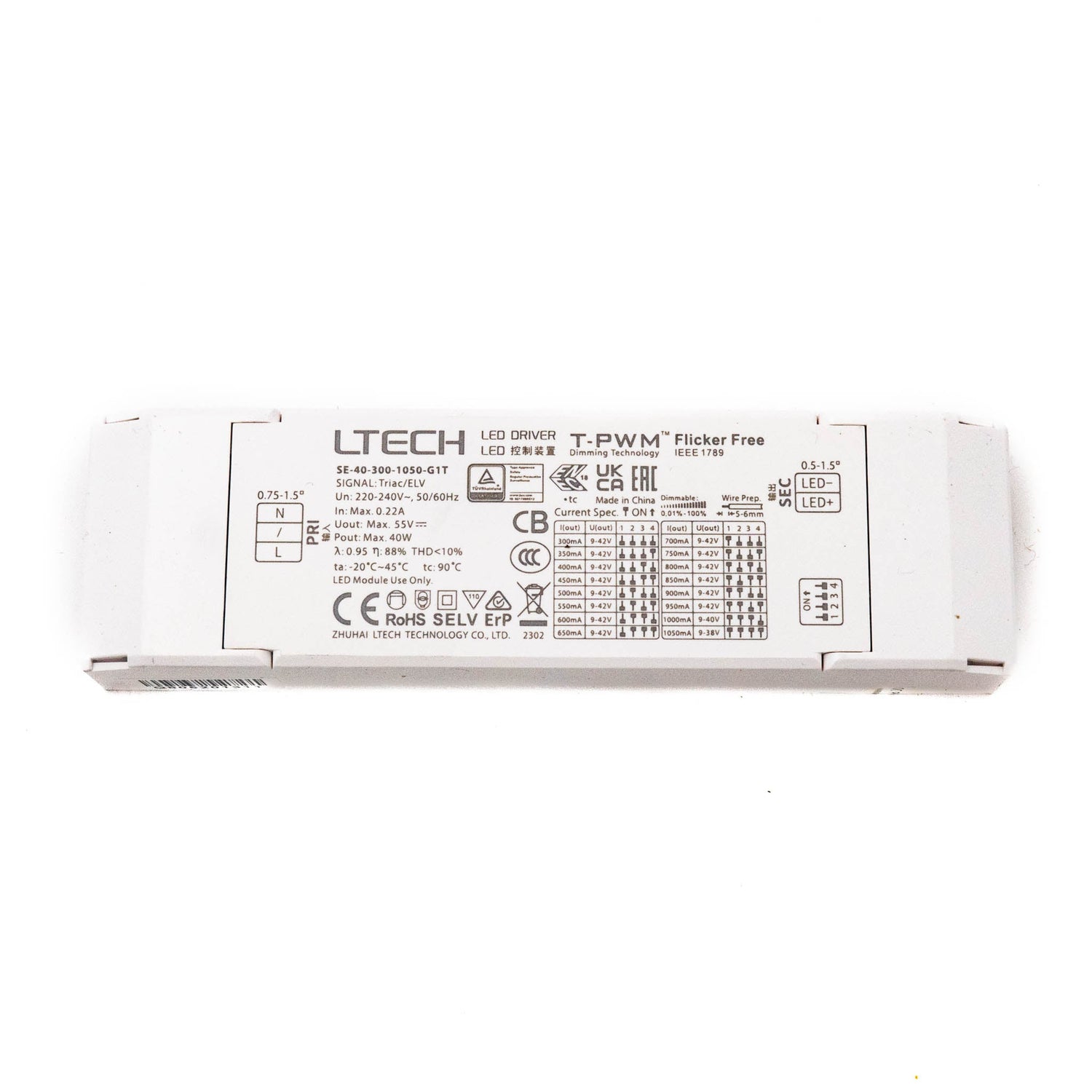

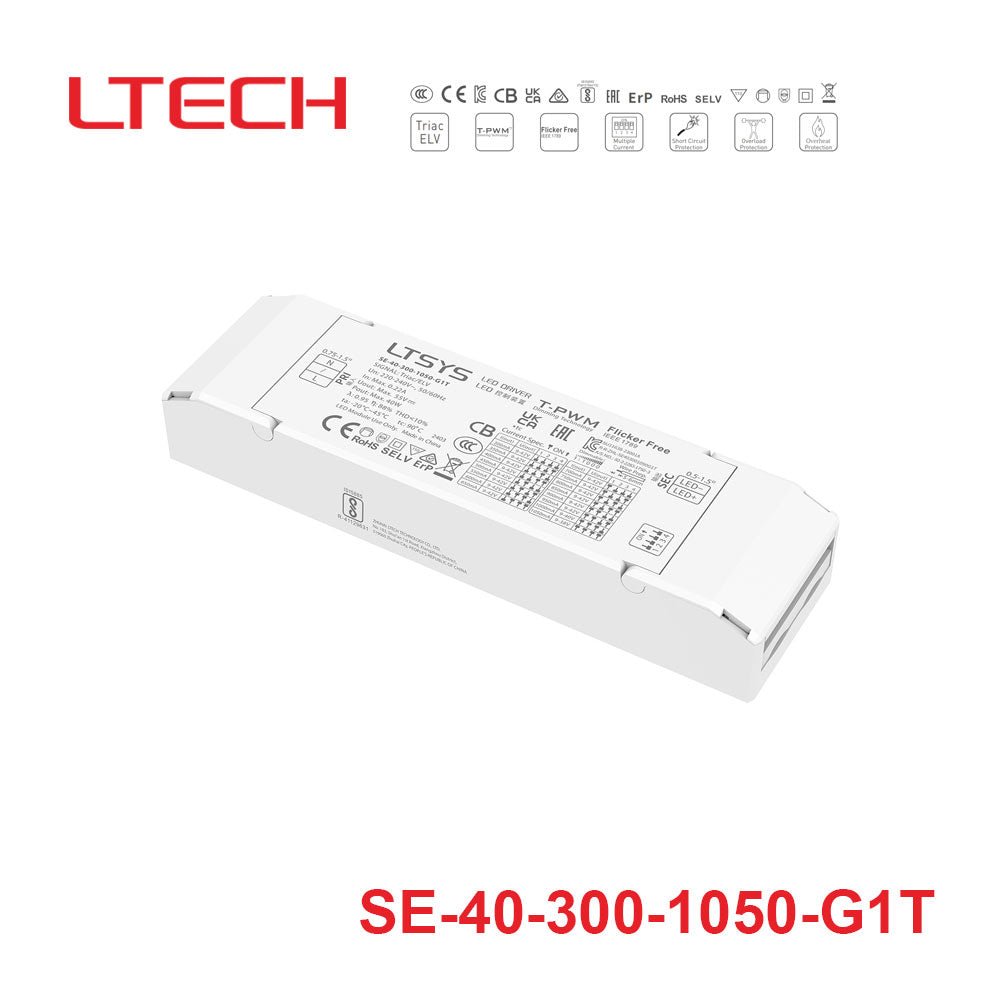

LTECH SE-40-300-1050-G1T 40W 300mA ~ 1050mA CC Triac LED Driver

SKU:
SE-40-300-1050-G1T

$35.62 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Intelligent LED Driver

The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO.
Small size and light weight. The clamshell design and screwless type for strain-relief.
Support Leading edge(Triac), Trailing edge(ELV).
With soft-on and fade-in dimming function, enhancing your visualcomfort.
T-PWM™ dimming technology allows continuous and flicker-freeimages under high-speed photography.
Dimming from 0~100%, down to 0.01%.
The whole dimming process is flicker-free with high frequency exemption level.
Multiple current levels and wide voltage range. Suitable for differentpower of LEDs.
Class 2 LED driver, Safety Extra Low Voltage (SELV).
Innovative thermal management technology intelligently protects thelife of the LED driver.
Overheat, overload, short circuit protection and automatic recovery.
Suitable for indoor light applications of I/II/III type.
Up to 50000-hour lifetime.
5-year warranty (Rubycon capacitor)

Specifications

  • Brand
    Ltech
  • Series
    Ltech Triac Series
  • Power Rating
    40 Watt
  • Output Voltage
    55 Volt
  • Rated Current
    0.3 Ampere
  • Input Voltage
    220V~240V
  • No of Output
    1
  • Dimming Control
    AC Phase Cut Dimming
  • Standards Met
    BIS,CE,ROHS
  • Operation Mode
    Constant Current
  • Operating Temperature
    -20°C~45°C
  • Warranty
    5 Year
  • Length
    5.59 in
  • Width
    1.57 in
  • Height
    0.91 in
  • Weight
    0.36 lb

File Downloads

::specification::
