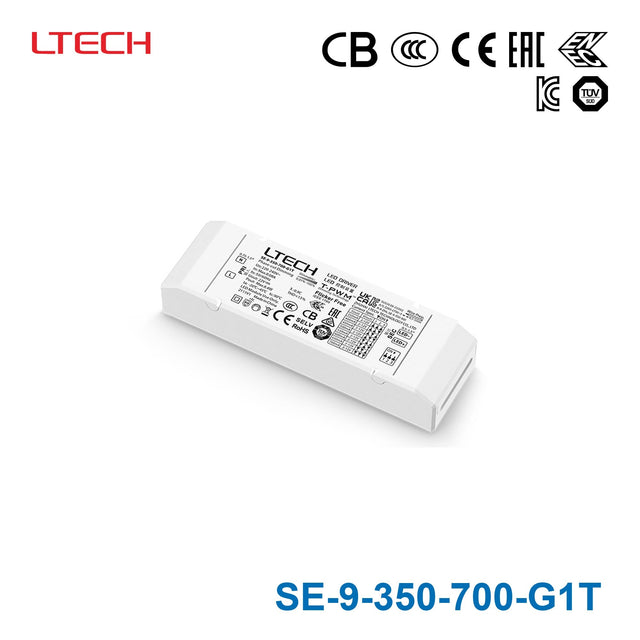

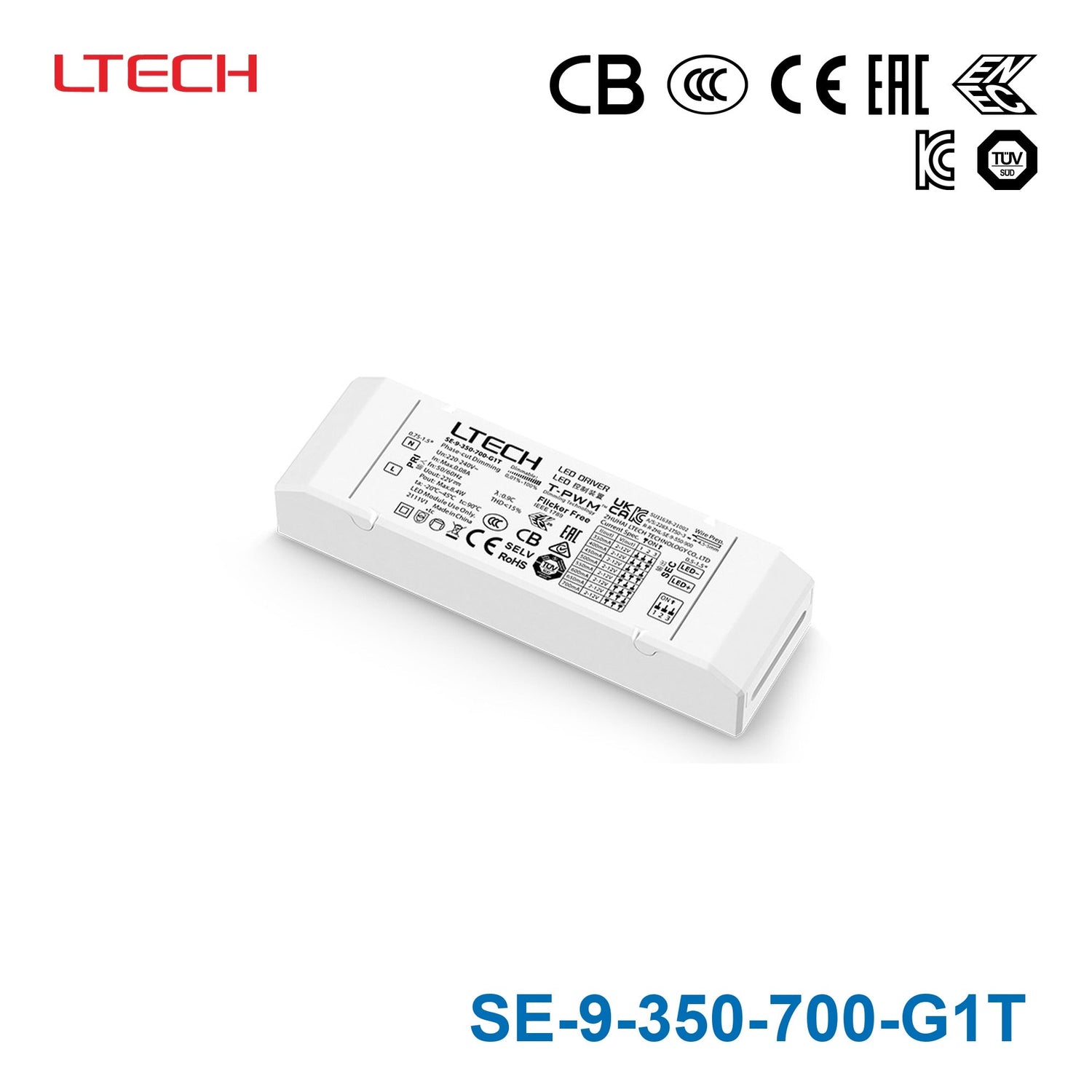

LTECH SE-9-350-700-G1T 8.4W 350mA ~ 700mA CC Triac LED Driver
Description
Description
Intelligent LED Driver
| Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings with small size and light weight. |
| The clamshell design and screwless type for strain-relief, tensile strength of wires complies with the 0.5-1.5mm² wire diameter 60N tensile test,and complies with the tensile test standard GB7000.1-2015/IEC60598-1：2014. |
| Soft-on and fade-in dimming function enhances your visual comfort. |
| T-PWM dimming technology allows continuous and flicker-free images under high-speed shooting. |
| Dimming from 0~100%, down to 0.01%. |
| 0-100% flicker-free dimming with high frequency exemption level. |
| Innovative thermal management technology protects the power life intelligently. |
| Multiple current levels & wide voltage, suitable for different power LEDs. |
| Class 2 LED driver, full protective plastic housing. |
| Comply with Safety Extra Low Voltage standard |
| Over voltage, overload, shortcircuit protection and automatic recovery |
| Suitable for indoor light applications of I/II/III type. |
| Up to 50000-hour lifetime. |
| 5-year warranty (Rubycon capacitor) |
Specifications
Specifications
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating8.4 Watt
-
Output Voltage22 Volt
-
Rated Current0.35 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetCB,CCC,CE,EAC,ENEC,KC,SELV,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~45°C
-
Warranty5 Year
-
Length4.37 in
-
Width1.38 in
-
Height0.79 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED load is the LTECH SE-9-350-700-G1T designed for?
This model is a constant-current LED driver intended for LED loads that require controlled current rather than constant voltage. It is part of LTECH's CC Triac driver range and is suited to low-power LED lighting applications within its stated electrical limits.
What dimming method does the SE-9-350-700-G1T support?
The SE-9-350-700-G1T supports AC phase-cut dimming, commonly referred to as Triac dimming. That makes it a fit for applications where phase-cut dimming compatibility is required from the driver itself.
What are the main electrical specifications of this LED driver?
This model is rated at 8.4W with an output voltage of 22V. The listed rated current is 350mA, and the product name identifies it within LTECH's 350mA to 700mA constant-current Triac driver series.
What makes this driver different from a constant-voltage LED power supply?
The SE-9-350-700-G1T is a constant-current driver, so it is intended for LED loads that are specified by drive current rather than by a fixed output voltage supply. Buyers comparing it to constant-voltage power supplies should match it only to fixtures or modules that call for a constant-current driver.
What operating temperature range is this driver rated for?
This LED driver is rated for ambient temperatures from -20°C to 45°C. That range is important when evaluating whether the product is suitable for the intended operating environment.
What physical and durability features does the LTECH SE-9-350-700-G1T offer?
LTECH describes this model as using a V0 flame-resistant polycarbonate housing from SAMSUNG/COVESTRO, with a compact and lightweight form factor. It also carries a 5-year warranty, which is a useful indicator for long-term commercial and project-based purchasing.
