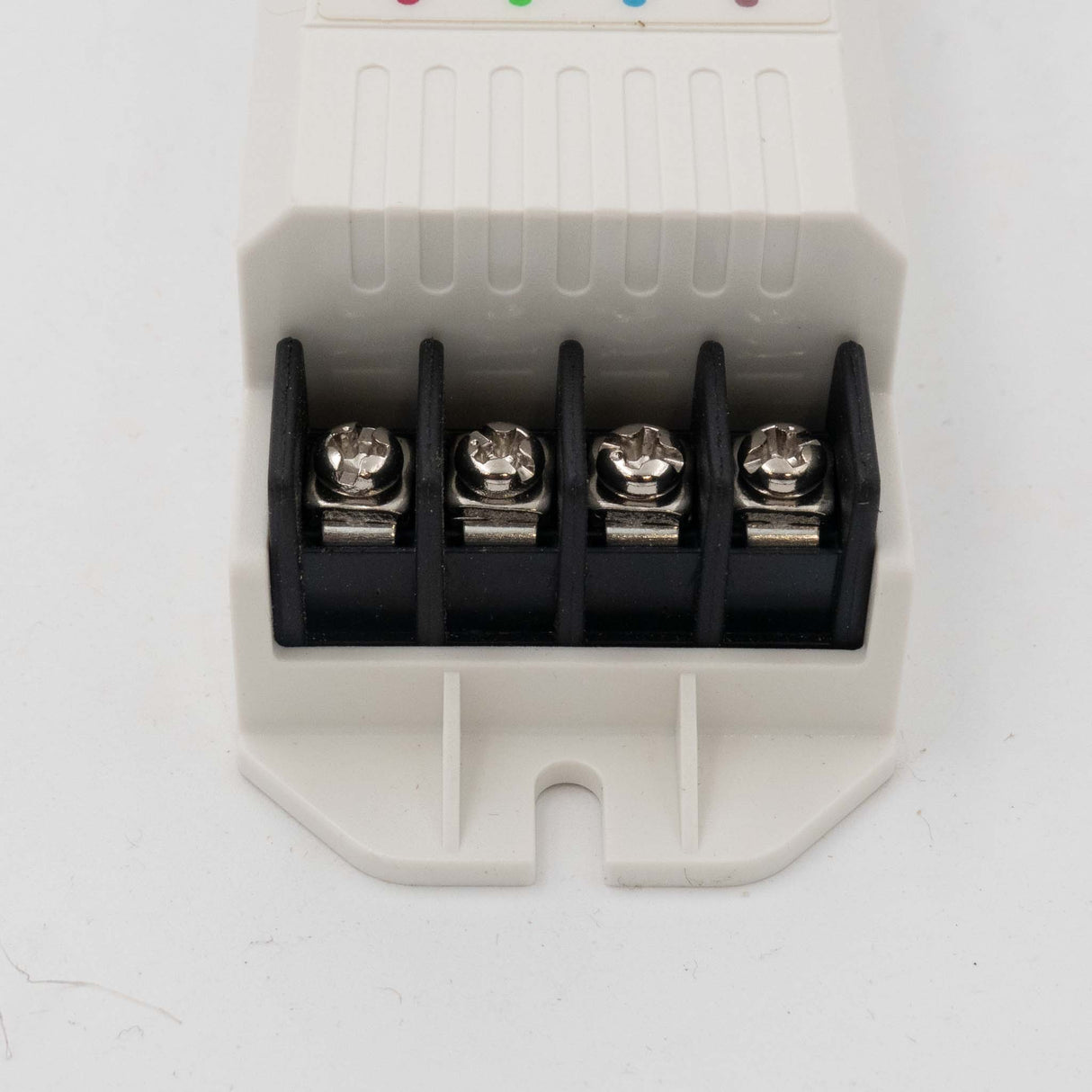

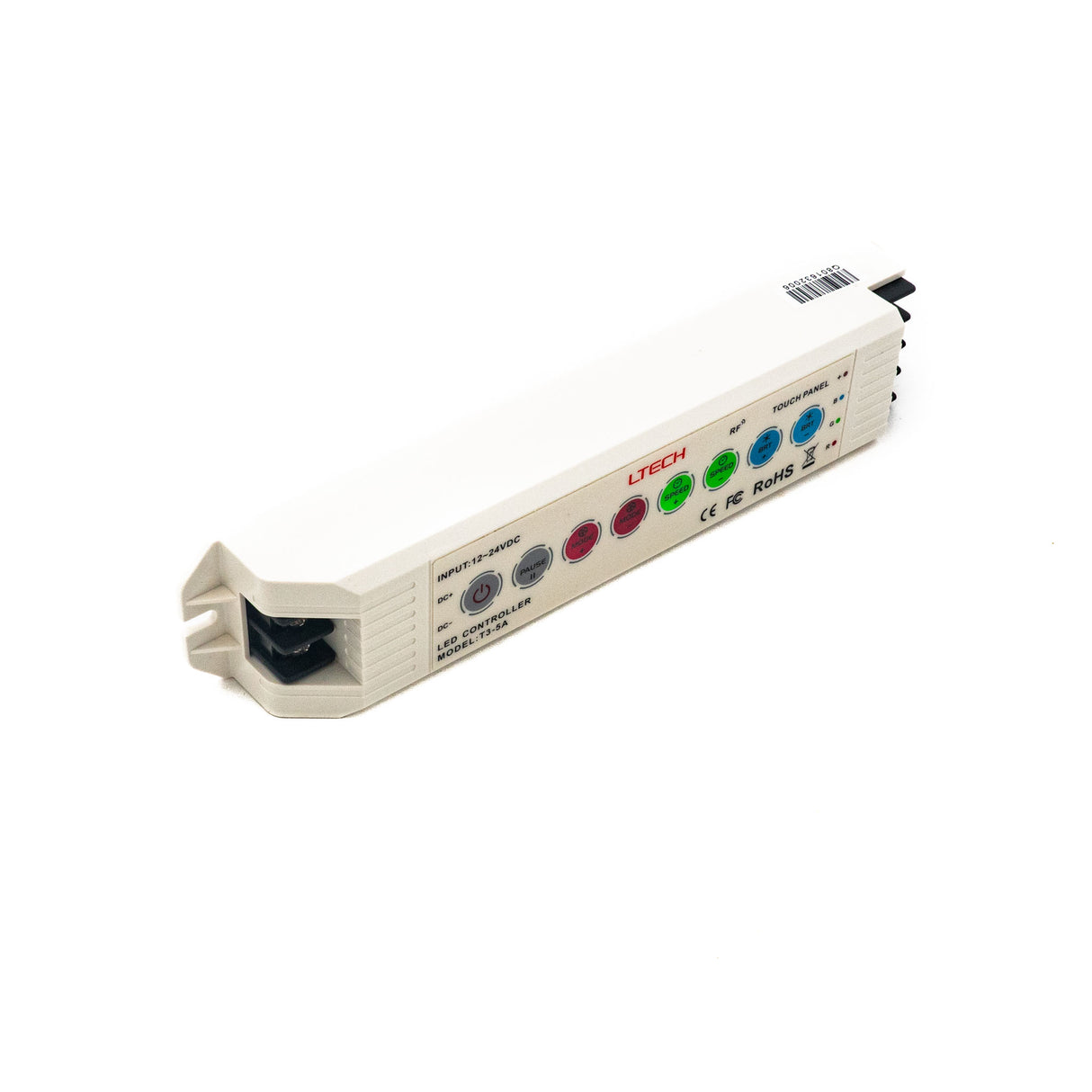

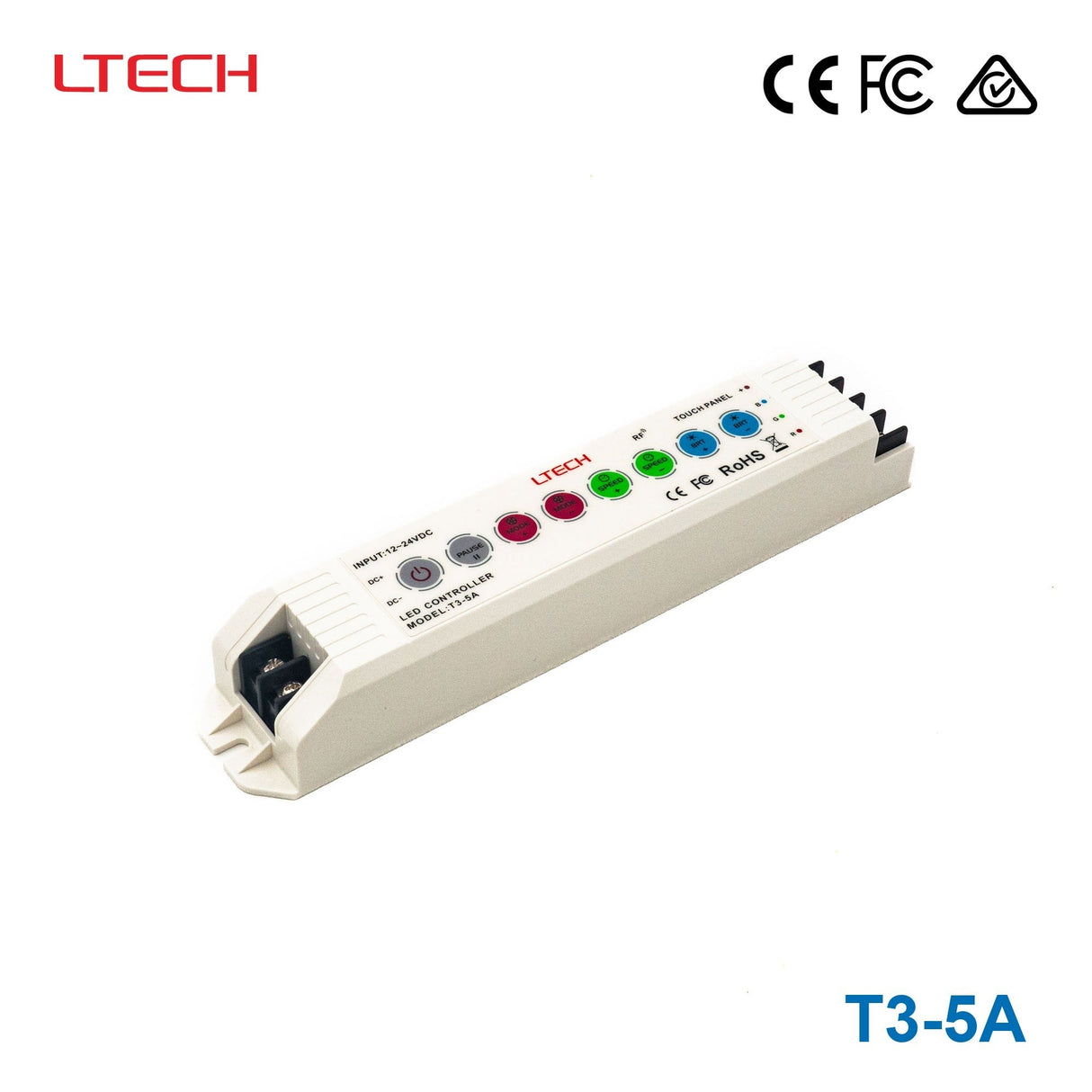

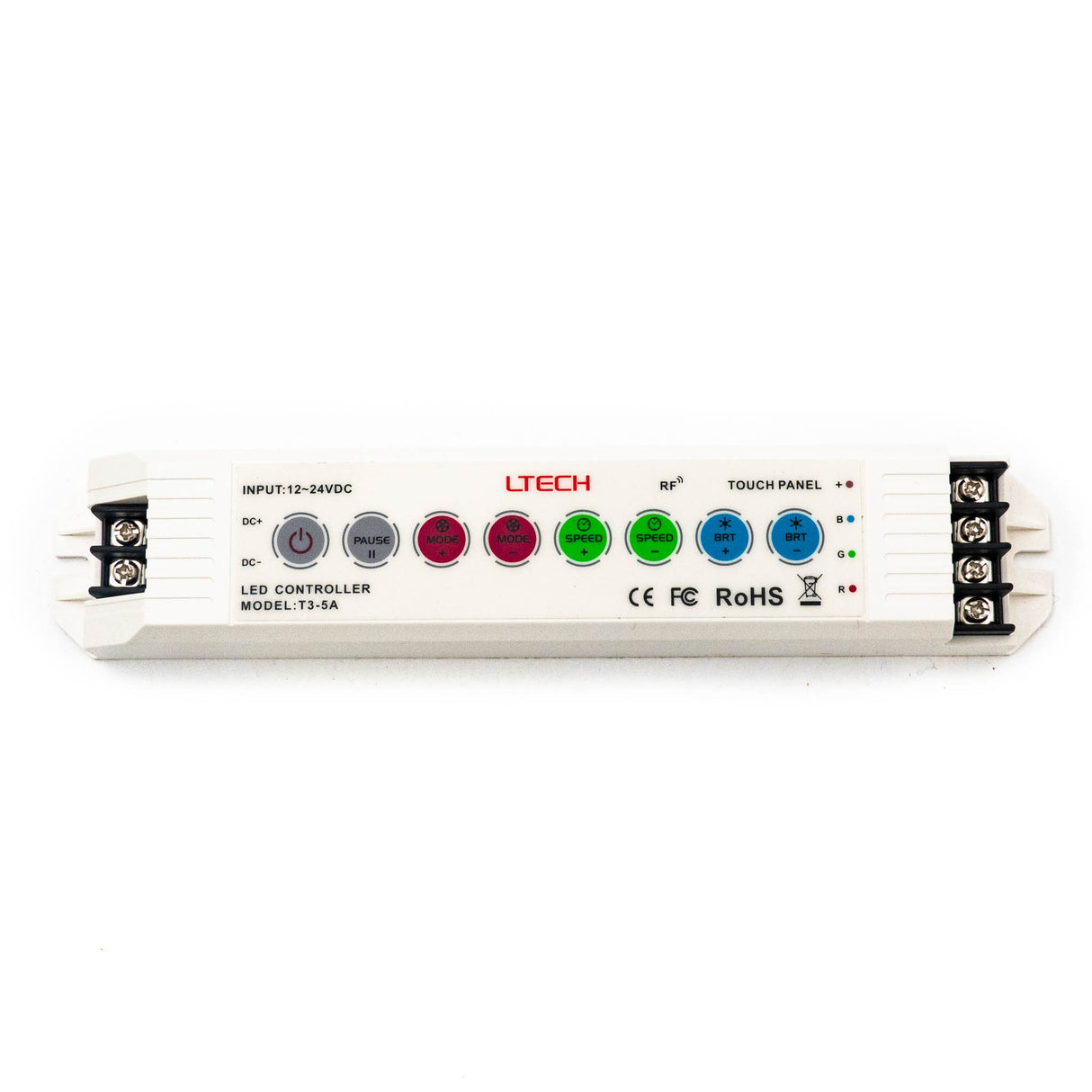

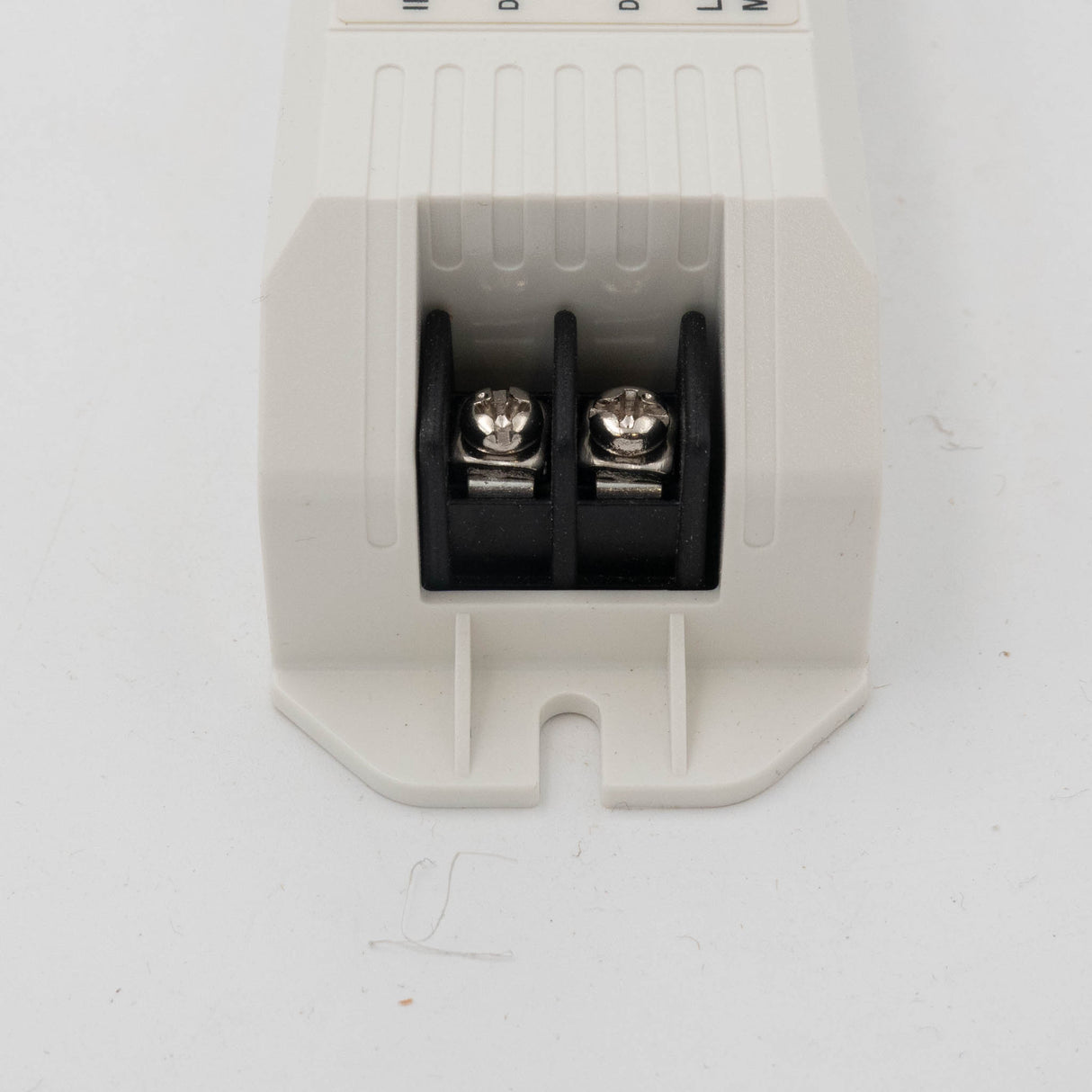

Ltech T3-5A Wireless RF Constant Voltage Controller - 3 Channel
Input voltage: DC12V-DC24V Max current load: 5A×3CH Max 15A Max output power: 180W/360W(12V/24V) Control button: 8 touch button Compatible remote control: workable with T3, T3M, T3X
Working temperature: -30℃～55℃
Dimension: L211×W40×H30mm
Package size: L215×W42×H32mm
Weight (G.W.): 180g
-
BrandLtech
-
SeriesLtech T Series
-
Power Rating360 Watt
-
Output Voltage24 Volt
-
Rated Current15 Ampere
-
Input Voltage12V~24V
-
No of Output3
-
Dimming ControlRF Signal
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length8.31 in
-
Width1.57 in
-
Height1.18 in
-
Weight0.37 lb
::specification::
Frequently Asked Questions
What type of LED system is the Ltech T3-5A designed for?
The Ltech T3-5A is a wireless RF constant voltage controller for DC 12V to DC 24V lighting systems. It is a 3-channel model, making it suitable for multi-channel constant voltage LED applications where separate channel control is needed.
What are the electrical ratings of the Ltech T3-5A?
This controller accepts DC12V to DC24V input voltage and supports a maximum load of 5A per channel, with 15A maximum total current. Its maximum output power is 180W at 12V and 360W at 24V.
How many channels does the Ltech T3-5A have?
The T3-5A is a 3-channel controller. That gives it more control flexibility than a single-channel dimmer when a lighting application uses multiple constant voltage output channels.
Which remote controls are compatible with the Ltech T3-5A?
According to the product specifications, the T3-5A is compatible with the Ltech T3, T3M, and T3X remote controls. It uses RF dimming control, so it is intended for use with supported wireless RF control devices in that series.
Can the Ltech T3-5A be used in demanding temperature conditions?
The rated working temperature range for this model is -30°C to 55°C. That makes it suitable for applications that require operation across both low and elevated ambient temperatures within that specified range.
What are the physical size and warranty details for the Ltech T3-5A?
The controller dimensions are 211 x 40 x 30 mm, and the listed gross weight is 180 g, with product weight shown as 0.170 kg. This model also carries a 5-year warranty period.
