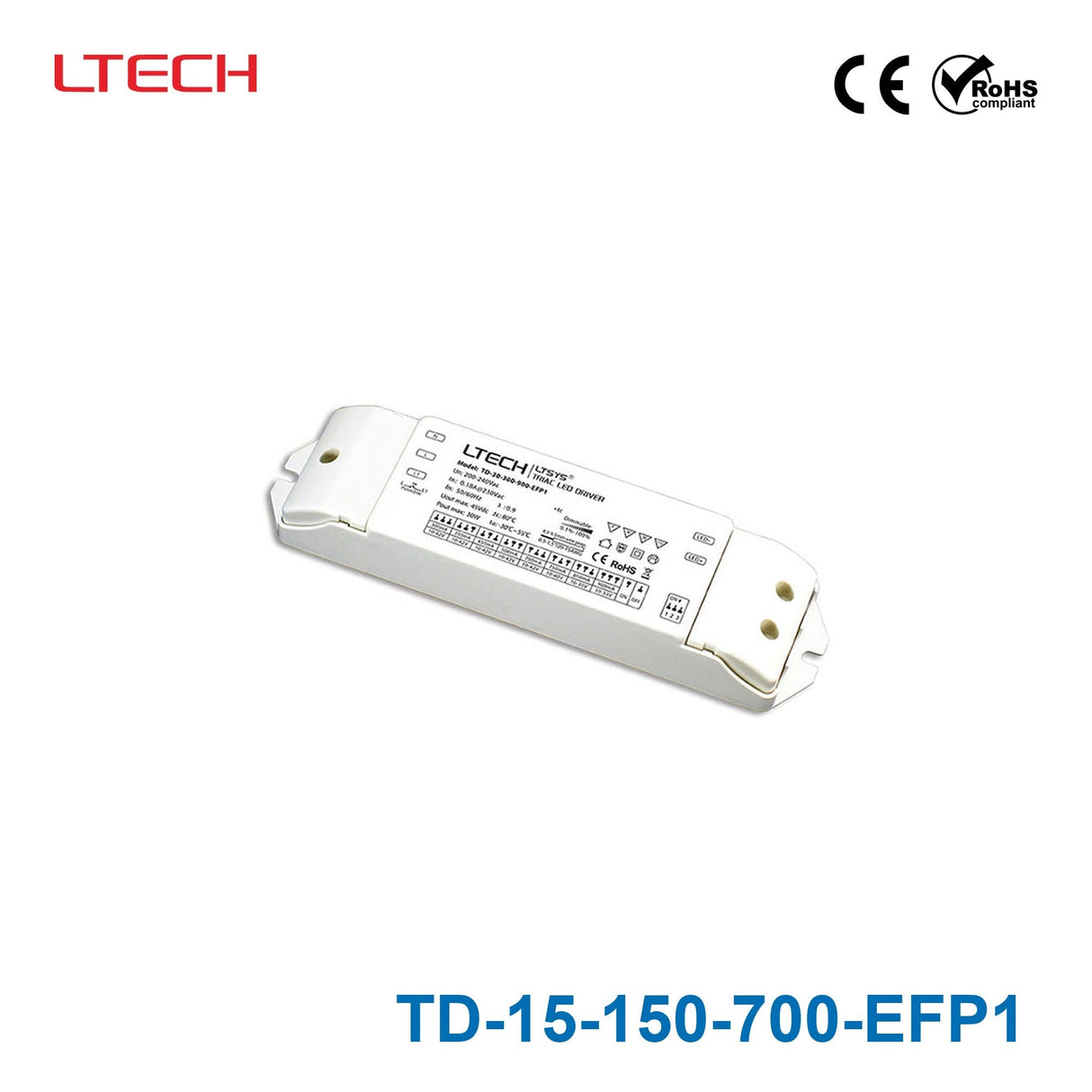

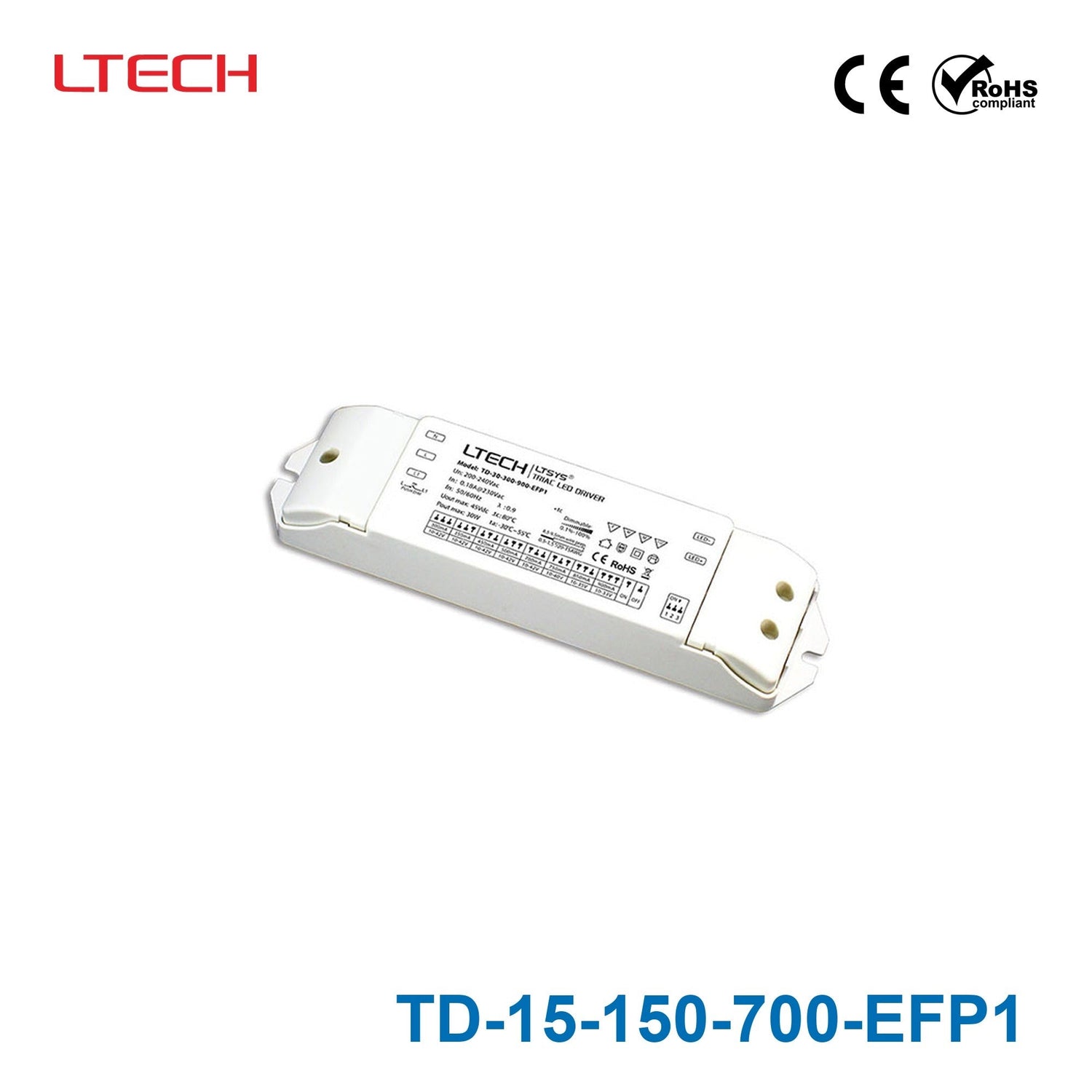

LTECH TD-15-150-700-EFP1 15W 150mA ~ 700mA CC Triac LED Driver - Se...
Description
Description
- Support Leading edge (Triac)
- Trailing edge (ELV) and Push Dimmer.
- Built-in SCM
- dimming curve and smoothing time can be customized.
- T-PWM digital dimming
- present a perfect visual experience.
- Dimming range: 0~100%
- dimming depth: Max. 0.01%.
- Flicker-free (IEEE 1789)
- achieve the level of exemption assessment.
- Innovative thermal management technology
- intelligent power life protection.
- Multi-current & wide voltage
- suitable for different power LED.
- Over load / Over-heat / Short circuit protection
- recover automatically.
- Class 2 power supply. Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard.
- Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ
Specifications
Specifications
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating15 Watt
-
Output Voltage45 Volt
-
Rated Current0.15 Ampere
-
Input Voltage200V~240V
-
No of Output1
-
Dimming ControlPWM
-
Standards MetCE,ROHS,SELV
-
Operation ModeConstant Current
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.89 in
-
Height1.18 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED driver is the LTECH TD-15-150-700-EFP1?
The LTECH TD-15-150-700-EFP1 is a 15W constant current LED driver with selectable output current from 150mA to 700mA. It is designed for dimmable LED applications and supports both leading-edge (Triac) and trailing-edge (ELV) dimming.
What dimming methods does this LED driver support?
This model supports leading-edge Triac dimming, trailing-edge ELV dimming, and push dimming. LTECH also specifies T-PWM digital dimming, a 0-100% dimming range, and very deep dimming performance down to a maximum of 0.01%.
Is the TD-15-150-700-EFP1 suitable for flicker-sensitive lighting applications?
Yes. LTECH states that this driver is flicker-free under IEEE 1789 and achieves the exemption assessment level. That makes it a strong option for projects where visual comfort and reduced flicker are important.
What kinds of LED applications is this driver best suited for?
This driver is intended for constant current power LED applications that need dimming and flexible current selection. Its multi-current design and support for both Triac and ELV dimming make it useful for commercial and residential LED lighting projects with varying fixture requirements.
What are the key electrical and operating limits of this model?
The TD-15-150-700-EFP1 is rated at 15W with an output voltage up to 45V. LTECH lists an operating temperature range of -20°C to 50°C and a 5-year warranty period for this model.
Other TD-15 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| LTECH TD-15-150-400-E1P1 15W 150mA ~ 400mA CC Triac LED Driver - Selectable Output | 15W | 45V | 0.15A | Indoor | $23.75 | View |
| LTECH TD-15-100-400-E1P1 15W 100mA ~ 400mA CC Triac LED Driver - Selectable Output | 15W | 45V | 0.1A | — | $24.48 | View |
