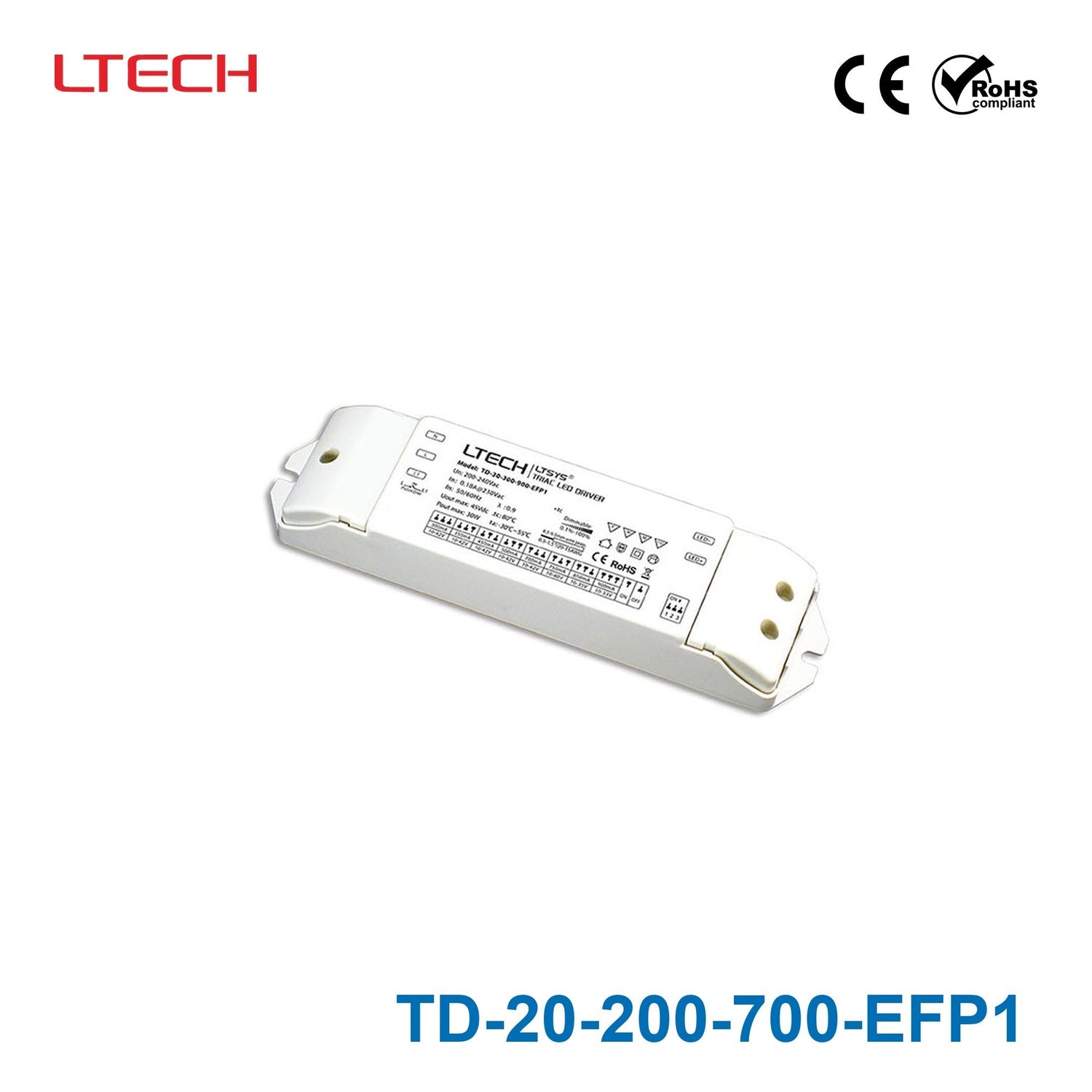

LTECH TD-20-200-700-EFP1 20W 200mA ~ 700mA CC Triac LED Driver - Se...
Description
Description
- Support Leading edge (Triac)
- Trailing edge (ELV) and Push Dimmer.
- Built-in SCM
- dimming curve and smoothing time can be customized.
- T-PWM digital dimming
- present a perfect visual experience.
- Dimming range: 0~100%
- dimming depth: Max. 0.01%.
- Flicker-free (IEEE 1789)
- achieve the level of exemption assessment.
- Innovative thermal management technology
- intelligent power life protection.
- Multi-current & wide voltage
- suitable for different power LED.
- Over load / Over-heat / Short circuit protection
- recover automatically.
- Class 2 power supply. Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard.
- Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ
Specifications
Specifications
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating20 Watt
-
Output Voltage45 Volt
-
Rated Current0.2 Ampere
-
Input Voltage200V~240V
-
No of Output1
-
Dimming ControlPWM
-
Standards MetCE,ROHS,SELV
-
Operation ModeConstant Current
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.89 in
-
Height1.18 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED applications is the LTECH TD-20-200-700-EFP1 designed for?
The TD-20-200-700-EFP1 is a 20W constant-current Triac LED driver intended for power LED applications that need a selectable output current. Its multi-current design and wide voltage capability make it useful where matching driver output to the LED load is important.
What dimming methods does the TD-20-200-700-EFP1 support?
This model supports leading-edge Triac dimming, trailing-edge ELV dimming, and push dimmer control. It also uses T-PWM digital dimming and provides a 0 to 100% dimming range with very deep dimming performance.
What makes this LED driver different from a fixed-current model?
The TD-20-200-700-EFP1 offers selectable constant-current output from 200 mA to 700 mA instead of a single fixed current. That gives more flexibility when selecting a driver for different power LED requirements within the product's 20W and 45V limits.
What are the key electrical specifications of the TD-20-200-700-EFP1?
This LED driver is rated for 20W maximum power and 45V output voltage. Its rated current is listed at 200 mA, and the product is described as a selectable-output constant-current driver with output current options up to 700 mA.
Is the TD-20-200-700-EFP1 suitable for environments where flicker performance matters?
Yes. The product is described as flicker-free to IEEE 1789 and states it achieves the exemption assessment level. That makes it a stronger choice for projects where visual comfort and dimming quality are important considerations.
What operating temperature range is specified for this LED driver?
The specified operating temperature range is -20°C to 50°C. This helps define where the TD-20-200-700-EFP1 can be used while staying within its stated environmental limits.
What warranty is offered for the LTECH TD-20-200-700-EFP1?
This model includes a 5-year warranty period. For commercial buyers, that can be useful when evaluating lifecycle expectations and long-term maintenance planning.
