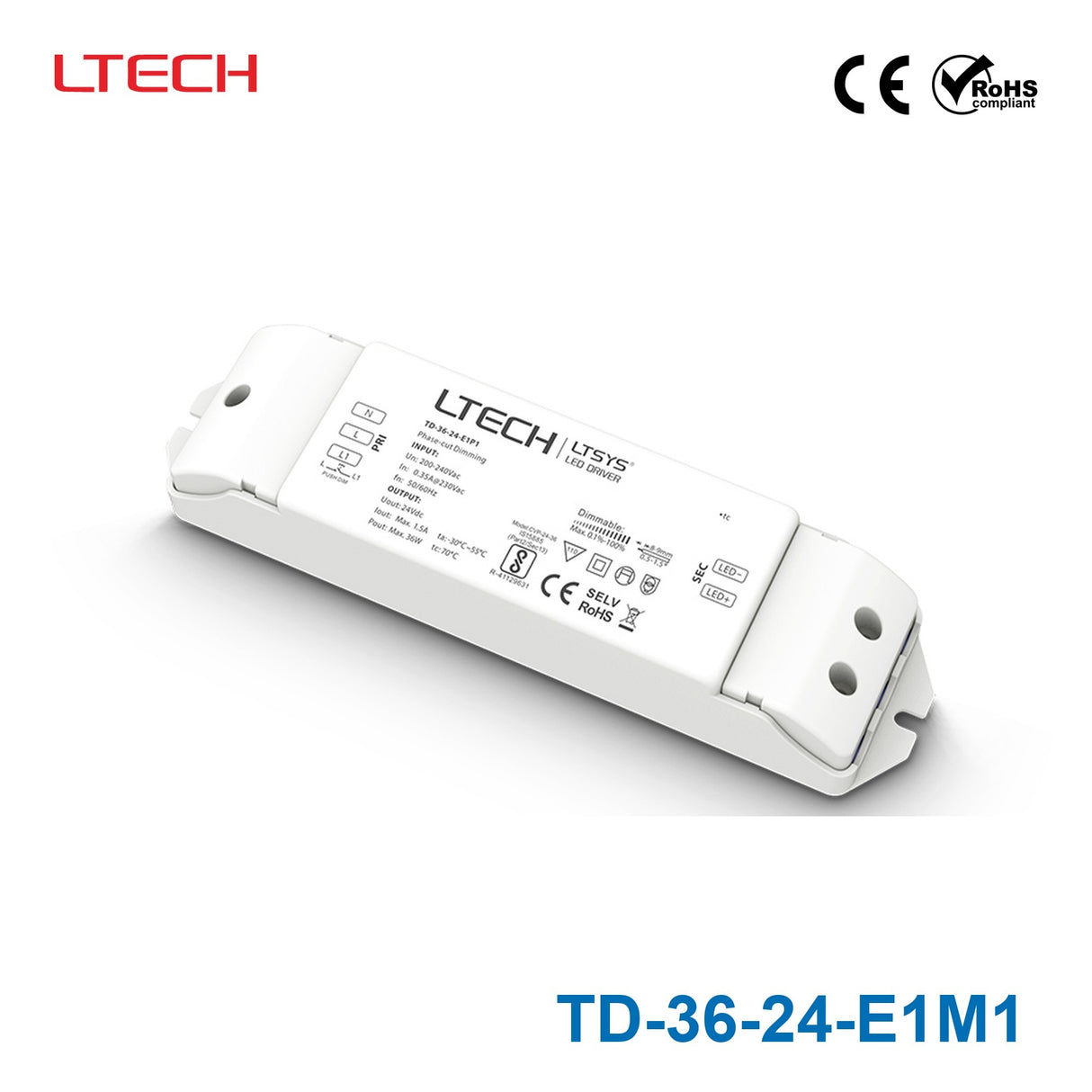

LTECH TD-36-24-E1M1 150W 24VDC CV Triac Driver
$31.96 USD
Unit price /
Unavailable
- Dimming interface: Triac/ELV
- Push DIM
- Apply to leading edge and trailing edge TRIAC dimmers.
- PWM digital dimming
- no alter LED color rendering index.
- No flicker in high-definition video camera.
- Dimming range from 0-100%
- LED start at 0.1% possible.
- Efficiency > 87%.
- Short circuit / Over-heat / Over load protection.
- Class 2 power supply. Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard.
- Suitable for indoor environments
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating36 Watt
-
Output Voltage24 Volt
-
Input Voltage200V~240V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.42 lb
