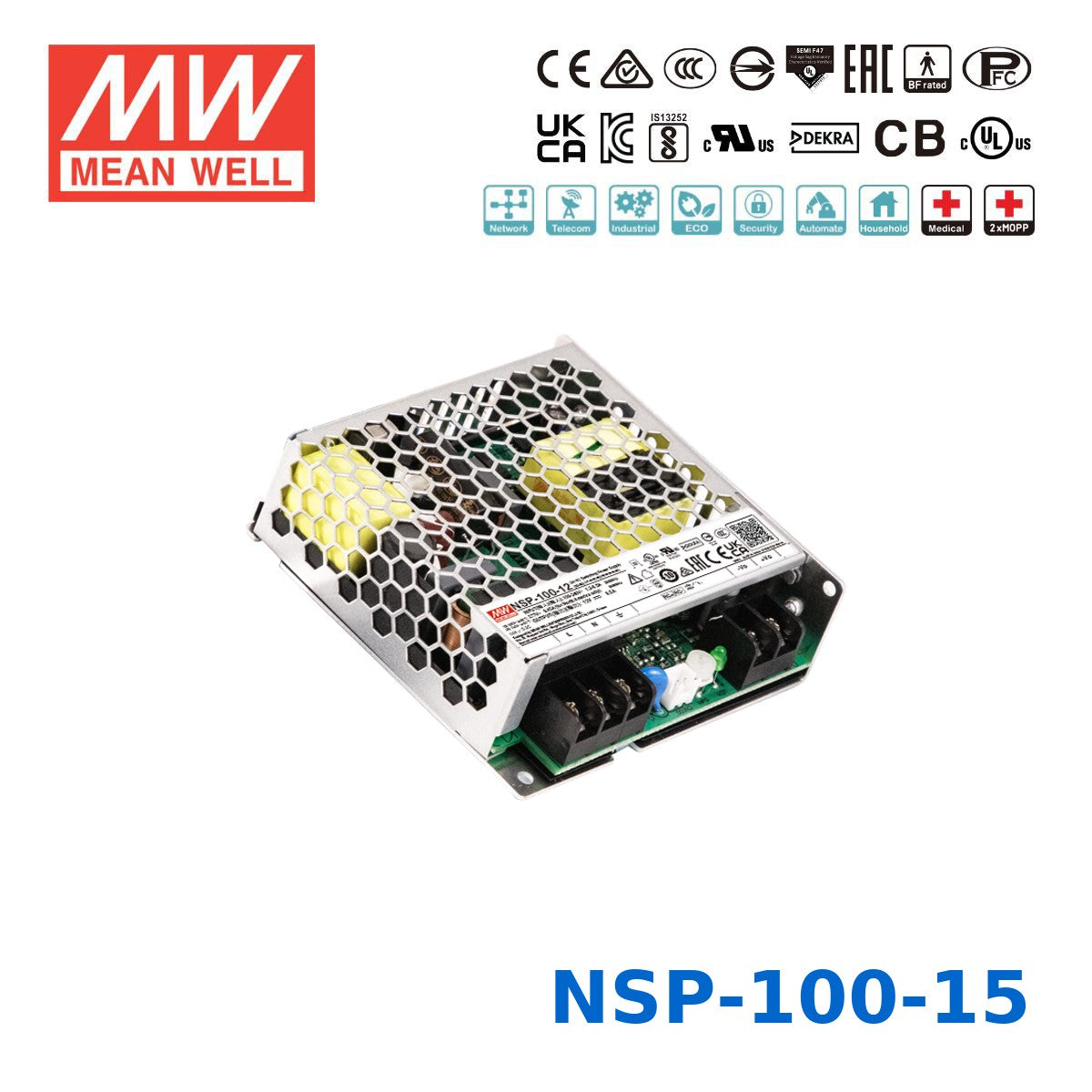

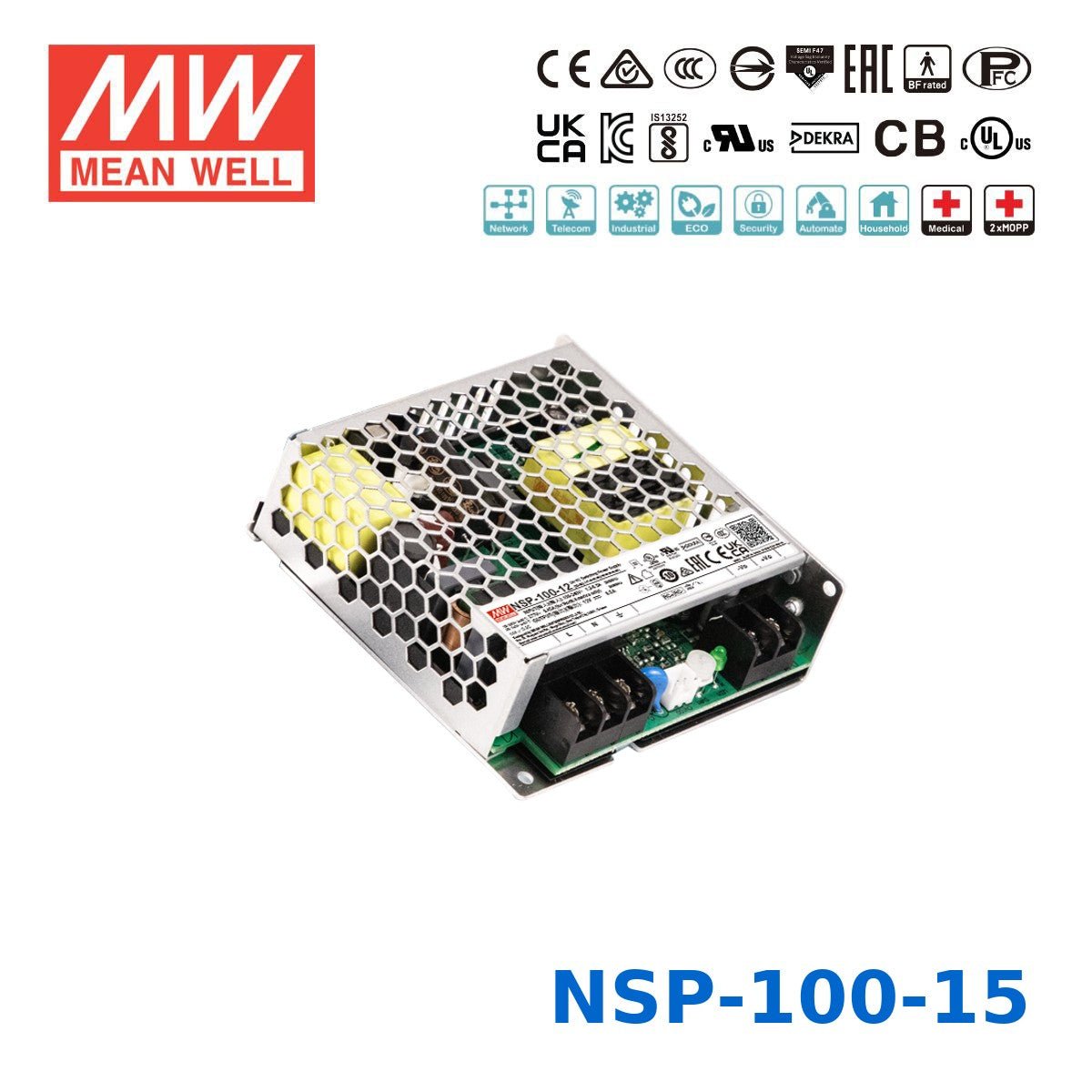

Mean Well 100.5W High Reliable Multi-Industries Power Supply 15V 6.7A
Description
Description
The MEAN WELL NSP-100 series is a 100W high-reliability AC/DC enclosed power supply designed for multi-industry applications, including industrial automation, telecommunications, security systems, and medical devices. Featuring a universal 85–305VAC input with active PFC and efficiency up to 92%, it delivers stable power performance with ultra-low standby consumption below 0.5W. The fanless design and compact 99×97×30 mm form factor enable reliable operation from -40°C to +85°C. With 200% peak power capability, remote ON/OFF control, and comprehensive protections, the NSP-100 series ensures long-term performance under demanding conditions while complying with IEC/EN/UL 62368-1, 60601-1 (BF rated, 2×MOPP), and other global safety standards.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating100.5 Watt
-
Output Voltage15 Volt
-
Rated Current6.7 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Mean Well NSP-100-15 best suited for?
The NSP-100-15 is designed for high-reliability applications such as industrial automation, telecommunications, security systems, and medical devices. Its 15V output, enclosed fanless design, and broad safety approvals make it a strong fit where stable long-term power and low maintenance are important.
Is the NSP-100-15 suitable for demanding industrial environments?
Yes. This model is rated for operation from -40°C to +85°C, with derating above +60°C, and uses a conformal coated PCB for added durability. It is also built as a fanless enclosed supply, which helps reduce maintenance and supports reliable use in harsh industrial settings.
What are the key electrical specifications of the NSP-100-15?
The NSP-100-15 is a 100.5W AC/DC enclosed power supply with a 15V DC output rated at 6.7A. It accepts a universal 85-305VAC or 120-431VDC input range, includes active PFC, and reaches up to 92% efficiency.
Can the NSP-100-15 support equipment with short startup surges or temporary peak loads?
Yes. The NSP-100-15 supports 200% peak power for up to 5 seconds, which can help with loads that have short inrush or startup demand above normal running power. For continuous operation, the load should still remain within the unit's 100.5W and 6.7A rated output.
How does the NSP-100-15 differ from a standard general-purpose 15V power supply?
This model is built for higher-reliability, multi-industry use rather than basic general-purpose duty. It combines a wide operating temperature range, low standby consumption below 0.5W, active PFC, 200% peak capability, remote ON/OFF control, and broad certifications including IEC/EN/UL 62368-1 and 60601-1 with BF rated 2xMOPP compliance.
Is the NSP-100-15 appropriate for medical or regulated equipment projects?
It is designed with medical and other regulated applications in mind, including IEC/EN/UL 60601-1 compliance with BF rated 2xMOPP and leakage current below 350uA. Buyers should still confirm that the full end product and system-level design meet the requirements of their specific equipment and approval pathway.
