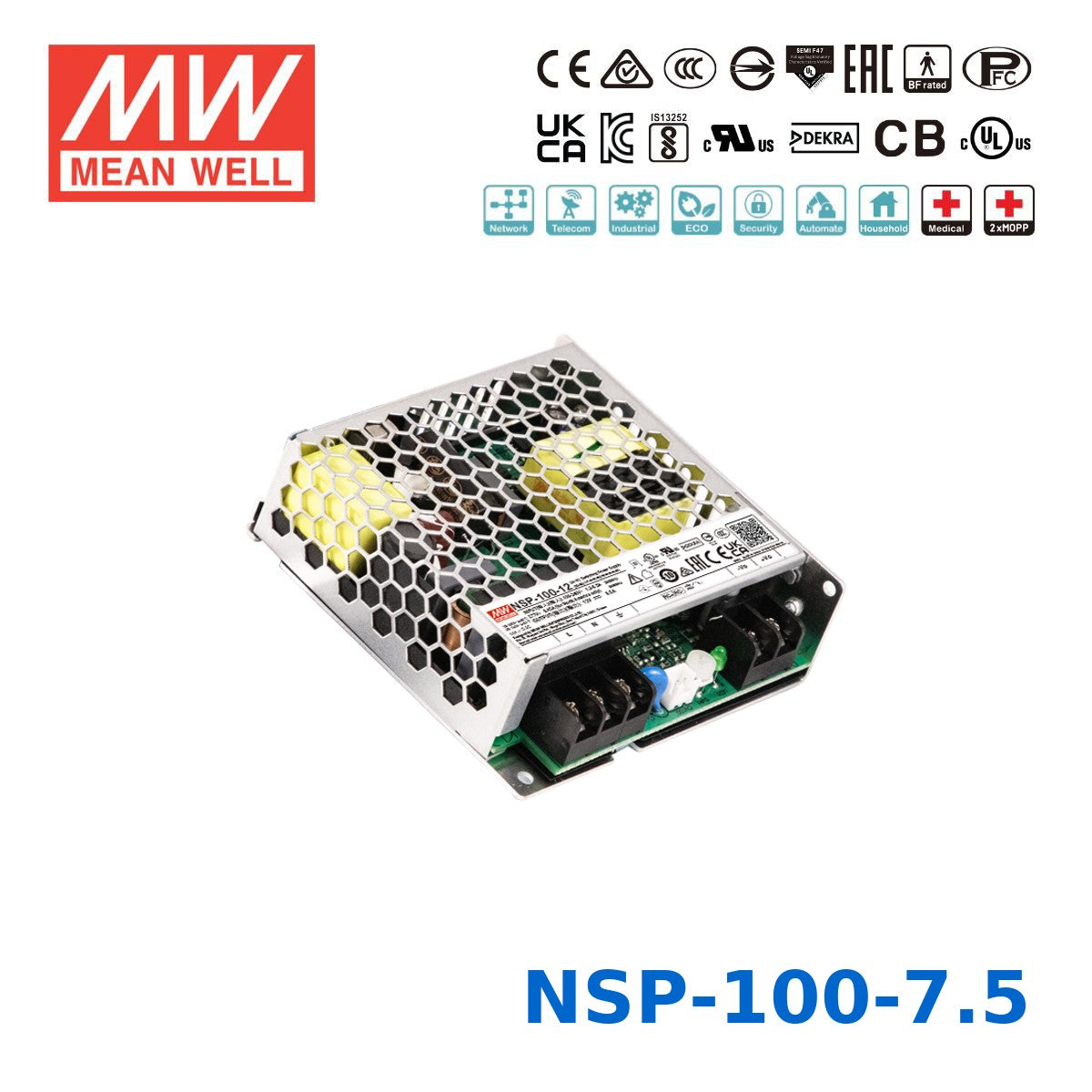

Mean Well 100.5W High Reliable Multi-Industries Power Supply 7.5V 1...
Description
Description
The MEAN WELL NSP-100 series is a 100W high-reliability AC/DC enclosed power supply designed for multi-industry applications, including industrial automation, telecommunications, security systems, and medical devices. Featuring a universal 85–305VAC input with active PFC and efficiency up to 92%, it delivers stable power performance with ultra-low standby consumption below 0.5W. The fanless design and compact 99×97×30 mm form factor enable reliable operation from -40°C to +85°C. With 200% peak power capability, remote ON/OFF control, and comprehensive protections, the NSP-100 series ensures long-term performance under demanding conditions while complying with IEC/EN/UL 62368-1, 60601-1 (BF rated, 2×MOPP), and other global safety standards.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating100.5 Watt
-
Output Voltage7.5 Volt
-
Rated Current13.4 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well NSP-100-7.5 provide?
The NSP-100-7.5 is a 100.5W enclosed AC/DC power supply with a 7.5V DC output and a rated current of 13.4A. It is designed for applications that need a stable low-voltage, high-current power source in a compact enclosed format.
What types of applications is the NSP-100-7.5 designed for?
This model is intended for high-reliability use across multiple industries, including industrial automation, telecommunications, security systems, and medical devices. Its feature set and safety certifications make it suitable for demanding equipment where long-term reliability matters.
Can the NSP-100-7.5 operate in harsh temperature conditions?
Yes. The unit is rated for operation from -40°C to +85°C, with derating above +60°C. That wide temperature range makes it a strong fit for industrial environments where ambient conditions can vary significantly.
What makes the NSP-100-7.5 a high-reliability power supply?
The NSP-100-7.5 combines active PFC, efficiency up to 92%, a fanless design, conformal coating, and comprehensive protection functions. It also supports 200% peak power for up to 5 seconds and carries a 5-year warranty, which helps distinguish it for demanding long-life applications.
Is the NSP-100-7.5 suitable for medical or safety-sensitive equipment?
This model includes medical-related compliance details such as IEC/EN/UL 60601-1, BF rating, and 2×MOPP support. It also features very low leakage current below 350µA, which is relevant for medical and other safety-sensitive applications.
What input range does the NSP-100-7.5 support?
The power supply accepts a universal 85-305VAC input range and also supports 120-431VDC input. This broad input range makes it easier to use the same model across different regions and power environments.
Is the NSP-100-7.5 compact enough for space-constrained equipment?
Yes. The unit measures 99 × 97 × 30 mm and weighs about 0.3 kg, so it is relatively compact for a 100W-class enclosed supply. Its fanless construction also helps in designs where low noise and reduced maintenance are important.
