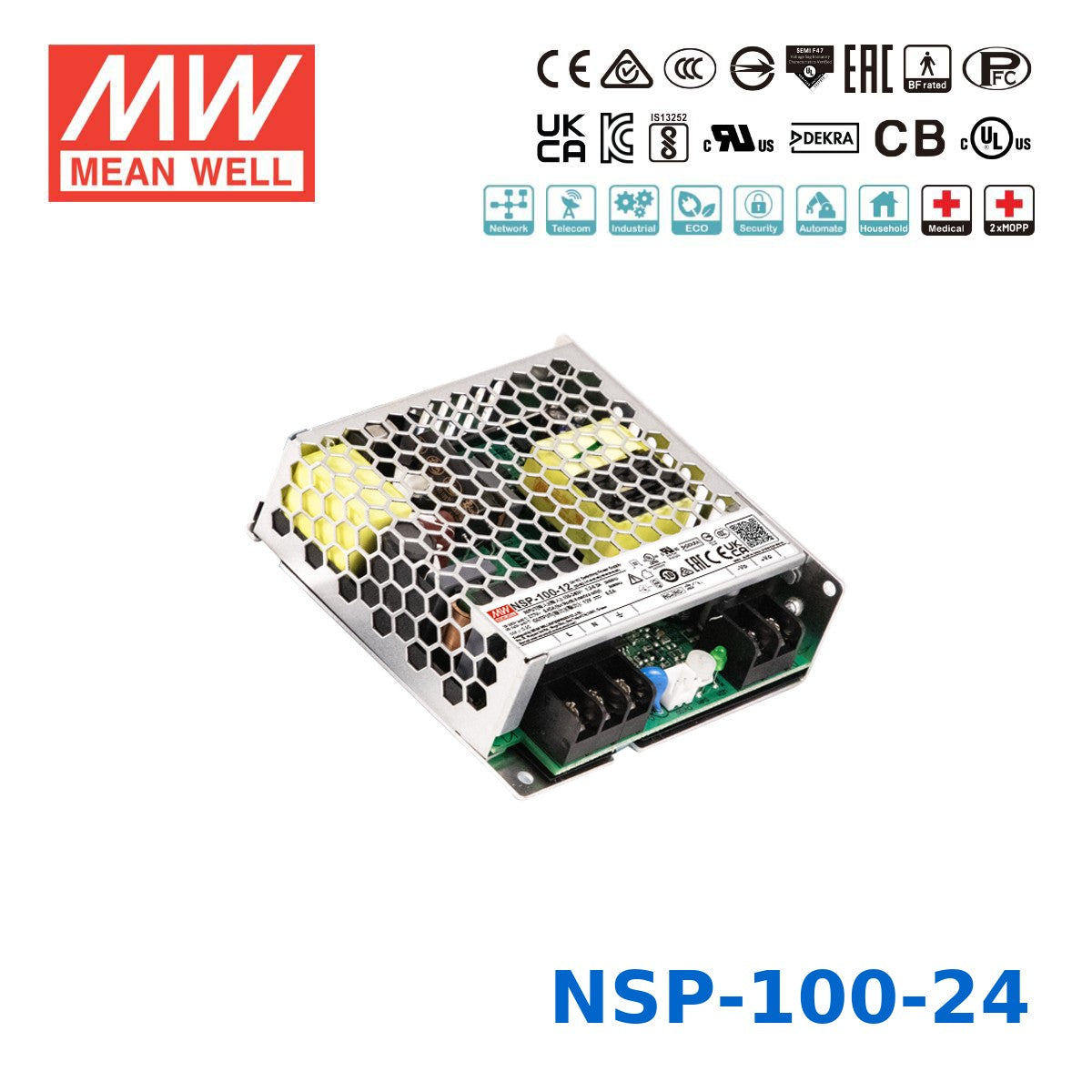

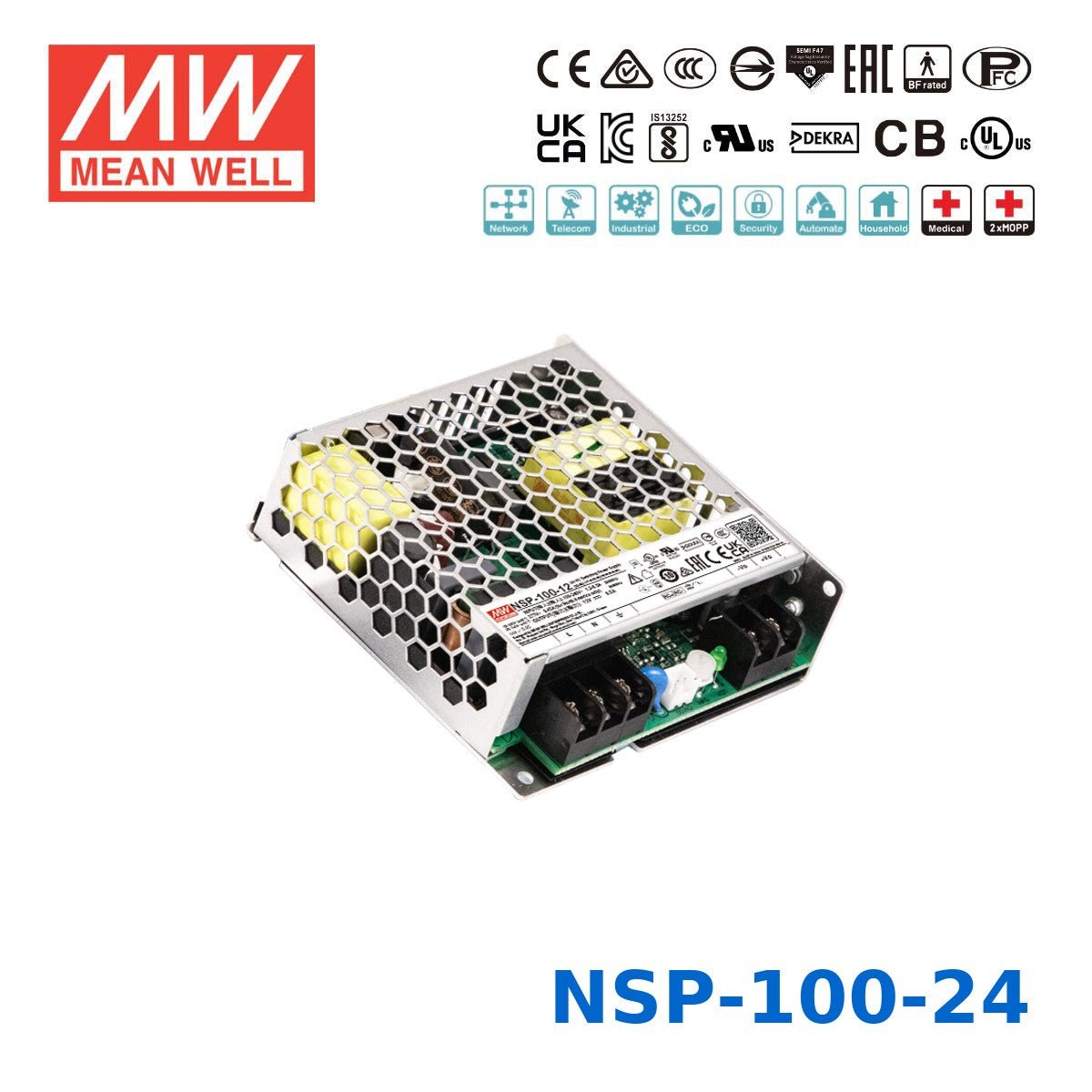

Mean Well 100.8W High Reliable Multi-Industries Power Supply 24V 4.2A
Description
Description
The MEAN WELL NSP-100 series is a 100W high-reliability AC/DC enclosed power supply designed for multi-industry applications, including industrial automation, telecommunications, security systems, and medical devices. Featuring a universal 85–305VAC input with active PFC and efficiency up to 92%, it delivers stable power performance with ultra-low standby consumption below 0.5W. The fanless design and compact 99×97×30 mm form factor enable reliable operation from -40°C to +85°C. With 200% peak power capability, remote ON/OFF control, and comprehensive protections, the NSP-100 series ensures long-term performance under demanding conditions while complying with IEC/EN/UL 62368-1, 60601-1 (BF rated, 2×MOPP), and other global safety standards.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating100.8 Watt
-
Output Voltage24 Volt
-
Rated Current4.2 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Mean Well NSP-100-24 designed for?
The NSP-100-24 is designed for multi-industry use, including industrial automation, telecommunications, security systems, and medical devices. Its high-reliability design, compact enclosed form factor, and broad safety compliance make it suitable for demanding commercial and industrial environments.
What are the main output specifications of the NSP-100-24?
This model provides a 24V DC output rated at 4.2A, with a total power rating of 100.8W. It is intended for applications that need a regulated 24V supply in a compact enclosed power supply format.
What input range does the NSP-100-24 support?
The NSP-100-24 accepts a universal input range of 85-305VAC or 120-431VDC. That wide input range helps it fit a variety of industrial and commercial power environments without requiring a narrowly matched input source.
Is the NSP-100-24 suitable for harsh operating environments?
Yes. The unit is rated for operation from -40°C to +85°C, with derating above +60°C, and it uses a fanless design plus conformal coating to support long-term reliability. These features make it well suited for tough environments where durability and low maintenance matter.
Does the NSP-100-24 support medical or high-safety applications?
Yes, this model is described as suitable for medical devices and complies with IEC/EN/UL 60601-1 with BF rating and 2×MOPP. It also features very low leakage current below 350µA, which is relevant for safety-sensitive applications.
How efficient is the Mean Well NSP-100-24?
The NSP-100-24 reaches efficiency up to 92% and includes active power factor correction with PF greater than 0.98 at full load. It also has very low no-load power consumption below 0.5W, which can help reduce standby energy use.
What protection features are included in the NSP-100-24?
This model includes overload, short circuit, overvoltage, and overtemperature protection. Those built-in protections help support reliable operation in demanding applications where uptime and equipment protection are important.
What makes the NSP-100-24 a good fit for space-constrained equipment?
The NSP-100-24 uses a compact enclosed design measuring 99×97×30 mm and weighs 0.3 kg. Its fanless construction also helps where quiet operation and reduced maintenance are preferred in smaller equipment layouts.
